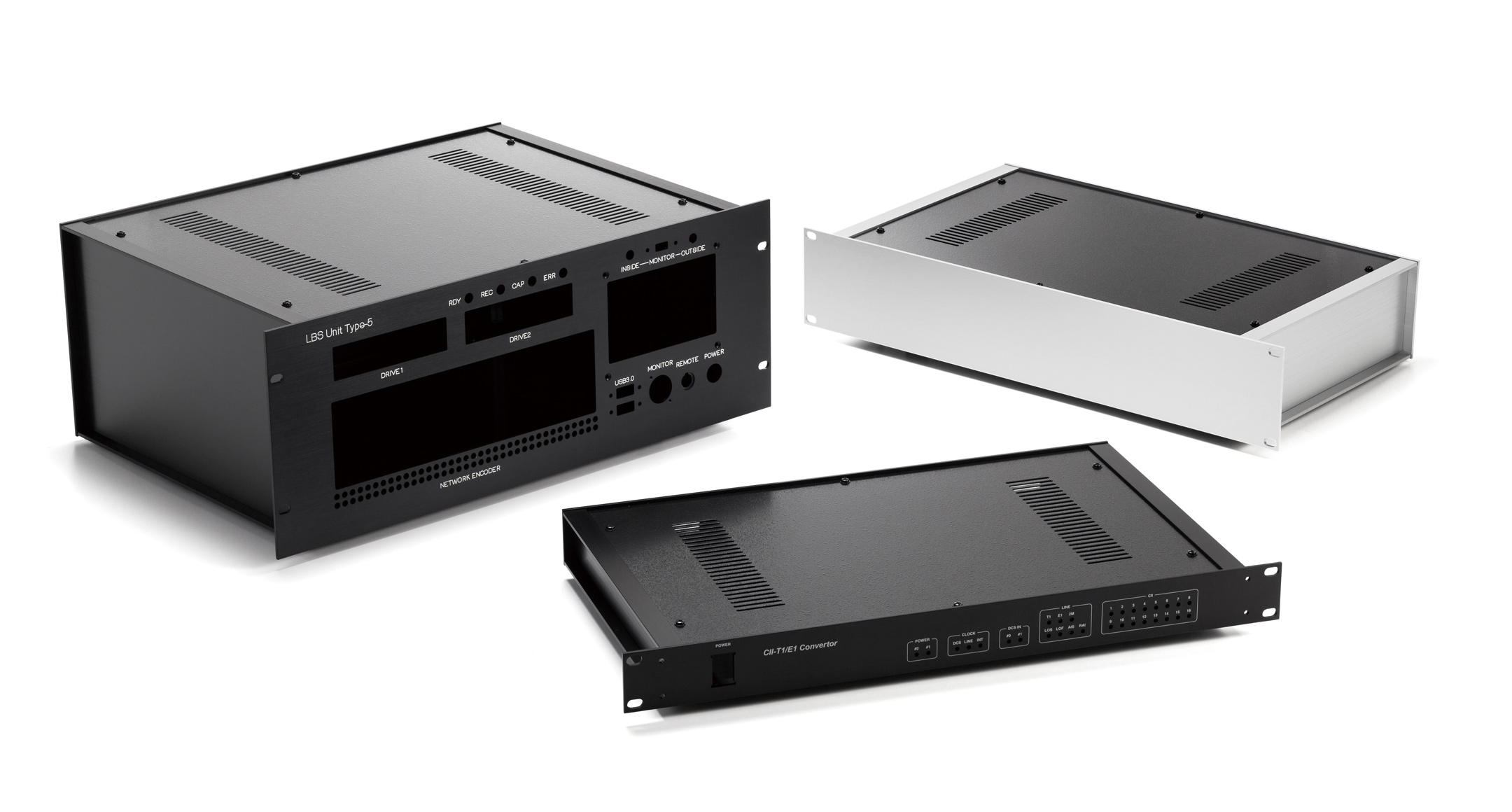

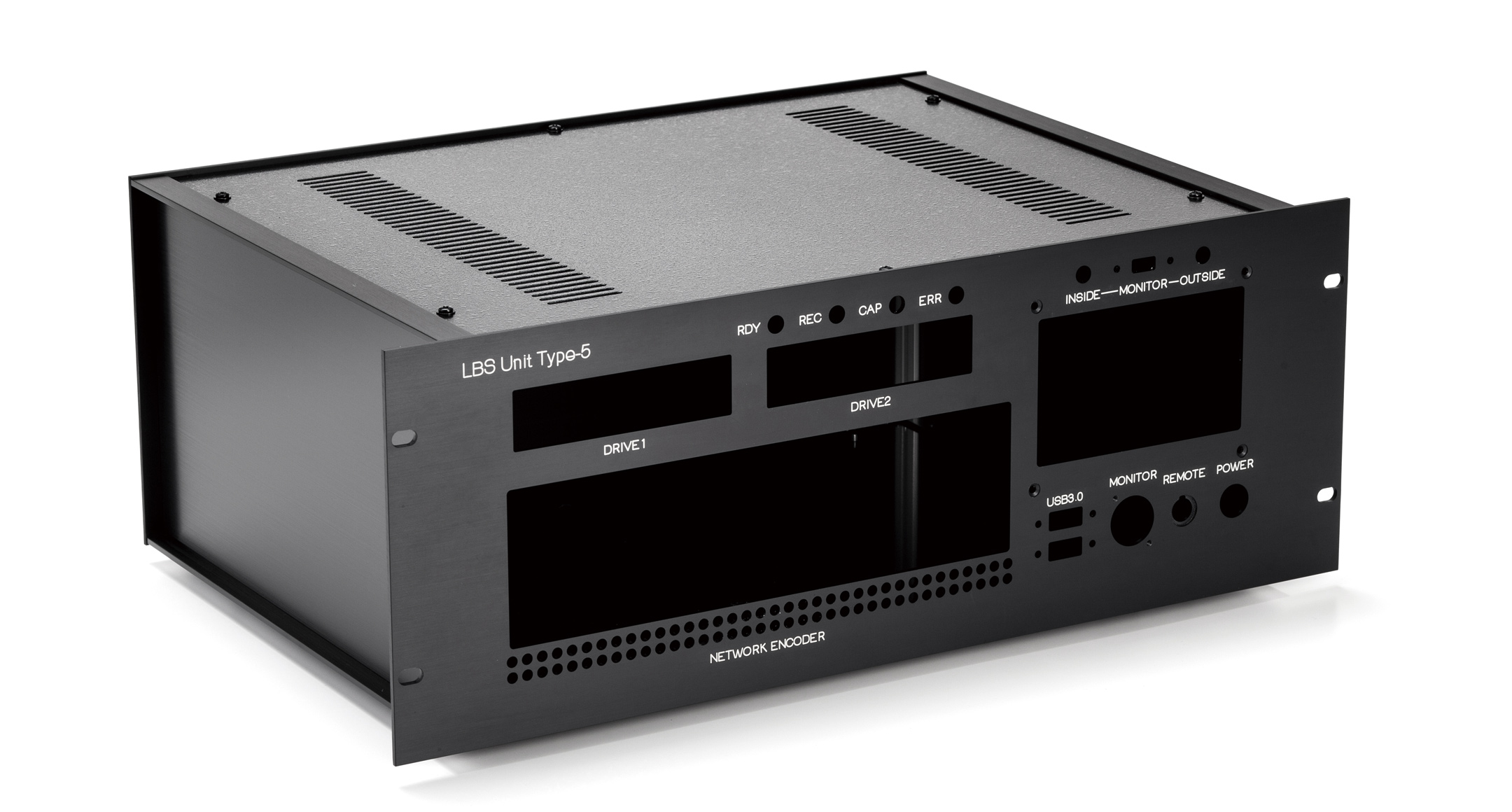

19” rack mount enclosure.

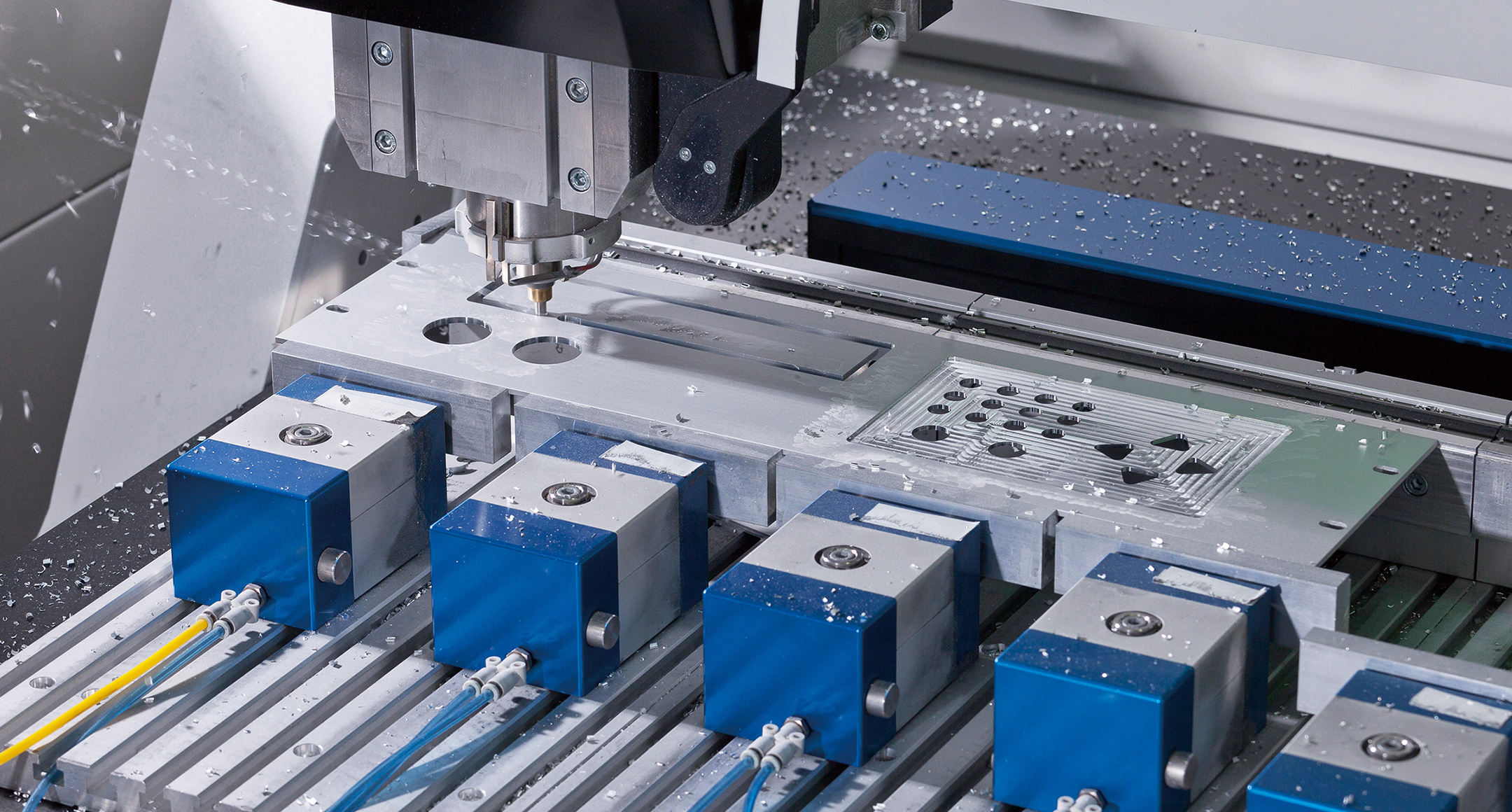

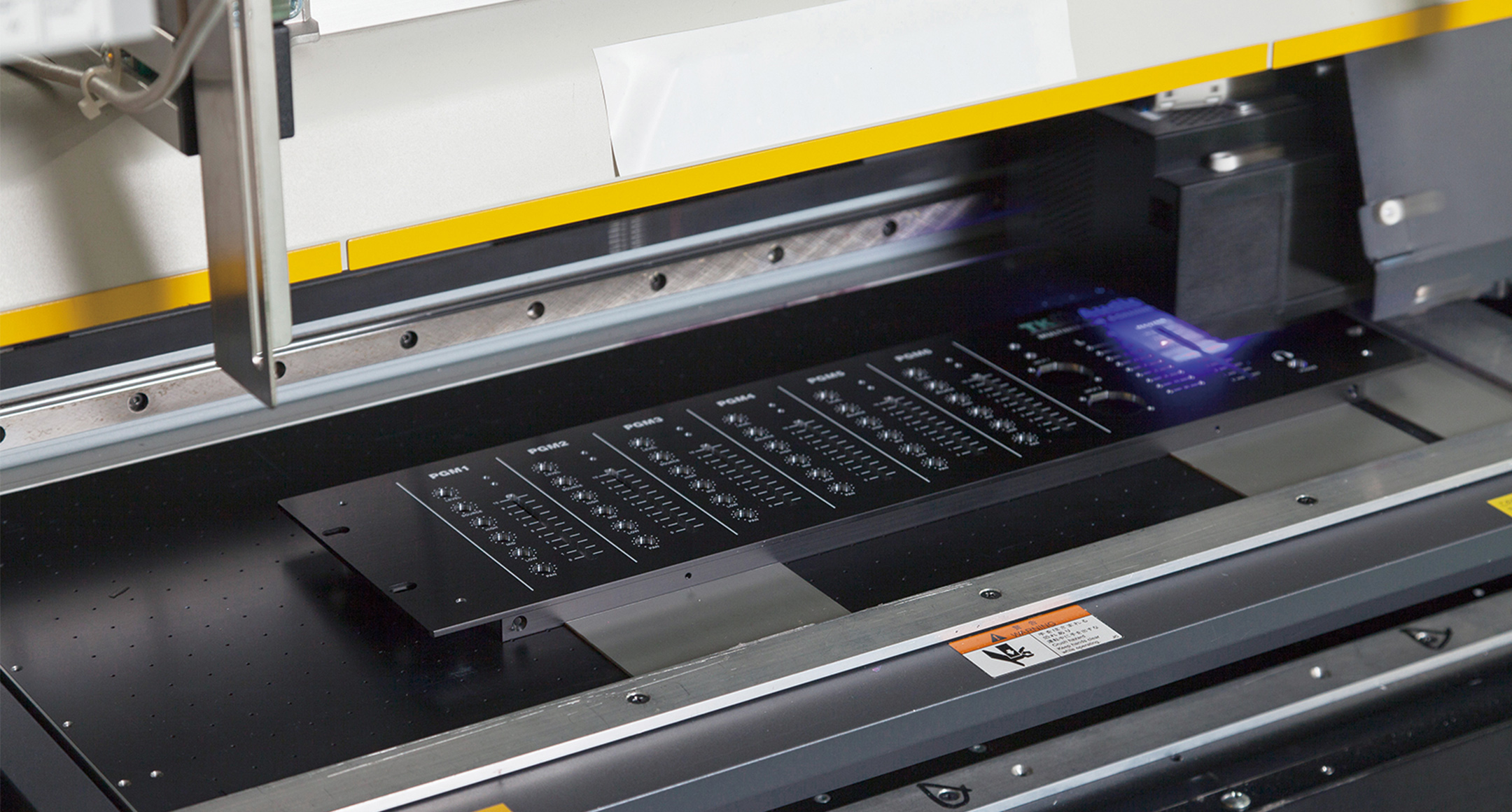

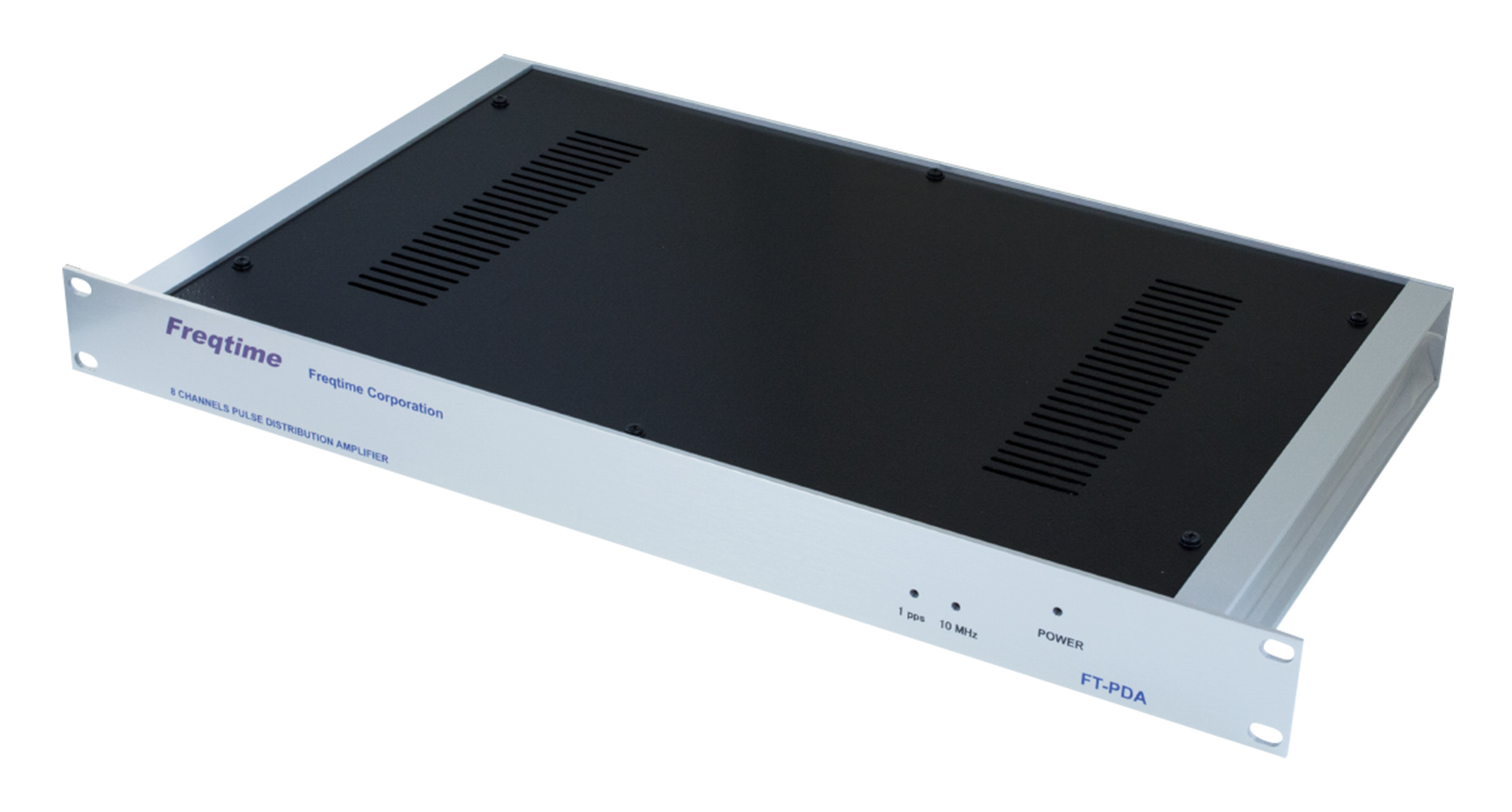

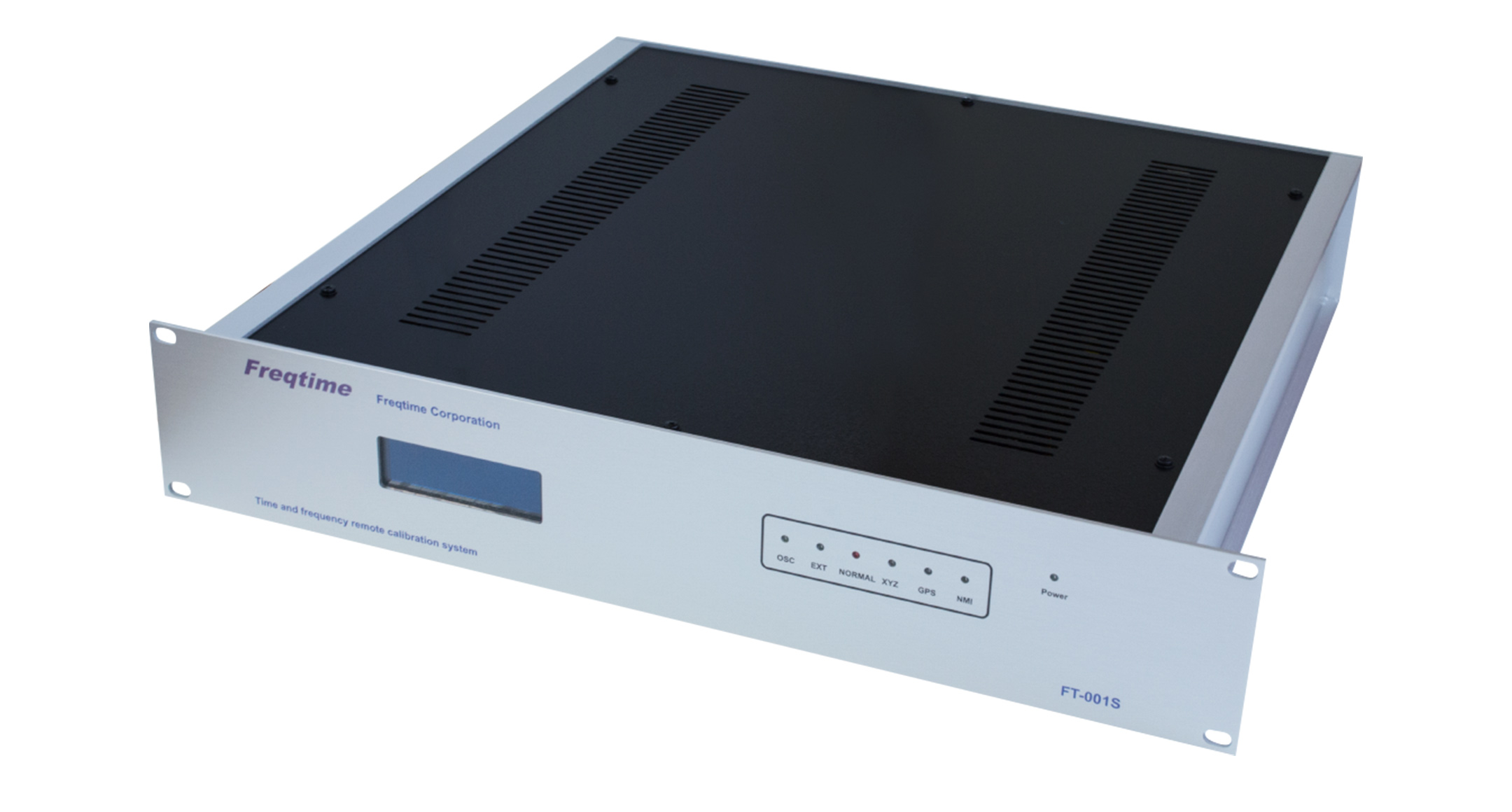

Flat panels allows a wide range of customization to be performed easily, such as milling, inkjet printing, engraving and so on.
Available in 35 different size. (Height 1U to 5U)
Silver and black colors are abailable.
Flat panels allows a wide range of customization to be performed easily, such as milling, inkjet printing, engraving and so on.
Available in 35 different size. (Height 1U to 5U)
Silver and black colors are abailable.
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal dimensions | Color | Weight (g) | DXF | DWG | STP | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | |||||||
| ER44-16B | 482.6 | 44 | 160 | 389 | 27.8 | 154 | Black | 1700 | DXF | DWG | ||
| ER44-16S | 482.6 | 44 | 160 | 389 | 27.8 | 154 | Silver・Black | 1700 | DXF | DWG | ||
| ER44-20B | 482.6 | 44 | 200 | 389 | 27.8 | 194 | Black | 2000 | DXF | DWG | ||
| ER44-20S | 482.6 | 44 | 200 | 389 | 27.8 | 194 | Silver・Black | 2000 | DXF | DWG | ||
| ER44-26B | 482.6 | 44 | 260 | 389 | 27.8 | 254 | Black | 2500 | DXF | DWG | ||
| ER44-26S | 482.6 | 44 | 260 | 389 | 27.8 | 254 | Silver・Black | 2500 | DXF | DWG | ||
| ER44-32B | 482.6 | 44 | 320 | 389 | 27.8 | 314 | Black | 2900 | DXF | DWG | ||
| ER44-32S | 482.6 | 44 | 320 | 389 | 27.8 | 314 | Silver・Black | 2900 | DXF | DWG | ||
| ER44-37B | 482.6 | 44 | 370 | 389 | 27.8 | 364 | Black | 3200 | DXF | DWG | ||
| ER44-37S | 482.6 | 44 | 370 | 389 | 27.8 | 364 | Silver・Black | 3200 | DXF | DWG | ||
| ER44-43B | 482.6 | 44 | 430 | 389 | 27.8 | 424 | Black | 3700 | DXF | DWG | ||
| ER44-43S | 482.6 | 44 | 430 | 389 | 27.8 | 424 | Silver・Black | 3700 | DXF | DWG | ||
| ER44-50B | 482.6 | 44 | 500 | 389 | 27.8 | 494 | Black | 4200 | DXF | DWG | ||
| ER44-50S | 482.6 | 44 | 500 | 389 | 27.8 | 494 | Silver・Black | 4200 | DXF | DWG | ||
| ER88-16B | 482.6 | 88 | 160 | 389 | 71.8 | 154 | Black | 2100 | DXF | DWG | ||
| ER88-16S | 482.6 | 88 | 160 | 389 | 71.8 | 154 | Silver・Black | 2100 | DXF | DWG | ||
| ER88-20B | 482.6 | 88 | 200 | 389 | 71.8 | 194 | Black | 2500 | DXF | DWG | ||
| ER88-20S | 482.6 | 88 | 200 | 389 | 71.8 | 194 | Silver・Black | 2500 | DXF | DWG | ||
| ER88-26B | 482.6 | 88 | 260 | 389 | 71.8 | 254 | Black | 2900 | DXF | DWG | ||
| ER88-26S | 482.6 | 88 | 260 | 389 | 71.8 | 254 | Silver・Black | 2900 | DXF | DWG | ||
| ER88-32B | 482.6 | 88 | 320 | 389 | 71.8 | 314 | Black | 3400 | DXF | DWG | ||
| ER88-32S | 482.6 | 88 | 320 | 389 | 71.8 | 314 | Silver・Black | 3400 | DXF | DWG | ||
| ER88-37B | 482.6 | 88 | 370 | 389 | 71.8 | 364 | Black | 3700 | DXF | DWG | ||
| ER88-37S | 482.6 | 88 | 370 | 389 | 71.8 | 364 | Silver・Black | 3700 | DXF | DWG | ||
| ER88-43B | 482.6 | 88 | 430 | 389 | 71.8 | 424 | Black | 4200 | DXF | DWG | ||
| ER88-43S | 482.6 | 88 | 430 | 389 | 71.8 | 424 | Silver・Black | 4200 | DXF | DWG | ||
| ER88-50B | 482.6 | 88 | 500 | 389 | 71.8 | 494 | Black | 1800 | DXF | DWG | ||
| ER88-50S | 482.6 | 88 | 500 | 389 | 71.8 | 494 | Silver・Black | 1800 | DXF | DWG | ||
| ER133-16B | 482.6 | 132.5 | 160 | 389 | 116.3 | 154 | Black | 2500 | DXF | DWG | ||
| ER133-16S | 482.6 | 132.5 | 160 | 389 | 116.3 | 154 | Silver・Black | 2500 | DXF | DWG | ||
| ER133-20B | 482.6 | 132.5 | 200 | 389 | 116.3 | 194 | Black | 2900 | DXF | DWG | ||
| ER133-20S | 482.6 | 132.5 | 200 | 389 | 116.3 | 194 | Silver・Black | 2900 | DXF | DWG | ||
| ER133-26B | 482.6 | 132.5 | 260 | 389 | 116.3 | 254 | Black | 3300 | DXF | DWG | ||
| ER133-26S | 482.6 | 132.5 | 260 | 389 | 116.3 | 254 | Silver・Black | 3300 | DXF | DWG | ||
| ER133-32B | 482.6 | 132.5 | 320 | 389 | 116.3 | 314 | Black | 3800 | DXF | DWG | ||
| ER133-32S | 482.6 | 132.5 | 320 | 389 | 116.3 | 314 | Silver・Black | 3800 | DXF | DWG | ||
| ER133-37B | 482.6 | 132.5 | 370 | 389 | 116.3 | 364 | Black | 4200 | DXF | DWG | ||
| ER133-37S | 482.6 | 132.5 | 370 | 389 | 116.3 | 364 | Silver・Black | 4200 | DXF | DWG | ||
| ER133-43B | 482.6 | 132.5 | 430 | 389 | 116.3 | 424 | Black | 4700 | DXF | DWG | ||
| ER133-43S | 482.6 | 132.5 | 430 | 389 | 116.3 | 424 | Silver・Black | 4700 | DXF | DWG | ||
| ER133-50B | 482.6 | 132.5 | 500 | 389 | 116.3 | 494 | Black | 5300 | DXF | DWG | ||
| ER133-50S | 482.6 | 132.5 | 500 | 389 | 116.3 | 494 | Silver・Black | 5300 | DXF | DWG | ||
| ER177-16B | 482.6 | 177 | 160 | 389 | 160.8 | 154 | Black | 2800 | DXF | DWG | ||
| ER177-16S | 482.6 | 177 | 160 | 389 | 160.8 | 154 | Silver・Black | 2800 | DXF | DWG | ||
| ER177-20B | 482.6 | 177 | 200 | 389 | 160.8 | 194 | Black | 3300 | DXF | DWG | ||
| ER177-20S | 482.6 | 177 | 200 | 389 | 160.8 | 194 | Silver・Black | 3300 | DXF | DWG | ||
| ER177-26B | 482.6 | 177 | 260 | 389 | 160.8 | 254 | Black | 3800 | DXF | DWG | ||
| ER177-26S | 482.6 | 177 | 260 | 389 | 160.8 | 254 | Silver・Black | 3800 | DXF | DWG | ||
| ER177-32B | 482.6 | 177 | 320 | 389 | 160.8 | 314 | Black | 4400 | DXF | DWG | ||
| ER177-32S | 482.6 | 177 | 320 | 389 | 160.8 | 314 | Silver・Black | 4400 | DXF | DWG | ||
| ER177-37B | 482.6 | 177 | 370 | 389 | 160.8 | 364 | Black | 4800 | DXF | DWG | ||
| ER177-37S | 482.6 | 177 | 370 | 389 | 160.8 | 364 | Silver・Black | 4800 | DXF | DWG | ||
| ER177-43B | 482.6 | 177 | 430 | 389 | 160.8 | 424 | Black | 5300 | DXF | DWG | ||
| ER177-43S | 482.6 | 177 | 430 | 389 | 160.8 | 424 | Silver・Black | 5300 | DXF | DWG | ||
| ER177-50B | 482.6 | 177 | 500 | 389 | 160.8 | 494 | Black | 5900 | DXF | DWG | ||
| ER177-50S | 482.6 | 177 | 500 | 389 | 160.8 | 494 | Silver・Black | 5900 | DXF | DWG | ||
| ER222-16B | 482.6 | 221.5 | 160 | 389 | 205.3 | 154 | Black | 3400 | DXF | DWG | ||
| ER222-16S | 482.6 | 221.5 | 160 | 389 | 205.3 | 154 | Silver・Black | 3400 | DXF | DWG | ||
| ER222-20B | 482.6 | 221.5 | 200 | 389 | 205.3 | 194 | Black | 3800 | DXF | DWG | ||
| ER222-20S | 482.6 | 221.5 | 200 | 389 | 205.3 | 194 | Silver・Black | 3800 | DXF | DWG | ||
| ER222-26B | 482.6 | 221.5 | 260 | 389 | 205.3 | 254 | Black | 4300 | DXF | DWG | ||
| ER222-26S | 482.6 | 221.5 | 260 | 389 | 205.3 | 254 | Silver・Black | 4300 | DXF | DWG | ||
| ER222-32B | 482.6 | 221.5 | 320 | 389 | 205.3 | 314 | Black | 4800 | DXF | DWG | ||
| ER222-32S | 482.6 | 221.5 | 320 | 389 | 205.3 | 314 | Silver・Black | 4800 | DXF | DWG | ||
| ER222-37B | 482.6 | 221.5 | 370 | 389 | 205.3 | 364 | Black | 5300 | DXF | DWG | ||
| ER222-37S | 482.6 | 221.5 | 370 | 389 | 205.3 | 364 | Silver・Black | 5300 | DXF | DWG | ||
| ER222-43B | 482.6 | 221.5 | 430 | 389 | 205.3 | 424 | Black | 5800 | DXF | DWG | ||
| ER222-43S | 482.6 | 221.5 | 430 | 389 | 205.3 | 424 | Silver・Black | 5800 | DXF | DWG | ||
| ER222-50B | 482.6 | 221.5 | 500 | 389 | 205.3 | 494 | Black | 6500 | DXF | DWG | ||
| ER222-50S | 482.6 | 221.5 | 500 | 389 | 205.3 | 494 | Silver・Black | 6500 | DXF | DWG | ||
| Mounting plate(Option) | DXF | DWG | STP | |
|---|---|---|---|---|
| AC16-43 | DXF | DWG | ||
| AC16-43 | DXF | DWG | ||
| AC20-43 | DXF | DWG | ||
| AC20-43 | DXF | DWG | ||
| AC26-43 | DXF | DWG | ||
| AC26-43 | DXF | DWG | ||
| AC32-43 | DXF | DWG | ||
| AC32-43 | DXF | DWG | ||
| AC37-43 | DXF | DWG | ||
| AC37-43 | DXF | DWG | ||
| AC43-43 | DXF | DWG | ||
| AC43-43 | DXF | DWG | ||
| AC50-43 | DXF | DWG | ||
| AC50-43 | DXF | DWG | ||
| AC16-43 | DXF | DWG | ||
| AC16-43 | DXF | DWG | ||
| AC20-43 | DXF | DWG | ||
| AC20-43 | DXF | DWG | ||
| AC26-43 | DXF | DWG | ||
| AC26-43 | DXF | DWG | ||
| AC32-43 | DXF | DWG | ||
| AC32-43 | DXF | DWG | ||
| AC37-43 | DXF | DWG | ||
| AC37-43 | DXF | DWG | ||
| AC43-43 | DXF | DWG | ||
| AC43-43 | DXF | DWG | ||
| AC50-43 | DXF | DWG | ||
| AC50-43 | DXF | DWG | ||
| AC16-43 | DXF | DWG | ||
| AC16-43 | DXF | DWG | ||
| AC20-43 | DXF | DWG | ||
| AC20-43 | DXF | DWG | ||
| AC26-43 | DXF | DWG | ||
| AC26-43 | DXF | DWG | ||
| AC32-43 | DXF | DWG | ||
| AC32-43 | DXF | DWG | ||
| AC37-43 | DXF | DWG | ||
| AC37-43 | DXF | DWG | ||
| AC43-43 | DXF | DWG | ||
| AC43-43 | DXF | DWG | ||
| AC50-43 | DXF | DWG | ||
| AC50-43 | DXF | DWG | ||
| AC16-43 | DXF | DWG | ||
| AC16-43 | DXF | DWG | ||
| AC20-43 | DXF | DWG | ||
| AC20-43 | DXF | DWG | ||
| AC26-43 | DXF | DWG | ||
| AC26-43 | DXF | DWG | ||
| AC32-43 | DXF | DWG | ||
| AC32-43 | DXF | DWG | ||
| AC37-43 | DXF | DWG | ||
| AC37-43 | DXF | DWG | ||
| AC43-43 | DXF | DWG | ||
| AC43-43 | DXF | DWG | ||
| AC50-43 | DXF | DWG | ||
| AC50-43 | DXF | DWG | ||
| AC16-43 | DXF | DWG | ||
| AC16-43 | DXF | DWG | ||
| AC20-43 | DXF | DWG | ||
| AC20-43 | DXF | DWG | ||
| AC26-43 | DXF | DWG | ||
| AC26-43 | DXF | DWG | ||
| AC32-43 | DXF | DWG | ||
| AC32-43 | DXF | DWG | ||
| AC37-43 | DXF | DWG | ||
| AC37-43 | DXF | DWG | ||
| AC43-43 | DXF | DWG | ||
| AC43-43 | DXF | DWG | ||
| AC50-43 | DXF | DWG | ||
| AC50-43 | DXF | DWG |
