UNIVERSAL PCB・PCB STANDOFF・PCB SUPPORT・SPACER SUPPORT

UNIVERSAL PCB・PCB STANDOFF・PCB SUPPORT・SPACER SUPPORT -PDF

CATEGORY： PRINT CIRCUIT BOARD・PROTOTYPE PCB・DOUBLE-SIDE PCB・PCB SPACER・NYLON STANDOFF

Universal PCB for small lot productions or prototypes.
Glass-epoxy material and through hole for easy operation.
PCB Standoff and adhesive PCB support and are ready for height adjustments.
Card guide rails for vertical setting PCB are also available.

LOW COST UNIVERSAL PCB
  • LOW COST UNIVERSAL PCB
  • Low cost universal PCB with glass epoxy material.
  • Plated Through Holes (PTH) type with a 2.54mm hole-to-hole
  • pitch.　Easily mount via the mounting holes at each corner.
  • 5 different sizes available with a Eurocard (3U) format size.
  • NEW PRODUCT
DETAILS

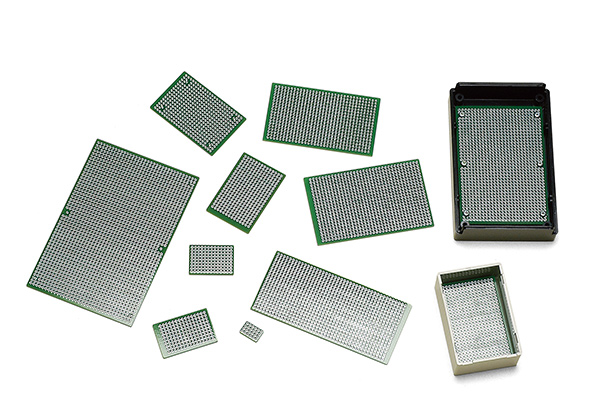

LEAD-FREE UNIVERSAL PCB - TNF series
  • LEAD-FREE UNIVERSAL PCB - TNF series
  • Universal PCB with environmentally friendly lead-free solder.
  • 25 different sizes available.
  • Match to our SW・TW series.
    DETAILS
    EXPANSION PCB for Raspberry Pi 4B - RPCB-4B
    • EXPANSION PCB for Raspberry Pi 4B - RPCB-4B
    • Expansion PCB for standard Raspberry Pi 4B.
    • Glass epoxy material (FR-4) / Double-sided through hole.
    • Use to install expansion parts or components.
    • Please use optional connector for connection Pi board.
    • NEW PRODUCT
    DETAILS
    PCB MOUNTING SCREW - EM series
    • PCB MOUNTING SCREW - EM series
    • Self tapping screws for PCB bosses on the plastic cases.
    • Use them to install your PCB onto bosses on the plastic cases.
    • Available for M1.6, M2, M2.3, M2.6, and M3 screws.
      DETAILS

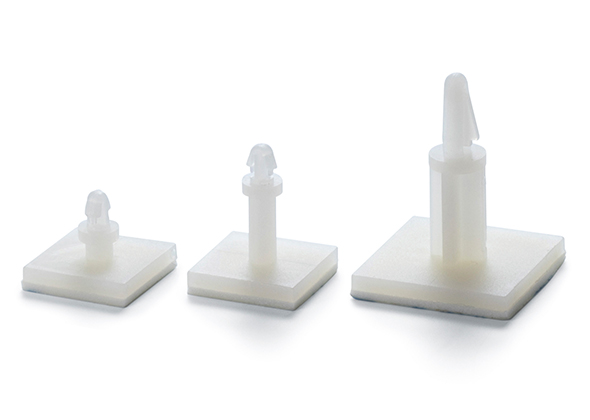

      SNAP-IN PCB ADHESIVE STANDOFF - ULCK series
      • SNAP-IN PCB ADHESIVE STANDOFF - ULCK series
      • PCB standoff without the need for screws.
      • Securing of a 1.6mm thick PCB made easy.
      • Adhesive standoff can be freely and easily affixed on.
      • Pack of 4 pcs.
        DETAILS
        CUBE STANDOFF - CUBE series
        • CUBE STANDOFF - CUBE series
        • 10x10mm cube shape standoff.
        • Standoff with a thread on 4 faces.
        • Usable when installing PCB or metal plate upright.
        • M3 and M4 thread models available.
          DETAILS
          ADHESIVE STANDOFF - AST series
          • ADHESIVE STANDOFF - AST series
          • Quick and easy installation adhesive standoffs.
          • Steel nut is installed, it has sufficient thread strength.
          • Convenient parts for installing PCBs into enclosures.
          • 8 different sizes are available.
            DETAILS
            ADHESIVE PCB STANDOFF - ASR series
            • ADHESIVE PCB STANDOFF - ASR series
            • M3 tapping screw use adhesive standoff.
            • Double-sided adhesive tape for easy mounting.
            • 10 different heights available.
            • Sold in 10 pcs pack.
              DETAILS
              TAPPING STANDOFF - TPS series
              • TAPPING STANDOFF - TPS series
              • Female standoff with tapping screw.
              • Easy installation onto existing enclosure boss mount.
              • M2.3・M2.6・M3・thread in 4~12mm length and M4 thread
              • in 6~20mm lengths are available.
              • NEW SIZE
              DETAILS
