Custom sized wall mount extruded aluminum enclosure.
Equipped with flanged frame for easy wall mounting.

Custom length (depth) from 40 to 500mm in 1mm intervals.
6 different color combinations can be specified.

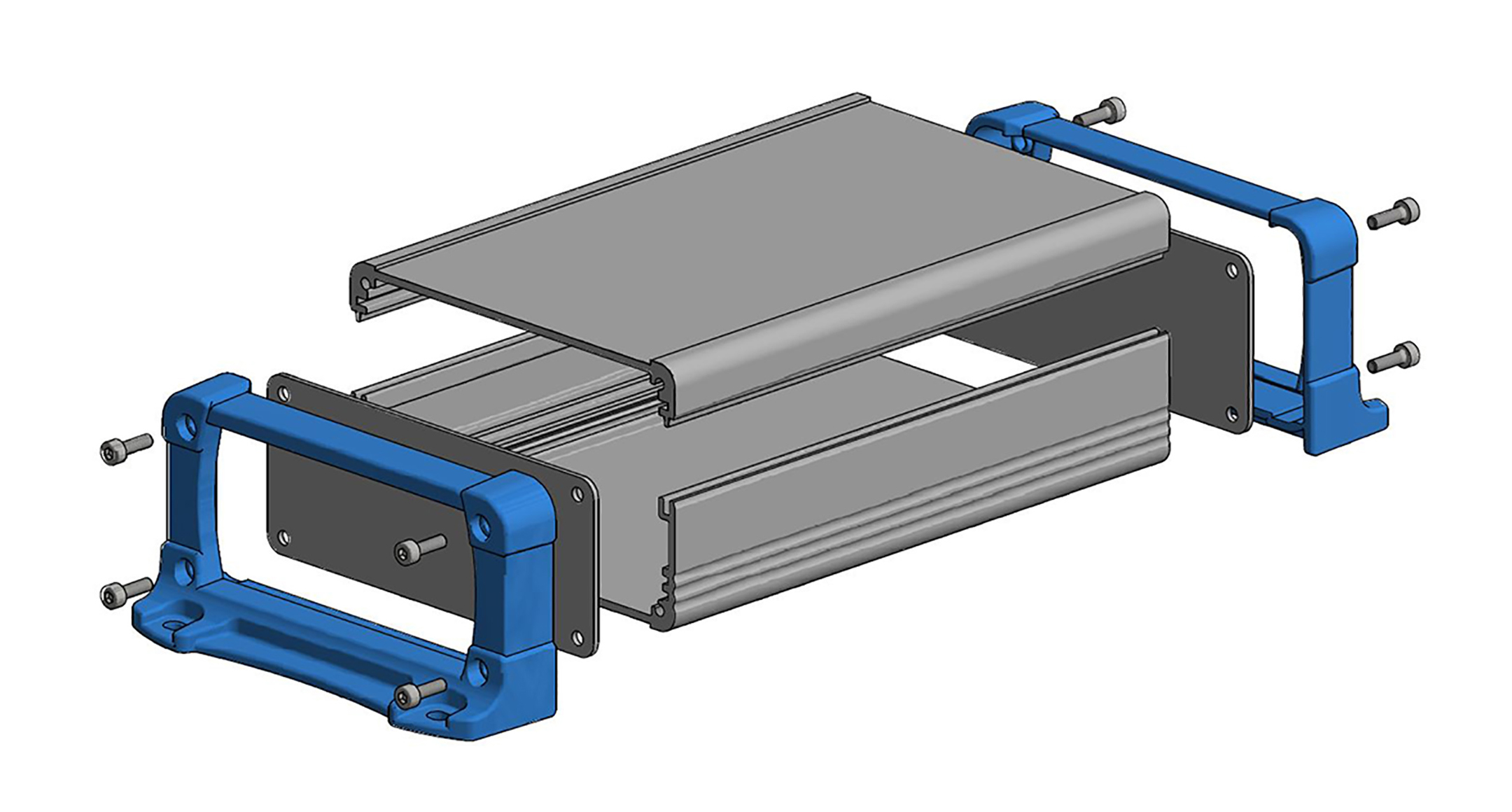

CUSTOM SIZE - WEB QUOTATION  3D View - Silver/Navy  3D View - Silver/Black  3D View - Silver/Gray  3D View - 6 color types  Exploded view  Color code 

COLOR TYPE

SBSilver/Black

CUSTOM SIZED FLANGED ENCLOSURE - EXPFS series:Silver/Black

SGSilver/Gray

CUSTOM SIZED FLANGED ENCLOSURE - EXPFS series:Silver/Gray

SNSilver/Navy

CUSTOM SIZED FLANGED ENCLOSURE - EXPFS series:Silver/Navy

BBBlack/Black

CUSTOM SIZED FLANGED ENCLOSURE - EXPFS series:Black/Black

BGBlack/Gray

CUSTOM SIZED FLANGED ENCLOSURE - EXPFS series:Black/Gray

BNBlack/Navy

CUSTOM SIZED FLANGED ENCLOSURE - EXPFS series:Black/Navy
CUSTOM SIZED FLANGED ENCLOSURE - EXPFS series:Silver/Black
CUSTOM SIZED FLANGED ENCLOSURE - EXPFS series:Silver/Gray
CUSTOM SIZED FLANGED ENCLOSURE - EXPFS series:Silver/Navy
CUSTOM SIZED FLANGED ENCLOSURE - EXPFS series:Black/Black
CUSTOM SIZED FLANGED ENCLOSURE - EXPFS series:Black/Gray
CUSTOM SIZED FLANGED ENCLOSURE - EXPFS series:Black/Navy

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions PDF DXF DWG
W H D w h d
EXPFS66-34-〇 □ 66 34 Can be specified from 40 to 500mm by 1mm intervals 47 19.6 D dimension－14mm PDF DXF DWG
EXPFS66-44-〇 □ 66 44 Can be specified from 40 to 500mm by 1mm intervals 47 29.6 D dimension－14mm PDF DXF DWG
EXPFS66-59-〇 □ 66 59 Can be specified from 40 to 500mm by 1mm intervals 47 44.6 D dimension－14mm PDF DXF DWG
EXPFS86-39-〇 □ 86 39 Can be specified from 40 to 500mm by 1mm intervals 67 24.6 D dimension－14mm PDF DXF DWG
EXPFS86-49-〇 □ 86 49 Can be specified from 40 to 500mm by 1mm intervals 67 34.6 D dimension－14mm PDF DXF DWG
EXPFS86-64-〇 □ 86 64 Can be specified from 40 to 500mm by 1mm intervals 67 49.6 D dimension－14mm PDF DXF DWG
EXPFS113-42-〇 □ 113 41.5 Can be specified from 40 to 500mm by 1mm intervals 89 24 D dimension－16mm PDF DXF DWG
EXPFS113-57-〇 □ 113 56.5 Can be specified from 40 to 500mm by 1mm intervals 89 39 D dimension－16mm PDF DXF DWG
EXPFS113-72-〇 □ 113 71.5 Can be specified from 40 to 500mm by 1mm intervals 89 54 D dimension－16mm PDF DXF DWG
EXPFS148-47-〇 □ 148 47 Can be specified from 40 to 500mm by 1mm intervals 107 29 D dimension－17mm PDF DXF DWG
EXPFS148-62-〇 □ 148 62 Can be specified from 40 to 500mm by 1mm intervals 107 44 D dimension－17mm PDF DXF DWG
EXPFS148-82-〇 □ 148 82 Can be specified from 40 to 500mm by 1mm intervals 107 64 D dimension－17mm PDF DXF DWG
EXPFS148-102-〇 □ 148 102 Can be specified from 40 to 500mm by 1mm intervals 107 84 D dimension－17mm PDF DXF DWG
EXPFS195-57-〇 □ 195 57 Can be specified from 40 to 500mm by 1mm intervals 132 35 D dimension－20mm PDF DXF DWG
EXPFS195-75-〇 □ 195 75 Can be specified from 40 to 500mm by 1mm intervals 132 53 D dimension－20mm PDF DXF DWG
EXPFS195-95-〇 □ 195 95 Can be specified from 40 to 500mm by 1mm intervals 132 73 D dimension－20mm PDF DXF DWG
EXPFS195-120-〇 □ 195 120 Can be specified from 40 to 500mm by 1mm intervals 132 98 D dimension－20mm PDF DXF DWG
EXPFS240-65-〇 □ 240 65 Can be specified from 40 to 500mm by 1mm intervals 177 43 D dimension－23mm PDF DXF DWG
EXPFS240-90-〇 □ 240 90 Can be specified from 40 to 500mm by 1mm intervals 177 68 D dimension－23mm PDF DXF DWG
EXPFS240-115-〇 □ 240 115 Can be specified from 40 to 500mm by 1mm intervals 177 93 D dimension－23mm PDF DXF DWG
