CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series

CATEGORY：Mobile enclosure, Round edge aluminum case, Extruded aluminum enclosure, Aluminium profile enclosure, IoT enclosure

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series1

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series2

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series3

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series4

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series5

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series6

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series7

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series8

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series9

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series10

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series11

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series12

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series13

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series14

Custom sized round edge design extruded aluminum enclosure.
Frame is made from extruded aluminum material, while the panel is ABS plastic.
Grooves are built into the internal enclosure, allowing for easy sliding/insertion of pcb boards.

Selectable 10 different Width/Height profiles and specified length from 35 to 500mm by 1mm intervals.
12 different color combinations can be specified.

Select screw type (Plus or Hex) when ordering.

CUSTOM SIZE - WEB QUOTATION 3D View (Silver/Gray) 3D View - 12 color types Exploded View Color code

COLOR TYPE

SBSilver/Black

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series:Silver/Black

SGSilver/Gray

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series:Silver/Gray

SNSilver/Navy

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series:Silver/Navy

SLSilver/Lime

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series:Silver/Lime

SOSilver/Orange

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series:Silver/Orange

SRSilver/Red

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series:Silver/Red

BBBlack/Black

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series:Black/Black

BGBlack/Gray

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series:Black/Gray

BNBlack/Navy

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series:Black/Navy

BLBlack/Lime

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series:Black/Lime

BOBlack/Orange

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series:Black/Orange

BRBlack/Red

CUSTOM SIZED ROUND EDGE ENCLOSURE - MXC series:Black/Red

PRODUCT NO. / DIMENSIONS

Product No.	External dimensions			Internal dimensions			Screw type	Inventory status	PDF	DXF	DWG
Product No.	W	H	D	w	h	d	Screw type	Inventory status	PDF	DXF	DWG
MXC48-13-〇 □P	48	13	Available 35 to 500mm by 1mm intervals	33.6	10.2	D dimension - 5.4mm	Plus	Discontinued - Sold out.	PDF	DXF	DWG
MXC48-13-〇 □H	48	13	Available 35 to 500mm by 1mm intervals	33.6	10.2	D dimension - 5.4mm	Hex	Discontinued - Sold out.	PDF	DXF	DWG
MXC41-15-〇 □P	41	15	Available 35 to 500mm by 1mm intervals	26.6	12.1	D dimension - 5.4mm	Plus		PDF	DXF	DWG
MXC41-15-〇 □H	41	15	Available 35 to 500mm by 1mm intervals	26.6	12.1	D dimension - 5.4mm	Hex		PDF	DXF	DWG
MXC57-18-〇 □P	57	18	Available 35 to 500mm by 1mm intervals	42.5	14.6	D dimension -5mm	Plus		PDF	DXF	DWG
MXC57-18-〇 □H	57	18	Available 35 to 500mm by 1mm intervals	42.5	14.6	D dimension -5mm	Hex		PDF	DXF	DWG
MXC70-20-〇 □P	70	20	Available 35 to 500mm by 1mm intervals	53.2	16.1	D dimension - 5.4mm	Plus		PDF	DXF	DWG
MXC70-20-〇 □H	70	20	Available 35 to 500mm by 1mm intervals	53.2	16.1	D dimension - 5.4mm	Hex		PDF	DXF	DWG
MXC70-35-〇 □P	70	35	Available 35 to 500mm by 1mm intervals	53.2	26	D dimension -7mm	Plus		PDF	DXF	DWG
MXC70-35-〇 □H	70	35	Available 35 to 500mm by 1mm intervals	53.2	26	D dimension -7mm	Hex		PDF	DXF	DWG
MXC82-24-〇 □P	82	24	Available 35 to 500mm by 1mm intervals	65.2	19.1	D dimension - 5.4mm	Plus		PDF	DXF	DWG
MXC82-24-〇 □H	82	24	Available 35 to 500mm by 1mm intervals	65.2	19.1	D dimension - 5.4mm	Hex		PDF	DXF	DWG
MXC95-40-〇 □P	95	40	Available 35 to 500mm by 1mm intervals	78.2	28.5	D dimension -7mm	Plus		PDF	DXF	DWG
MXC95-40-〇 □H	95	40	Available 35 to 500mm by 1mm intervals	78.2	28.5	D dimension -7mm	Hex		PDF	DXF	DWG
MXC100-16-〇 □P	100	16	Available 35 to 500mm by 1mm intervals	85.6	13.1	D dimension - 5.4mm	Plus	Discontinued - Sold out.	PDF	DXF	DWG
MXC100-16-〇 □H	100	16	Available 35 to 500mm by 1mm intervals	85.6	13.1	D dimension - 5.4mm	Hex	Discontinued - Sold out.	PDF	DXF	DWG
MXC110-30-〇 □P	110	30	Available 35 to 500mm by 1mm intervals	93.2	22.9	D dimension - 5.4mm	Plus		PDF	DXF	DWG
MXC110-30-〇 □H	110	30	Available 35 to 500mm by 1mm intervals	93.2	22.9	D dimension - 5.4mm	Hex		PDF	DXF	DWG
MXC130-35-〇 □P	130	35	Available 35 to 500mm by 1mm intervals	113.2	25	D dimension -5.6mm	Plus		PDF	DXF	DWG
MXC130-35-〇 □H	130	35	Available 35 to 500mm by 1mm intervals	113.2	25	D dimension -5.6mm	Hex		PDF	DXF	DWG

OPTIONAL PARTS

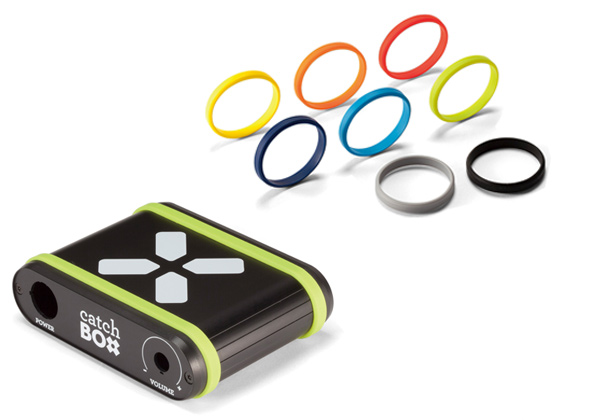

SILICONE PROTECT BAND for MX・MXA - SIB series

RUBBER STRAIN RELIEF CORD PROTECTOR CBS series

SIMILAR PRODUCT

CUSTOM SIZED ROUNDED EDGE ALUMINUM ENCLOSURE - MXAC series

CUSTOM SIZED FLANGED NETWORK ENCLOSURE - MXFC series

ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series

CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series

CUSTOM SIZED IP65 ALUMINUM ENCLOSURE - EXWS series

HIGH-END DESIGN ALUMINUM CASE - HD series
