INSTRUMENT ENCLOSURE with CORNER GUARD - UCG series


UCG Series -PDF

CATEGORY:Aluminum enclosure with corner guard, Enclosure with corner bumper, Protective case, Rugged enclosure, Instrument enclosure

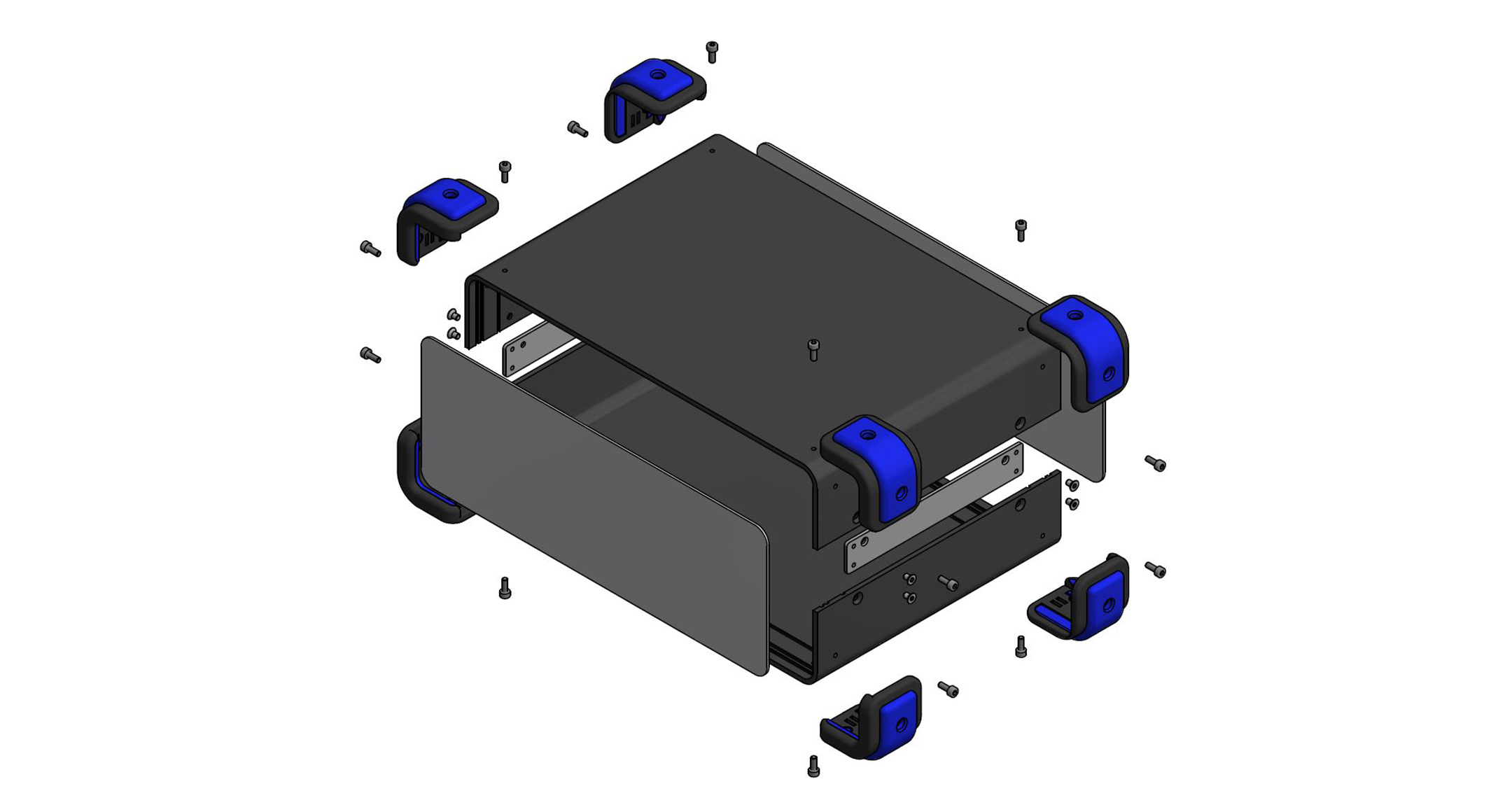

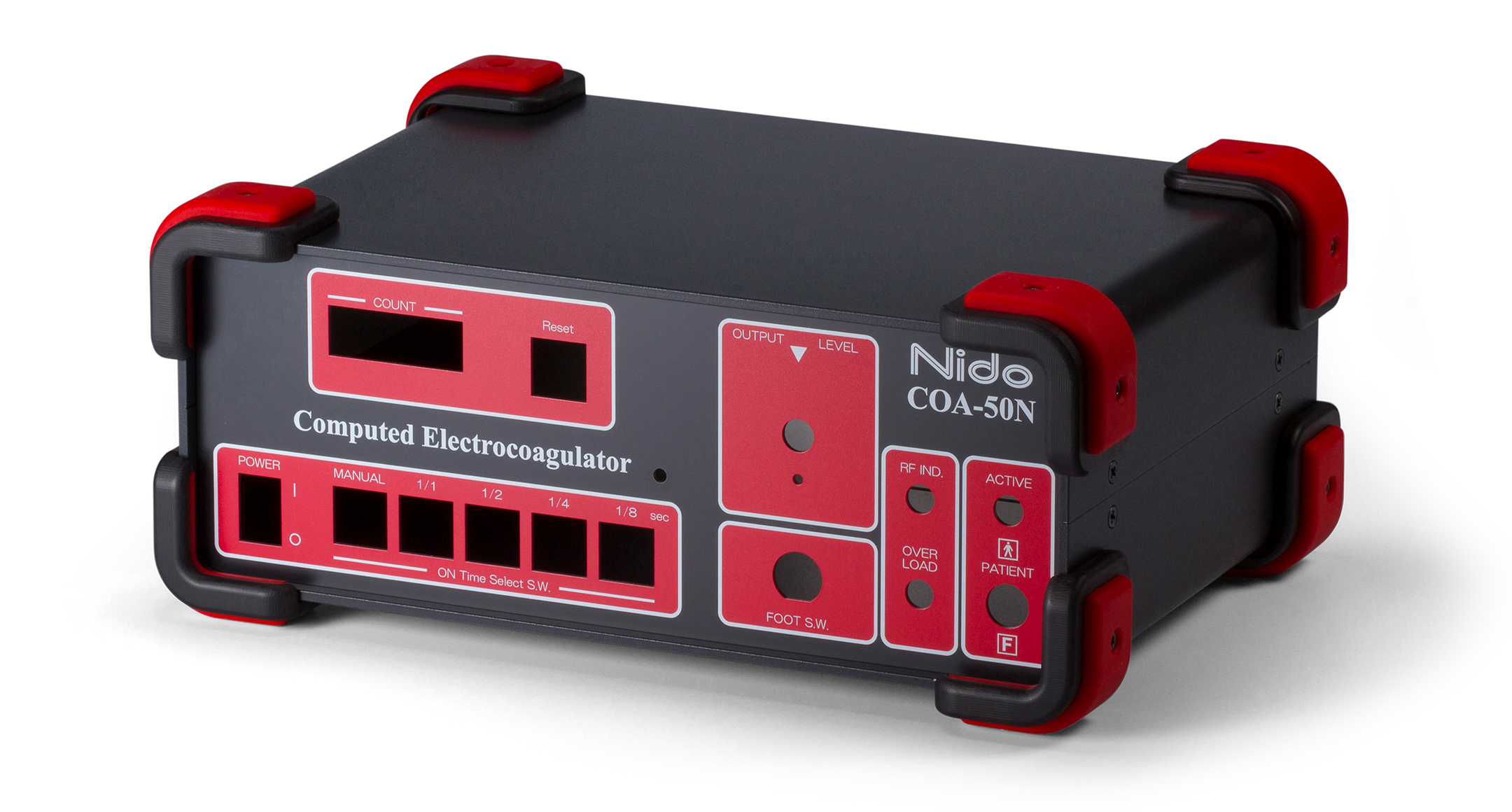

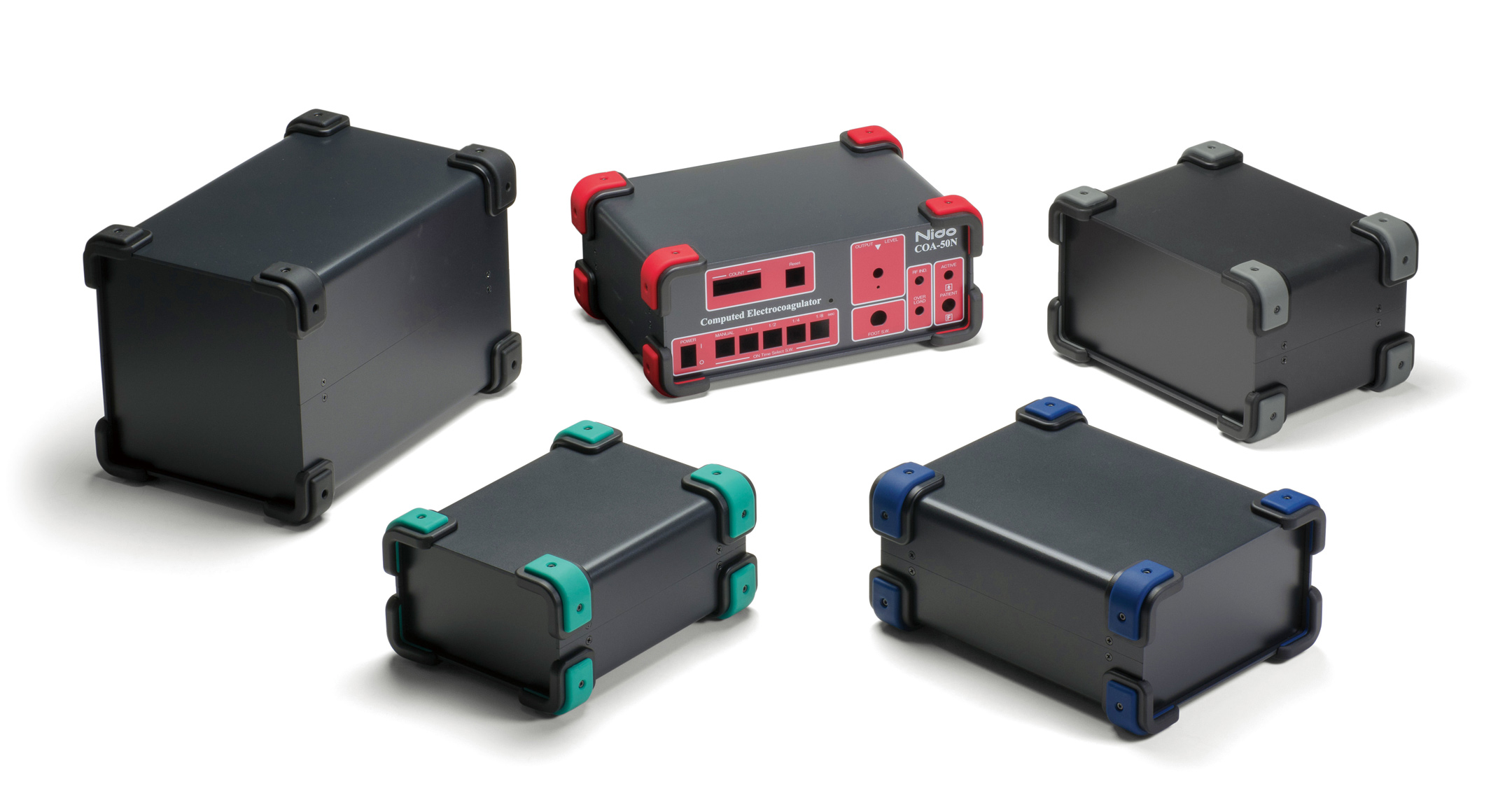

INSTRUMENT ENCLOSURE with CORNER GUARD - UCG series
INSTRUMENT ENCLOSURE with CORNER GUARD - UCG series
INSTRUMENT ENCLOSURE with CORNER GUARD - UCG series
INSTRUMENT ENCLOSURE with CORNER GUARD - UCG series
INSTRUMENT ENCLOSURE with CORNER GUARD - UCG series1
INSTRUMENT ENCLOSURE with CORNER GUARD - UCG series2
INSTRUMENT ENCLOSURE with CORNER GUARD - UCG series3
INSTRUMENT ENCLOSURE with CORNER GUARD - UCG series4

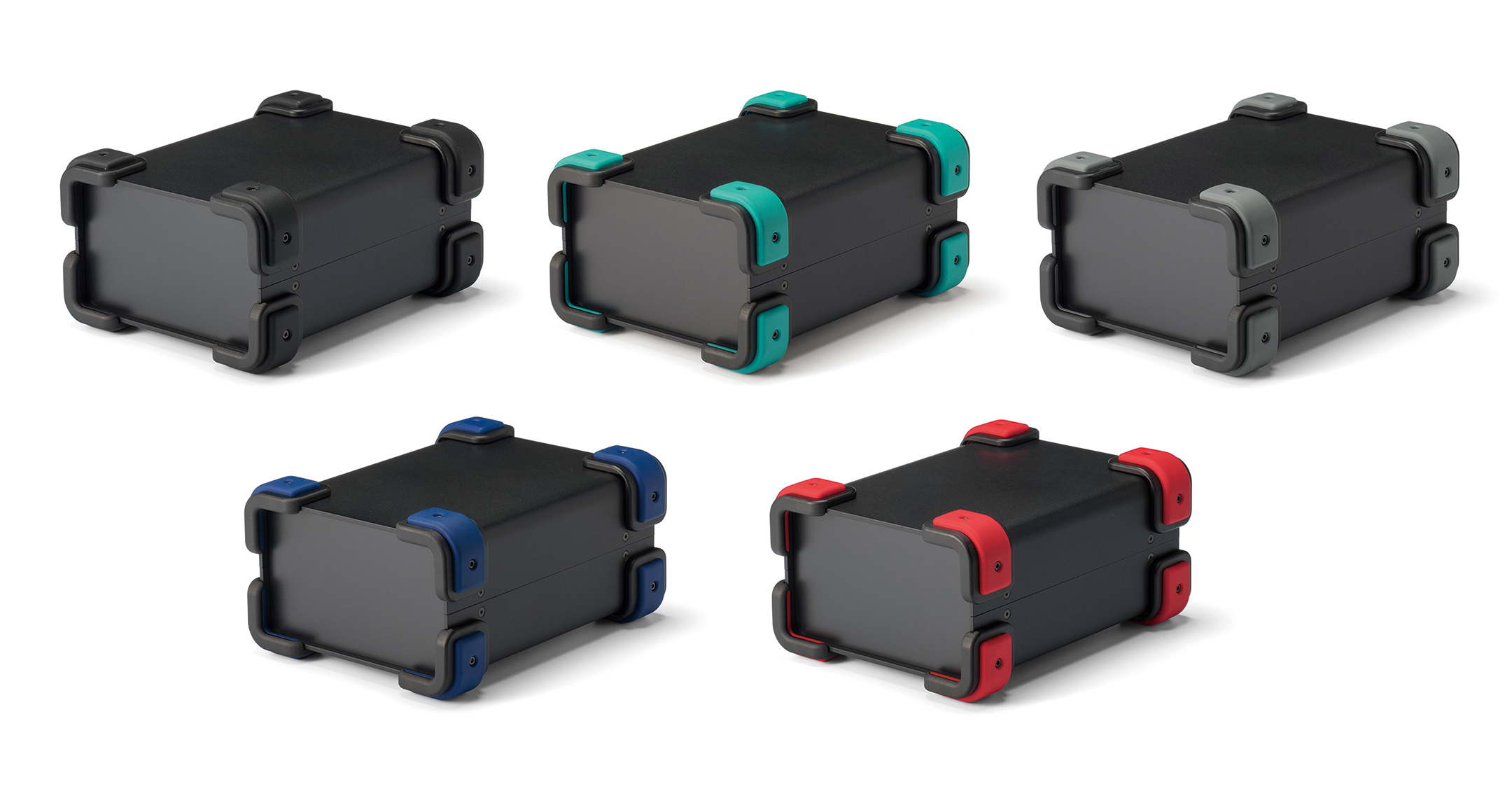

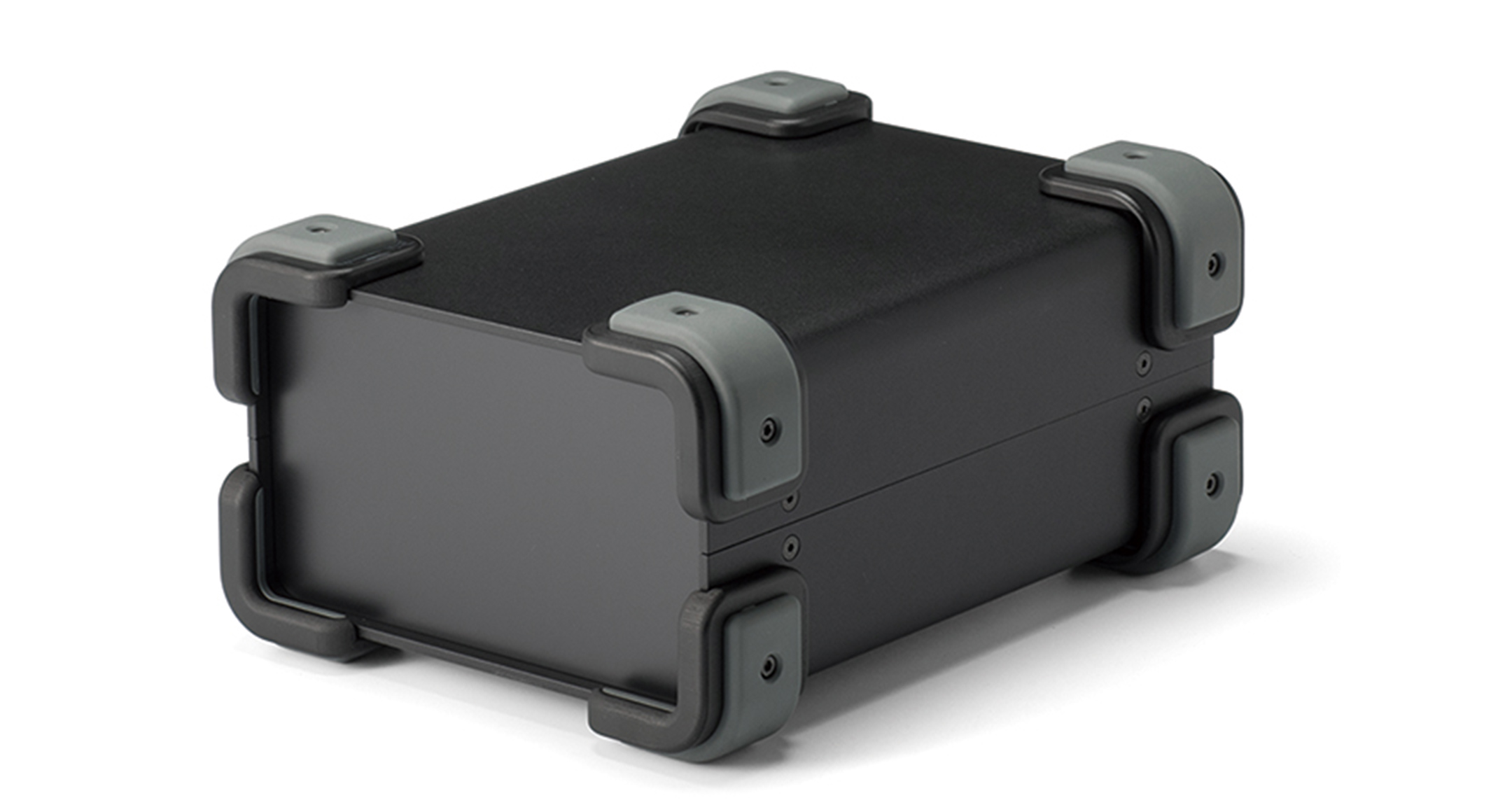

COLOR TYPE

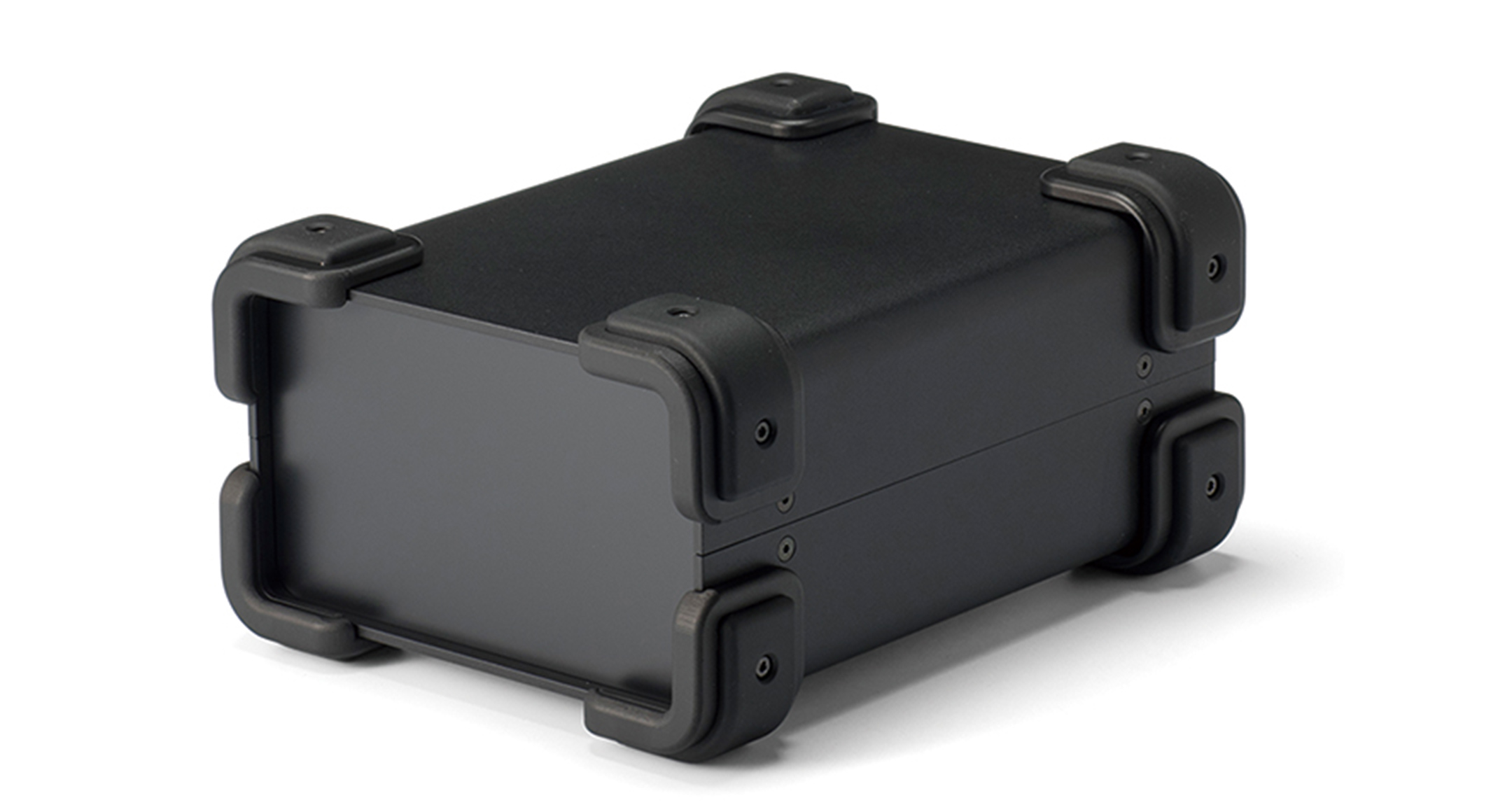

BBBlack/Black

INSTRUMENT ENCLOSURE with CORNER GUARD - UCG series:Black/Black

BGBlack/Gray

INSTRUMENT ENCLOSURE with CORNER GUARD - UCG series:Black/Gray

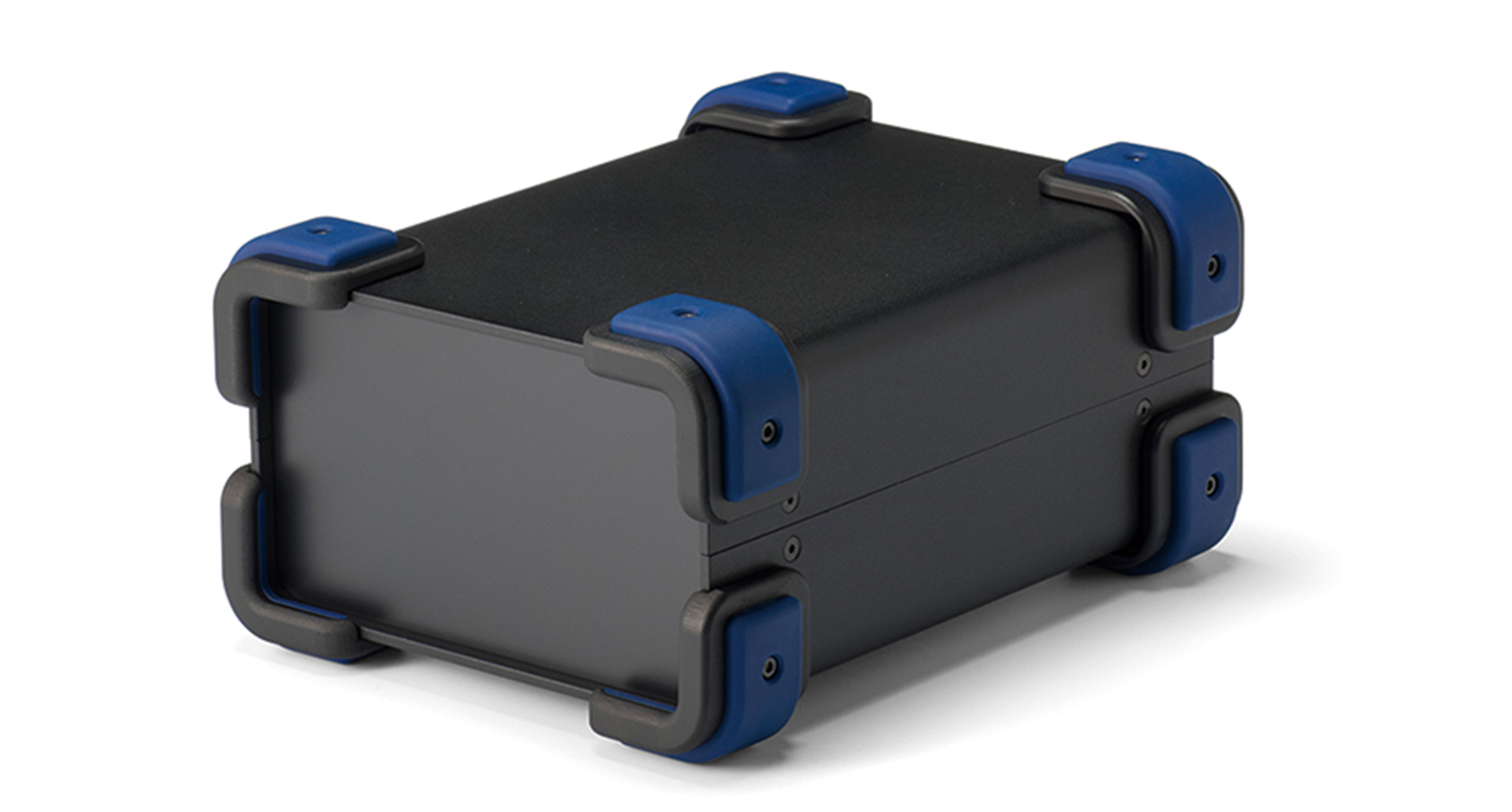

BNBlack/Navy

INSTRUMENT ENCLOSURE with CORNER GUARD - UCG series:Black/Navy

BEBlack/Emerald

INSTRUMENT ENCLOSURE with CORNER GUARD - UCG series:Black/Emerald

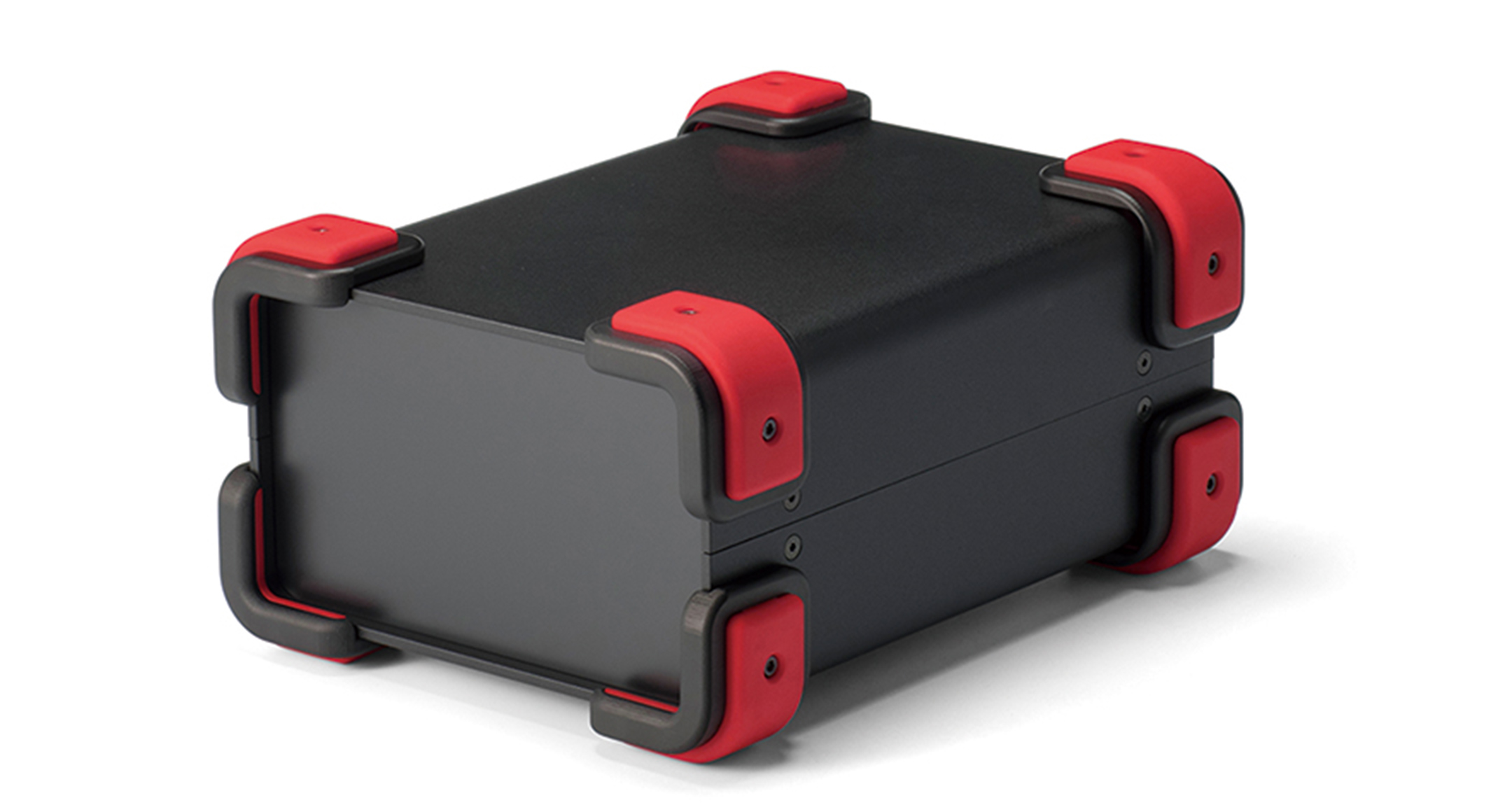

BRBlack/Red

INSTRUMENT ENCLOSURE with CORNER GUARD - UCG series:Black/Red
INSTRUMENT ENCLOSURE with CORNER GUARD - UCG series:Black/Black
INSTRUMENT ENCLOSURE with CORNER GUARD - UCG series:Black/Gray
INSTRUMENT ENCLOSURE with CORNER GUARD - UCG series:Black/Navy
INSTRUMENT ENCLOSURE with CORNER GUARD - UCG series:Black/Emerald
INSTRUMENT ENCLOSURE with CORNER GUARD - UCG series:Black/Red

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) PDF 3D PDF DXF DWG STP
W H D w h d
UCG15-9-20□ 168 108 214 128 84 186 1140 PDF 3D PDF DXF DWG
UCG18-10-24□ 198 118 254 158 94 226 1440 PDF 3D PDF DXF DWG
UCG18-18-28□ 198 198 294 158 174 266 2230 PDF 3D PDF DXF DWG
UCG20-9-14□ 218 108 154 185 85 130 1130 PDF 3D PDF DXF DWG
UCG22-12-16□ 238 138 174 198 114 146 1280 PDF 3D PDF DXF DWG
UCG26-10-18□ 278 118 194 238 94 166 1960 PDF 3D PDF DXF DWG
UCG32-12-22□ 338 138 234 298 114 206 2130 PDF 3D PDF DXF DWG
UCG38-15-26□ 398 168 274 358 144 246 3190 PDF 3D PDF DXF DWG
Mounting plate (Option) PDF DXF DWG
UCC15-20 PDF DXF DWG
UCC18-24 PDF DXF DWG
UCC20-14 PDF DXF DWG
UCC26-18 PDF DXF DWG
UCC32-22 PDF DXF DWG

OPTIONAL PARTS

1

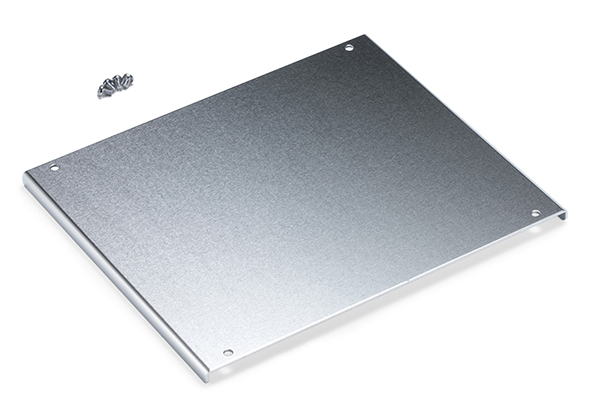

MOUNTING PLATE for UC・UCG - UCC series
DETAILS
1

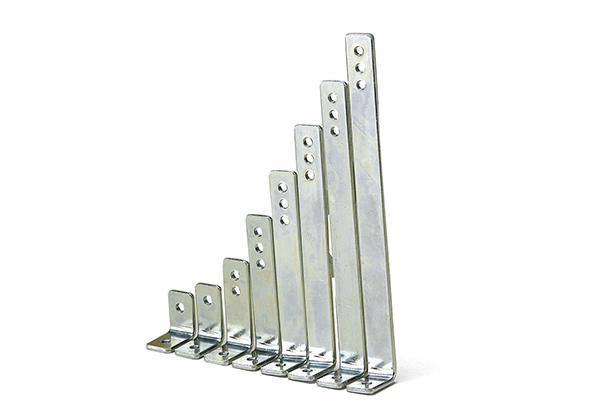

MOUNTING BRACKET for UC・UCG - UCK series
DETAILS
1

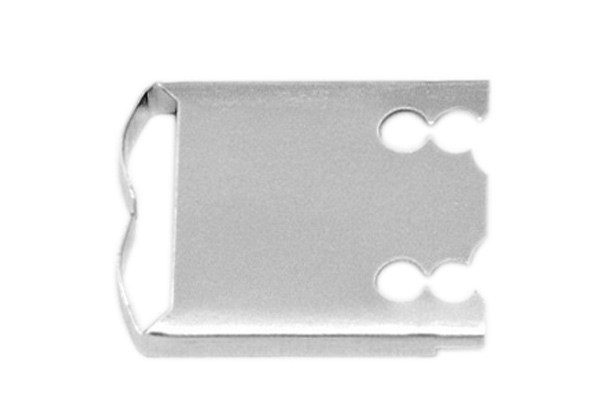

PANEL RETAINER for UC - UCF-26
DETAILS
1
EMBEDDED BATTERY BOX - BC series
DETAILS
1
ELASTOMER CARRYING HANDLE - FM200 series
DETAILS
1

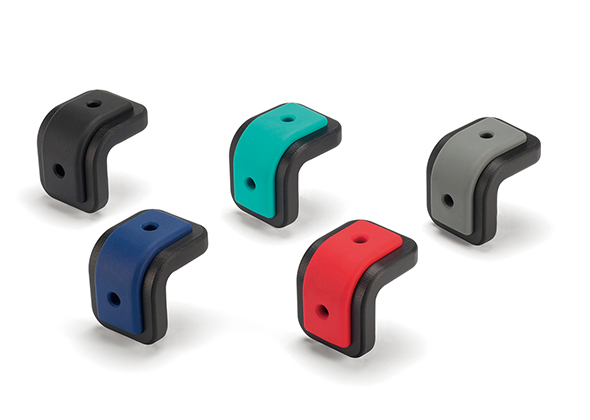

CORNER BUMPER GUARD - UG-1
