IP65 EXTRUDED ALUMINUM ENCLOSURE - EXW series

IP65 EXTRUDED ALUMINUM ENCLOSURE - EXW series

CATEGORY：IP65 Enclosure, Water proof aluminum enclosure, Extruded aluminum enclosure, Aluminium profile enclosure, Controller box

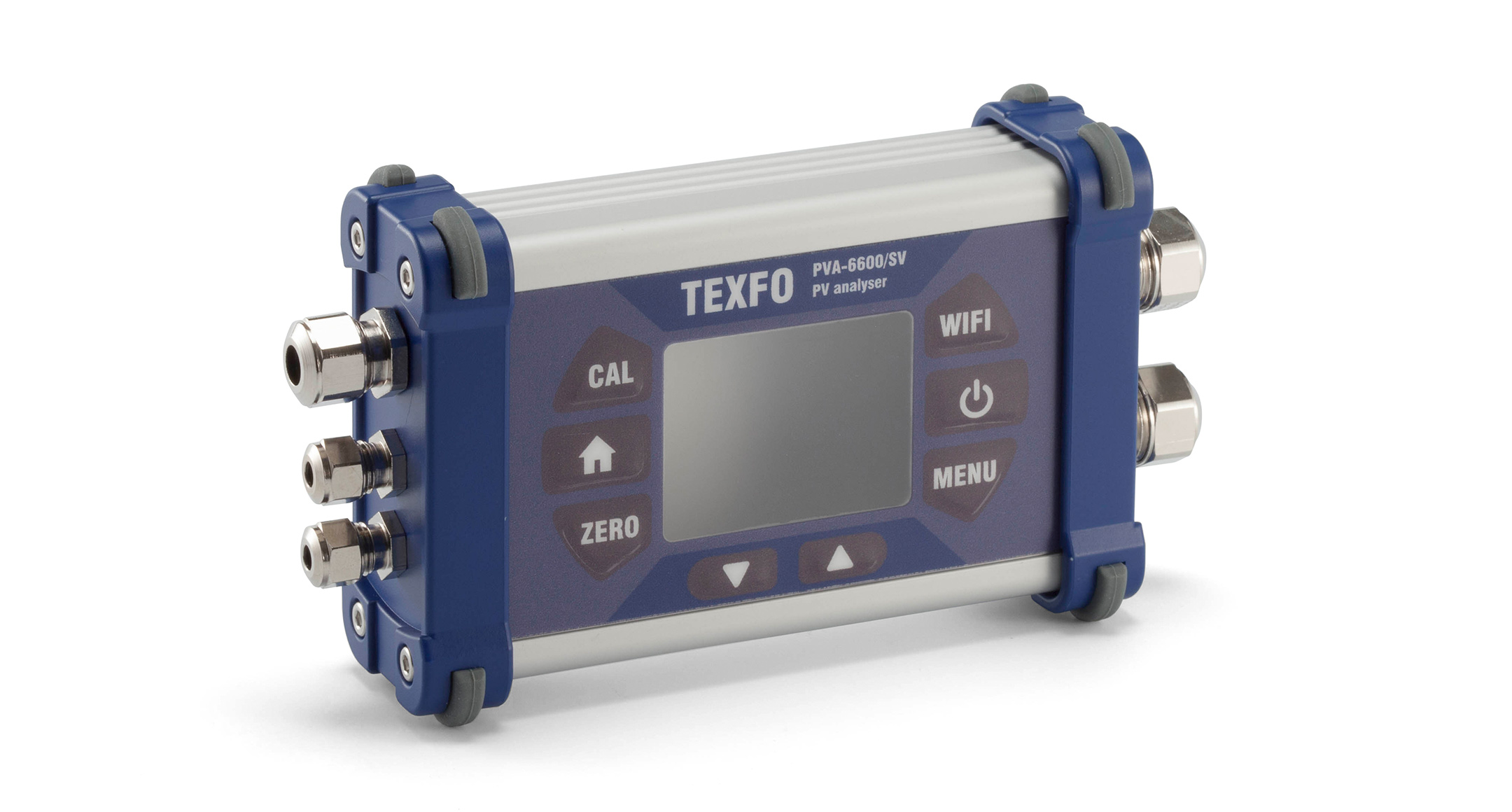

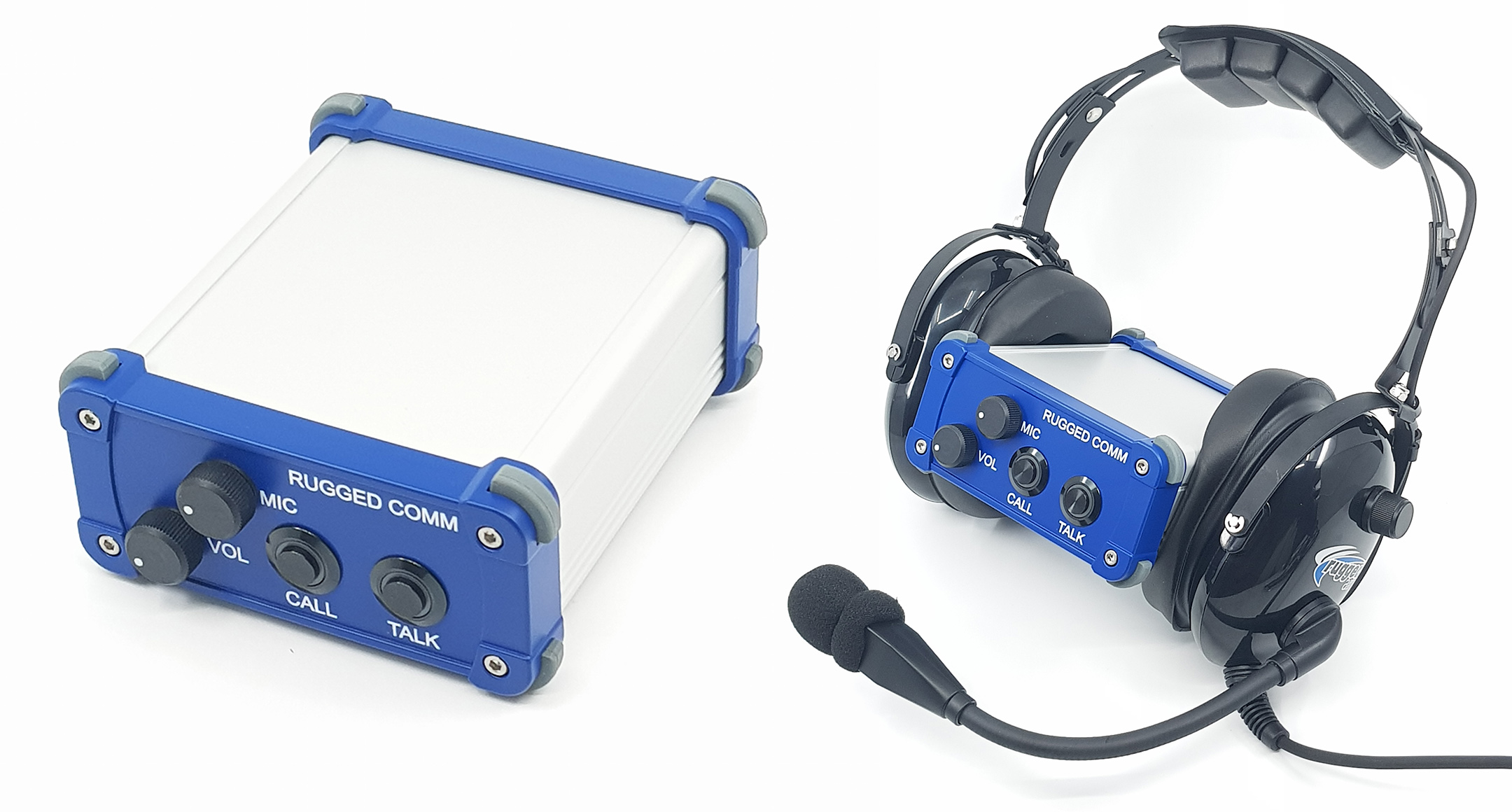

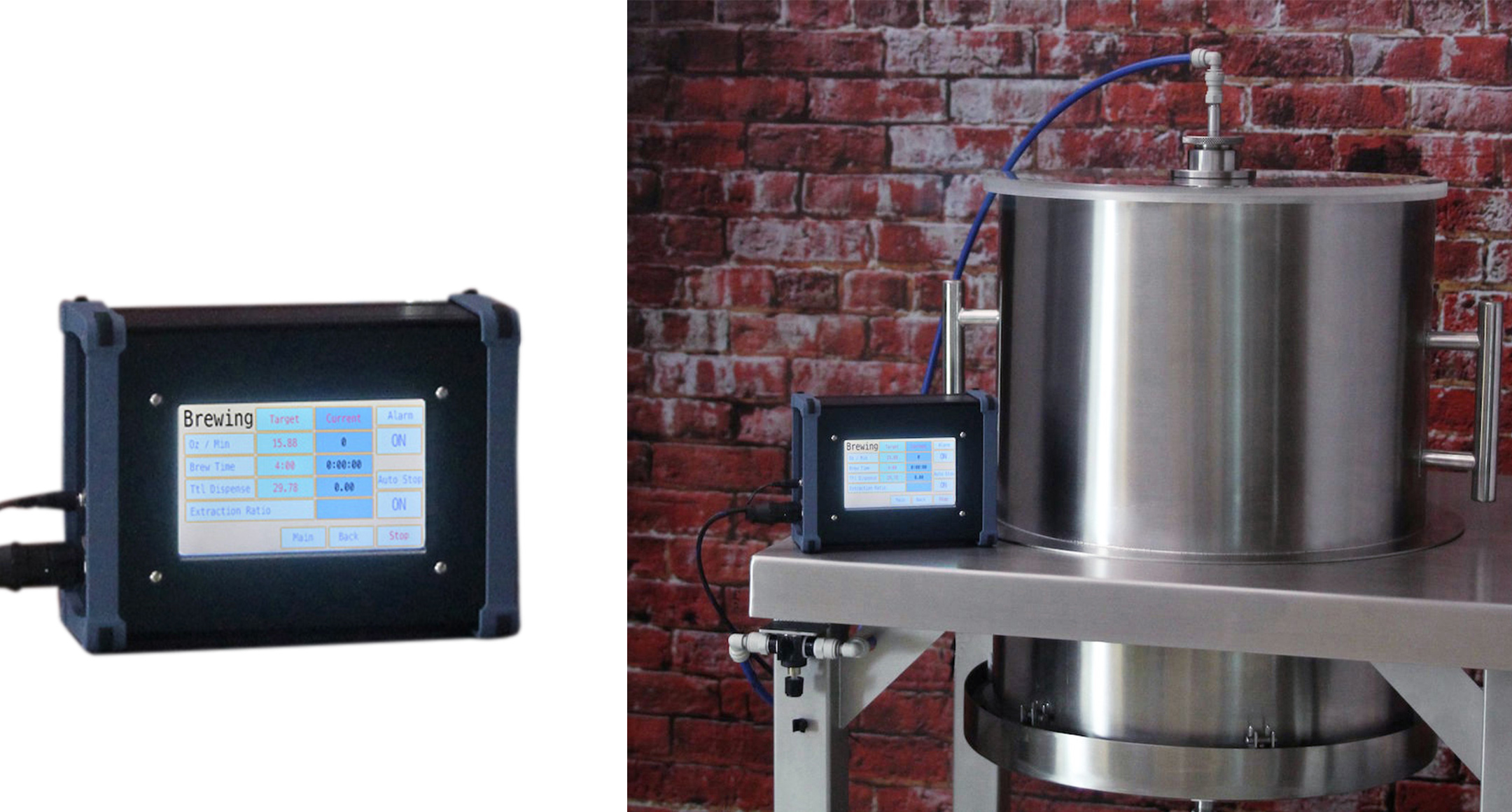

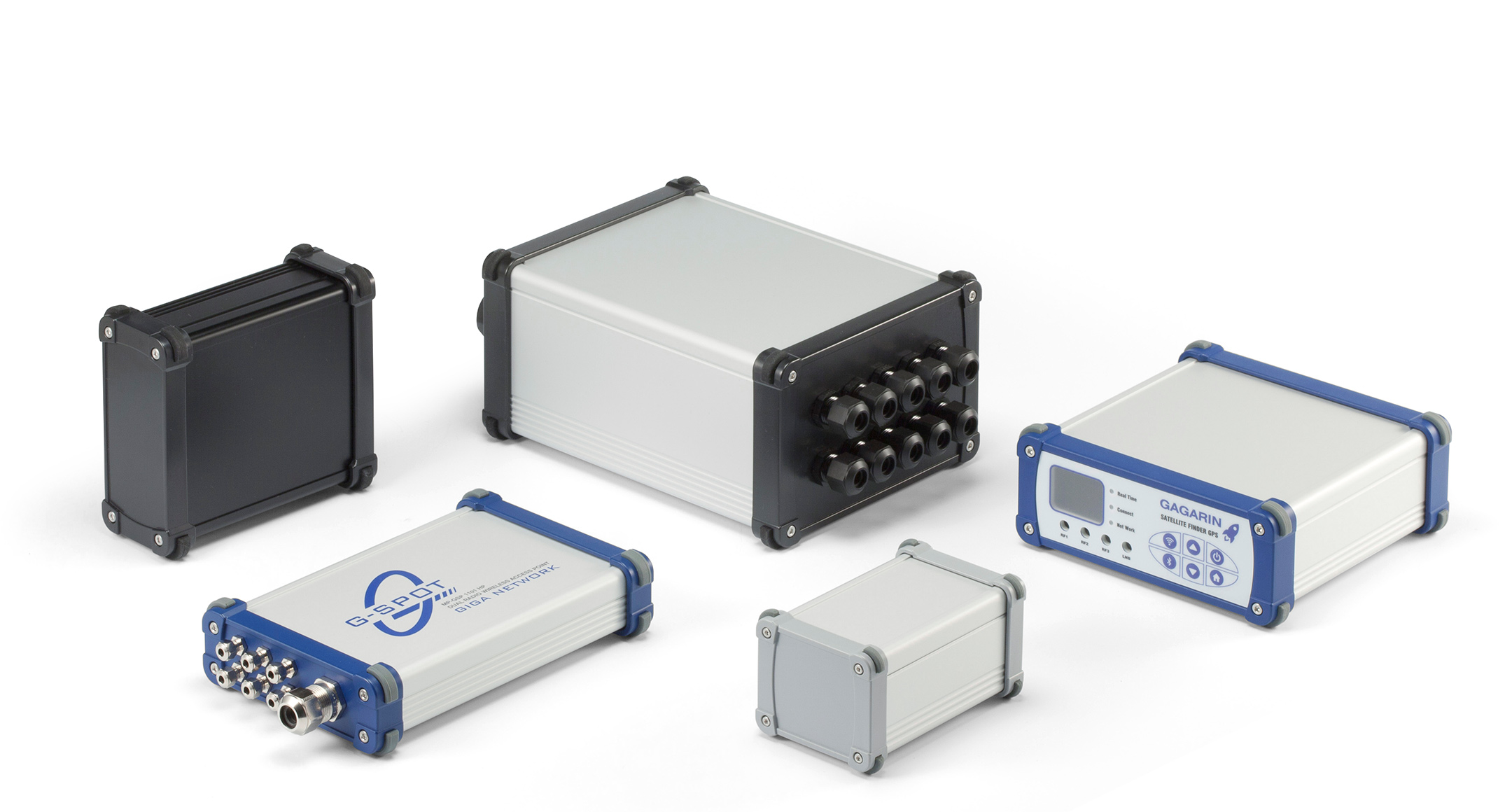

IP65 EXTRUDED ALUMINUM ENCLOSURE - EXW series1

IP65 EXTRUDED ALUMINUM ENCLOSURE - EXW series2

IP65 EXTRUDED ALUMINUM ENCLOSURE - EXW series3

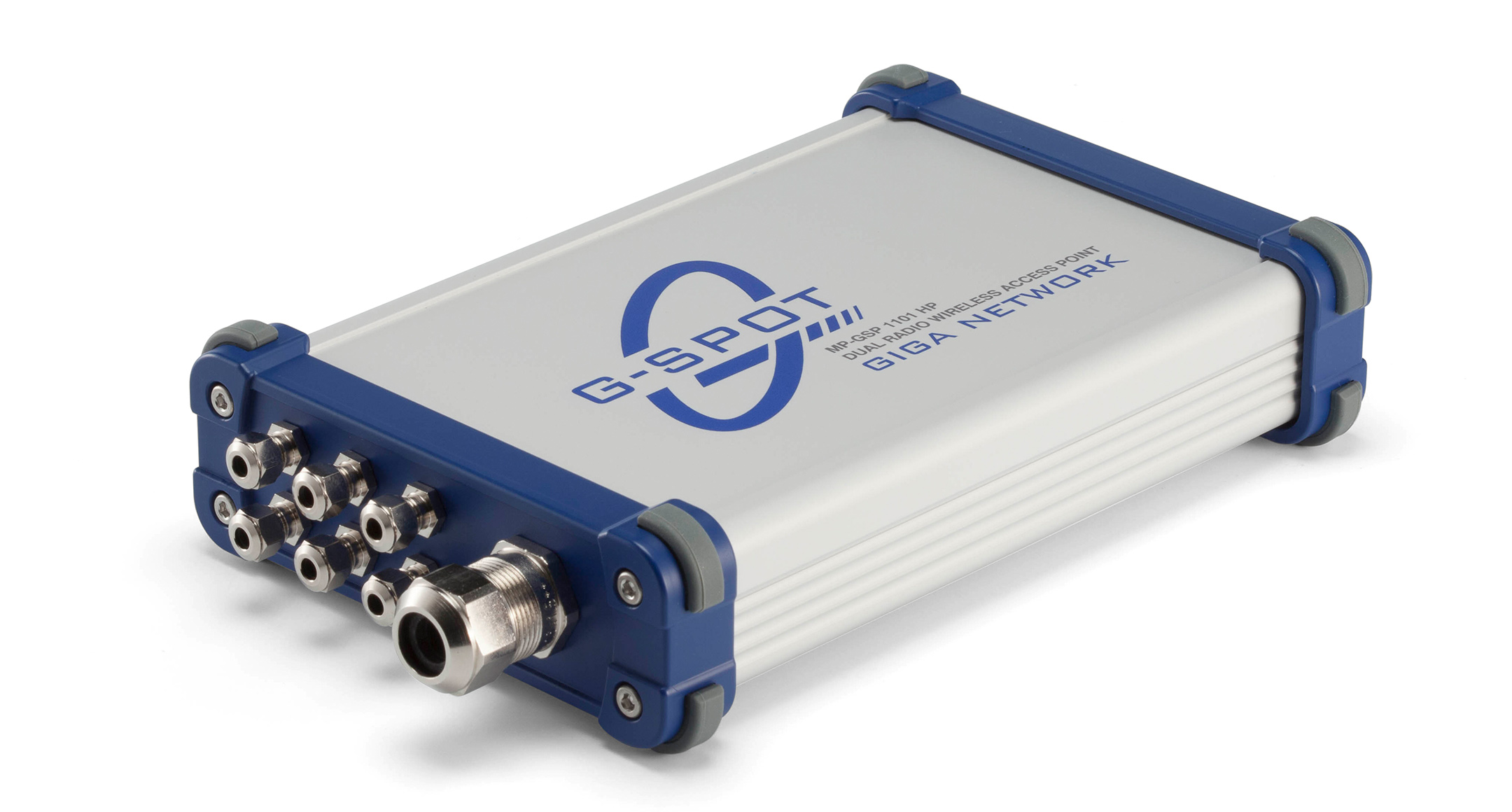

IP65 EXTRUDED ALUMINUM ENCLOSURE - EXW series4

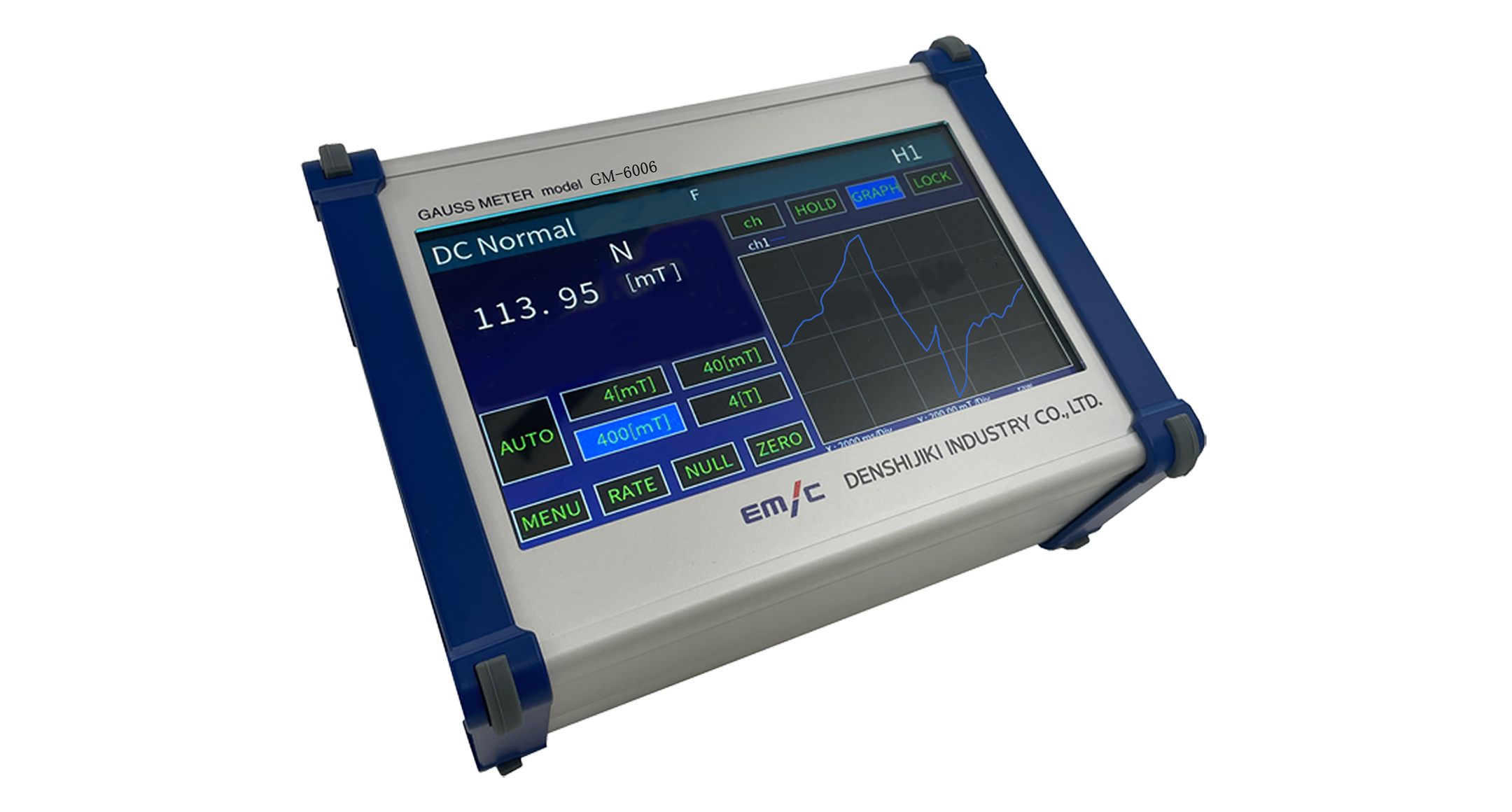

IP65 EXTRUDED ALUMINUM ENCLOSURE - EXW series5

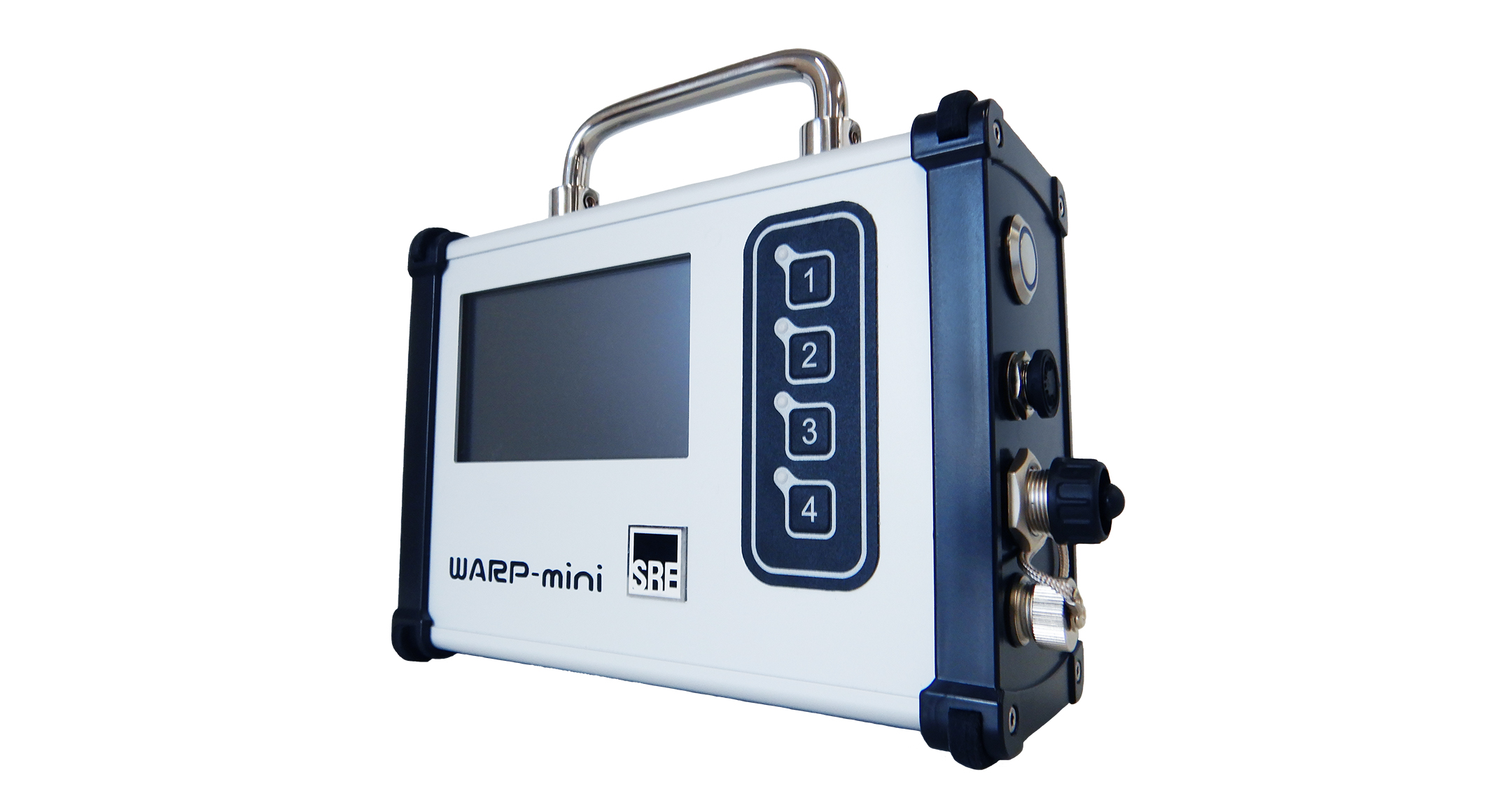

IP65 EXTRUDED ALUMINUM ENCLOSURE - EXW series6

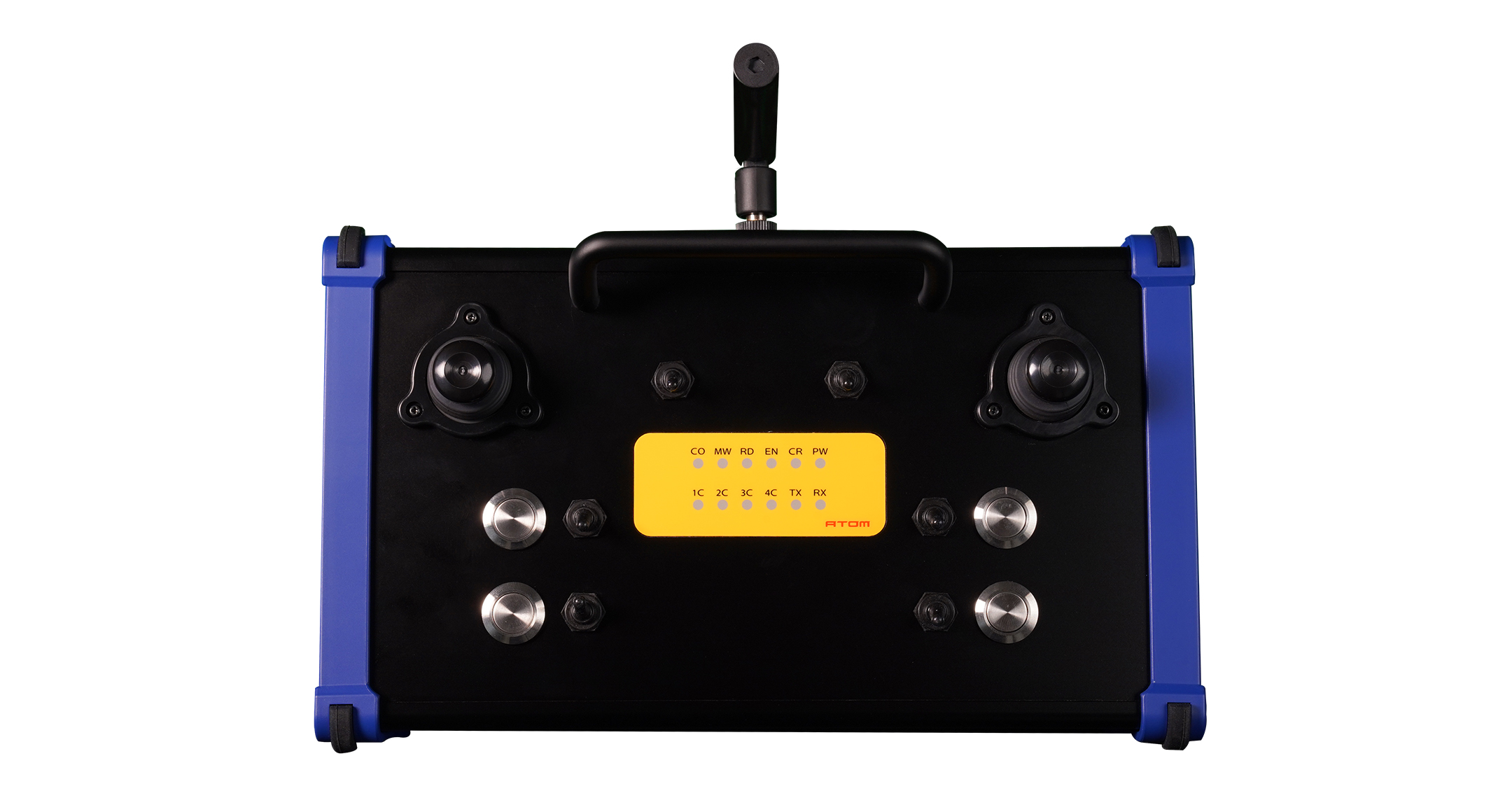

IP65 EXTRUDED ALUMINUM ENCLOSURE - EXW series7

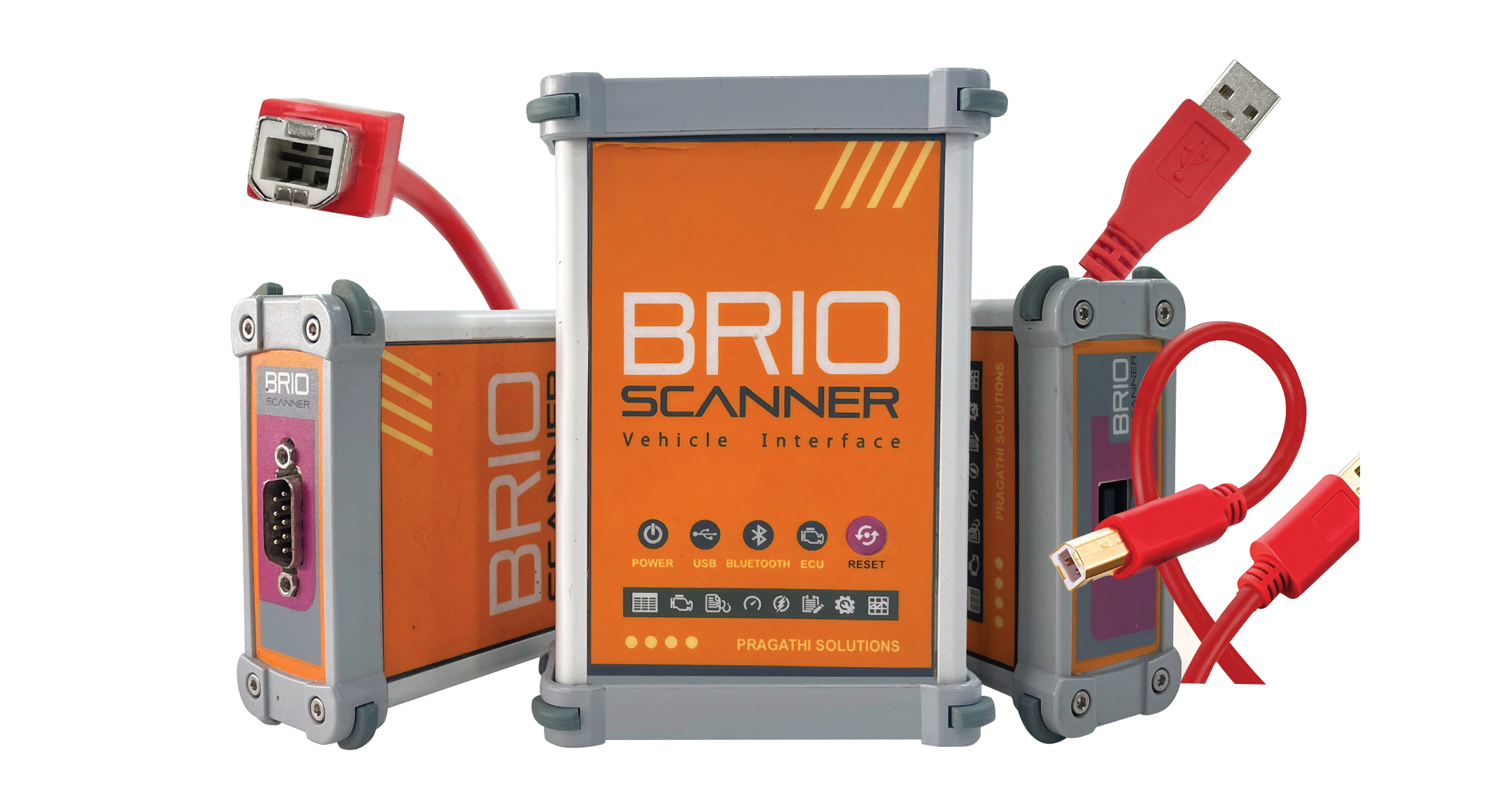

IP65 EXTRUDED ALUMINUM ENCLOSURE - EXW series8

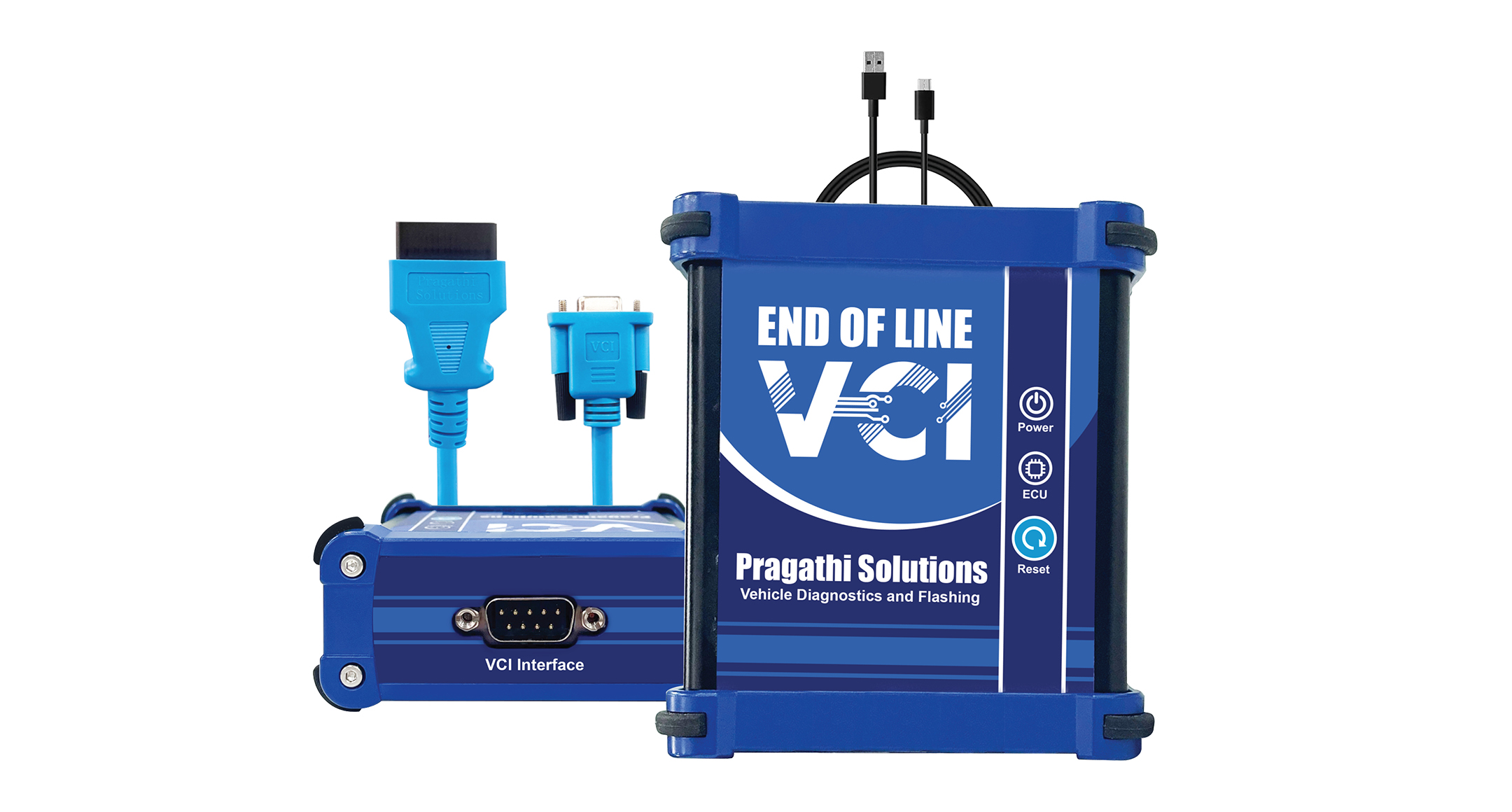

IP65 EXTRUDED ALUMINUM ENCLOSURE - EXW series9

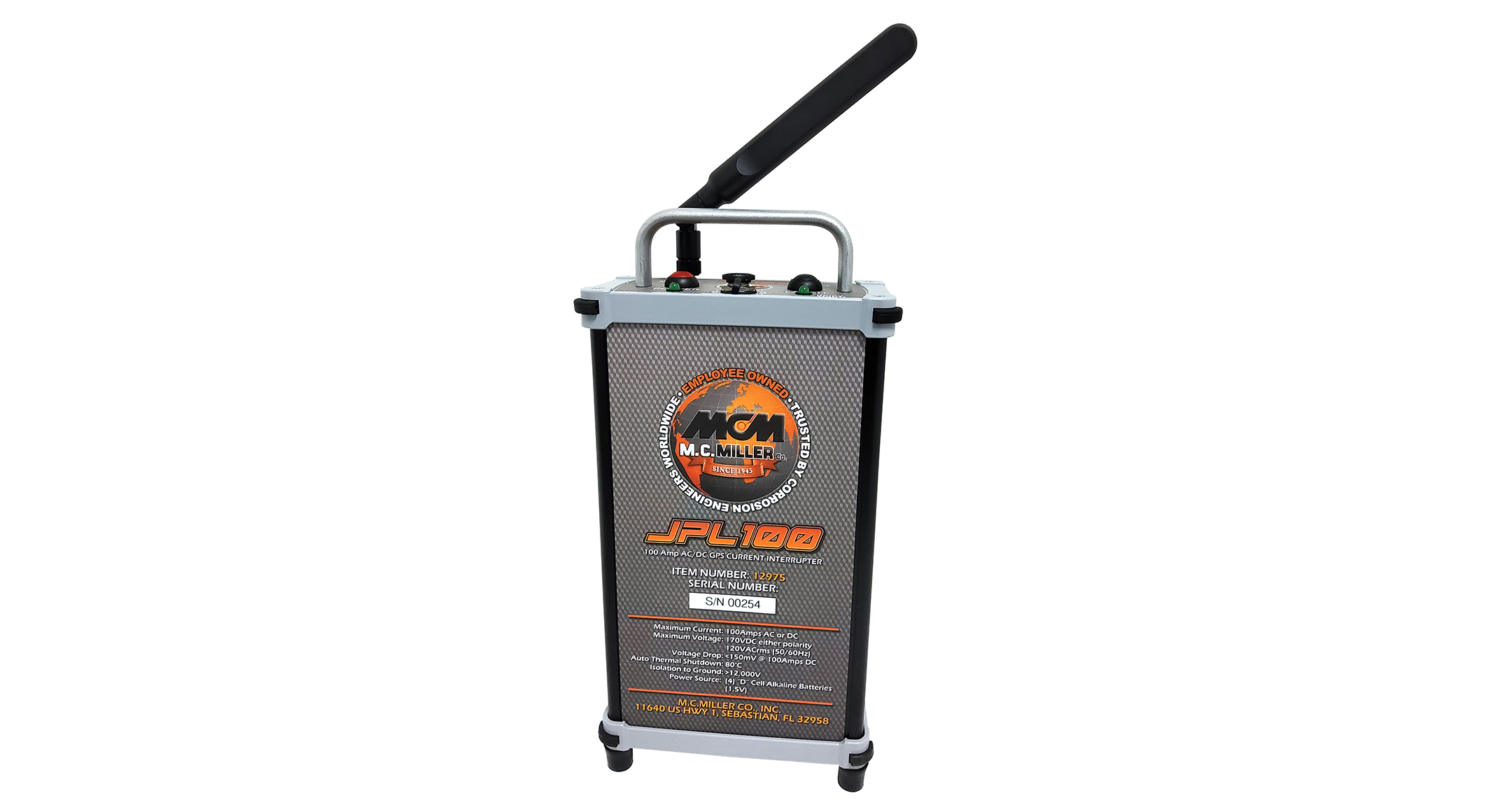

IP65 EXTRUDED ALUMINUM ENCLOSURE - EXW series10

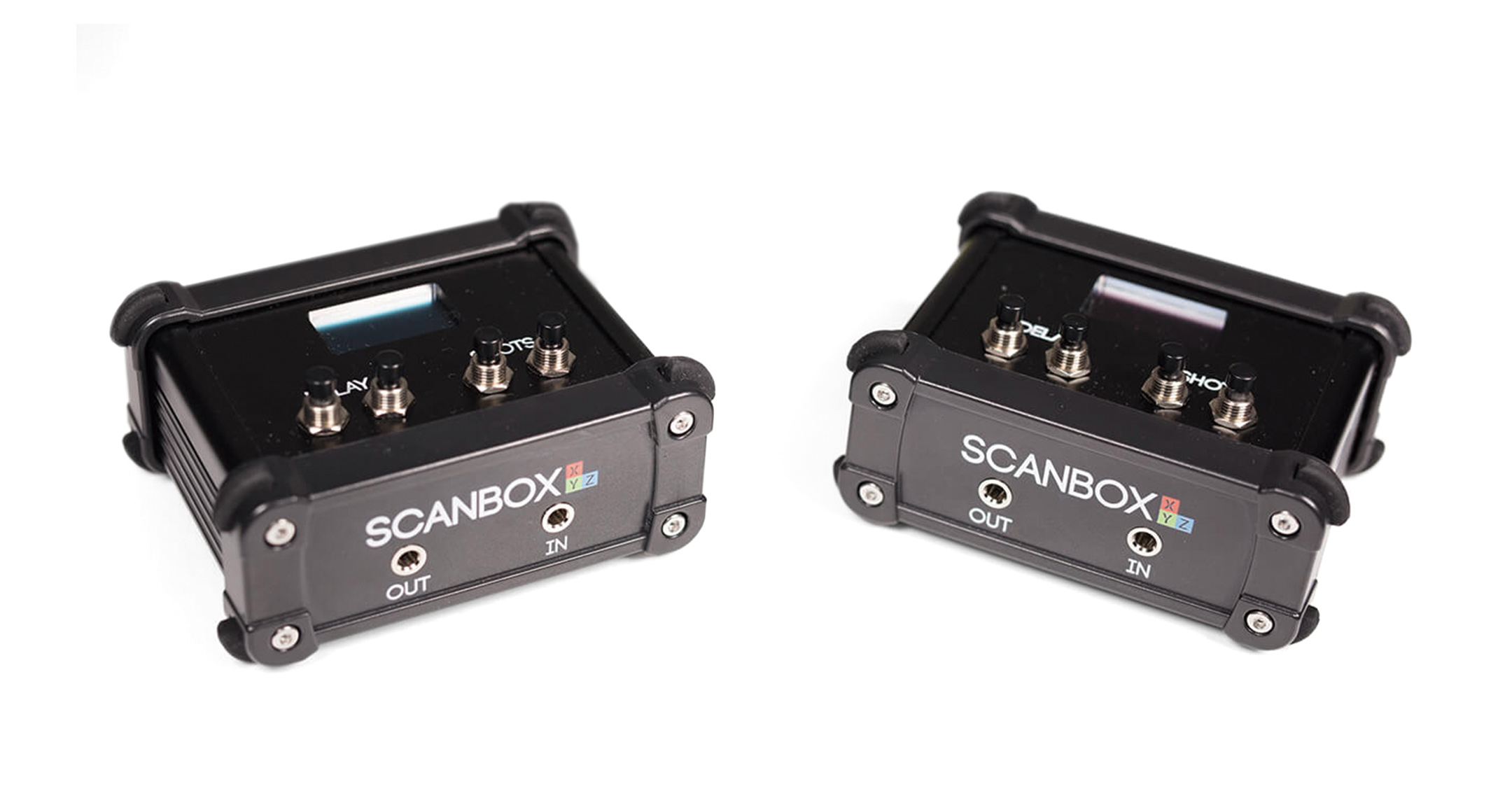

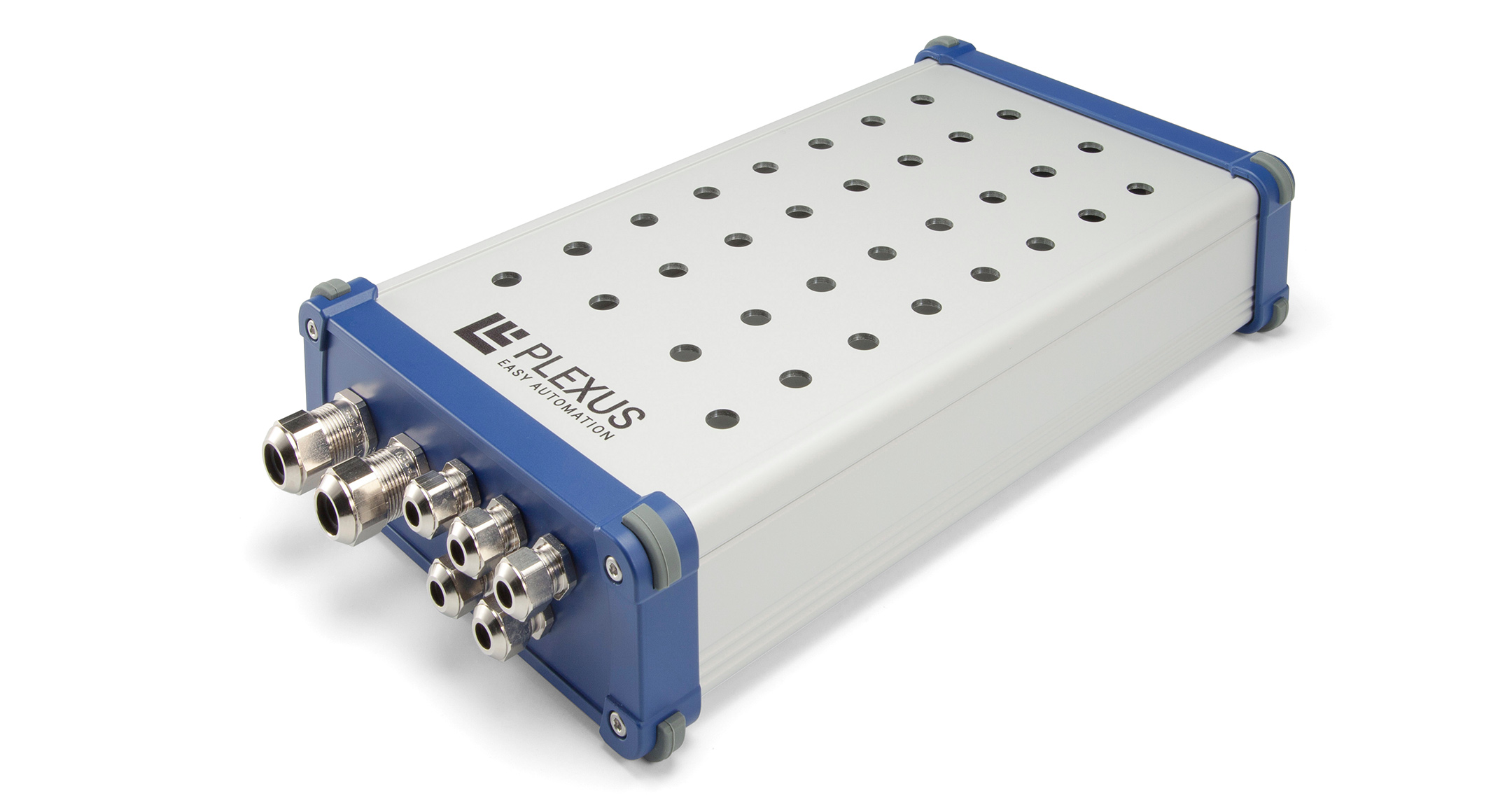

IP65 EXTRUDED ALUMINUM ENCLOSURE - EXW series11

Low cost type IP65 waterproof aluminum enclosure.
IP65 is made possible by the sealing of between top & bottom covers and end panels with gaskets.

【Material】
Top & bottom cover : Extruded aluminum
End panel : PC+ABS (UL94V-0)
Sealing gasket : Silicone

Available in 39 different sizes and 6 color combinations by 2 body frame and 3 end panel colors.

Custom length is available.
↓Go EXWS series page for the custom length (depth) order from 40～500mm by 1mm intervals.

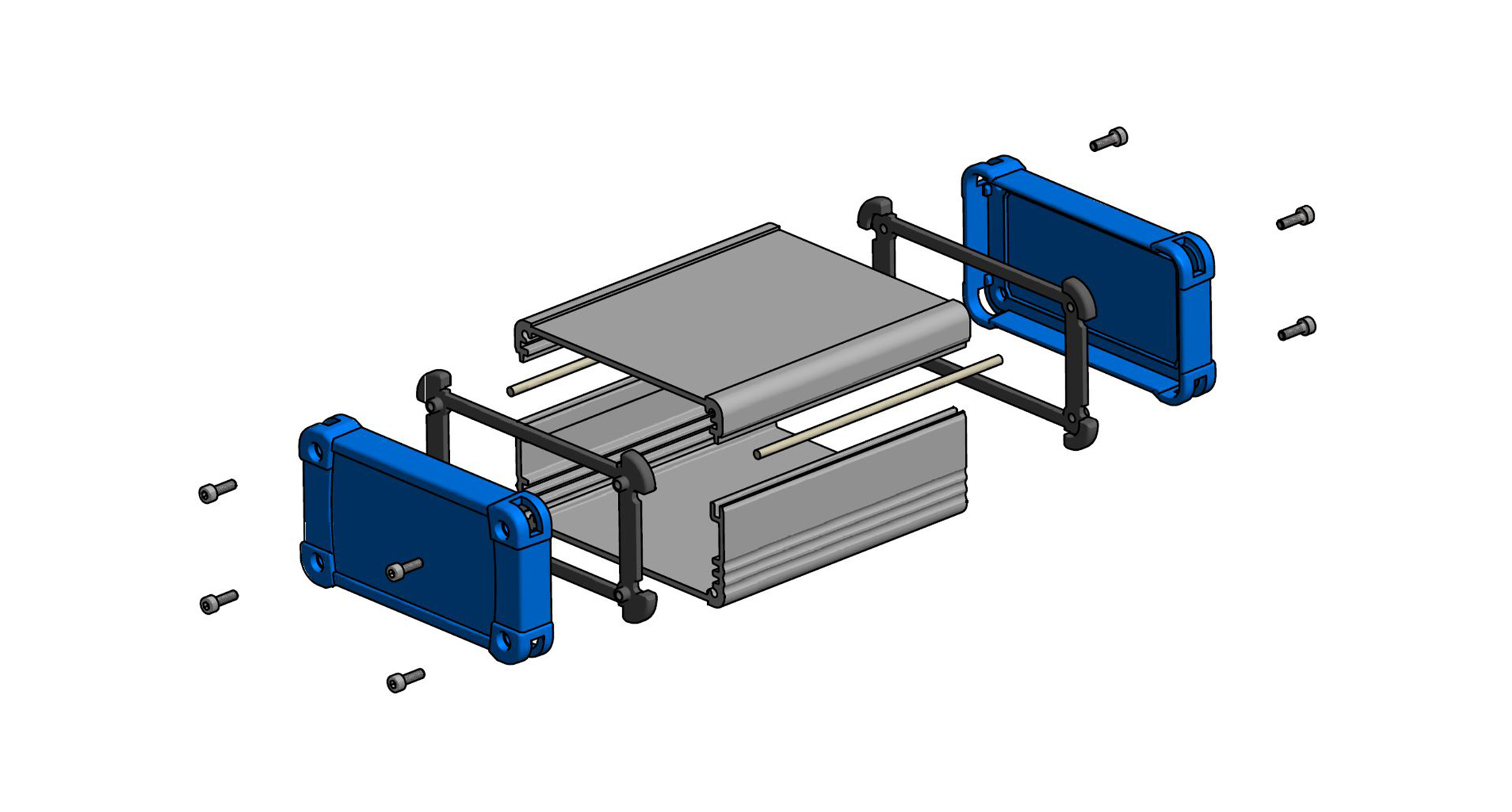

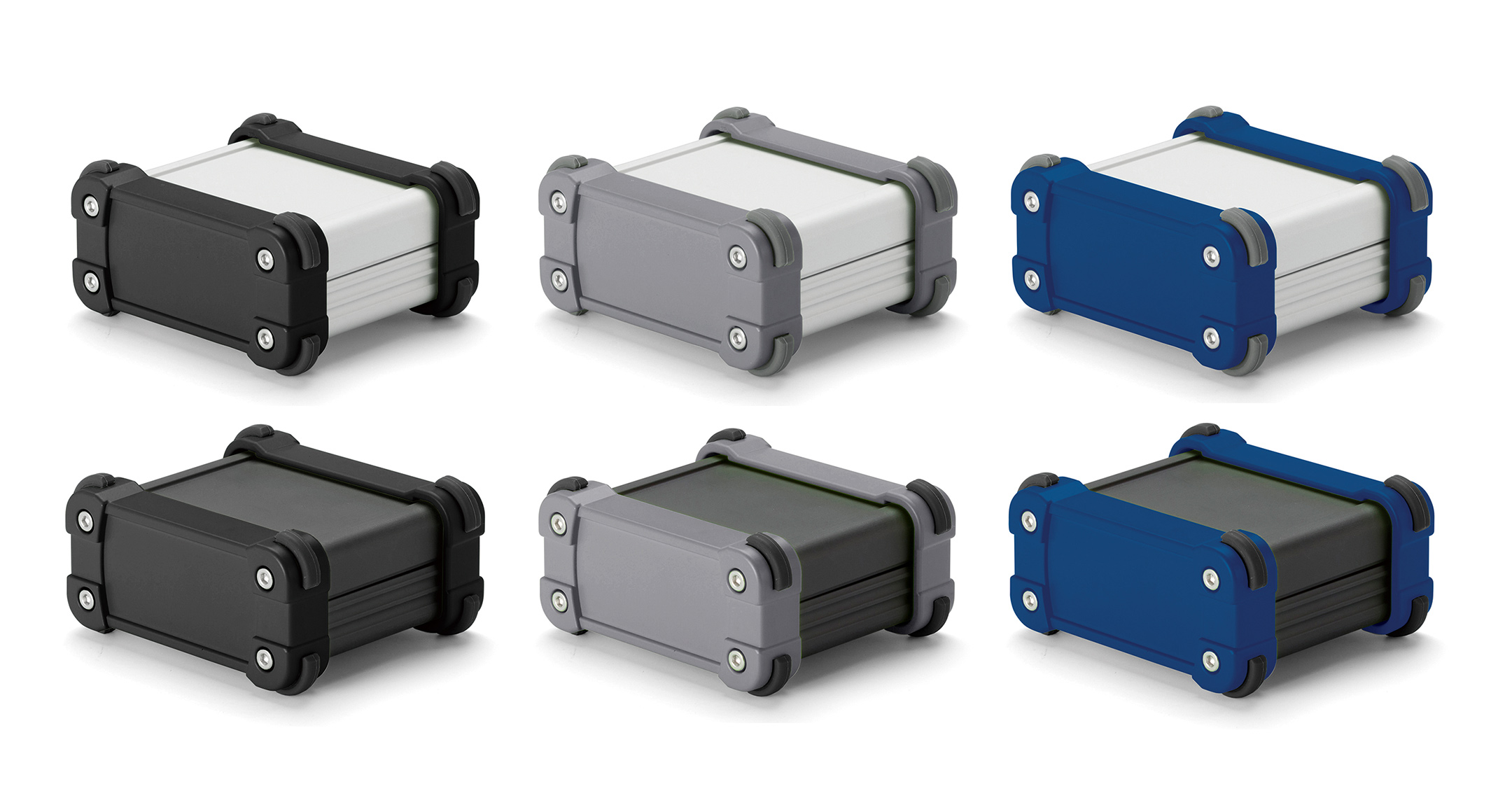

CUSTOM LENGTH ENCLOSURE - EXWS series 3D View - Silver/Navy 3D View - Silver/Gray 3D View - Black/Navy 3D View - Black/Black 3D View - 6 color types Exploded view Color code

COLOR TYPE

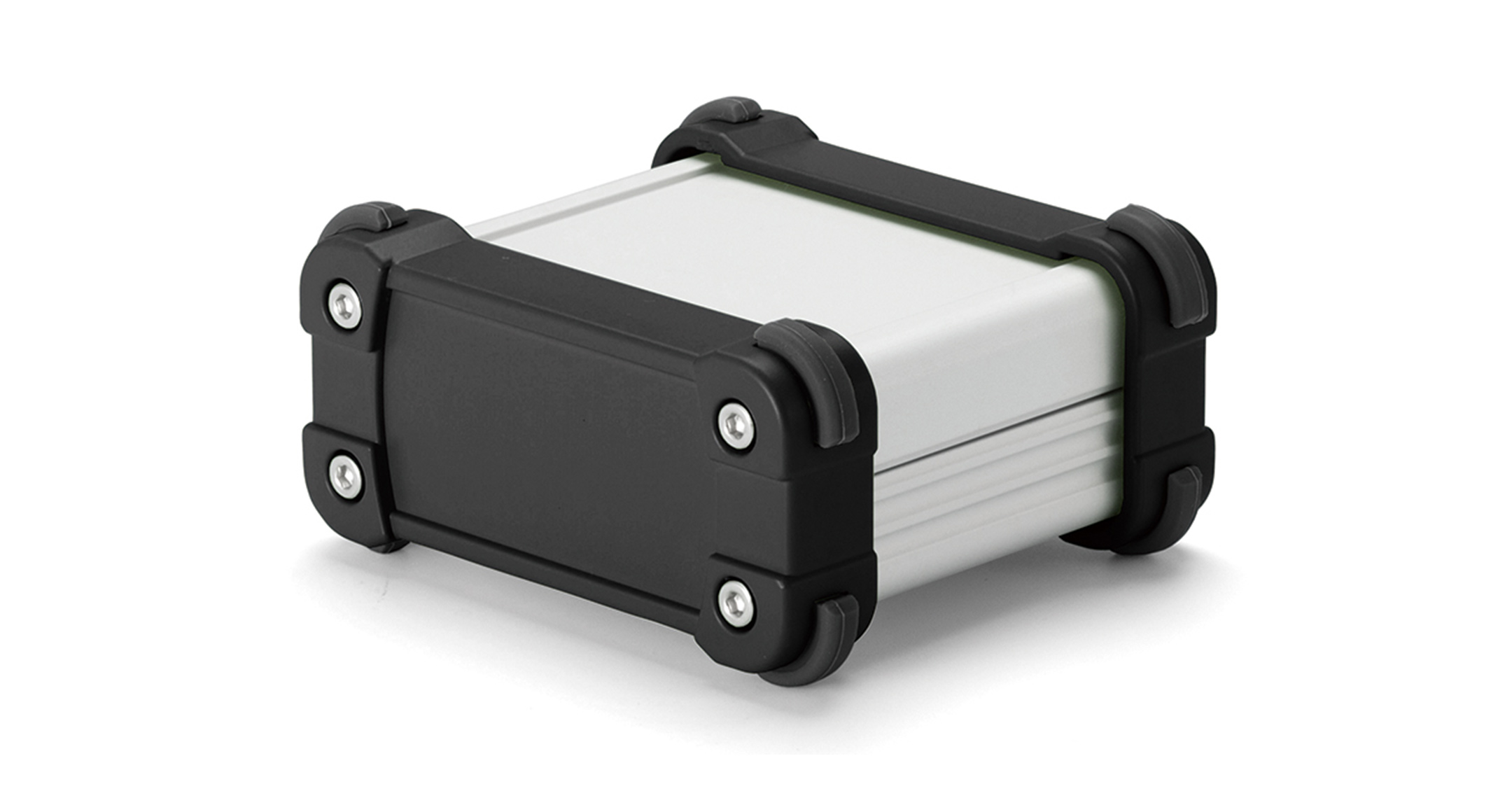

SBSilver/Black

IP65 EXTRUDED ALUMINUM ENCLOSURE - EXW series:Silver/Black

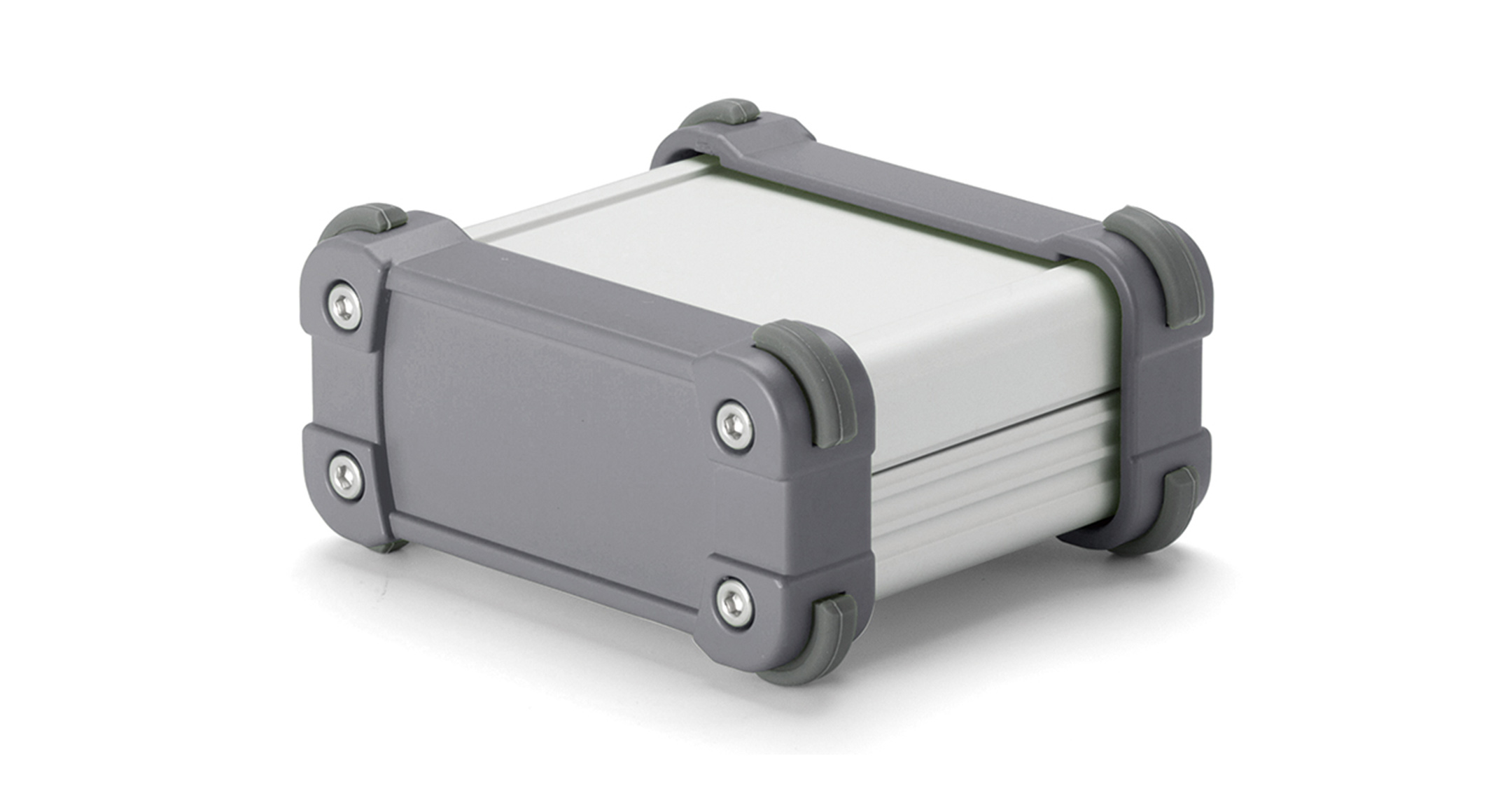

SGSilver/Gray

IP65 EXTRUDED ALUMINUM ENCLOSURE - EXW series:Silver/Gray

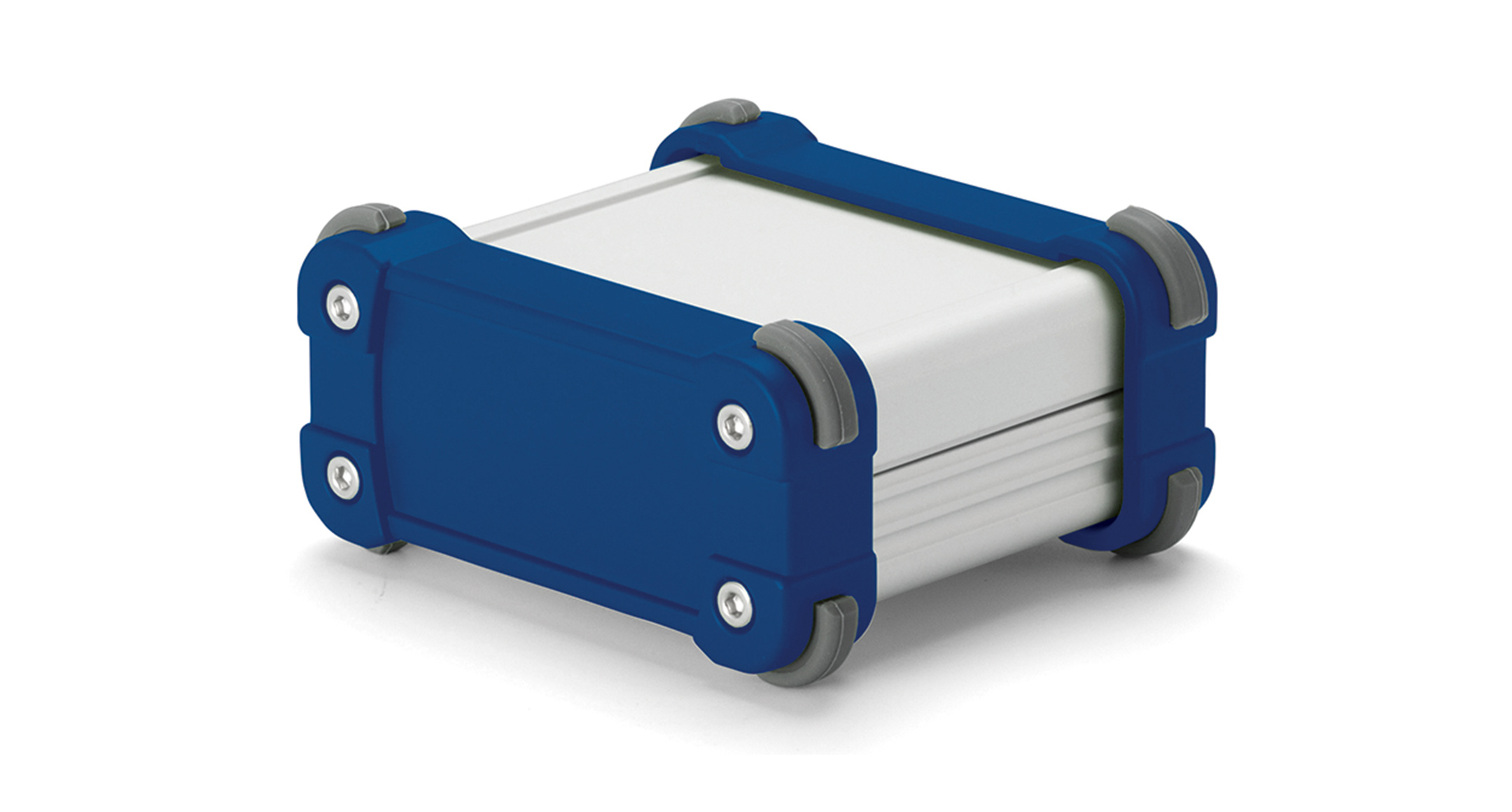

SNSilver/Navy

IP65 EXTRUDED ALUMINUM ENCLOSURE - EXW series:Silver/Navy

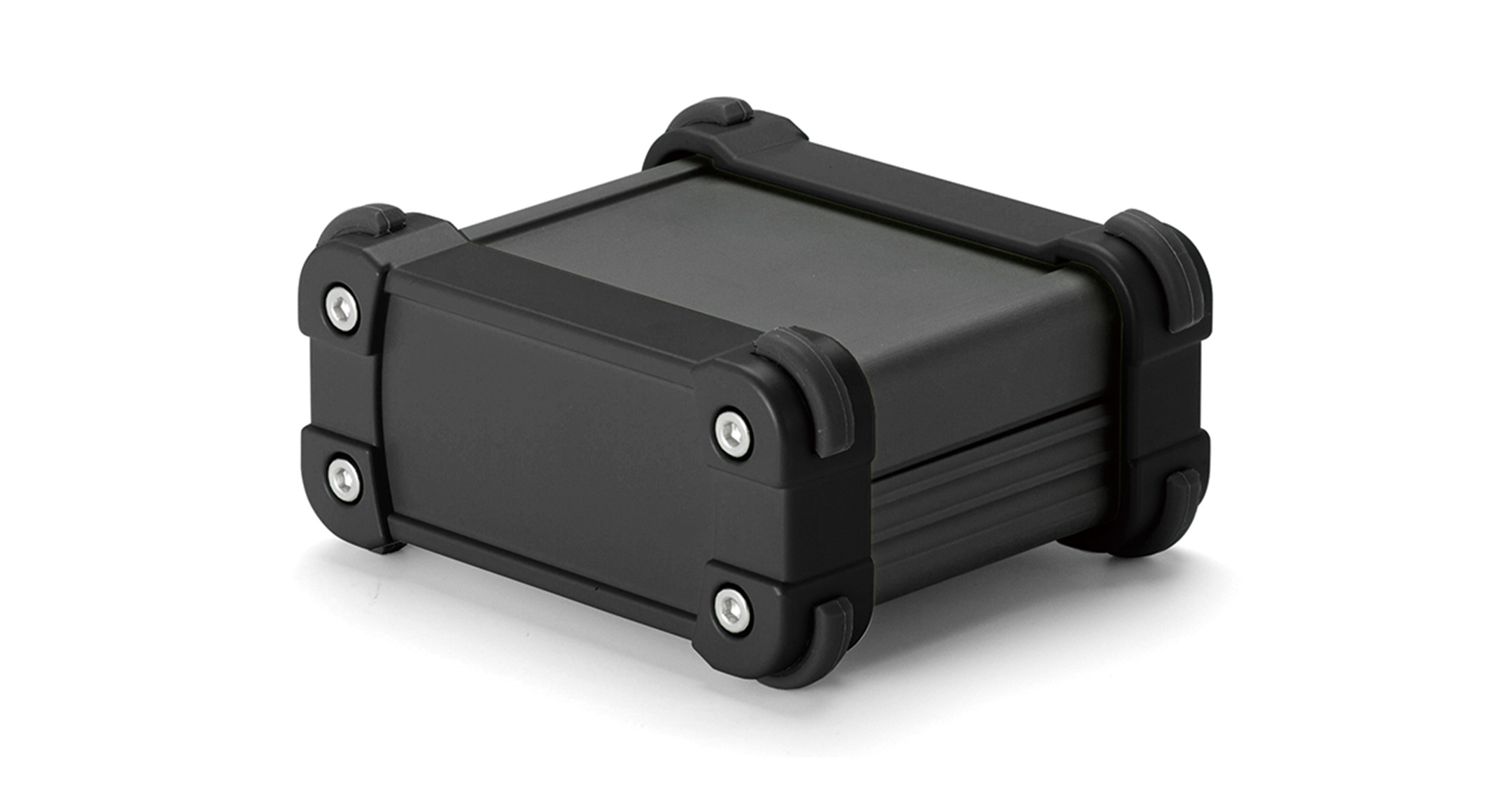

BBBlack/Black

IP65 EXTRUDED ALUMINUM ENCLOSURE - EXW series:Black/Black

BGBlack/Gray

IP65 EXTRUDED ALUMINUM ENCLOSURE - EXW series:Black/Gray

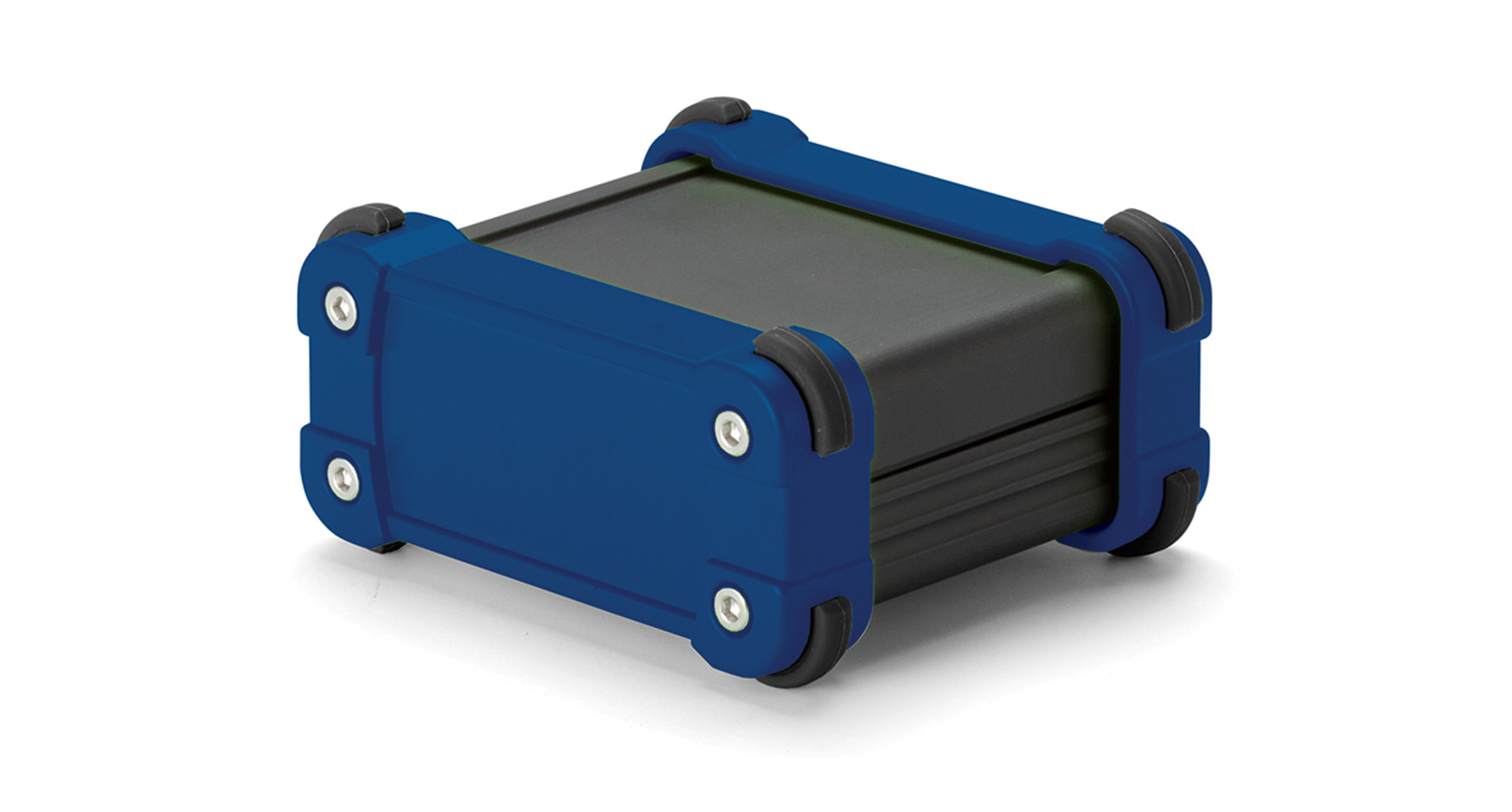

BNBlack/Navy

IP65 EXTRUDED ALUMINUM ENCLOSURE - EXW series:Black/Navy

PRODUCT NO. / DIMENSIONS

Product No.	External dimensions			Internal dimensions			Weight (g)	PDF	3D PDF	DXF	DWG	STP
Product No.	W	H	D	w	h	d	Weight (g)	PDF	3D PDF	DXF	DWG	STP
EXW7-3-6□	69	34	58	47	20	46	64	PDF	3D PDF	DXF	DWG
EXW7-3-9□	69	34	85	47	20	73	87	PDF	3D PDF	DXF	DWG
EXW7-3-11□	69	34	108	47	20	96	106.5	PDF	3D PDF	DXF	DWG
EXW7-4-6□	69	44	58	47	30	46	76	PDF	3D PDF	DXF	DWG
EXW7-4-9□	69	44	85	47	30	73	102.5	PDF	3D PDF	DXF	DWG
EXW7-4-11□	69	44	108	47	30	96	124.5	PDF	3D PDF	DXF	DWG
EXW7-6-6□	69	59	58	47	45	46	90.5	PDF	3D PDF	DXF	DWG
EXW7-6-9□	69	59	85	47	45	73	120.5	PDF	3D PDF	DXF	DWG
EXW7-6-11□	69	59	108	47	45	96	146.5	PDF	3D PDF	DXF	DWG
EXW9-4-7□	89	39	69	67	25	56	106	PDF	3D PDF	DXF	DWG
EXW9-4-10□	89	39	99	67	25	86	143	PDF	3D PDF	DXF	DWG
EXW9-4-13□	89	39	129	67	25	116	180	PDF	3D PDF	DXF	DWG
EXW9-5-7□	89	49	69	67	35	56	120.5	PDF	3D PDF	DXF	DWG
EXW9-5-10□	89	49	99	67	35	86	161.5	PDF	3D PDF	DXF	DWG
EXW9-5-13□	89	49	129	67	35	116	202	PDF	3D PDF	DXF	DWG
EXW9-6-7□	89	64	69	67	50	56	141	PDF	3D PDF	DXF	DWG
EXW9-6-10□	89	64	99	67	50	86	186	PDF	3D PDF	DXF	DWG
EXW9-6-13□	89	64	129	67	50	116	231	PDF	3D PDF	DXF	DWG
EXW12-4-9□	116	41	88	89	24	74	187	PDF	3D PDF	DXF	DWG
EXW12-4-13□	116	41	128	89	24	114	254.5	PDF	3D PDF	DXF	DWG
EXW12-4-18□	116	41	174	89	24	160	332	PDF	3D PDF	DXF	DWG
EXW12-6-9□	116	56	88	89	39	74	216.5	PDF	3D PDF	DXF	DWG
EXW12-6-13□	116	56	128	89	39	114	290.5	PDF	3D PDF	DXF	DWG
EXW12-6-18□	116	56	174	89	39	160	375.5	PDF	3D PDF	DXF	DWG
EXW12-7-9□	116	71	88	89	54	74	247	PDF	3D PDF	DXF	DWG
EXW12-7-13□	116	71	128	89	54	114	328.5	PDF	3D PDF	DXF	DWG
EXW12-7-18□	116	71	174	89	54	160	422.5	PDF	3D PDF	DXF	DWG
EXW15-5-11□	151	46	107	107	29	93	300	PDF	3D PDF	DXF	DWG
EXW15-5-15□	151	46	147	107	29	133	391.5	PDF	3D PDF	DXF	DWG
EXW15-5-20□	151	46	197	107	29	183	505	PDF	3D PDF	DXF	DWG
EXW15-6-11□	151	61	107	107	44	93	337	PDF	3D PDF	DXF	DWG
EXW15-6-15□	151	61	147	107	44	133	435	PDF	3D PDF	DXF	DWG
EXW15-6-20□	151	61	197	107	44	183	557	PDF	3D PDF	DXF	DWG
EXW15-8-11□	151	81	107	107	64	93	380.5	PDF	3D PDF	DXF	DWG
EXW15-8-15□	151	81	147	107	64	133	485.5	PDF	3D PDF	DXF	DWG
EXW15-8-20□	151	81	197	107	64	183	616.5	PDF	3D PDF	DXF	DWG
EXW15-10-11□	151	101	107	107	84	93	432.5	PDF	3D PDF	DXF	DWG
EXW15-10-15□	151	101	147	107	84	133	547.5	PDF	3D PDF	DXF	DWG
EXW15-10-20□	151	101	197	107	84	183	690.5	PDF	3D PDF	DXF	DWG
