STRAIN RELIEF CABLE GLAND - RSP series


RSP Series -PDF

CATEGORY：Strain relief cable gland, Spiral cable gland, Flexible cable gland, Nylon cable gland, Polyamide cable gland

STRAIN RELIEF CABLE GLAND - RSP series
STRAIN RELIEF CABLE GLAND - RSP series
STRAIN RELIEF CABLE GLAND - RSP series1
STRAIN RELIEF CABLE GLAND - RSP series2

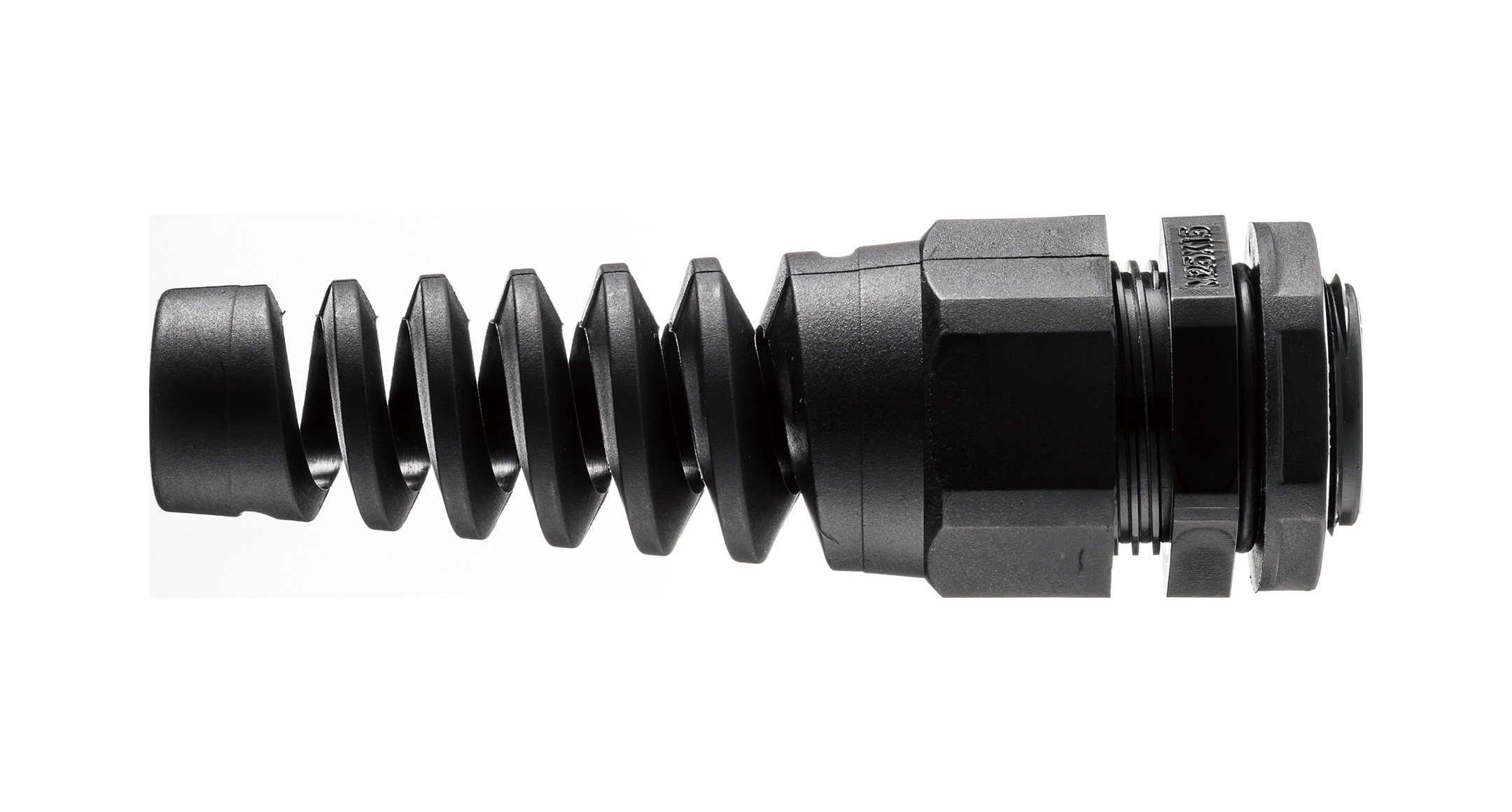

Strain relief cable gland for protecting cables.
6 sizes for M8・M10・M12・M16・M20・M25 in light gray and black are available.

Cable range : φ1mm～φ16mm
Protecting class : IP67
Recommended Torque REFERENCE TABLE 

PRODUCT NO. / DIMENSIONS

Product No. Thread size Mounting hole Cable range Color / Similar matching Weight (g) Pack of PDF DXF DWG
RSP8-2.5B M8×1.25 φ8.2 φ1 -2.5 mm Black / RAL9005 4.1 1 pcs PDF DXF DWG
RSP8-2.5S M8×1.25 φ8.2 φ1 - 2.5 mm Light gray / RAL7035 4.1 1 pcs PDF DXF DWG
RSP8-4B M8×1.25 φ8.2 φ2.5 - 4 mm Black / RAL9005 4 1 pcs PDF DXF DWG
RSP8-4S M8×1.25 φ8.2 φ2.5 - 4 mm Light gray / RAL7035 4 1 pcs PDF DXF DWG
RSP10-6B M10×1.5 φ10.2 φ3 - 6 mm Black / RAL9005 4.9 1 pcs PDF DXF DWG
RSP10-6S M10×1.5 φ10.2 φ3 - 6 mm Light gray / RAL7035 4.9 1 pcs PDF DXF DWG
RSP12-6B M12×1.5 φ12.2 φ3.5 - 6 mm Black / RAL9005 7 1 pcs PDF DXF DWG
RSP12-6S M12×1.5 φ12.2 φ3.5 - 6 mm Light gray / RAL7035 7 1 pcs PDF DXF DWG
RSP16-8B M16×1.5 φ16.2 φ4 - 8 mm Black / RAL9005 11.5 1 pcs PDF DXF DWG
RSP16-8S M16×1.5 φ16.2 φ4 - 8 mm Light gray / RAL7035 11.5 1 pcs PDF DXF DWG
RSP20-11B M20×1.5 φ20.2 φ6 - 11 mm Black / RAL9005 19.9 1 pcs PDF DXF DWG
RSP20-11S M20×1.5 φ20.2 φ6 - 11 mm Light gray / RAL7035 19.9 1 pcs PDF DXF DWG
RSP25-16B M25×1.5 φ25.2 φ11 - 16 mm Black / RAL9005 40.7 1 pcs PDF DXF DWG
RSP25-16S M25×1.5 φ25.2 φ11 - 16 mm Light gray / RAL7035 40.7 1 pcs PDF DXF DWG
SAMPLE REQUEST FORM

This product series is available as a free sample.

OPTIONAL PARTS

１
INTERCHANGEABLE HEAD TORQUE WRENCH - TWH series
DETAILS

SIMILAR PRODUCT

１
RUBBER STRAIN RELIEF CORD PROTECTOR CBS series
DETAILS
１
STRAIN RELIEF CABLE GLAND - AGSP series
DETAILS
１

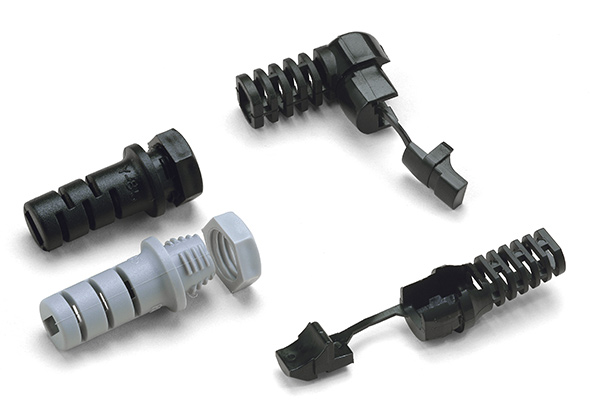

CABLE BUSHING - CP series
