ALUMINUM MOUNTING PLATE - AC series (For ER・ERH series)


AC Series -PDF

CATEGORY：Mounting plate, Mount plate, Aluminum plate, Mounting base

ALUMINUM MOUNTING PLATE - AC series (For ER・ERH series)
ALUMINUM MOUNTING PLATE - AC series (For ER・ERH series)1

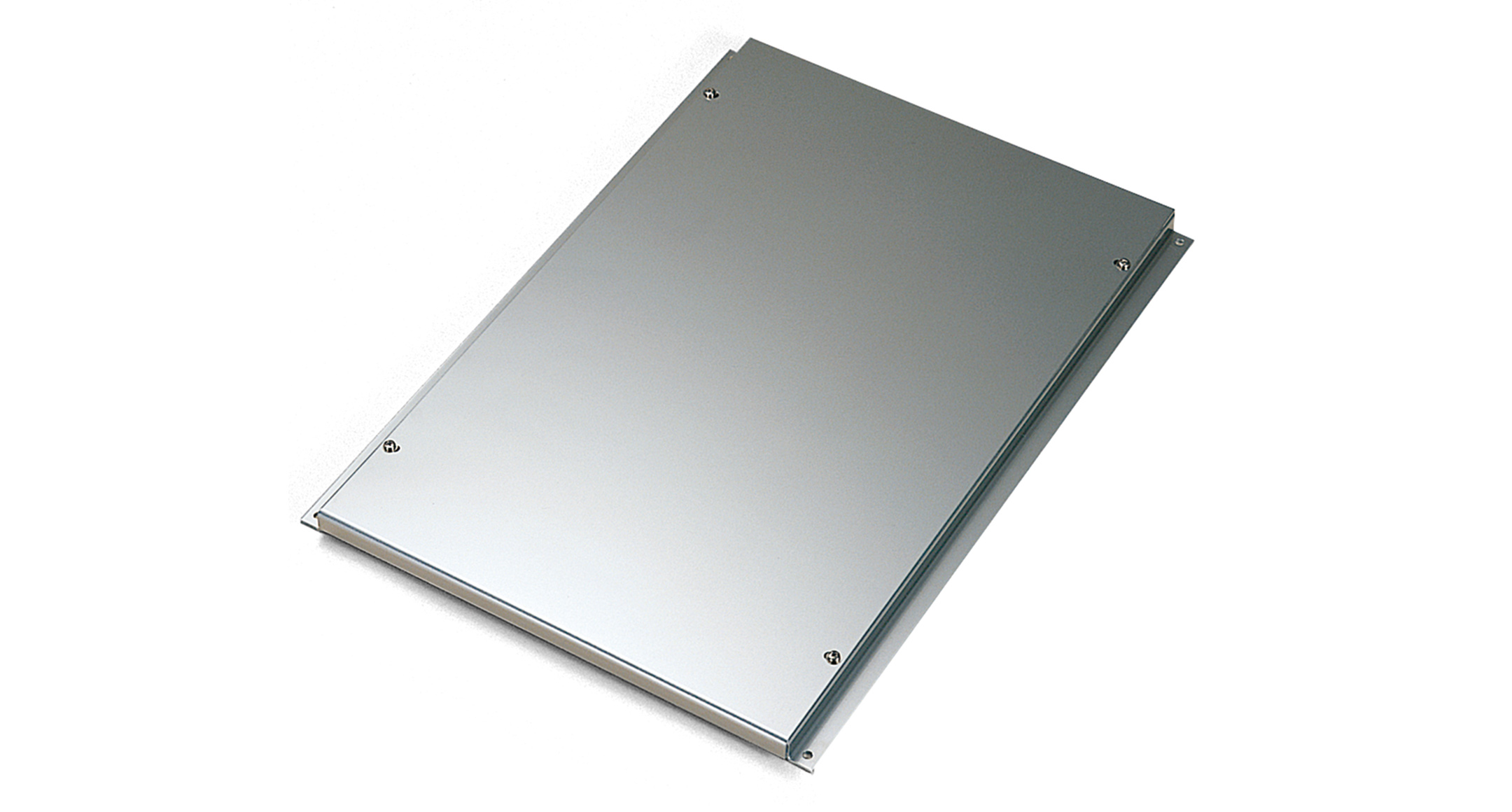

Mounting plate for ER・ERH series aluminum rack mount enclosures.
Use this mounting plate to install the boards with milling customization.
Plate material : Aluminum A1050P / Thickness=2.0mm

PRODUCT NO. / DIMENSIONS

Product No. Suitable enclosure W(width) x D(depth) Weight (g) PDF DXF DWG STP
AC16-43 482.6×160 340 PDF DXF DWG STP
AC20-43 482.6×200 460 PDF DXF DWG STP
AC26-43 482.6×260 610 PDF DXF DWG STP
AC32-43 482.6×320 740 PDF DXF DWG STP
AC37-43 482.6×370 860 PDF DXF DWG STP
AC43-43 482.6×430 1000 PDF DXF DWG STP
AC50-43 482.6×500 1160 PDF DXF DWG STP

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

Fiber laser cutting

DETAILS

CNC punch pressing

DETAILS

Clinching standoff pressing

DETAILS

CNC stud welding

DETAILS
