NEW PRODUCTS

NEW PRODUCTS

TAKACHI frequently launches new products and sizes, as well as various other news.
Please check it out from time to time!

DIN-RAIL BOX - DRC series — DIN-RAIL BOX - DRC series

Plastic enclosure with mount bracket for 35mm DIN-rail.

Toolless snap-in structure allows quick and easy assembly.

Simple installation and removal with the pull lever.

Suitable for network module, controller, data logger and others.

NEW PRODUCT

DIN-RAIL MOUNTING BASE - DRP series — DIN-RAIL MOUNTING BASE - DRP series

Mounting base for enclosures and others onto 35mm DIN-rail.

Easy mounting and dismounting using the pull lever.

Replacement product for the discontinued DRA series.

NEW PRODUCT

ALUMINIUM CONTROL BOX - AUH series — ALUMINIUM CONTROL BOX - AUH series

Aluminium enclosure with opening/closing cover

Selectable from 2 types handle : Normal and Key Lock type

A large selection of 112 different sizes in 2 different colors

Suitable for control panel, power supply and others.

NEW PRODUCT

19” RACK MOUNT ENCLOSURE - AUR series — 19” RACK MOUNT ENCLOSURE - AUR series

19” rack mount enclosure with insertion type front / rear panels

A large selection of 28 different sizes in 4 different colors

Suitable for use as audio/visual equipment,

rack mount computers, measuring instruments and others.

NEW PRODUCT

19” RACK MOUNT ENCLOSURE WITH DETACHABLE PANELS - AUPR series — 19” RACK MOUNT ENCLOSURE WITH DETACHABLE PANELS - AUPR series

19” rack mount enclosure with detachable panels

The unfinished inner surface allows the case to be conductive

A large selection of 21 different sizes in 2 different colors

For audio/visual equipment, rack mount computers and others

NEW PRODUCT

EMC SHIELDED 19” ENCLOSURE WITH DETACHABLE PANELS - AUPRE series — EMC SHIELDED 19” ENCLOSURE WITH DETACHABLE PANELS - AUPRE series

EMC shielded 19” enclosure with handles.

Detachable front/rear panels allow for easy maintenance

A large selection of 21 different sizes in 2 different colors.

For audio/visual equipment, rack mount computers and others

NEW PRODUCT

19” RACK MOUNT ENCLOSURE - AUXR series — 19” RACK MOUNT ENCLOSURE - AUXR series

19” Rack Mount Enclosure with 4 extruded aluminium frames

Flat and rugged design rack mounting case with handles

Selectable from 28 different sizes in 4 different colors

For audio/visual equipment, rack mount computers and others

NEW PRODUCT

EMC SHIELDED 19” RACK MOUNT ENCLOSURE - AUXRE series — EMC SHIELDED 19” RACK MOUNT ENCLOSURE - AUXRE series

EMC shielded 19” Rack Mount Enclosure with aluminium frames

Flat and rugged design rack mounting case with handles

A large selection of 28 different sizes in 2 different colors

For audio/visual equipment, rack mount computers and others

NEW PRODUCT

PORTABLE ALUMINIUM INSTRUMENT CASE with HANDLE - AUGH series — PORTABLE ALUMINIUM INSTRUMENT CASE with HANDLE - AUGH series

Rugged design aluminium enclosure with carrying handle

Can withstand a maximum load of up to 20.0 kg

108 different sizes, 4 corner guard colors

2 handle colors, 2 enclosure colors

NEW SIZE

ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series — ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series

Rugged designed aluminium enclosure with corner guards.

Corner guards also act as non-slip rubber feet.

For measuring instrument, Network device, power supply.

Available in 117 different sizes and 8 color types.

NEW SIZE

EMC SHIELDED RUGGED ENCLOSURE - AUGE series — EMC SHIELDED RUGGED ENCLOSURE - AUGE series

Rugged designed EMC shielded aluminium enclosure.

Corner guards also act as non-slip rubber feet.

For RF analyzer, network device, power supply, embedded PC.

Available in 117 different sizes and 4 color types.

NEW SIZE

ALUMINIUM ENCLOSURE - AU series — ALUMINIUM ENCLOSURE - AU series

Simple and luxurious design universal aluminium enclosure.

For measuring instrument, controller, power supply, amplifier

Rubber feet / Aluminium feet can be selected.

Available in 117 different sizes and 4 color types.

NEW SIZE

ALUMINIUM ENCLOSURE with DETACHABLE PANELS - AUP series — ALUMINIUM ENCLOSURE with DETACHABLE PANELS - AUP series

Simple and luxurious design aluminium enclosure.

Front / rear panel is easily detachable.

Captive screws allow for ease of maintenance.

Available in 172 different sizes and 2 color types.

NEW SIZE

EMC SHIELDED ENCLOSURE with DETACHABLE PANELS - AUPE series — EMC SHIELDED ENCLOSURE with DETACHABLE PANELS - AUPE series

EMC shielding aluminium enclosure.

Front / rear panel is easily detachable.

Captive screws allow for ease of maintenance.

Available in 172 different sizes and 2 color types.

NEW SIZE

ALUMINIUM CONTROL BOX - AUX series — ALUMINIUM CONTROL BOX - AUX series

Roundedge designed aluminium enclosure.

For industrial control box, command panel, audio amplifier.

Rubber feet / Aluminium feet can be selected.

Available in 135 different sizes and 4 color types.

NEW SIZE

EMC SHIELDED ALUMINIUM BOX - AUXE series — EMC SHIELDED ALUMINIUM BOX - AUXE series

EMC shielding aluminium enclosure.

Rugged design with a corner guard.

For network device, embedded PC, industrial control box.

Available in 135 different sizes and 2 color types.

NEW SIZE

IoT SMALL PLASTIC CASE - SIC series — IoT SMALL PLASTIC CASE - SIC series

Rounded design small plastic enclosure.

Easy assembly snap-in construction.

Suitable for IoT devices, Sensor, RFID tag, Remote controller.

9 different sizes and White & Black colors are available.

NEW SIZE

WALL MOUNT IoT SMALL PLASTIC ENCLOSURE - SIM series — WALL MOUNT IoT SMALL PLASTIC ENCLOSURE - SIM series

Rounded design small wallmount plastic enclosure.

Easily attached to, or detached wall mounting bracket.

Included easily attached/detached bracket.

4 different sizes are available.

NEW SIZE

IP68 HIGH PERFORMANCE WATERPROOF ENCLOSURE WG series — IP68 HIGH PERFORMANCE WATERPROOF ENCLOSURE WG series

IP68 high performance waterproof plastic enclosure.

Protected from immersion 24 hours at 1m depth.

Made of UV-resistant ASA material.

Perfect for use as outdoor gateway / network devices.

NEW SIZE

IP68 WATERPROOF ENCLOSURE with VENTILATION PLUG - WGV series — IP68 WATERPROOF ENCLOSURE with VENTILATION PLUG - WGV series

IP68 waterproof plastic enclosure with protective vent.

Protected from immersion 24 hours at 1m depth.

Made of UV-resistant ASA material.

Perfect for use as outdoor gateway / network devices.

NEW SIZE

TERMINAL BLOCK WTB series — TERMINAL BLOCK WTB series

Compatible terminal blocks with WG・WGV series.

Electrical Rating 600V 35A

Operating Temp. Range -40℃ ~ +90℃

3P, 6P, 7P, 10P are available.

NEW PRODUCT

IP68 HINGED TERMINAL BLOCK JUNCTION BOX - JW series — IP68 HINGED TERMINAL BLOCK JUNCTION BOX - JW series

IP68 hinged terminal juction box allows easy access for

maintenance or replacement of components.

2, 3 and 4 way types are available.

4P pole models and no terminal models are available.

NEW PRODUCT

IP68 POLYCARBONATE HINGED ENCLOSURE - UPC series — IP68 POLYCARBONATE HINGED ENCLOSURE - UPC series

IP68 high performance polycarbonate box withstand

submersion to a depth of 2 meters for up to 24 hours.

Perfect for use as outdoor communication network devices,

solar power junction box, or FA controller.

NEW SIZE

ECONOMICAL OUTDOOR NETWORK BOX - OB series — ECONOMICAL OUTDOOR NETWORK BOX - OB series

Low price type outdoor network enclosure.

Integrated pole mount bracket on the back side.

Suitable for access point, IoT gateway, outdoor sensor.

3 sizes are available.

NEW PRODUCT

DIN-RAIL TERMINAL BLOCK END STOPPER - TKR series — DIN-RAIL TERMINAL BLOCK END STOPPER - TKR series

Stopper bracket for use with 35mm DIN-rail.

Can be used to fix terminal blocks or modules.

TKR-TWE1 for smaller attachment parts.

TKR35-1 for larger / higher attachment parts.

NEW TYPE

ECONOMICAL DIN-RAIL END STOPPER - DRS series — ECONOMICAL DIN-RAIL END STOPPER - DRS series

Economically priced end stopper bracket.

Can be used to fix terminal blocks or modules.

Included screws allow affixing of stopper brackets firmly

at a fixed location.

NEW PRODUCT

HINGED INSPECTION WINDOW - IW series — HINGED INSPECTION WINDOW - IW series

IP64/54 water resistant see-through hinged inspection window

Smartly designed window for protection of switches and

displays, etc. Knurled thumb screws for easy securing.

10 different sizes available.

NEW PRODUCT

IP65 PLASTIC SWITCH BOX - BCSB series — IP65 PLASTIC SWITCH BOX - BCSB series

IP65 switch box with 1 ~ 4 Φ22 hole(s) on the top cover.

Flame retardant UL94V-0 polycarbonate material.

Φ22 knock-outs on 2 opposite ends for easy wiring access.

4 different sizes available.

MULTI-HOLE CABLE GLAND - RMH series — MULTI-HOLE CABLE GLAND - RMH series

Multi-hole cable gland with M type threads

Up to a maximum of 6 cables can be used with 1 cable gland

5 thread sizes for M12・M16・M20・M25・M32

Cable range : φ1.5mm～φ11mm

NEW PRODUCT

RIGHT ANGLED CABLE GLAND - REL series — RIGHT ANGLED CABLE GLAND - REL series

L-shape cable gland with M type threads

Allow wires to be routed vertically

4 thread sizes for M16・M20・M25・M32

Cable range : φ3.5mm～φ16mm

NEW PRODUCT

STRAIN RELIEF CABLE GLAND - RSP series — STRAIN RELIEF CABLE GLAND - RSP series

Strain relief cable gland for protecting cables.

Protecting class : IP67

6 sizes for M8・M10・M12・M16・M20・M25 in light gray / black

Cable range : φ1mm～φ16mm

NEW SIZE

INTERCHANGEABLE HEAD TORQUE WRENCH - TWH series — INTERCHANGEABLE HEAD TORQUE WRENCH - TWH series

Torque wrench with interchangeable head.

Suitable for the tightening of cable glands

Open end interchangeable head (spanner head)

TWE series available separately.

NEW PRODUCT

STAINLESS STEEL HOSE CLAMP - SNB series — STAINLESS STEEL HOSE CLAMP - SNB series

Screw adjustable type stainless steel hose clamp.

Clamp band for hoses for air, liquid, and oil.

Belt material : SUS304

Wide lineup of 23 sizes from 8 mm to 308 mm.

NEW PRODUCT

RUBBER STRAIN RELIEF CORD PROTECTOR CBS series — RUBBER STRAIN RELIEF CORD PROTECTOR CBS series

Strain relief cord protector help relief flex stress and damage.

2 types - round and flat - are available.

Insert from the inner side of the case / panel of the enclosure.

Made from high heat resistant silicone material.

NEW PRODUCT

LOW-COST VENTILATION PLUG - CVP series — LOW-COST VENTILATION PLUG - CVP series

Economical IP68 ventilation plug

Protects enclosures from deformation by

equalizing in/out side pressure

Available in M6, M12, M16, and M24 sizes

NEW PRODUCT

LOW-COST METAL VENTILATION PLUG - CVP-M series — LOW-COST METAL VENTILATION PLUG - CVP-M series

Economical IP68 Metal ventilation plug

Protects enclosures from deformation by

equalizing in/out side pressure

Available in M6, M12 and M20 sizes

NEW PRODUCT

BLIND PLUG with O-ring - SHP series — BLIND PLUG with O-ring - SHP series

Hole plug for sealing holes that are not in use.

IP67 rating is achieved through the use of a lock nut.

Available in 6 sized for φ12.2 to φ40.3 holes in Black.

Light gray colors.

NEW PRODUCT

RUBBER GROMMET - NG series — RUBBER GROMMET - NG series

Rubber grommet to protect cables or wires on the edged holes.

Material：EPDM, PVC, NBR

40 different sizes from φ2.3～φ40mm are available.

NEW SIZE

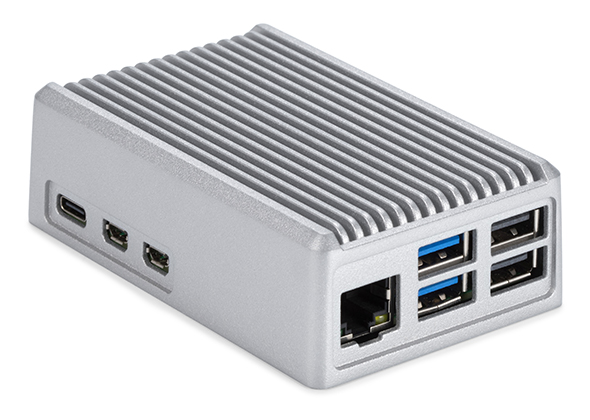

Raspberry Pi 4B heatsink case - RPH series — Raspberry Pi 4B heatsink case - RPH series

Raspberry Pi Model 4B heatsink cooling case.

Constructed using diecast aluminium for strength and rigidity.

It is a high-performance case yet low-priced price.

Available in 2 models : Desktop and Flanged wall mount.

NEW PRODUCT

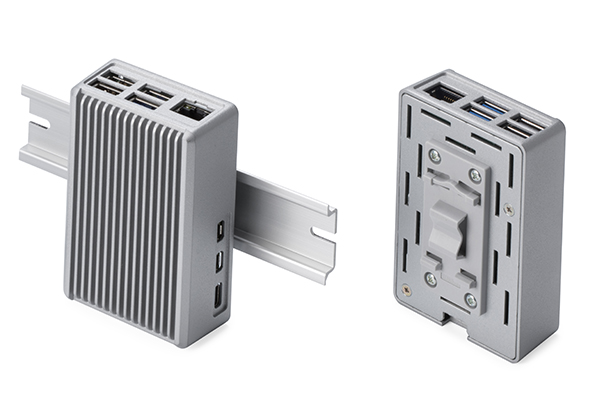

DIN rail mount Raspberry Pi heatsink case - RPHD series — DIN rail mount Raspberry Pi heatsink case - RPHD series

Heatsink DIN rail mount case for Raspberry Pi 4B.

Simple installation and removal by tilting action.

Constructed using diecast aluminium for strength and rigidity.

2 types are available : Heat dissipation type and Normal type.

NEW PRODUCT

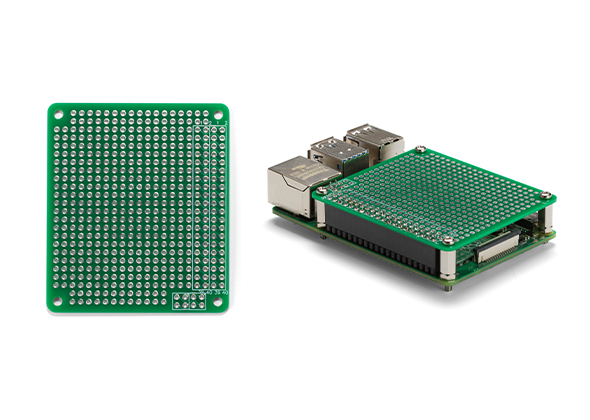

EXPANSION PCB for Raspberry Pi 4B - RPCB-4B — EXPANSION PCB for Raspberry Pi 4B - RPCB-4B

Expansion PCB for standard Raspberry Pi 4B.

Glass epoxy material (FR-4) / Double-sided through hole.

Use to install expansion parts or components.

Please use optional connector for connection Pi board.

NEW PRODUCT

LOW COST CONDUCTIVE ALUMINIUM FOIL SHEET - ALTS series — LOW COST CONDUCTIVE ALUMINIUM FOIL SHEET - ALTS series

Low price type adhesive aluminum foil sheet for grounding

and shielding of enclosures.

257 x 182mm (B5 size) and 297 x 210mm (A4 size)

are available.

LOW COST CONDUCTIVE COPPER FOIL SHEET - CUTS series — LOW COST CONDUCTIVE COPPER FOIL SHEET - CUTS series

Low price type conductive flexible copper sheet.

Conductive adhesive layer maintains conductivity.

257 x 182mm (B5 size) and 297 x 210mm (A4 size)

are available.

LOW COST CONDUCTIVE ALUMINIUM FOIL TAPE - ALT series — LOW COST CONDUCTIVE ALUMINIUM FOIL TAPE - ALT series

Low price type adhesive aluminum foil tape for grounding

and shielding of enclosures.

Conductive adhesive layer maintains conductivity.

LOW COST CONDUCTIVE COPPER FOIL TAPE - CUT series — LOW COST CONDUCTIVE COPPER FOIL TAPE - CUT series

Low price type conductive flexible copper tape.

Conductive adhesive layer maintains conductivity.

Copper tape can be soldered onto a metal foil.

SHOULDER STRAP SB1250 — SHOULDER STRAP SB1250

Polypropylene strap with PVC shoulder pad to provide

cushioning as well as reducing burden on the shoulders.

Usable with other bags or cases with a D-ring or similar

attachment.

NEW PRODUCT

BOLT-ON D-RING - GF-30 — BOLT-ON D-RING - GF-30

Bolt on D-ring for attaching shoulder straps.

Hole milling is required for case installation.

Max load: 10kg

NEW PRODUCT

WALL MOUNT MONITOR ARM - MAR series — WALL MOUNT MONITOR ARM - MAR series

Movable wall mount suspension arm

Suitable for mounting a touch panel controller on a machine

Hole pitch of bracket is compatible with VESA mount standards

3 types can be selected

NEW PRODUCT

ALUMINIUM ENCLOSURE with TILT LEG - EXPT series — ALUMINIUM ENCLOSURE with TILT LEG - EXPT series

Instrument enclosure equipped with tilt legs.

Shock-proof design case with a corner bumper.

For Measurement instrument, Analyzer, Testing device.

30 different sizes and 16 different color combinations.

ALUMINIUM ENCLOSURE with CORNER GUARD - EXP series — ALUMINIUM ENCLOSURE with CORNER GUARD - EXP series

Shock-proof design instrument aluminium enclosure.

Designed to be both aesthetically, and impact resistant.

16 color combinations can be selected.

Available in 73 different sizes.

NEW SIZE

EMC SHIELDING ENCLOSURE - EXPE series — EMC SHIELDING ENCLOSURE - EXPE series

EMC/EMI shielded desktop aluminium enclosure.

For Analyzers, Measuring instruments, Embedded PCs.

73 different sizes, 8 color combinations.

NEW SIZE

IP65 FLANGED ENCLOSURE - EXWF series — IP65 FLANGED ENCLOSURE - EXWF series

Low cost type waterproof wallmount aluminium enclosure.

Flanged end panels make it easy for wall mounting.

Protection class : IP65 / IP54 (Depends on size)

73 different sizes in 6 color combinations.

NEW SIZE

HEATSINK ALUMINIUM ENCLOSURE - EXH series — HEATSINK ALUMINIUM ENCLOSURE - EXH series

Aluminium enclosure with a highly efficient heat-sink top cover.

For fanless PC, Embedded pc, Power supply, Power amplifier.

64 different sizes and 2 color combinations.

NEW SIZE

HEATSINK ALUMINIUM EMC SHIELDED ENCLOSURE - EXHE series — HEATSINK ALUMINIUM EMC SHIELDED ENCLOSURE - EXHE series

Aluminum enclosure equipped with a highly efficient heat.

EMC shielding enclosure with conductive gasket.

For Fanless PC, Power amplifier, Power supply, IoT gateway.

64 different sizes available in metallic silver painted finish.

FLANGED HEAT SINK ALUMINIUM EMC SHIELDED ENCLOSURE - EXHFE series — FLANGED HEAT SINK ALUMINIUM EMC SHIELDED ENCLOSURE - EXHFE series

Aluminum enclosure equipped with a highly efficient heat-sink.

Equipped with flanged bracket for easy wall mounting.

EMC shielding enclosure with conductive gasket.

64 different sizes available in metallic silver painted finish.

SHOCKPROOF PLASTIC ENCLOSURE - PFG series — SHOCKPROOF PLASTIC ENCLOSURE - PFG series

Network plastic box attached with shockproof silicone corner

guards. 4 different sizes and a total of 6 color combinations

available. Suitable for industrial tablet, measuring equipment,

controller or various other applications.

NETWORK PLASTIC BOX - PF series — NETWORK PLASTIC BOX - PF series

Flat designed plastic box with detachable panels.

The most popular electronics plastic enclosure in Japan.

Made of flame-resistant ABS UL94V-0.

36 different sizes in off-white and dark gray colors.

NEW SIZE

EMBEDDED BATTERY BOX - BC series — EMBEDDED BATTERY BOX - BC series

Screw mount embedded battery box.

for material thickness of 1.0mm to 3.5mm.　

5 battery types : AA x 2, AA x 3, AA x 4, AAA x 2 and AAA x4.

With lead-wire and without lead-wire can be selected.

SNAP-IN PCB ADHESIVE STANDOFF - ULCK series — SNAP-IN PCB ADHESIVE STANDOFF - ULCK series

PCB standoff without the need for screws.

Securing of a 1.6mm thick PCB made easy.

Adhesive standoff can be freely and easily affixed on.

Pack of 4 pcs.

CUBE STANDOFF - CUBE series — CUBE STANDOFF - CUBE series

10x10mm cube shape standoff.

Standoff with a thread on 4 faces.

Usable when installing PCB or metal plate upright.

M3 and M4 thread models available.

ADHESIVE STANDOFF - AST series — ADHESIVE STANDOFF - AST series

Quick and easy installation adhesive standoffs.

Steel nut is installed, it has sufficient thread strength.

Convenient parts for installing PCBs into enclosures.

8 different sizes are available.

TAPPING STANDOFF - TPS series — TAPPING STANDOFF - TPS series

Female standoff with tapping screw.

Easy installation onto existing enclosure boss mount.

M2.3・M2.6・M3・thread in 4~12mm length and M4 thread

in 6~20mm lengths are available.

NEW SIZE

LOW COST UNIVERSAL PCB — LOW COST UNIVERSAL PCB

Low cost universal PCB with glass epoxy material.

Plated Through Holes (PTH) type with a 2.54mm hole-to-hole

pitch.　Easily mount via the mounting holes at each corner.

5 different sizes available with a Eurocard (3U) format size.

NEW PRODUCT

FIBER OPTIC PORT DUSTPROOF PLUG　SFPC・CXP series — FIBER OPTIC PORT DUSTPROOF PLUG　SFPC・CXP series

Protective dustproof blind plugs for fiber optic ports.

Easy handling pull-tab type for SFP, QSFP and CXP ports.

Sold in 10 pcs pack.

CUSTOM SIZED ACLYRIC BOX with CORNER GUARD - SKGF series — CUSTOM SIZED ACLYRIC BOX with CORNER GUARD - SKGF series

Transparent acrylic case with corner support frames and

elastomer corner guards.　Adjustable sizes available in 1mm

intervals, with W and D dimensions from 55 ~ 500mm, and

H dimensions from 30 ~ 500mm.

SKELETON ACRYLIC CASE - SKL series — SKELETON ACRYLIC CASE - SKL series

Curved transparent acrylic case with corner support columns.

Usable as a display enclosure for a unique and luxurious look.

Robust structure by acrylic panels/extruded aluminium pillars.

5 different sizes are available.

ARC DESIGN ALUMINIUM ENCLOSURE - ALR series — ARC DESIGN ALUMINIUM ENCLOSURE - ALR series

Curved arc designed aluminium enclosure.

Elegant design with columns at the corners.

For embedded computers, audio amplifiers or power supply.

6 different sizes are available.

CUSTOM SIZED ARC DESIGN ALUMINIUM CASE - ALRF series — CUSTOM SIZED ARC DESIGN ALUMINIUM CASE - ALRF series

Custom sized aluminium enclosure in curved arc design.

Elegant design with columns at the corners.

W・D dimensions can be specified as 50 ~ 500mm.

H dimensions can be specified as 30 ~ 500mm.

NEW PRODUCT

CUSTOM SIZED ALUMINUM FRAME BOX with CORNER GUARD - ALGF series — CUSTOM SIZED ALUMINUM FRAME BOX with CORNER GUARD - ALGF series

Square shaped aluminium case with corner support columns

and elastomer corner guards.

Adjustable sizes available in 1mm intervals, with W and D

from 55 ~ 500mm, and H from 30 ~ 500mm.

CUSTOM SIZED ALUMINUM FRAME BOX - ALSF series — CUSTOM SIZED ALUMINUM FRAME BOX - ALSF series

Square shaped aluminium box with corner frame.

Can be manufactured in a wide range of dimensions.

W・D dimensions can be specified as 50 ~ 500mm.

H dimensions can be specified as 30 ~ 500mm.

CUSTOM SIZED STAINLESS STEEL BOX - TCS series — CUSTOM SIZED STAINLESS STEEL BOX - TCS series

Custom sized stainless steel sheet metal box with a stainless

steel sheet cover. All W, H, and D dimensions can be specified

as 60～ 400mm for W and D dimensions and 40～120mm for

H dimension in 1mm intervals.

IP67 SLOPED PLASTIC ENCLOSURE - WSC series — IP67 SLOPED PLASTIC ENCLOSURE - WSC series

Streamlined plastic case based upon ergonomic design.

2 different inclined angles, 13° and 18° are available.

Suitable to medical, research equipment or card reader.

6 different sizes in off-white and black colors are available.

IP67 KEY-FOB PLASTIC ENCLOSURE - WC series — IP67 KEY-FOB PLASTIC ENCLOSURE - WC series

Double shot injection molded TPE grip and ABS body.

Waterproof protection class : IP67

Available battery types : CR2032x1, AAAx2, and no battery.

5 different sizes and 3 color variations.

NEW SIZE

TILT LEG - TLW series — TILT LEG - TLW series

Double shot injection molded tilt stand.

Non-slip design with elastomer (TPE) part.

Soft and well-designed rounded shape.

Available in 3 different color combinations.

NEW PRODUCT
