ALUMINIUM ISOLATION FEET - AFM・AFS series


AFM_AFS Series -PDF

CATEGORY：Aluminium feet, Anodized aluminium feet, Amplifier feet, Audio insulator, Amplifier isolation feet, Case feet

ALUMINIUM ISOLATION FEET - AFM・AFS series
ALUMINIUM ISOLATION FEET - AFM・AFS series
ALUMINIUM ISOLATION FEET - AFM・AFS series
ALUMINIUM ISOLATION FEET - AFM・AFS series
ALUMINIUM ISOLATION FEET - AFM・AFS series
ALUMINIUM ISOLATION FEET - AFM・AFS series1
ALUMINIUM ISOLATION FEET - AFM・AFS series2
ALUMINIUM ISOLATION FEET - AFM・AFS series3
ALUMINIUM ISOLATION FEET - AFM・AFS series4
ALUMINIUM ISOLATION FEET - AFM・AFS series5
The surface treatment and finish allows the feet to exhibit a polished and luxurious feel.
Non-slip VMQ O-ring is present on the underside of the feet.
Suitable for use in audio amplifier devices.

Available in both internal (AFM) and external (AFS) screw installation type.
AFM appears in sliver reflective finish and AFS appears in silver or black shot blast finish.

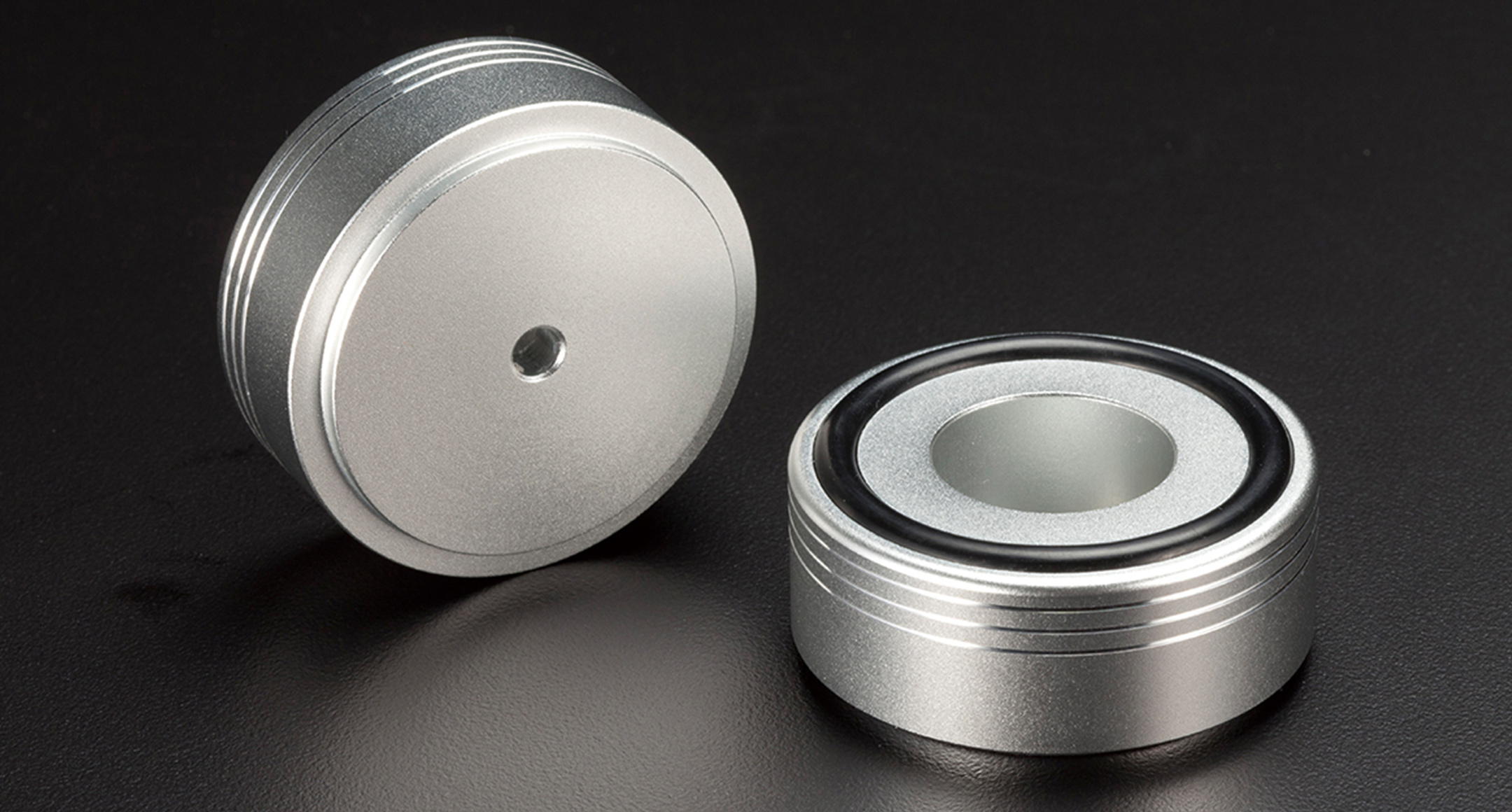

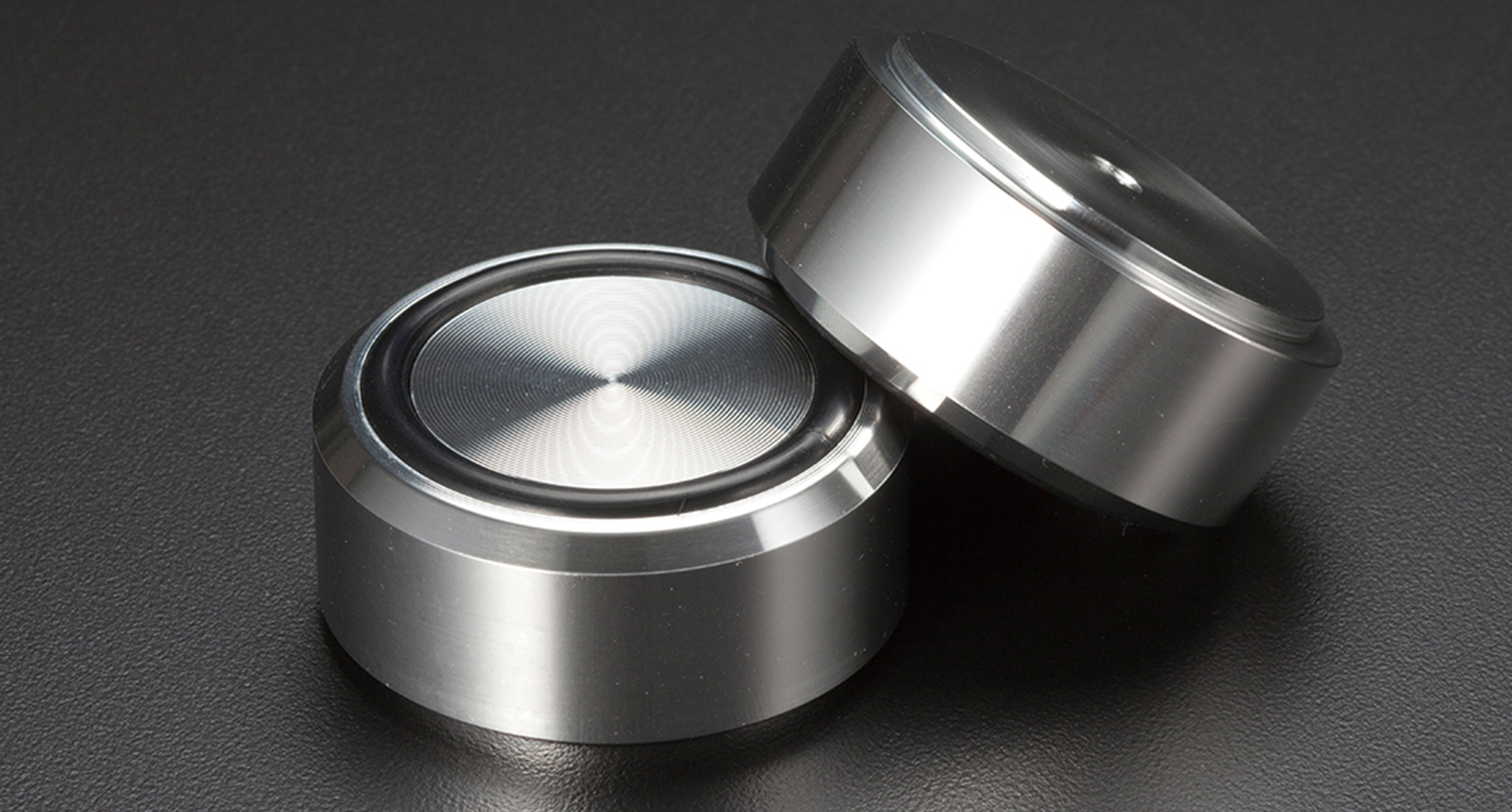

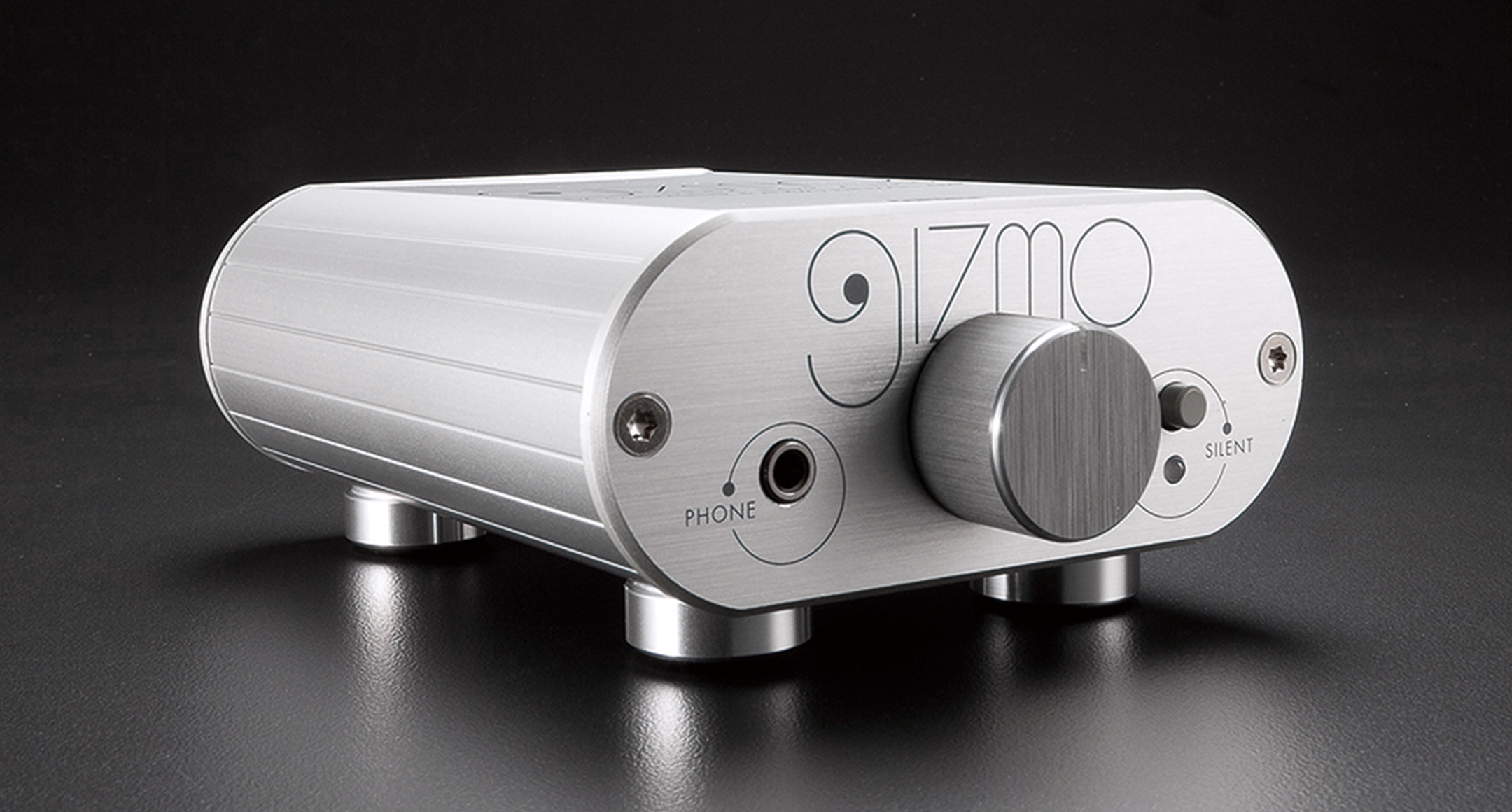

3D view - AFS (shot blast finish)  3D view - AFM (Reflective finish)  Enclosure with Aluminium feets image 

PRODUCT NO. / DIMENSIONS

Product No. Diameter×Hight (mm) Surface finish Color Weight (g) / 4pcs Pack of PDF DXF DWG STP
AFM15-7S φ15×7 Reflective Silver 10 4 pcs PDF DXF DWG STP
AFM20-9S φ20×9 Reflective Silver 25.2 4 pcs PDF DXF DWG STP
AFM25-12S φ25×12 Reflective Silver 52 4 pcs PDF DXF DWG STP
AFM30-14S φ30×14 Reflective Silver 87.7 4 pcs PDF DXF DWG STP
AFM35-16S φ35×16 Reflective Silver 142.3 4 pcs PDF DXF DWG STP
AFM39-18S φ39×18 Reflective Silver 204.5 4 pcs PDF DXF DWG STP
AFM44-20S φ44×20 Reflective Silver 293.5 4 pcs PDF DXF DWG STP
AFM55-22S φ55×22 Reflective Silver 511 4 pcs PDF DXF DWG STP
AFS20-8B φ20×8 Shot blast Black 18.6 4 pcs PDF DXF DWG STP
AFS20-8S φ20×8 Shot blast Silver 18.6 4 pcs PDF DXF DWG STP
AFS25-10B φ25×10 Shot blast Black 36.4 4 pcs PDF DXF DWG STP
AFS25-10S φ25×10 Shot blast Silver 36.4 4 pcs PDF DXF DWG STP
AFS30-12B φ30×12 Shot blast Black 66.5 4 pcs PDF DXF DWG STP
AFS30-12S φ30×12 Shot blast Silver 66.5 4 pcs PDF DXF DWG STP
AFS35-14B φ35×14 Shot blast Black 113 4 pcs PDF DXF DWG STP
AFS35-14S φ35×14 Shot blast Silver 113 4 pcs PDF DXF DWG STP
AFS39-16B φ39×16 Shot blast Black 160.8 4 pcs PDF DXF DWG STP
AFS39-16S φ39×16 Shot blast Silver 160.8 4 pcs PDF DXF DWG STP
AFS44-18B φ44×18 Shot blast Black 223.5 4 pcs PDF DXF DWG STP
AFS44-18S φ44×18 Shot blast Silver 223.5 4 pcs PDF DXF DWG STP
AFS55-20B φ55×20 Shot blast Black 415 4 pcs PDF DXF DWG STP
AFS55-20S φ55×20 Shot blast Silver 415 4 pcs PDF DXF DWG STP
