EIA ALUMINIUM RACK PANEL - AP series


AP Series -PDF

CATEGORY:19” rack mount panel, 19 inch rack panel, Aluminium rack panel, 1U rack panel, 2U rack panel, 3U rack panel

EIA ALUMINIUM RACK PANEL - AP series
EIA ALUMINIUM RACK PANEL - AP series
EIA ALUMINIUM RACK PANEL - AP series
EIA ALUMINIUM RACK PANEL - AP series
EIA ALUMINIUM RACK PANEL - AP series1
EIA ALUMINIUM RACK PANEL - AP series2
EIA ALUMINIUM RACK PANEL - AP series3
EIA ALUMINIUM RACK PANEL - AP series4

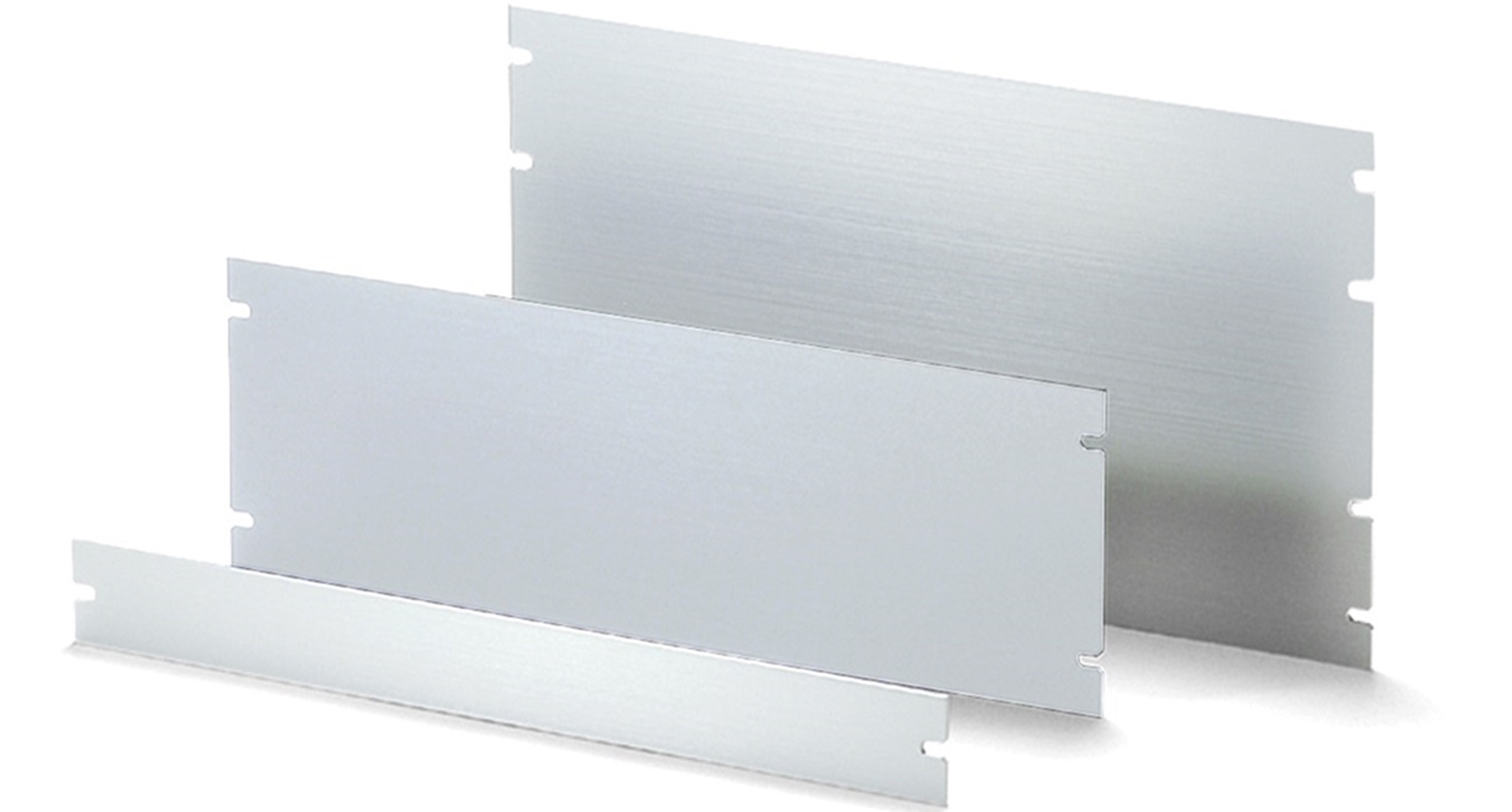

Standard aluminium panel for 19 inch rack.

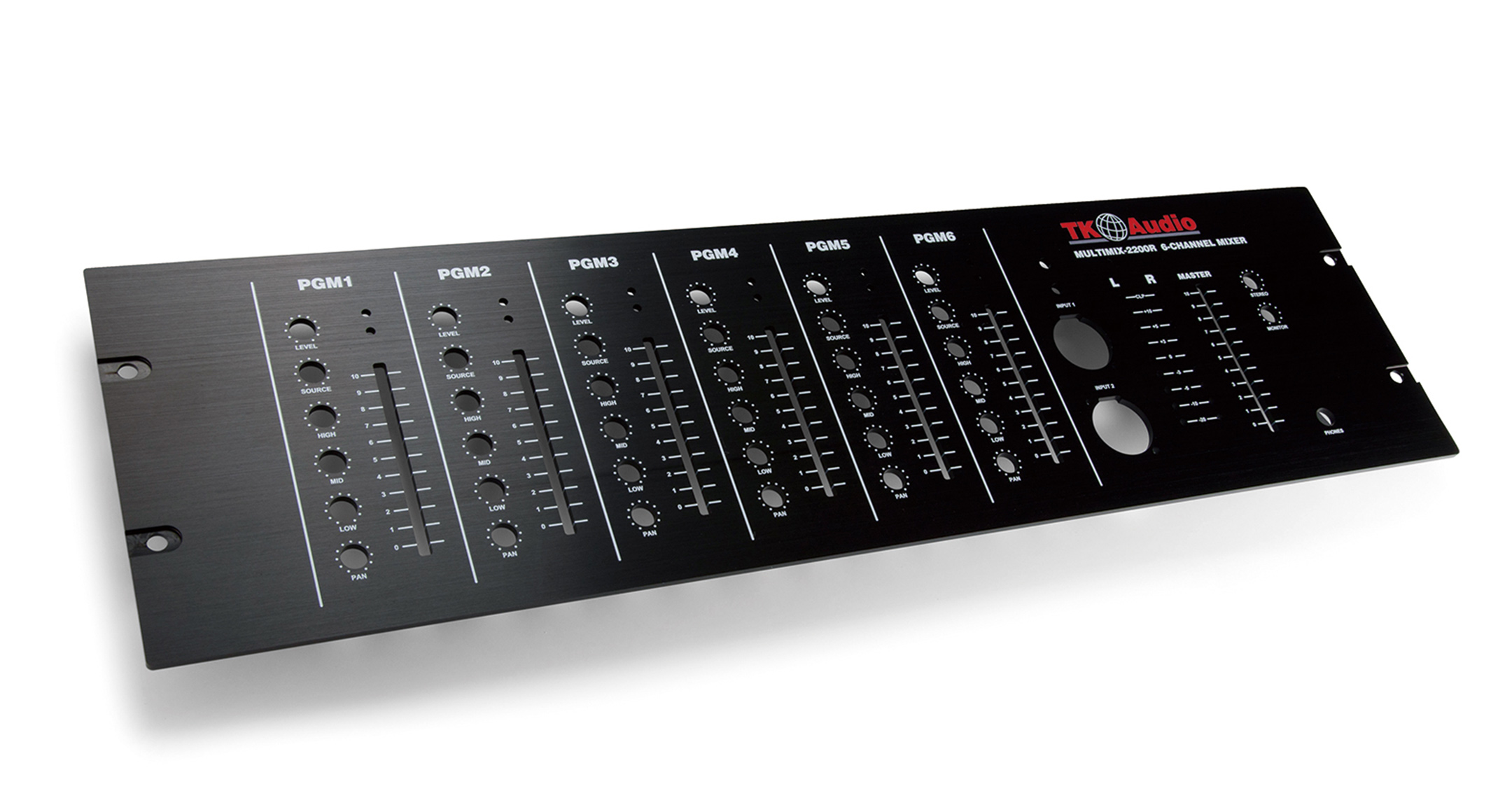

Easy to customize.
From 1U to 8U, 8 sizes are available both in silver and black hairline brushed & anodized finish.

PRODUCT NO. / DIMENSIONS

Product No. Height Surface finish Weight (g) Inventory status PDF DXF DWG
AP-44B 1U (44mm) Hairline brushed & Black anodized 180 PDF DXF DWG
AP-44S 1U (44mm) Hairline brushed & Silver anodized 180 PDF DXF DWG
AP-88B 2U (88mm) Hairline brushed & Black anodized 330 PDF DXF DWG
AP-88S 2U (88mm) Hairline brushed & Silver anodized 330 PDF DXF DWG
AP-133B 3U (132.5mm) Hairline brushed & Black anodized 480 PDF DXF DWG
AP-133S 3U (132.5mm) Hairline brushed & Silver anodized 480 PDF DXF DWG
AP-177B 4U (177mm) Hairline brushed & Black anodized - Discontinued - Sold out. PDF DXF DWG
AP-177S 4U (177mm) Hairline brushed & Silver anodized 700 PDF DXF DWG
AP-222B 5U (221.5mm) Hairline brushed & Black anodized - Discontinued - Sold out. PDF DXF DWG
AP-222S 5U (221.5mm) Hairline brushed & Silver anodized 870 PDF DXF DWG
AP-266B 6U (265.9mm) Hairline brushed & Black anodized - Discontinued - Sold out. PDF DXF DWG
AP-266S 6U (265.9mm) Hairline brushed & Silver anodized 1060 PDF DXF DWG
AP-311B 7U (310.4mm) Hairline brushed & Black anodized - Discontinued - Sold out. PDF DXF DWG
AP-311S 7U (310.4mm) Hairline brushed & Silver anodized 1240 PDF DXF DWG
AP-355B 8U (354.8mm) Hairline brushed & Black anodized - Discontinued - Sold out. PDF DXF DWG
AP-355S 8U (354.8mm) Hairline brushed & Silver anodized 1420 PDF DXF DWG
