CATEGORY：Aluminum mounting plate, Mount plate, Mounting base

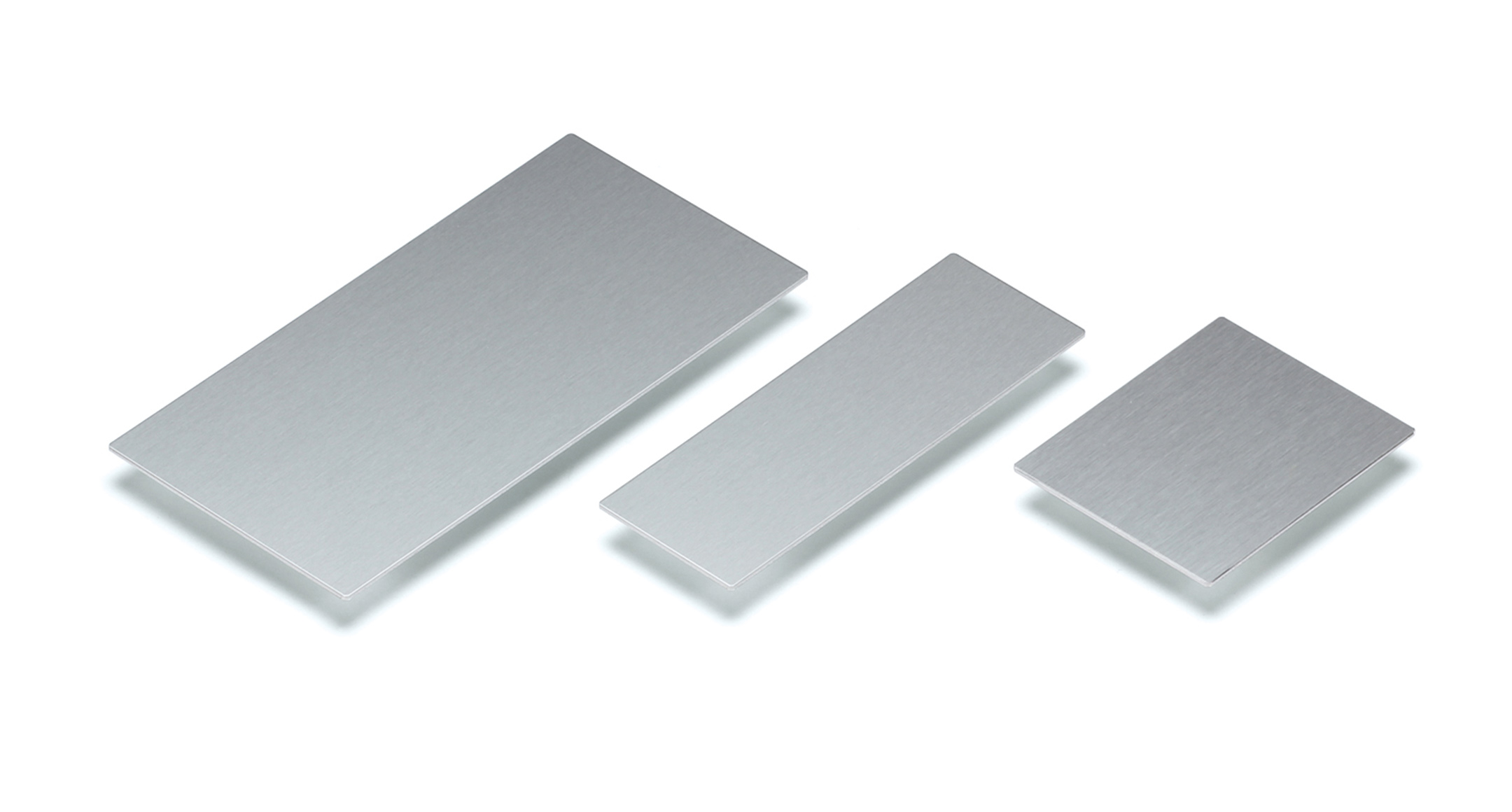

Mounting plate for AW・AWN・AWP series enclosures.

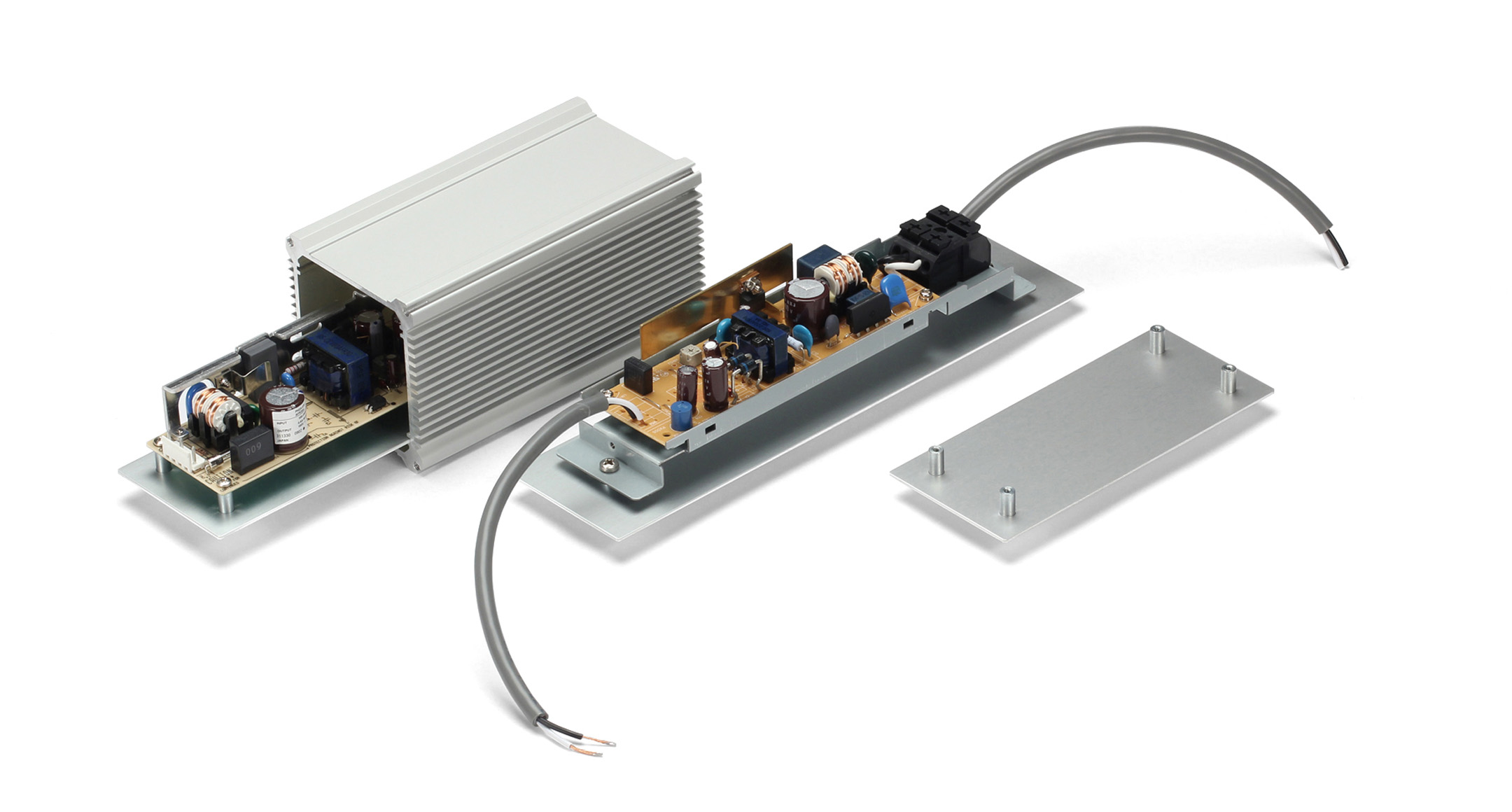

Utilize for mounting PCB, power supply, terminal blocks, etc.
Material: Aluminum A1050P t=1.5 / Silver anodized
Utilize for mounting PCB, power supply, terminal blocks, etc.
Material: Aluminum A1050P t=1.5 / Silver anodized
PRODUCT NO. / DIMENSIONS
| Product No. | Suitable enclosure | Weight (g) | DXF | DWG | |
|---|---|---|---|---|---|
| AWC5-7 | AW・AWN5-4-7 | 7.5 | DXF | DWG | |
| AWC5-9 | AW・AWN5-4-9 | 10.4 | DXF | DWG | |
| AWC5-11 | AW・AWN5-4-11 | 14.3 | DXF | DWG | |
| AWC5-14 | AW・AWN5-4-14 | 18.5 | DXF | DWG | |
| AWC7-8 | AW・AWN7-7-8 | 11.5 | DXF | DWG | |
| AWC7-11 | AW・AWN7-7-11 | 17.7 | DXF | DWG | |
| AWC7-15 | AW・AWN7-7-15 | 25.4 | DXF | DWG | |
| AWC7-20 | AW・AWN7-7-20 | 34.3 | DXF | DWG | |
| AWC7-25 | AW・AWN7-7-25 | 43.2 | DXF | DWG | |
| AWC8-9 | AW・AWN・AWP8-5-9 | 17.9 | DXF | DWG | |
| AWC8-12 | AW・AWN・AWP8-5-12 | 24.3 | DXF | DWG | |
| AWC8-14 | AW・AWN・AWP8-5-14 | 30.6 | DXF | DWG | |
| AWC8-18 | AW・AWN・AWP8-5-18 | 38.6 | DXF | DWG | |
| AWC9-10 | AW・AWN・AWP9-9-10 | 21.2 | DXF | DWG | |
| AWC9-13 | AW・AWN・AWP9-9-13 | 28 | DXF | DWG | |
| AWC9-17 | AW・AWN・AWP9-9-17 | 39.8 | DXF | DWG | |
| AWC9-22 | AW・AWN・AWP9-9-22 | 53 | DXF | DWG | |
| AWC9-28 | AW・AWN・AWP9-9-28 | 68.2 | DXF | DWG | |
| AWC11-11 | AW・AWN・AWP11-6-11 | 30.4 | DXF | DWG | |
| AWC11-15 | AW・AWN・AWP11-6-15 | 44.9 | DXF | DWG | |
| AWC11-19 | AW・AWN・AWP11-6-19 | 59.5 | DXF | DWG | |
| AWC11-24 | AW・AWN・AWP11-6-24 | 74.3 | DXF | DWG | |
| AWC12-11 | AW・AWN・AWP12-8-11 | 33.4 | DXF | DWG | |
| AWC12-14 | AW・AWN・AWP12-8-14 | 48 | DXF | DWG | |
| AWC12-17 | AW・AWN・AWP12-8-17 | 63.3 | DXF | DWG | |
| AWC12-22 | AW・AWN・AWP12-8-22 | 79.3 | DXF | DWG | |
| AWC16-14 | AW・AWN・AWP16-9-14 | 60.7 | DXF | DWG | |
| AWC16-18 | AW・AWN・AWP16-9-18 | 90.2 | DXF | DWG | |
| AWC16-23 | AW・AWN・AWP16-9-23 | 114 | DXF | DWG | |
| AWC16-28 | AW・AWN・AWP16-9-28 | 147.5 | DXF | DWG | |
| AWC21-17 | AW・AWN・AWP21-9-17 | 112.4 | DXF | DWG | |
| AWC21-21 | AW・AWN・AWP21-9-21 | 135.7 | DXF | DWG | |
| AWC21-26 | AW・AWN・AWP21-9-26 | 174.4 | DXF | DWG | |
| AWC21-31 | AW・AWN・AWP21-9-31 | 209.6 | DXF | DWG |
