ALUMINUM MOUNTNG PLATE for AWAS - AWSC series


AWSC_AWAS Series -PDF

CATEGORY：Aluminum mounting plate, Mount plate, Mounting base

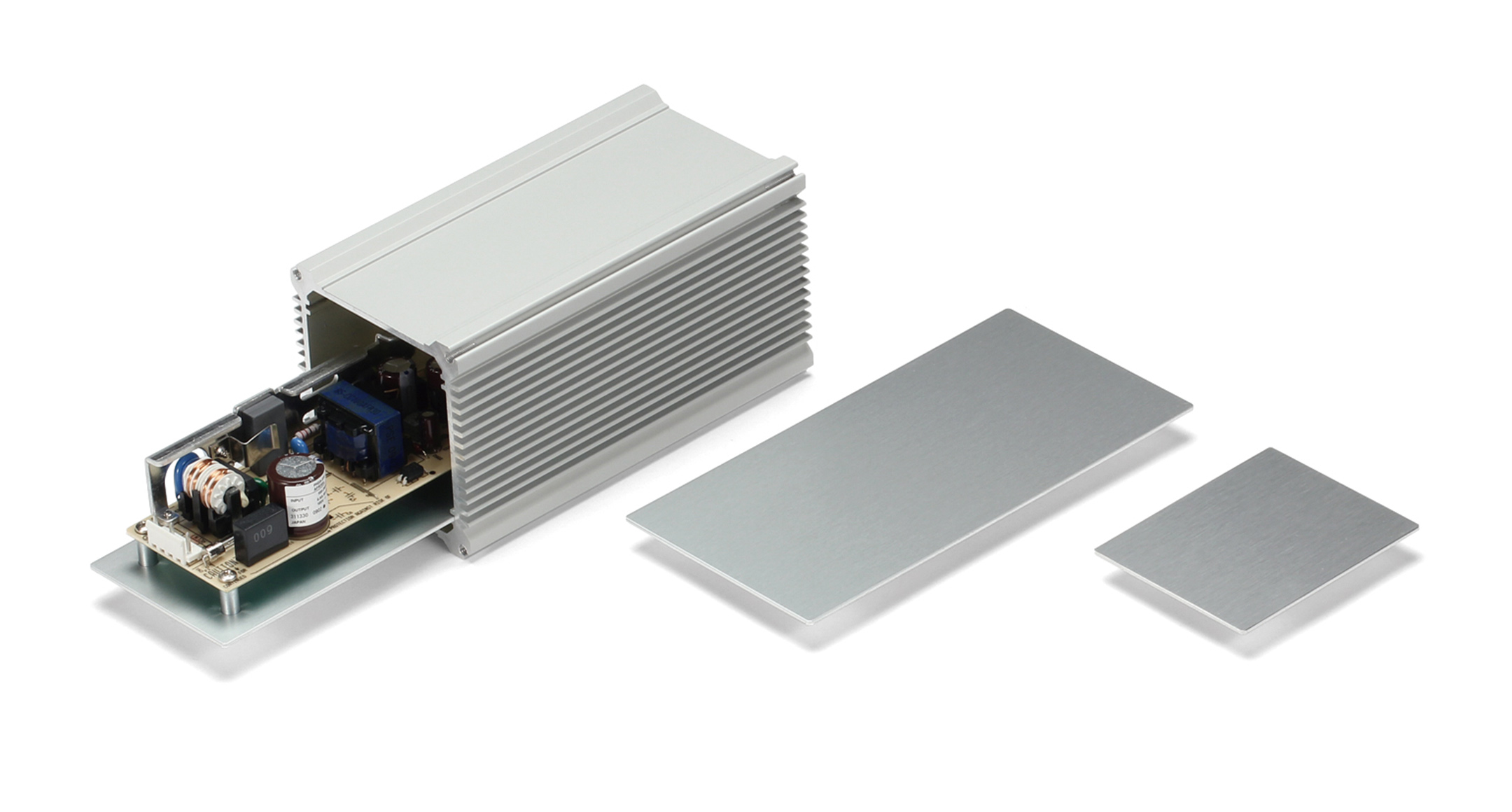

ALUMINUM MOUNTNG PLATE for AWAS - AWSC series
ALUMINUM MOUNTNG PLATE for AWAS - AWSC series1
Custom sized mounting plate for AWAS series
Can be specified length size from 50 to 700mm by 1mm intervals.
Utilize for mounting PCB, Power supply, Modules, etc.

Material: Aluminum A1050P t=1.5 / Silver anodized

PRODUCT NO. / DIMENSIONS

Product No. Suitable enclosure PDF DXF DWG
AWSC52-□ AWAS52-32 PDF DXF DWG
AWSC61-□ AWAS61-61 PDF DXF DWG
AWSC76-□ AWAS76-41 PDF DXF DWG
AWSC82-□ AWAS82-82 PDF DXF DWG
AWSC102-□ AWAS102-52 PDF DXF DWG
AWSC116-□ AWAS116-67 PDF DXF DWG
AWSC152-□ AWAS152-77 PDF DXF DWG
AWSC202-□ AWAS202-77 PDF DXF DWG
