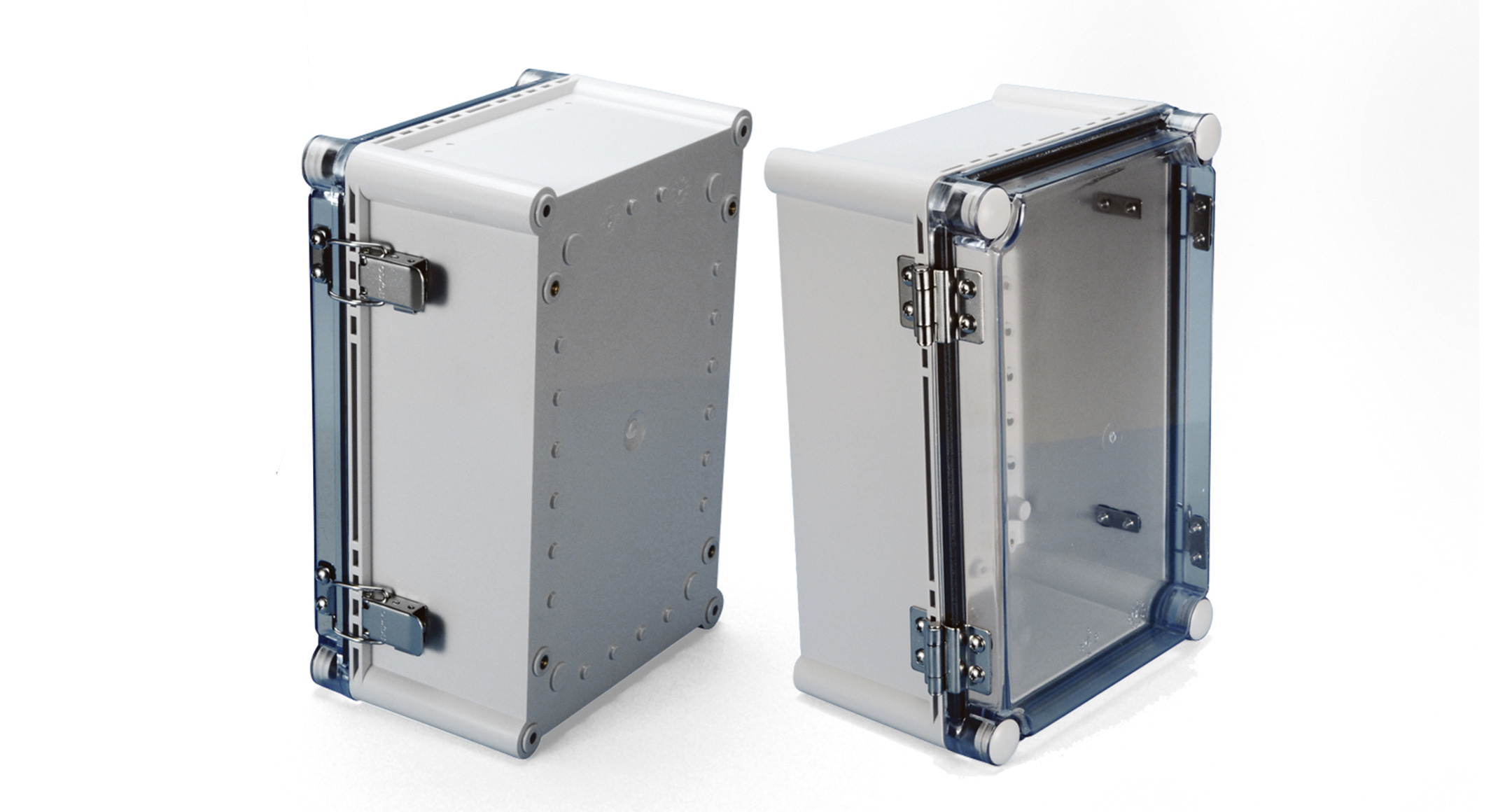

LATCH / HINGE for BCAS・BCAL series


BCH_BCL Series -PDF

CATEGORY：Stainless steel draw latch, Stainless steel toggle latch, Enclosure hinge, Stainless steel hinge

Stainless steel latch and hinge for BCAS and BCAL plastic boxes.
Refer to ◎ guide markings on BCAS・BCAL box when installing.

PRODUCT NO. / DIMENSIONS

Product No. Parts Suitable series Weight (g) Sales unit PDF DXF DWG
BCH55 Hinge BCAS series *Cannot be installed on following sizes : BCAS050604, 050605, 060905, 071005, 080806, 081104, 101807, 102007, 102307, 152004, 161607 21 1 set
BCH65 Hinge BCAL serie 41 1 set
BCL55 Latch BCAS serie *Cannot be installed on following sizes : BCAS050604, 050605, 060905, 071005, 080806, 081104, 101807, 102007, 102307, 152004, 161607 35 1 set
BCL65 Latch BCAL serie 36 1 set

OPTIONAL PARTS

１

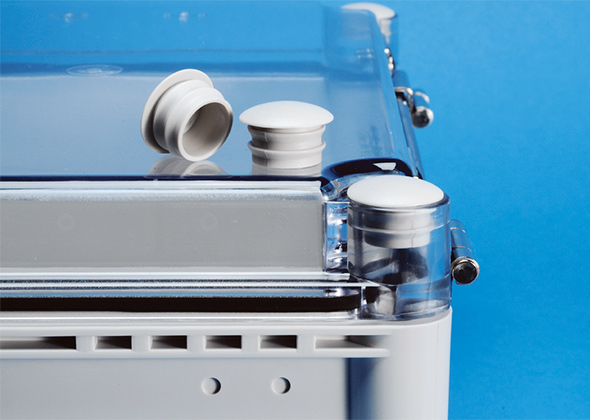

BLIND PLUG for BCAS・BCAL
DETAILS
