ALUMINIUM HANDLE - BH series


BH Series -PDF

CATEGORY：Aluminium handle, Aluminum pull handle, Anodized aluminium handle, U-handle

ALUMINIUM HANDLE - BH series
ALUMINIUM HANDLE - BH series1

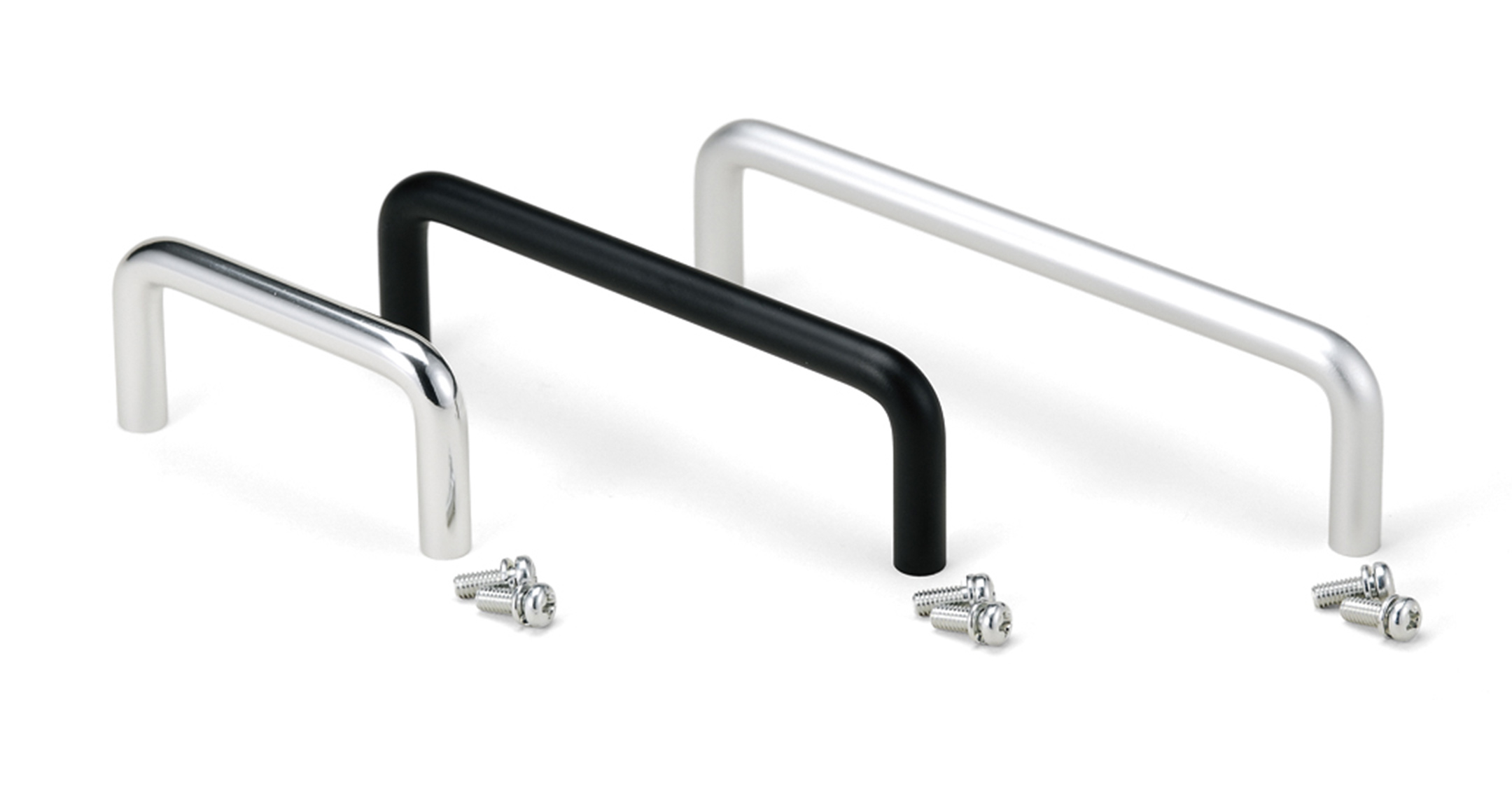

Round bar aluminium handle.
11 different sizes are available.

3 colors as silver polish anodized, silver matte anodized and black matte anodized are available.

*Sold in pair.

PRODUCT NO. / DIMENSIONS

Product No. Length×Height (mm) Color Weight (g) (1set ) Pack of PDF DXF DWG
BH-26B 32×25 Black matte anodized 11 2 pcs PDF DXF DWG
BH-26S 32×25 Silver polish anodized 11 2 pcs PDF DXF DWG
BH-30B 38×35 Black matte anodized 26 2 pcs PDF DXF DWG
BH-30S 38×35 Silver polish anodized 26 2 pcs PDF DXF DWG
BH-50B 58×35 Black matte anodized 31 2 pcs PDF DXF DWG
BH-50S 58×35 Silver polish anodized 31 2 pcs PDF DXF DWG
BH-60B 68×35 Black matte anodized 34 2 pcs PDF DXF DWG
BH-60S 68×35 Silver polish anodized 34 2 pcs PDF DXF DWG
BH-70B 78×35 Black matte anodized 36 2 pcs PDF DXF DWG
BH-70S 78×35 Silver polish anodized 36 2 pcs PDF DXF DWG
BH-80B 88×35 Black matte anodized 39 2 pcs PDF DXF DWG
BH-80S 88×35 Silver polish anodized 39 2 pcs PDF DXF DWG
BH-100B 108×35 Black matte anodized 45 2 pcs PDF DXF DWG
BH-100S 108×35 Silver polish anodized 45 2 pcs PDF DXF DWG
BH-100K 108×35 Silver matte anodized 45 2 pcs PDF DXF DWG
BH-110B 118×35 Black matte anodized 47 2 pcs PDF DXF DWG
BH-110S 118×35 Silver polish anodized 47 2 pcs PDF DXF DWG
BH-120B 128×35 Black matte anodized 50 2 pcs PDF DXF DWG
BH-120S 128×35 Silver polish anodized 50 2 pcs PDF DXF DWG
BH-120K 128×35 Silver matte anodized 50 2 pcs PDF DXF DWG
BH-150B 158×35 Black matte anodized 58 2 pcs PDF DXF DWG
BH-150S 158×35 Silver polish anodized 58 2 pcs PDF DXF DWG
BH-150K 158×35 Silver matte anodized 58 2 pcs PDF DXF DWG
BH-180B 188×35 Black matte anodized 65 2 pcs PDF DXF DWG
BH-180S 188×35 Silver polish anodized 65 2 pcs PDF DXF DWG
BH-180K 188×35 Silver matte anodized 65 2 pcs PDF DXF DWG
