MOUNTING BRACKET for BDN - CK series
MOUNTING BRACKET for BDN - CK series1

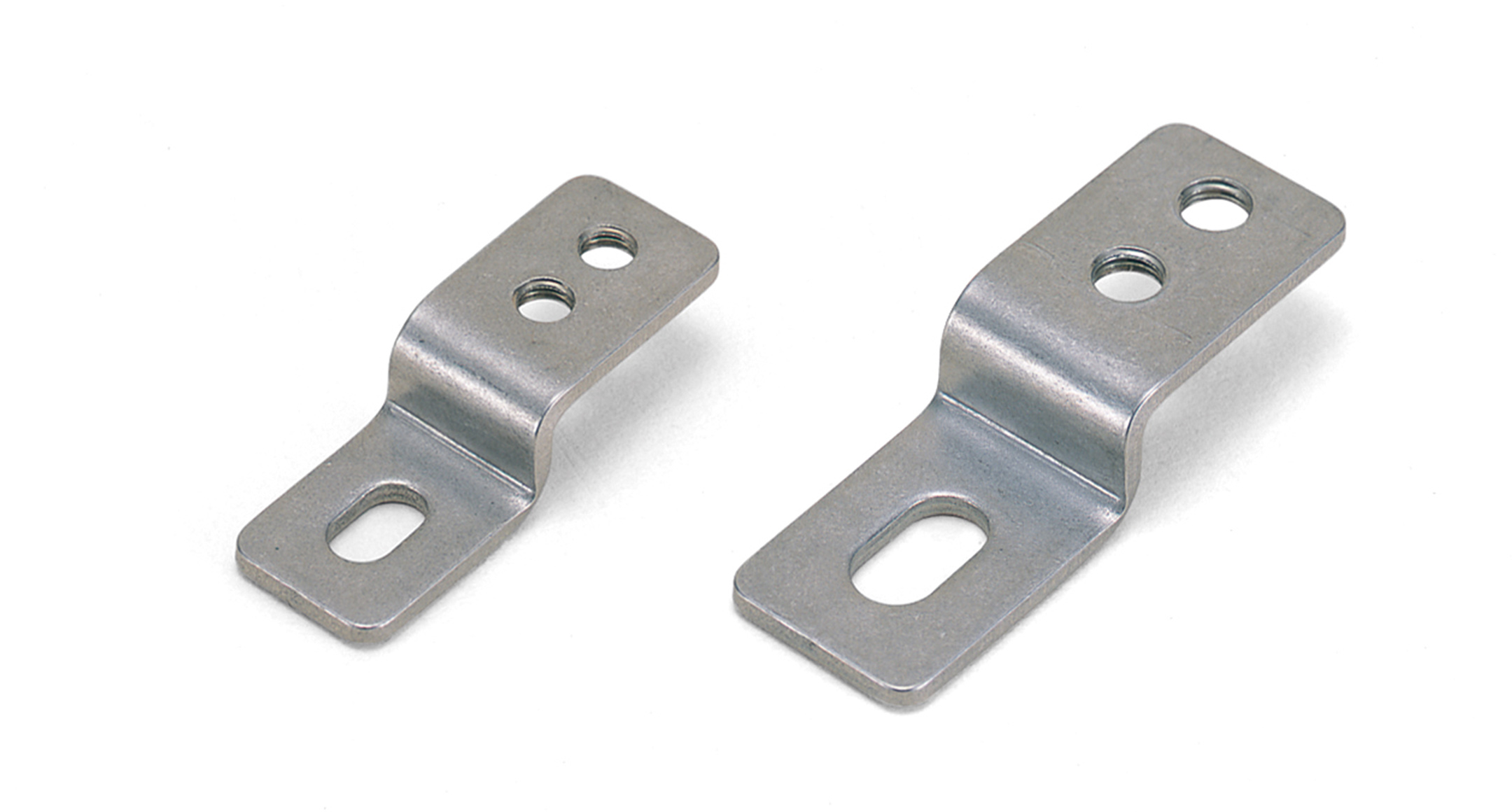

Stainless steel mounting bracket for BDN series.

Sold in 4 pcs pack.

Matching screws, MT4-10 or MT5-14 are sold separately.

PRODUCT NO. / DIMENSIONS

Product No. Suitable boxes / Description Mathing screws Material Weight (g) / 1pc Pack of PDF DXF DWG
.CK-34Z BDN series (except for 12-22-8, 16-26-9 models) MT4-14 Stainless steel 6.2 4 pcs PDF DXF DWG
.CK-35Z BDN12-22-8, 16-26-9 MT5×14 Stainless steel 9.8 4 pcs PDF DXF DWG
MT4-14* Required screw to install CK-34Z - Stainless steel 1.6 4 pcs
MT5-14* Required screw to install CK-35Z - Stainless steel 2.8 4 pcs

OPTIONAL PARTS

１
SCREW SET for CK-MOUNTING BRACKET
DETAILS

SIMILAR PRODUCT

１
POLE MOUNT BRACKET for DIECAST ALUMINIUM BOX
DETAILS
