CATEGORY：Conductive copper foil, Copper sheet, EMI Shielding sheet
Low price type conductive flexible copper sheet.
Conductive adhesive layer maintains conductivity.
Copper tape can be soldered onto a metal foil.
Copper sheet can also be used for removing static electricity and improving running performance when applied to automobiles.

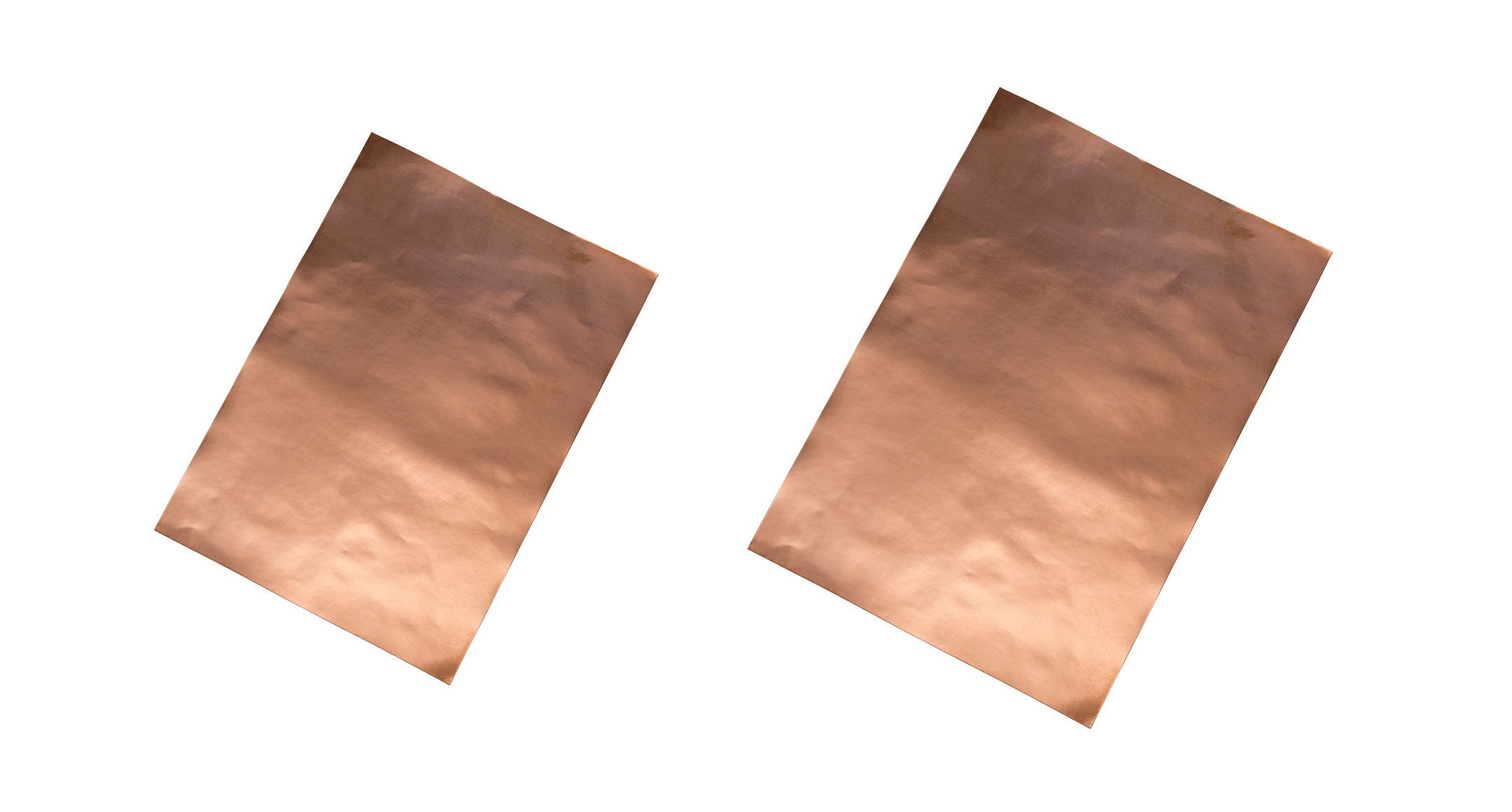

257 x 182mm (B5 size) and 297 x 210mm (A4 size) are available.

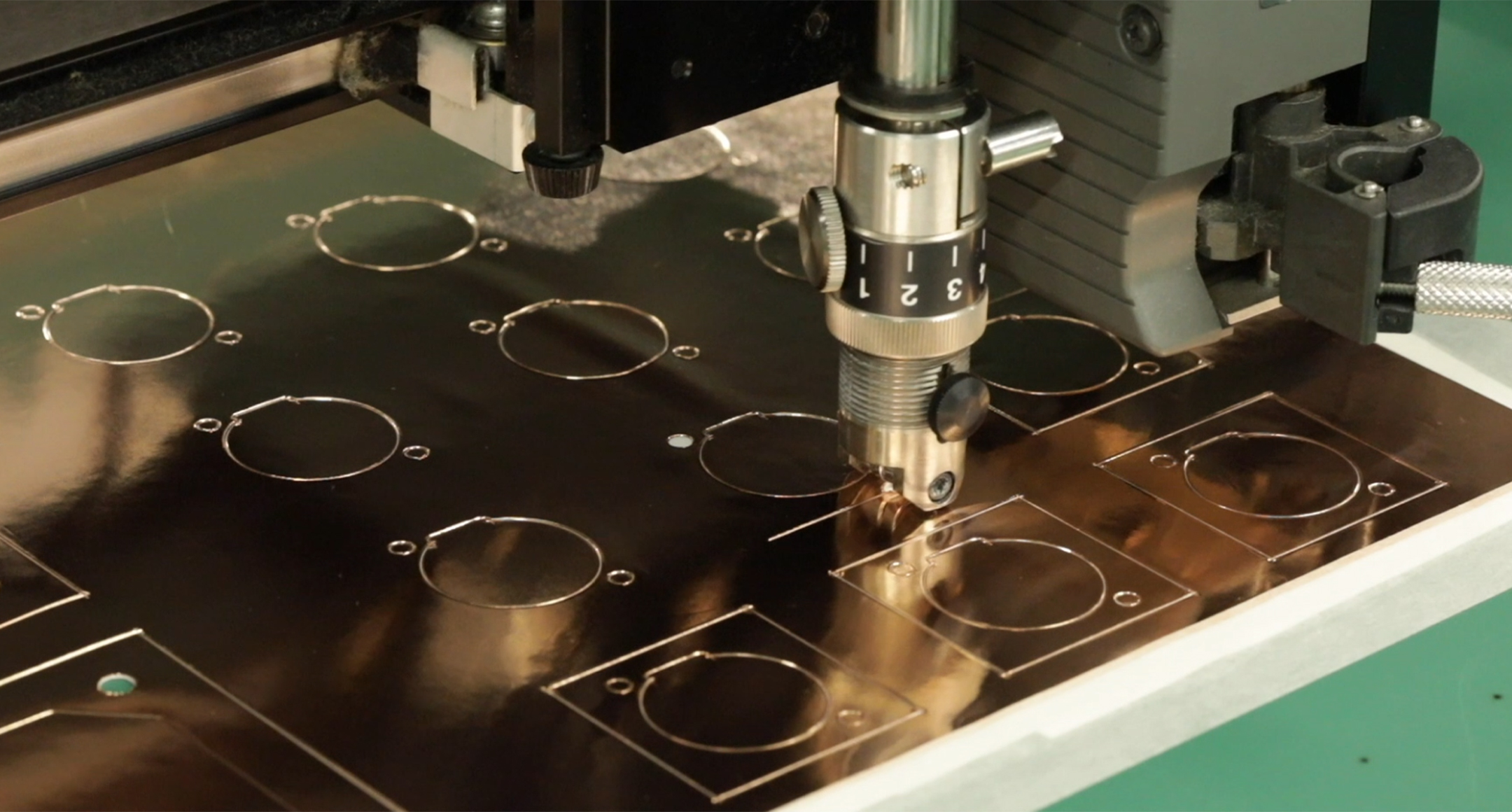

Convenient for shielding wider area or cutting into the designated shapes.
【Usage】
Grounding and shielding for enclosures.
Grounding and shielding for cable harnesses or connectors.
EMI shielded room.
Can be used for measuring shield characteristics in an emergency situation.
Conductive adhesive layer maintains conductivity.
Copper tape can be soldered onto a metal foil.
Copper sheet can also be used for removing static electricity and improving running performance when applied to automobiles.
257 x 182mm (B5 size) and 297 x 210mm (A4 size) are available.
Convenient for shielding wider area or cutting into the designated shapes.
【Usage】
Grounding and shielding for enclosures.
Grounding and shielding for cable harnesses or connectors.
EMI shielded room.
Can be used for measuring shield characteristics in an emergency situation.
PRODUCT NO. / DIMENSIONS
| Product No. | Foil material | Width×Length | Weight (g) | Sales unit | DXF | DWG | |
|---|---|---|---|---|---|---|---|
| CUTS1825 | Copper | 182mm x 257mm | 21.5 | 1 sheet | |||
| CUTS2129 | Copper | 210 x 297mm | 29 | 1 sheet |
