DIN-RAIL MOUNTING BASE - DRA series


DRA Series -PDF

CATEGORY：DIN-Rail mounting bracket, DIN-Rail mounting base, DIN-Rail mounting plate, DIN-Rail adapter

DIN-RAIL MOUNTING BASE - DRA series
DIN-RAIL MOUNTING BASE - DRA series
DIN-RAIL MOUNTING BASE - DRA series1
DIN-RAIL MOUNTING BASE - DRA series2

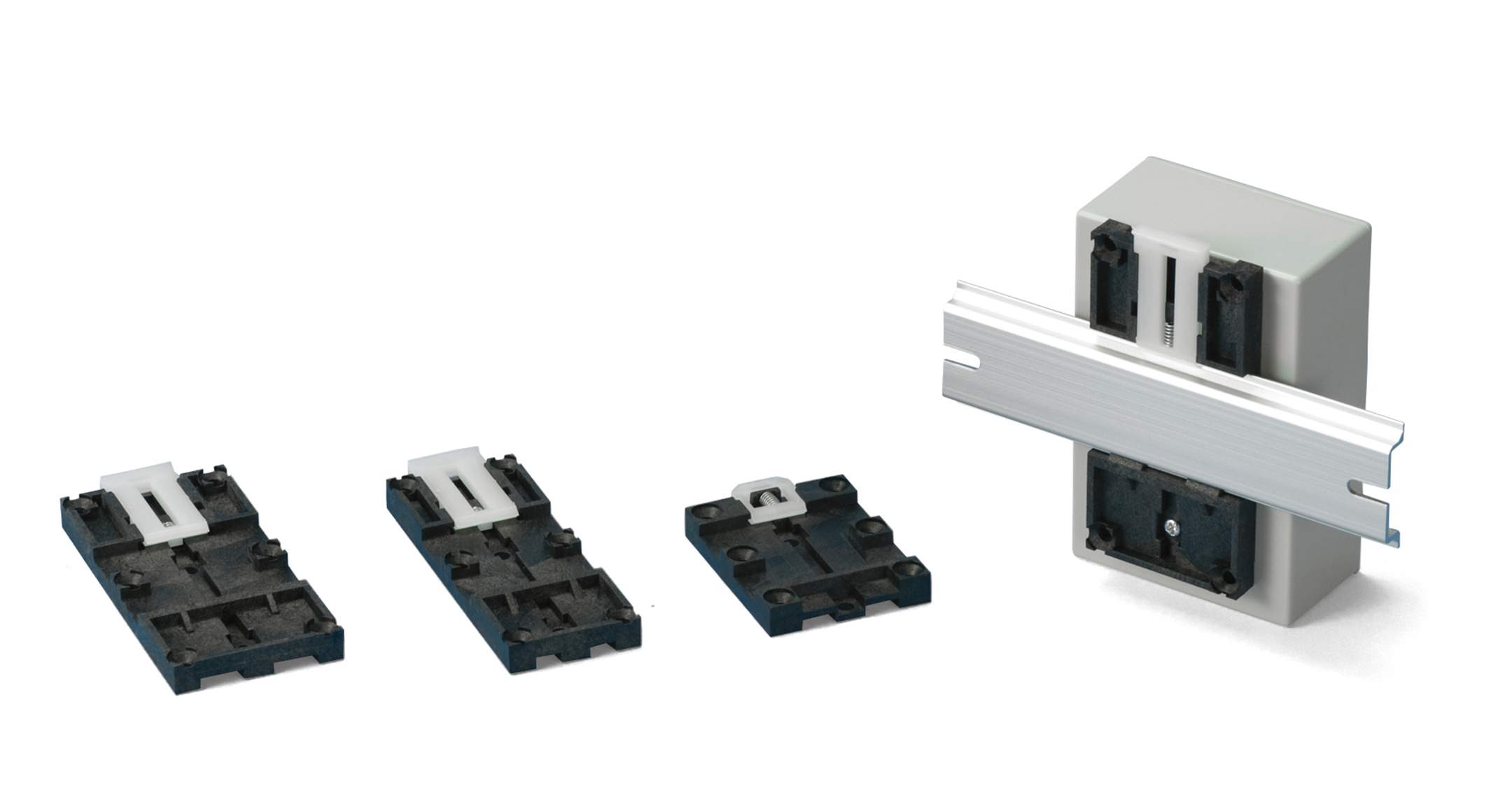

For installation of enclosures, PCB and other parts onto a 35mm DIN-rail.
Simple installation and removal via the pull lever.
3 different sizes available.

This series will be discontinued once it is out of stock. Please refer DRP5-9W for alternatives.

Material : Body=PPE+SB UL94V-1 ・ Lever=Nylon 66 UL94V-2
Max load : 5 kg

PRODUCT NO. / DIMENSIONS

Product No. Bracket width×Length Weight (g) Pack of Inventory status PDF DXF DWG
DRA-1 44×90mm 16.5 1 pcs Limited inventory. PDF DXF DWG
DRA-2 35×90mm 14 1 pcs PDF DXF DWG
DRA-3 44×55.5mm 10 1 pcs PDF DXF DWG
