WALL MOUNTING BRACKET for DW・DWH - DWF series


DWF Series -PDF

CATEGORY：Wall mounting bracket, Mounting bracket

WALL MOUNTING BRACKET for DW・DWH - DWF series
WALL MOUNTING BRACKET for DW・DWH - DWF series
WALL MOUNTING BRACKET for DW・DWH - DWF series
WALL MOUNTING BRACKET for DW・DWH - DWF series1
WALL MOUNTING BRACKET for DW・DWH - DWF series2
WALL MOUNTING BRACKET for DW・DWH - DWF series3

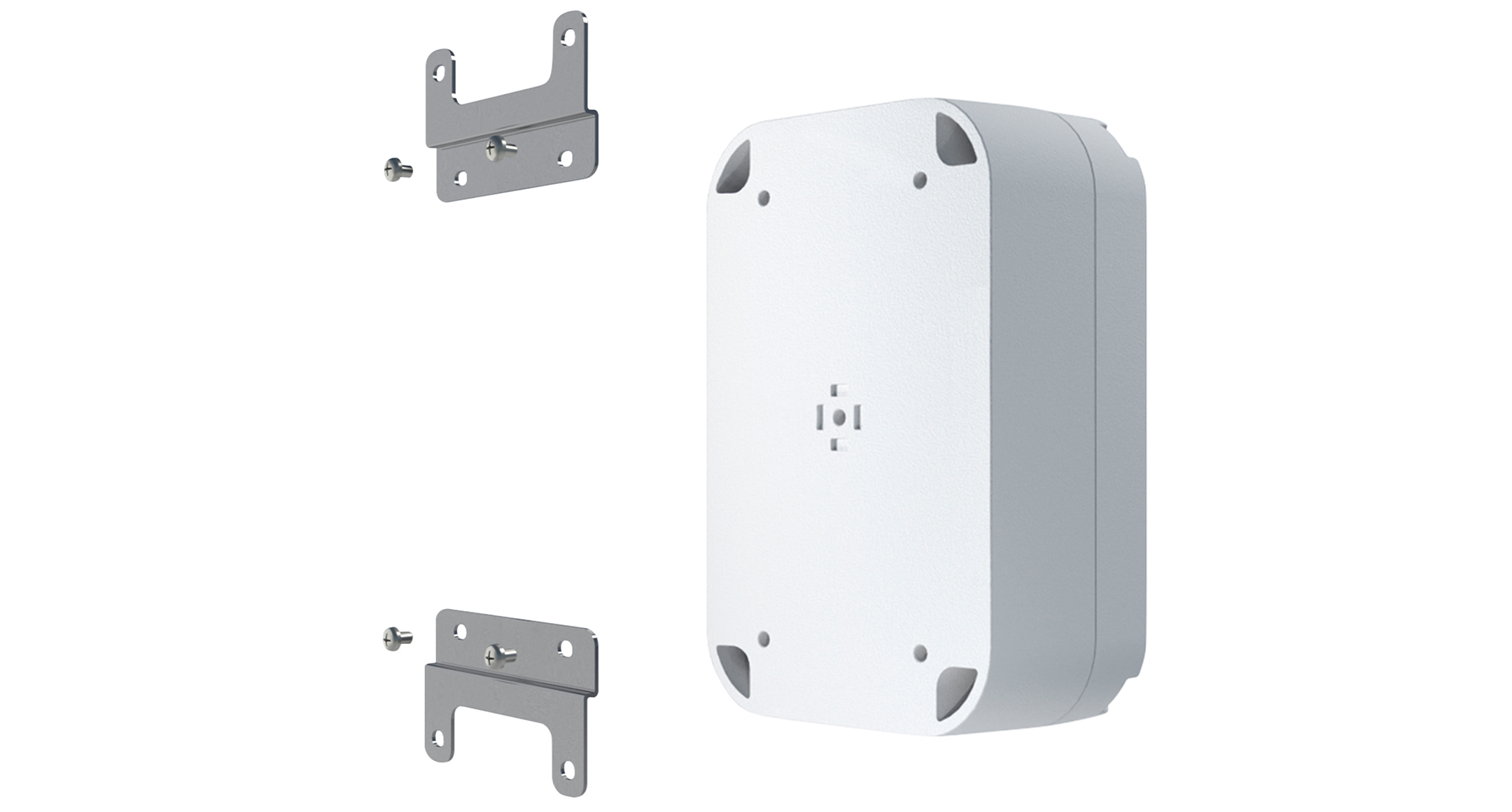

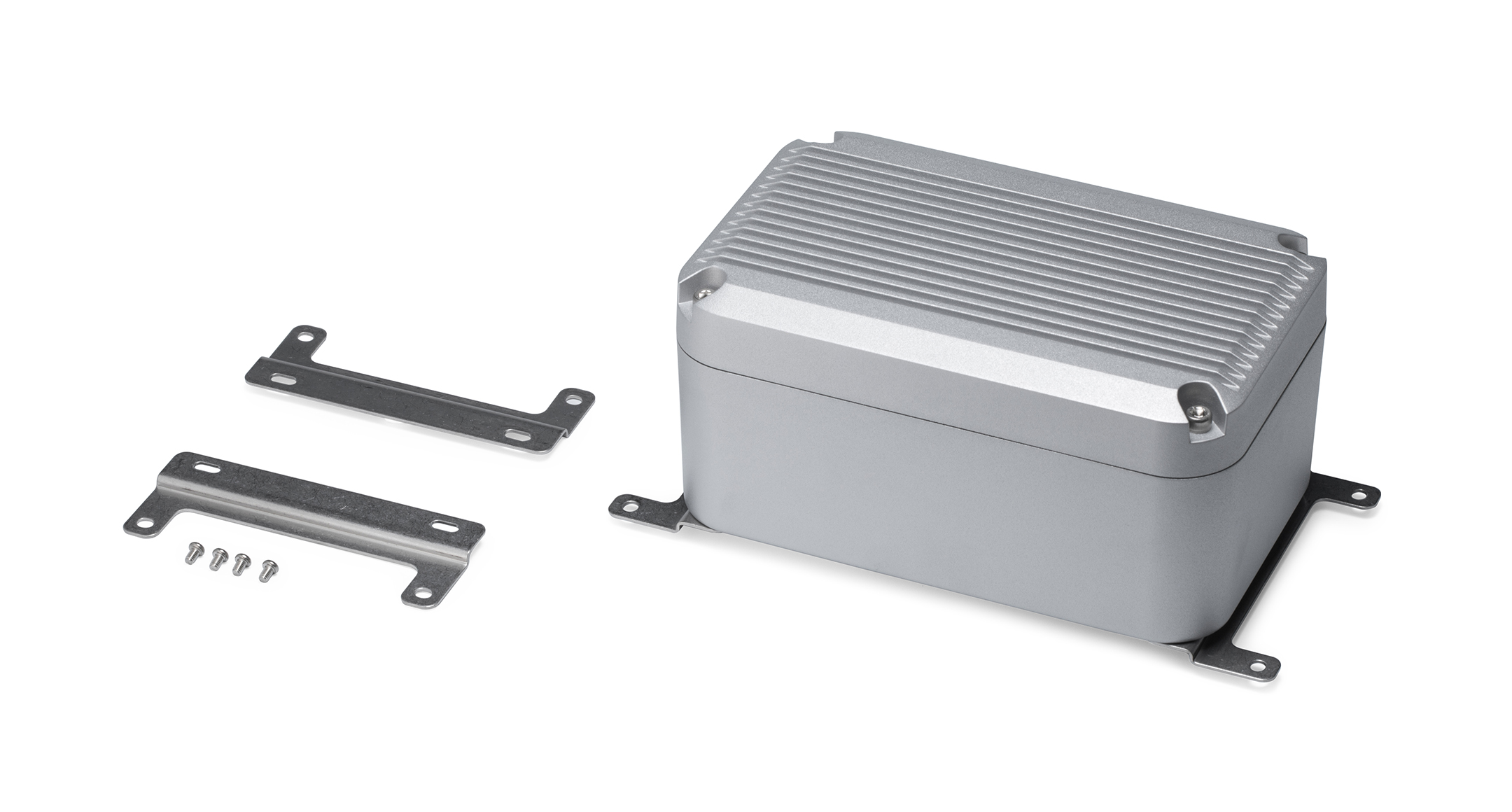

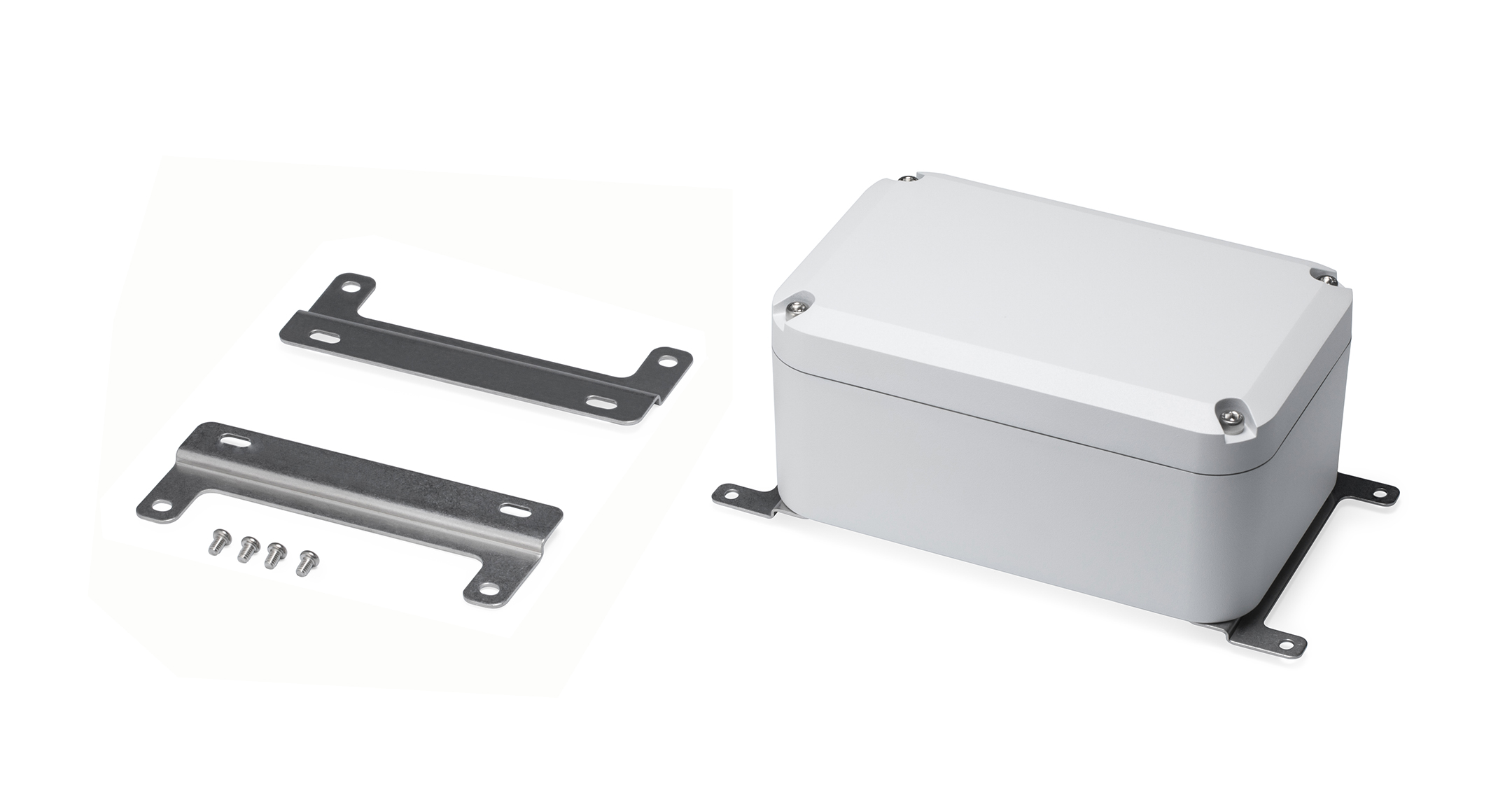

Stainless steel wall mounting bracket for DW・DWH series.
*Comes with stainless steel screws.

Material / Finish : SUS304 / Barrel polishing
3D view - Vertical  3D view - Beside 

PRODUCT NO. / DIMENSIONS

Product No. Suitable enclosure Pack of Weight (g) /2 pcs PDF DXF DWG
DWF-10 DW・DWH10-15-□ 2 pcs 77 PDF DXF DWG
DWF-15 DW・DWH14-22-□ 2 pcs 107 PDF DXF DWG
