PCB MOUNTING SCREW - EM series


EM Series -PDF

CATEGORY：Self tapping screw, PCB mount screw for plastic enclosures

PCB MOUNTING SCREW - EM series
PCB MOUNTING SCREW - EM series1
Self tapping screws for PCB bosses on the plastic cases.
EM-3-6 is good for 1.6mm or thicker PCB.

Available for M1.6, M2, M2.3, M2.6, and M3 screws.

Sold in 50 pcs pack.

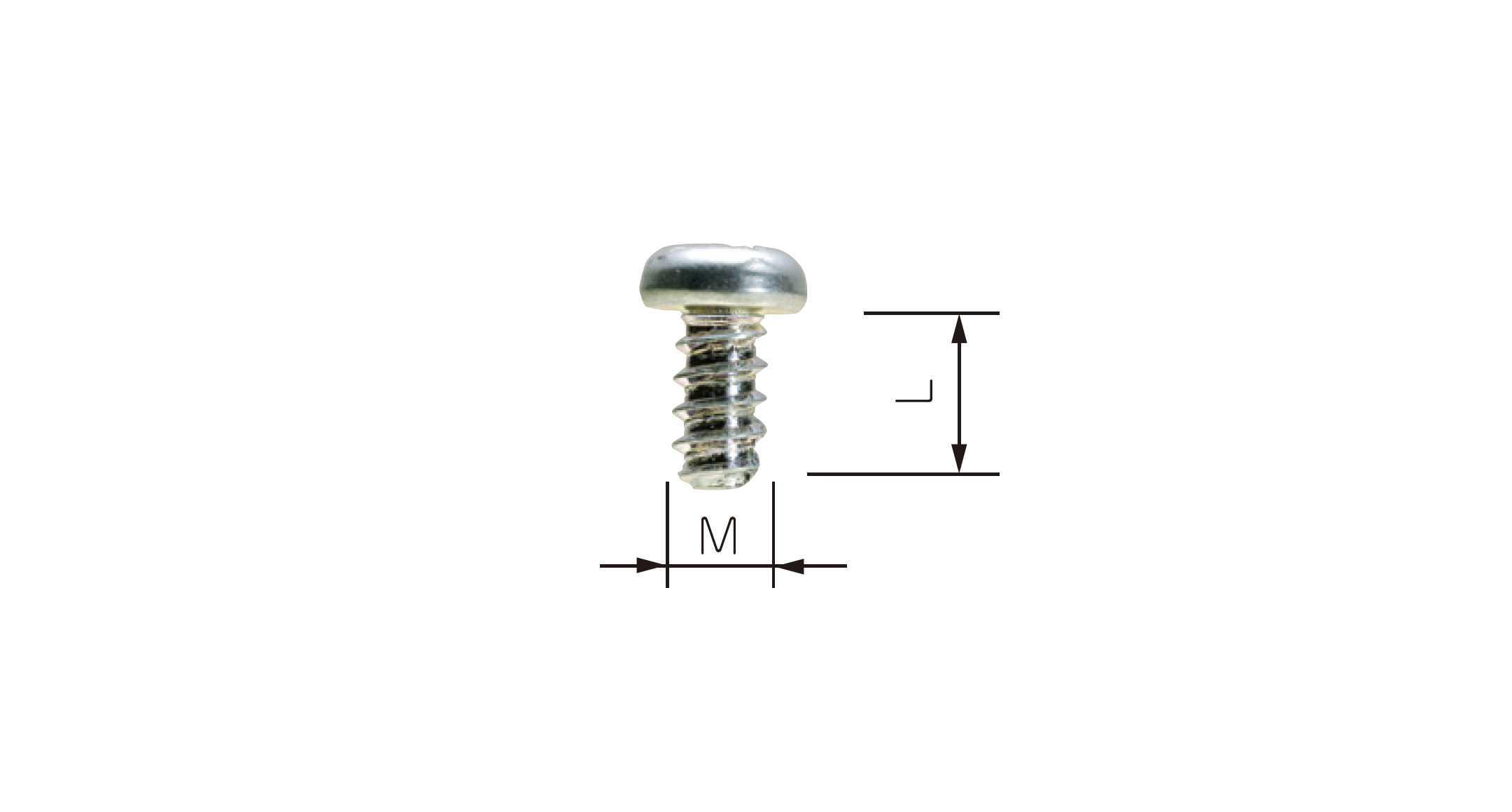

PRODUCT NO. / DIMENSIONS

Product No. M L（mm） Weight(g) / 1pcs Pack of PDF DXF DWG
EM-1.6 1.6 4 0.2 50 pcs
EM-2 2 5 0.4 50 pcs
EM-2.3 2.3 6 0.6 50 pcs
EM-2.3-8 2.3 8 0.7 50 pcs
EM-2.6 2.6 6 0.8 50 pcs
EM-3 3 5 1.1 50 pcs
EM-3-6 3 6 1.1 50 pcs
