DIN RAIL for BDN - FDR series


FDR_BDN Series -PDF

CATEGORY：DIN rail, 35mm DIN rail

DIN RAIL for BDN - FDR series
DIN RAIL for BDN - FDR series
DIN RAIL for BDN - FDR series1
DIN RAIL for BDN - FDR series2

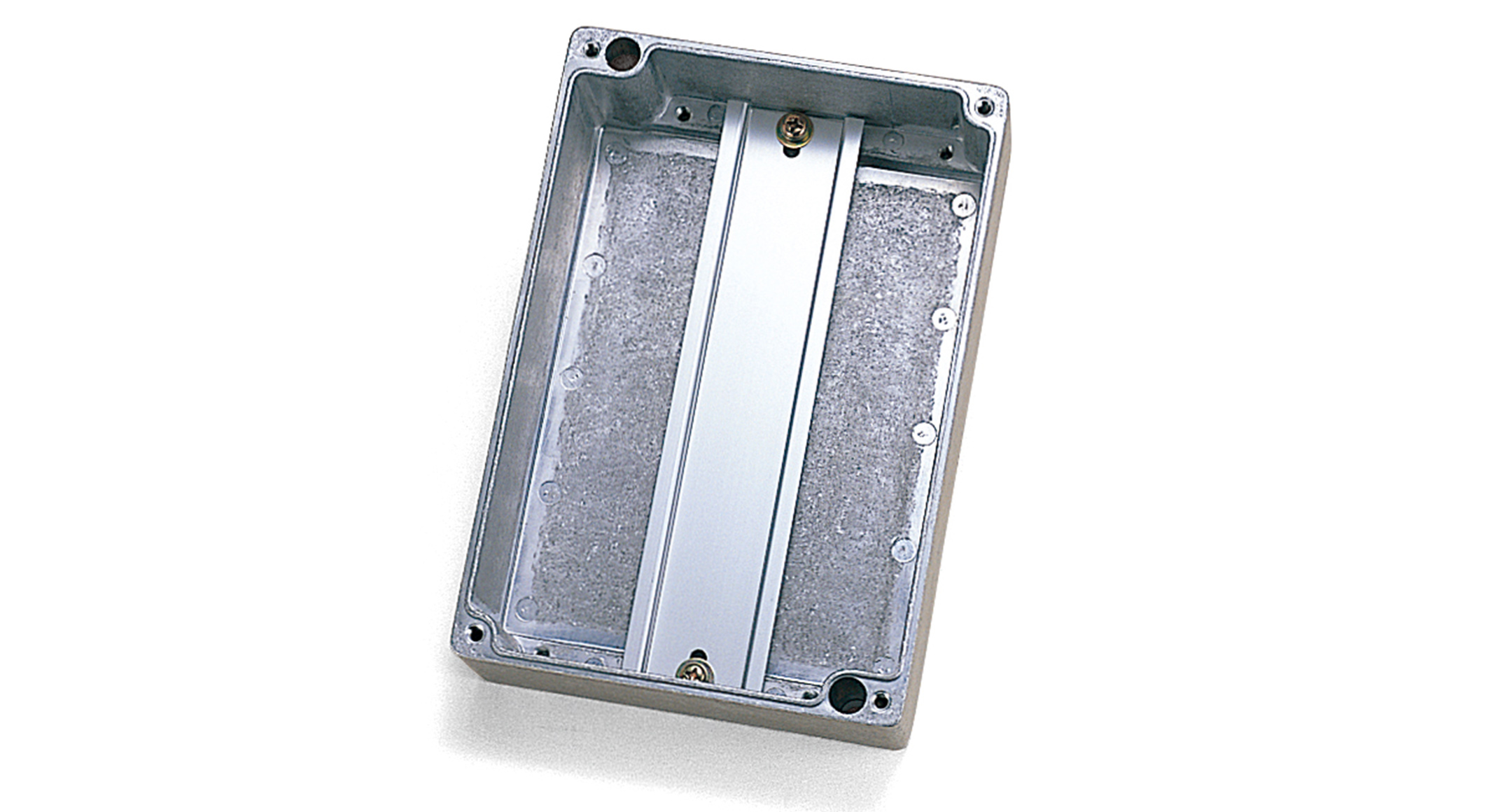

35mm DIN rail for installation of terminal blocks, modules, or power supplies inside BDN boxes.

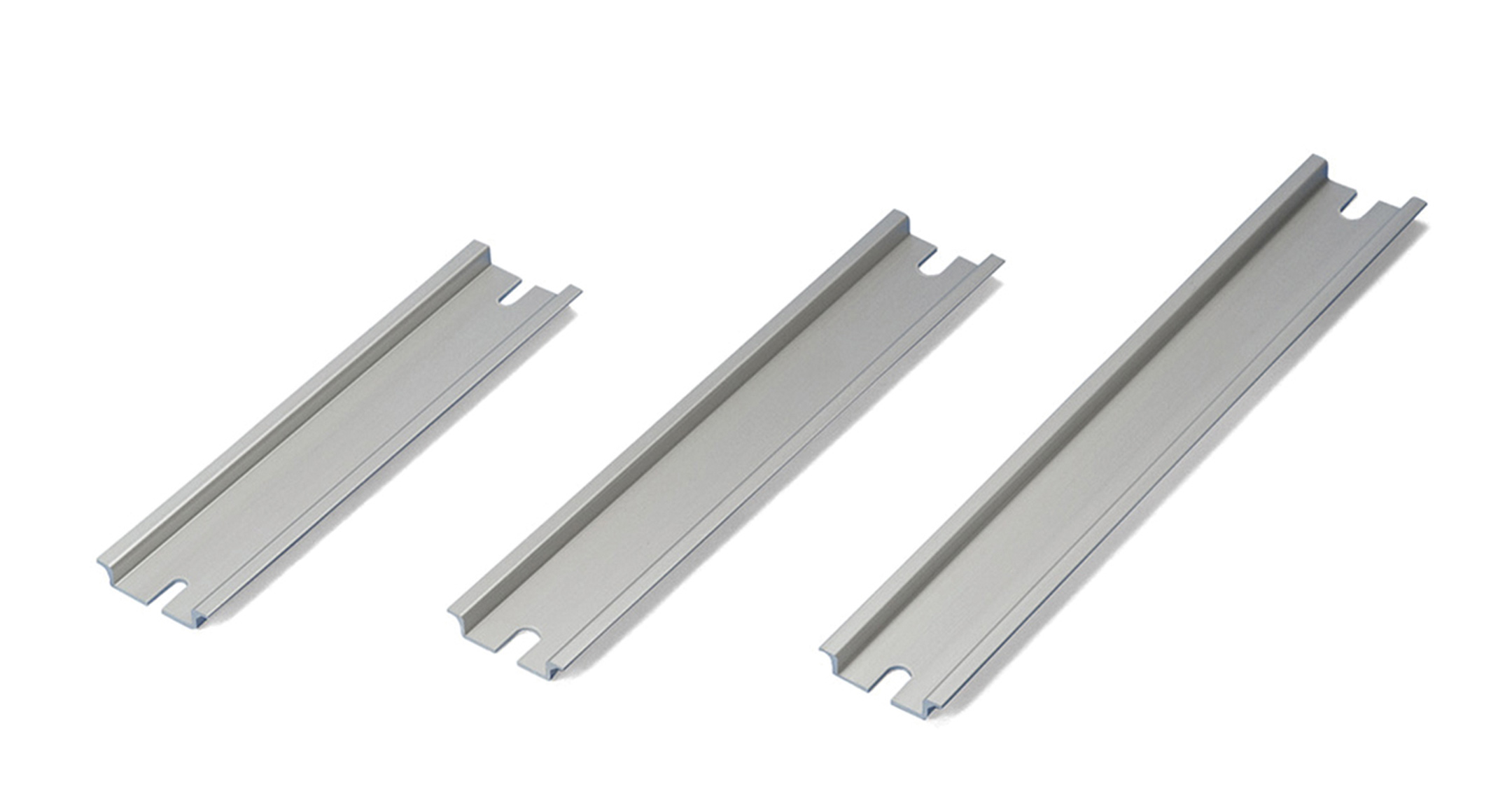

Available in different models and lengths to fit a wide variety of mounting boss pitch.

PRODUCT NO. / DIMENSIONS

Product No. Suitable box Length（mm） Weight (g) PDF DXF DWG
FDR-50' BDN6-8-5 50 8.6 PDF DXF DWG
FDR-80' BDN9-9-6 80 13 PDF DXF DWG
FDR-120' BDN9-13-5 120 21 PDF DXF DWG
FDR-128' BDN10-14-7 128 23 PDF DXF DWG
FDR-150' BDN11-16-6 150 25.8 PDF DXF DWG
FDR-205' BDN12-22-8 205 36 PDF DXF DWG
FDR-242' BDN16-26-9 242 43 PDF DXF DWG
