DIN RAIL for DW･DWH - FDR series


FDR_DW Series -PDF

CATEGORY：DIN Rail, 35mm DIN Rail

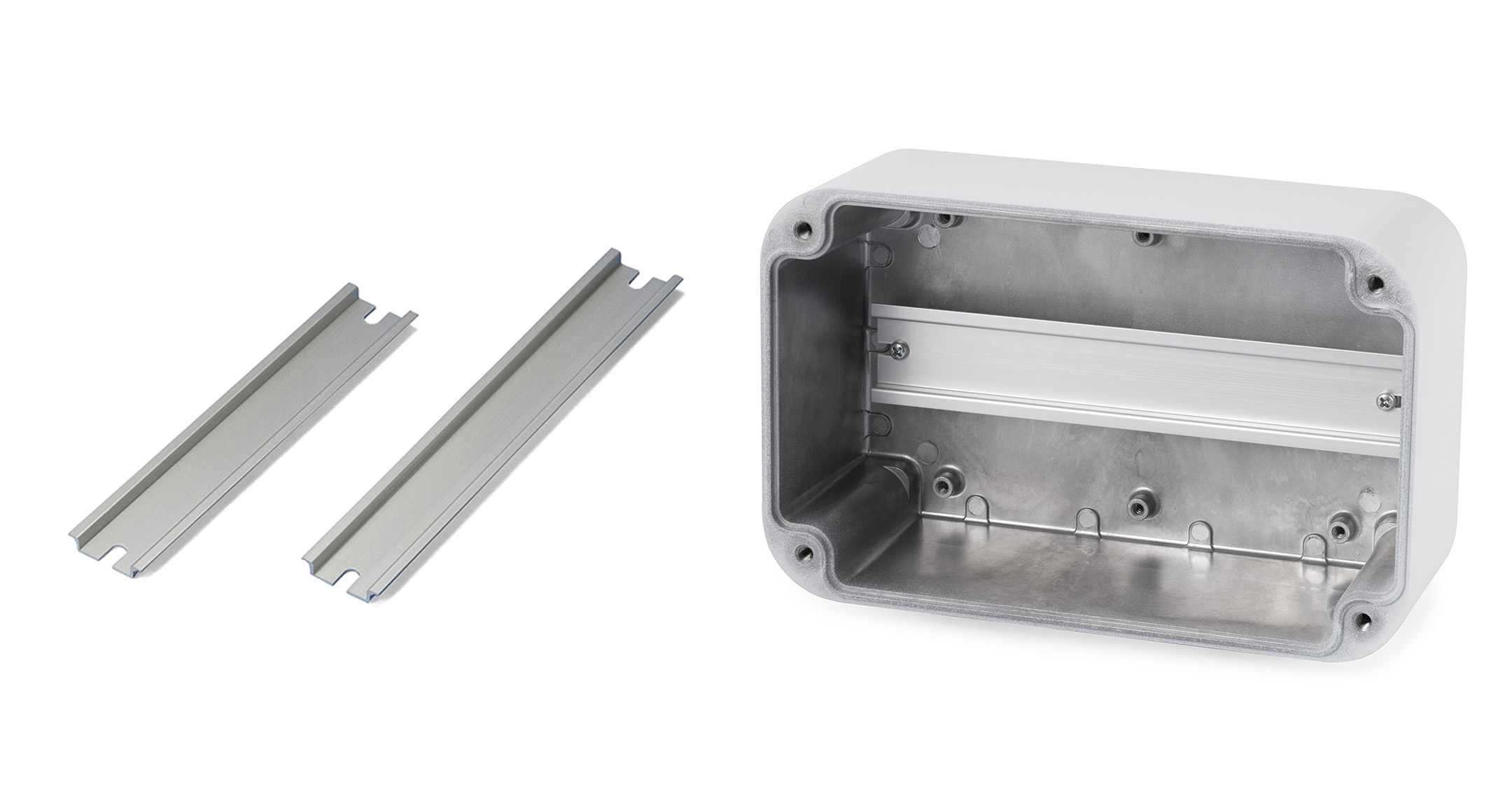

DIN RAIL for DW･DWH - FDR series
DIN RAIL for DW･DWH - FDR series1
35mm DIN Rail for installing terminal blocks and power modules, etc. inside the enclosure.
Please use SMS4-8 screws (sold separately).

PRODUCT NO. / DIMENSIONS

Product No. Suitable enclosure Length (mm) Weight (g) PDF DXF DWG
FDR- 128' DW･DWH10-15-□ 128 23 PDF DXF DWG
FDR- 186' DW･DWH14-22-□ 186 32 PDF DXF DWG

OPTIONAL PARTS

１
MOUNTING SCREWS for DW・DWH - SMS4-8
DETAILS
１
DIN-RAIL TERMINAL BLOCK END STOPPER - TKR series
DETAILS
１
ECONOMICAL DIN RAIL END STOPPER - DRS series
DETAILS
