DIN RAIL for FCW - FDR series


FDR_FCW Series -PDF

CATEGORY：DIN rail, 35mm DIN rail

DIN RAIL for FCW - FDR series
DIN RAIL for FCW - FDR series1

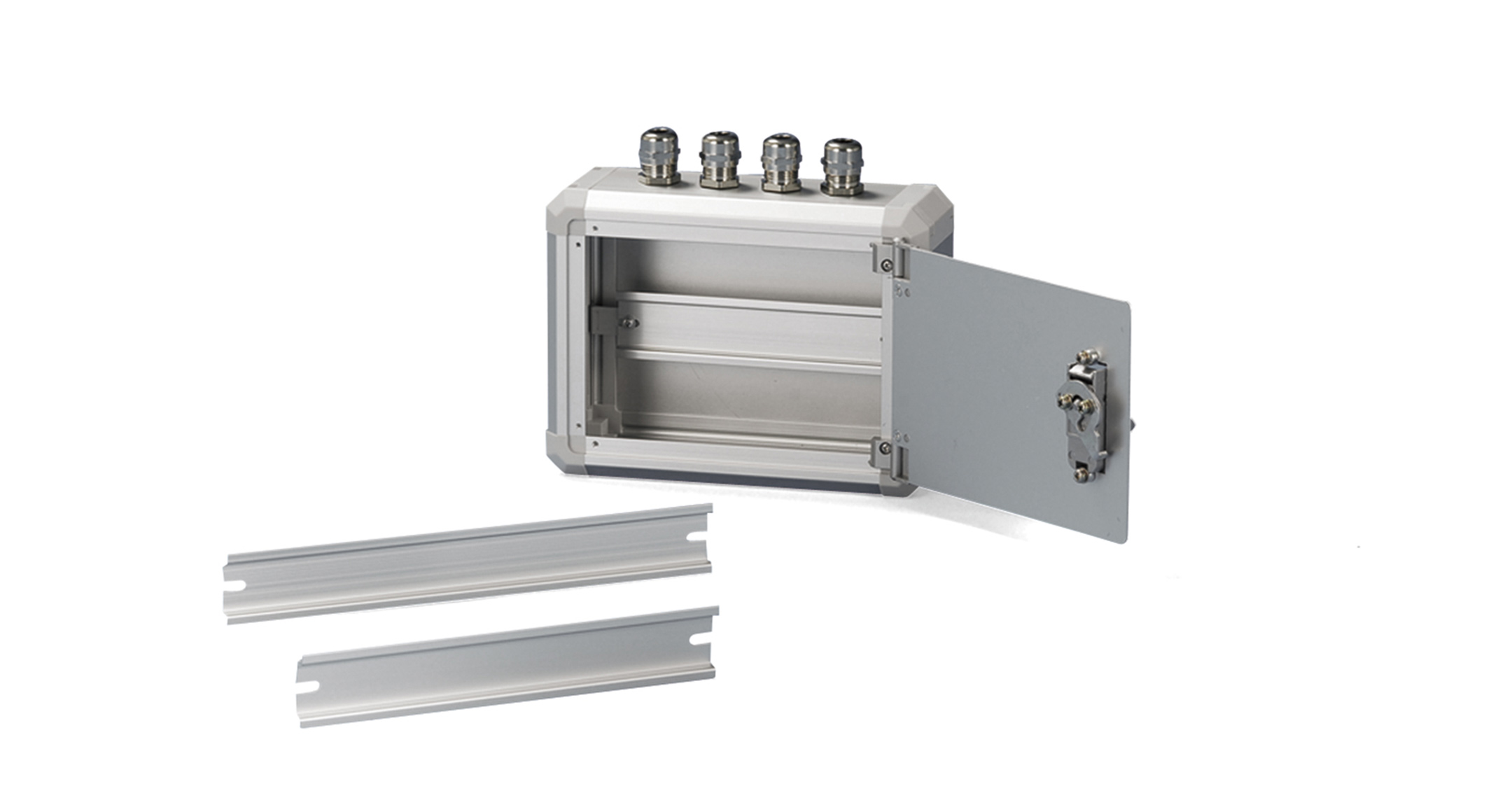

35mm DIN rail for installation of terminal blocks, circuit breakers, power supplies or relays inside FCW boxes.
Available in different models and lengths to fit a wide variety of mounting boss pitch.

PRODUCT NO. / DIMENSIONS

Product No. Box external dimension (mm) Length (mm) Weight (g) PDF DXF DWG
FDR- 50. 100 50 8.6 PDF DXF DWG
FDR- 100. 150 100 17.8 PDF DXF DWG
FDR- 150. 200 150 25.8 PDF DXF DWG
FDR- 205. 250 205 36 PDF DXF DWG
FDR- 249. 300 249 43 PDF DXF DWG
FDR- 300. 350 300 52 PDF DXF DWG
FDR- 350. 400 350 60 PDF DXF DWG
FDR- 450. 500 450 78 PDF DXF DWG
FDR- 550. 600 550 94 PDF DXF DWG
