DIN RAIL for POLYCARBONATE BOXES


FDR_UPC Series -PDF

CATEGORY：DIN rail, 35mm DIN rail

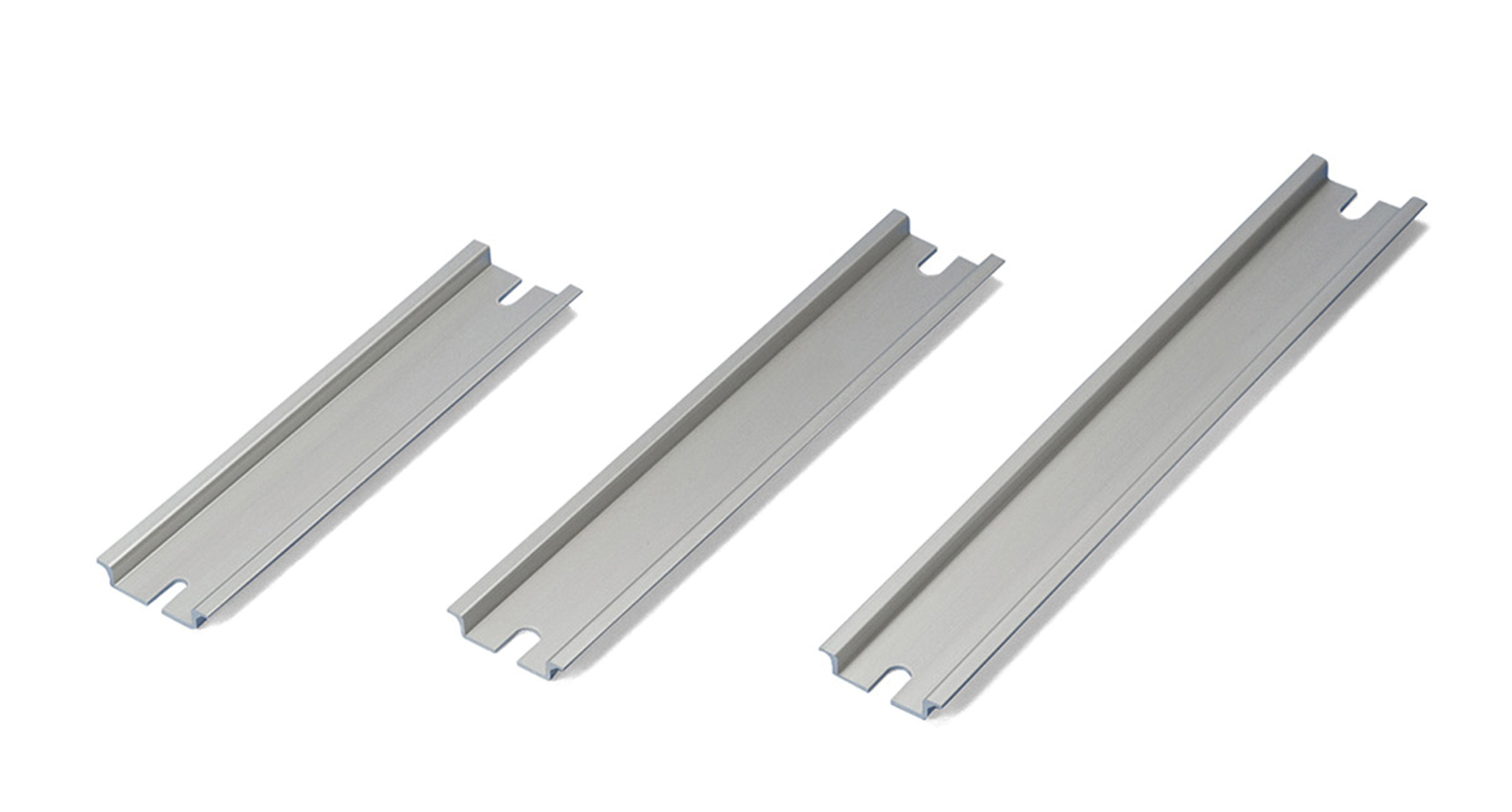

DIN RAIL for POLYCARBONATE BOXES
DIN RAIL for POLYCARBONATE BOXES1
35mm DIN rail for installation of terminal blocks, circuit breakers, power supplies or relays inside UPC enclosures.
Available in different models and lengths to fit a wide variety of mounting boss pitch.

PRODUCT NO. / DIMENSIONS

Product No. Suitable enclosure Length (mm) Weight (g) PDF DXF DWG
.FDR-B124 UPC172213 124 21.4 PDF DXF DWG
.FDR-B176 UPC232818 176 30 PDF DXF DWG
.FDR-B223 UPC283318 223 37 PDF DXF DWG
.FDR-B276 UPC333818 276 47.5
.FDR-B327 UPC384323 327 56.2
.FDR-B376 UPC434829 376 64 PDF DXF DWG

OPTIONAL PARTS

１
DIN RAIL MOUNTING BASE - DRT series
DETAILS
１
DIN RAIL MOUNTING BRACKET - DRF series
DETAILS
１
DIN RAIL MOUNTING FEET - CKD series
DETAILS
１
DIN-RAIL TERMINAL BLOCK END STOPPER - TKR series
DETAILS
１
ECONOMICAL DIN RAIL END STOPPER - DRS series
DETAILS
