MOUNTING PLATE for HY・HYR・HYRH - HYC series


HYC Series -PDF

CATEGORY：Aluminum mounting plate, Mount plate, Mounting base

MOUNTING PLATE for HY・HYR・HYRH - HYC series
MOUNTING PLATE for HY・HYR・HYRH - HYC series
MOUNTING PLATE for HY・HYR・HYRH - HYC series
MOUNTING PLATE for HY・HYR・HYRH - HYC series1
MOUNTING PLATE for HY・HYR・HYRH - HYC series2
MOUNTING PLATE for HY・HYR・HYRH - HYC series3

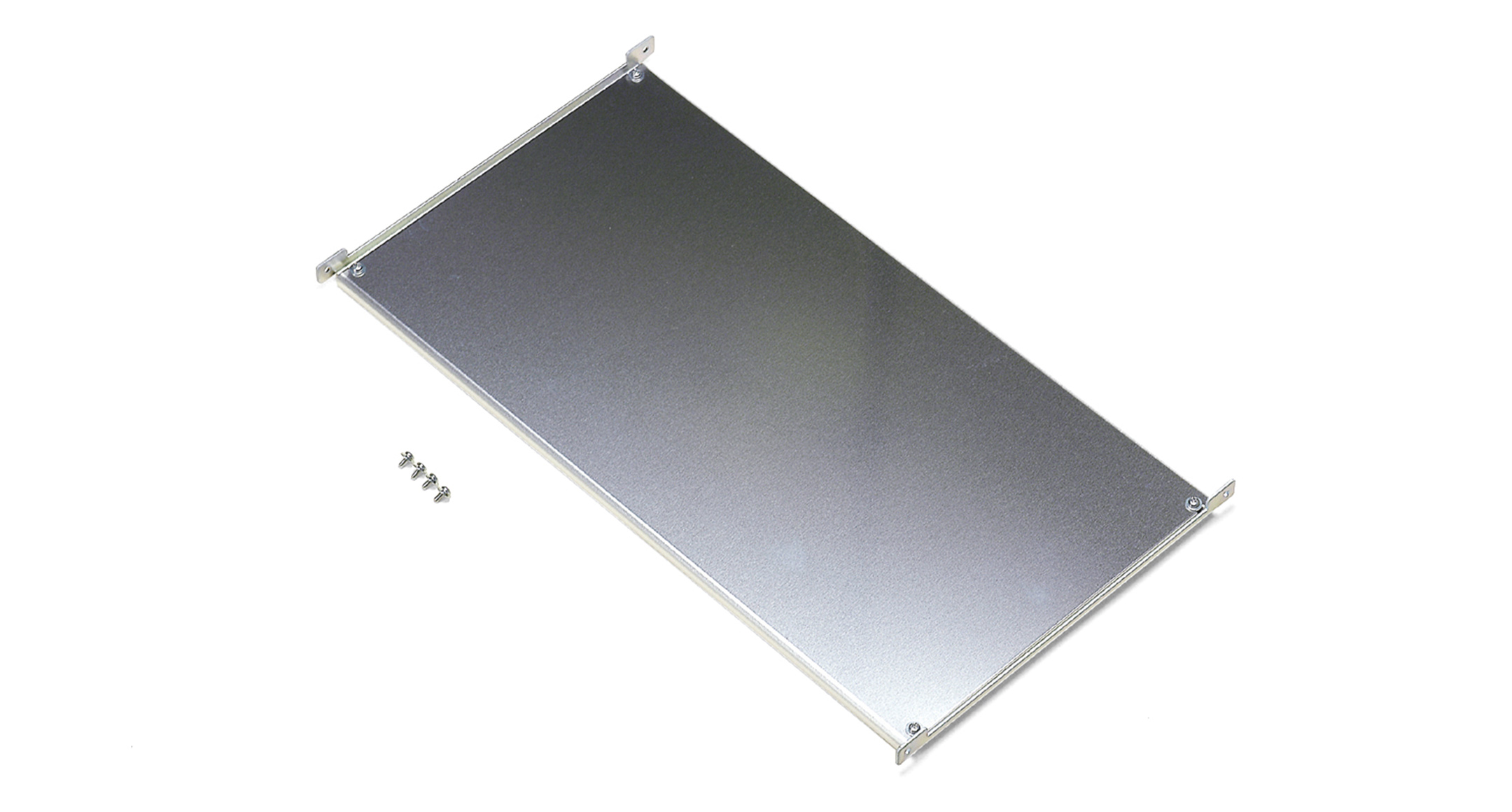

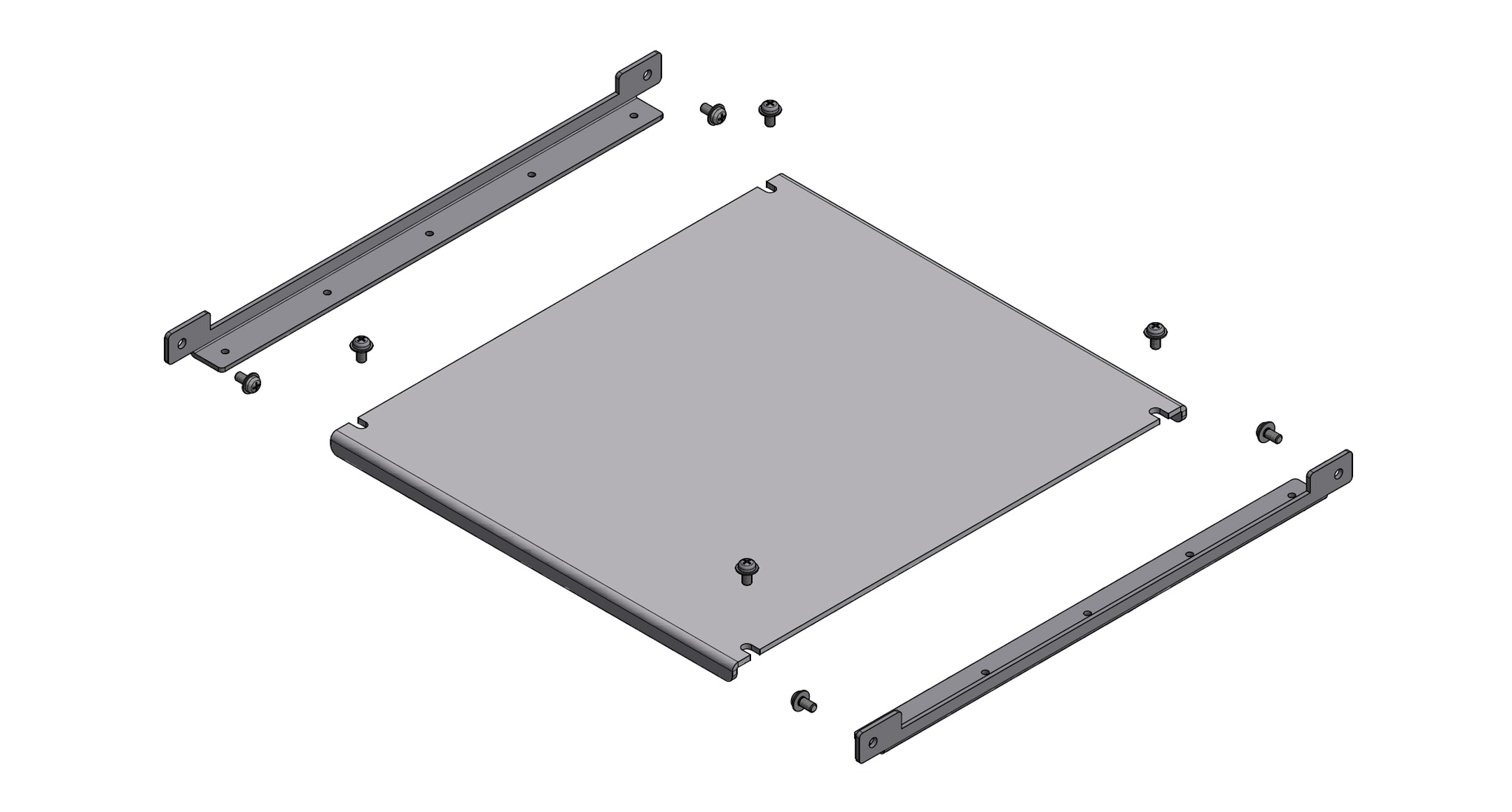

Aluminum mounting plate for HY・HYR・HYRH series.
Plate material : Aluminium / Thickness=2.0mm

PRODUCT NO. / DIMENSIONS

Product No. Suitable enclosure Weight (g) PDF DXF DWG STP
HYC23-23 HY□-23-23 300 PDF DXF DWG STP
HYC23-28 HY□-28-23 350 PDF DXF DWG STP
HYC23-33 HY□-33-23 410 PDF DXF DWG STP
HYC23-43 HY□-43-23 520 PDF DXF DWG STP
HYC33-23 HY□-23-33 450 PDF DXF DWG STP
HYC33-28 HY□-28-33 550 PDF DXF DWG STP
HYC33-33 HY□-33-33 710 PDF DXF DWG STP
HYC33-43 HY□-43-33 800 PDF DXF DWG STP
