MOUNTING ANGLE BRACKET for HY・HYR・HYRH - HYCL series


HYCL Series -PDF

CATEGORY：Mounting angle, L-bracket, PCB bracket

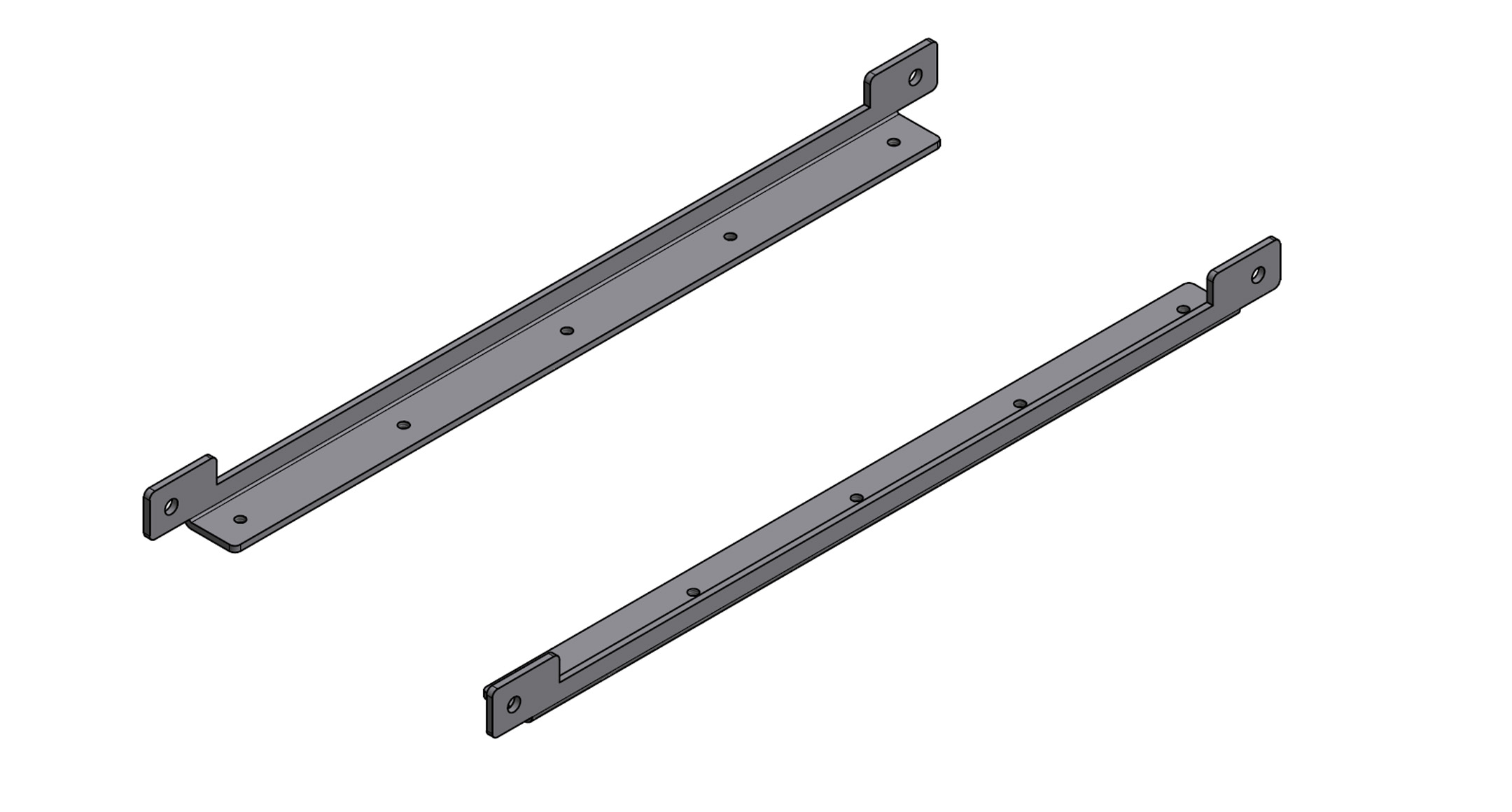

MOUNTING ANGLE BRACKET for HY・HYR・HYRH - HYCL series
MOUNTING ANGLE BRACKET for HY・HYR・HYRH - HYCL series1
L-bracket and screw set for HY・HYR・HYRH series.
Use with your original mounting plate or PCB.

PRODUCT NO. / DIMENSIONS

Product No. Suitable enclosure depth Weight(g) / 2pcs Pack of PDF DXF DWG STP
HYCL-23 231mm (HY□-□-23) 104 2 pcs PDF DXF DWG STP
HYCL-33 330mm (HY□-□-33) 142.5 2 pcs PDF DXF DWG STP
