Wall mount support arm move easily to the preferred positions.

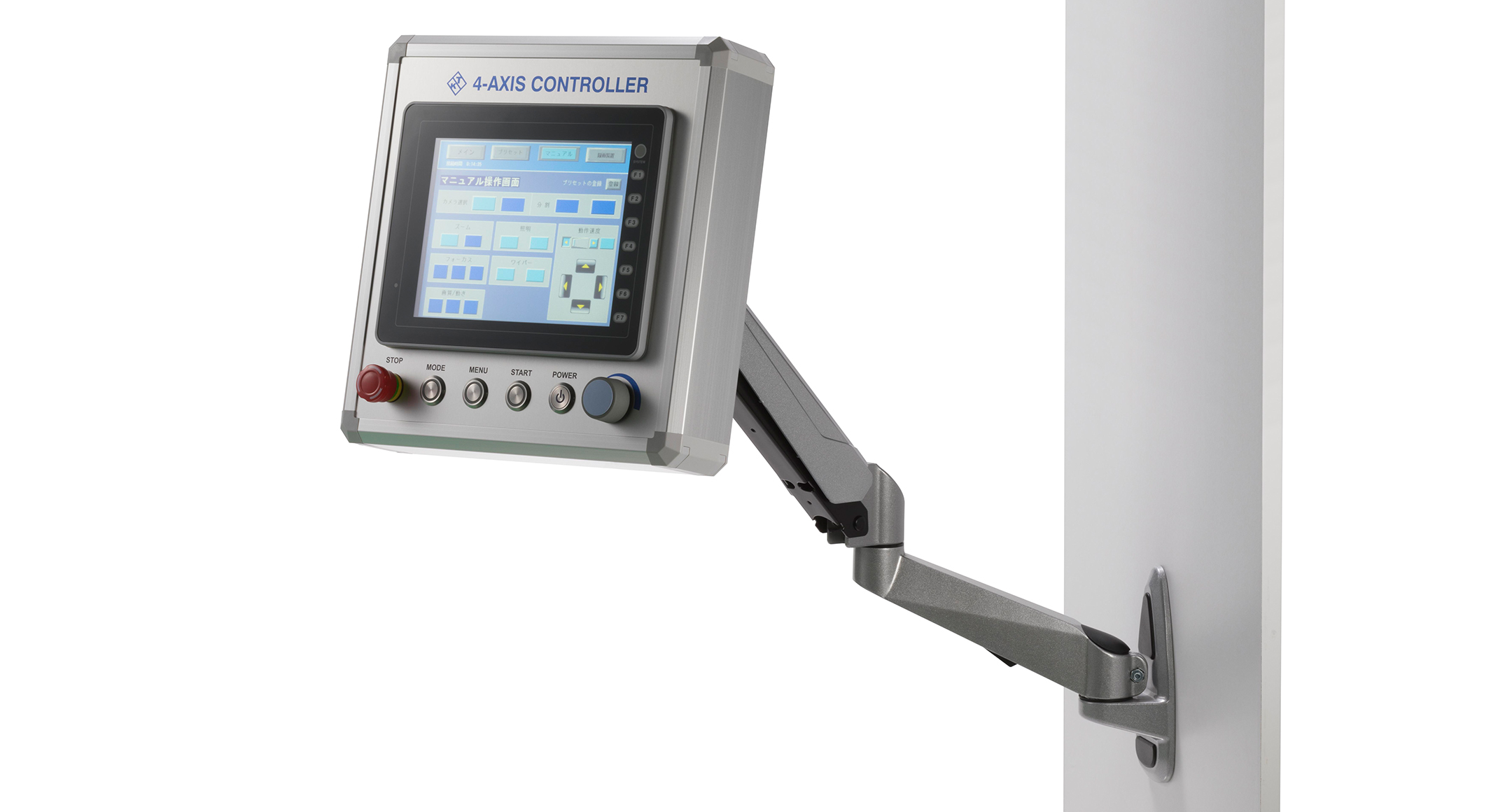

Suitable for command panel on machinery and touch panel controller. Easy installation onto the wall as well.
Hole pitch on the monitor bracket is compatible with VESA mount standards. Possible to mount PC display without modification.

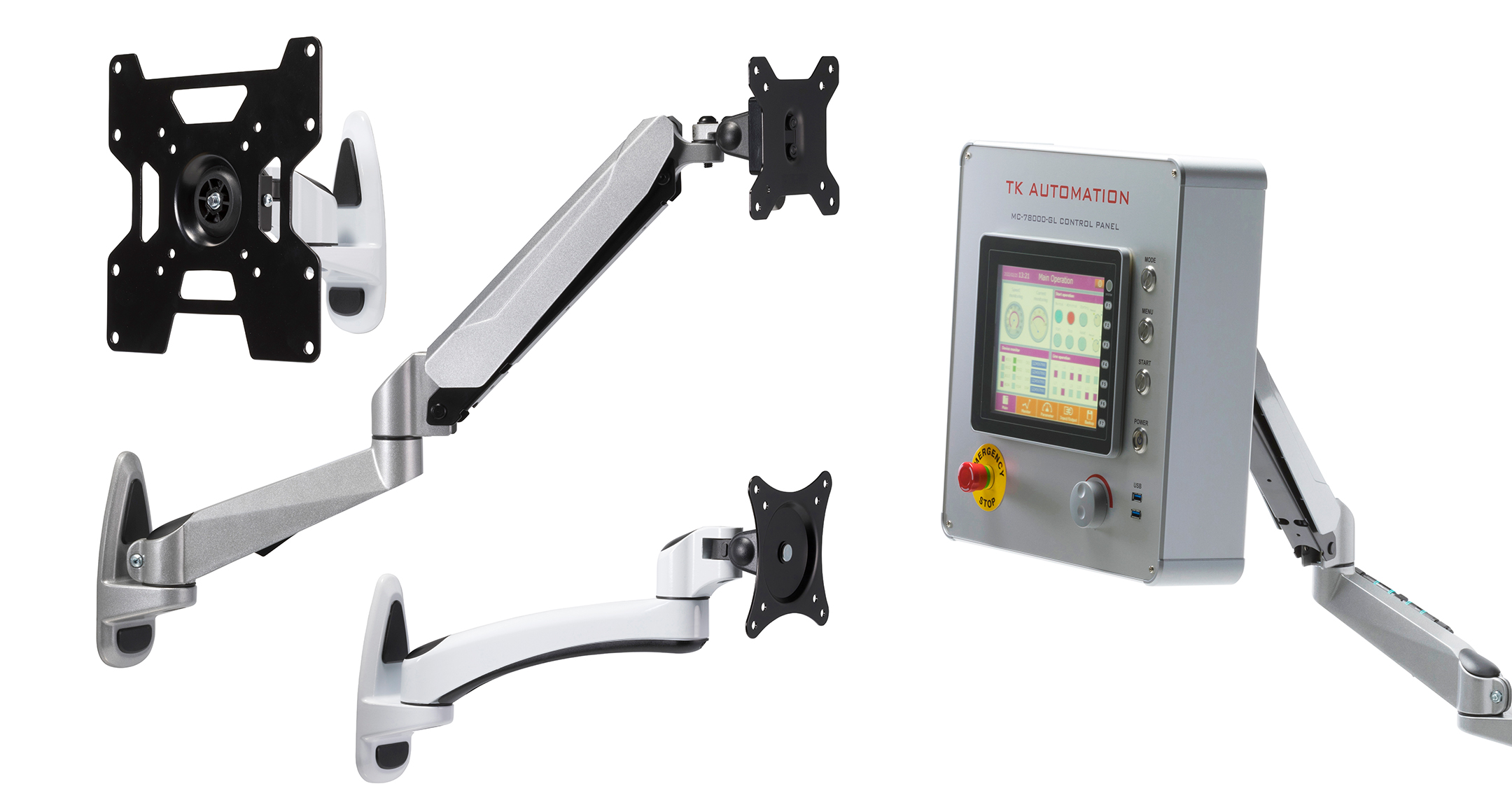

Following 3 types can be selected.
MAR-312W : Length 612mm / Max load 6.5kg / Arm can move up-down, left-right & Bracket can move up-down, left-right
MAR-111W : Length 340mm / Max load 8kg / Arm can move left-right & Bracket can move up-down, left-right
MAR-110W:Length 130mm / Max load 8kg / Bracket can move up-down, left-right

PRODUCT NO. / DIMENSIONS

Product No. Length (mm) Max load (Including product weight) Arm color Weight (g) PDF DXF DWG
MAR-312W 612mm 6.5kg Metallic gray 2.2
MAR-111W 340mm 8kg White / Black 1
MAR-110W 130mm 8kg White / Black 1
