HEXALOBULAR SOCKET HEAD SCREW - MR series


MR Series -PDF

CATEGORY：Hexalobular socket head screw, Torx drive screw

HEXALOBULAR SOCKET HEAD SCREW - MR series
HEXALOBULAR SOCKET HEAD SCREW - MR series
HEXALOBULAR SOCKET HEAD SCREW - MR series
HEXALOBULAR SOCKET HEAD SCREW - MR series1
HEXALOBULAR SOCKET HEAD SCREW - MR series2
HEXALOBULAR SOCKET HEAD SCREW - MR series3

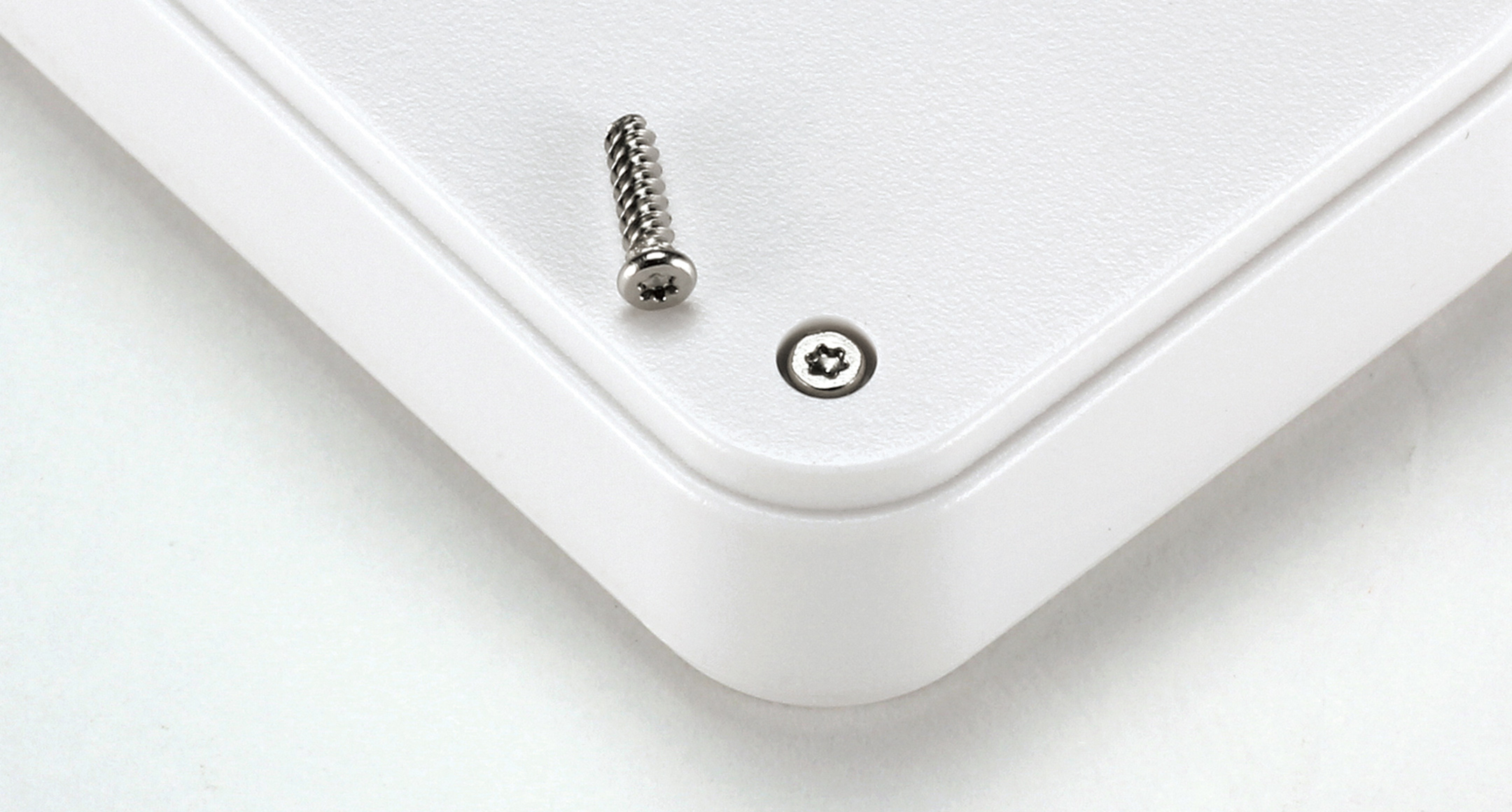

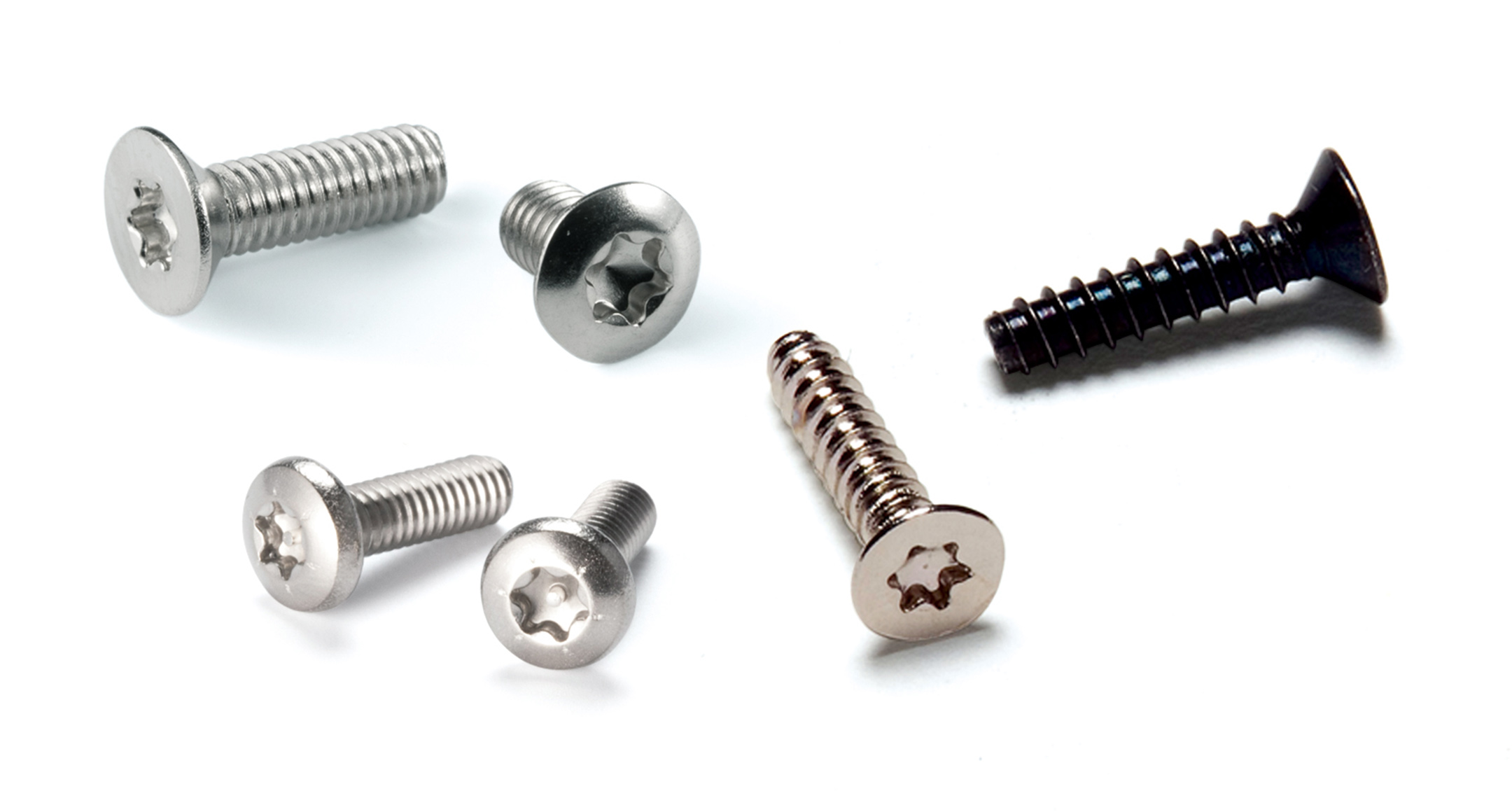

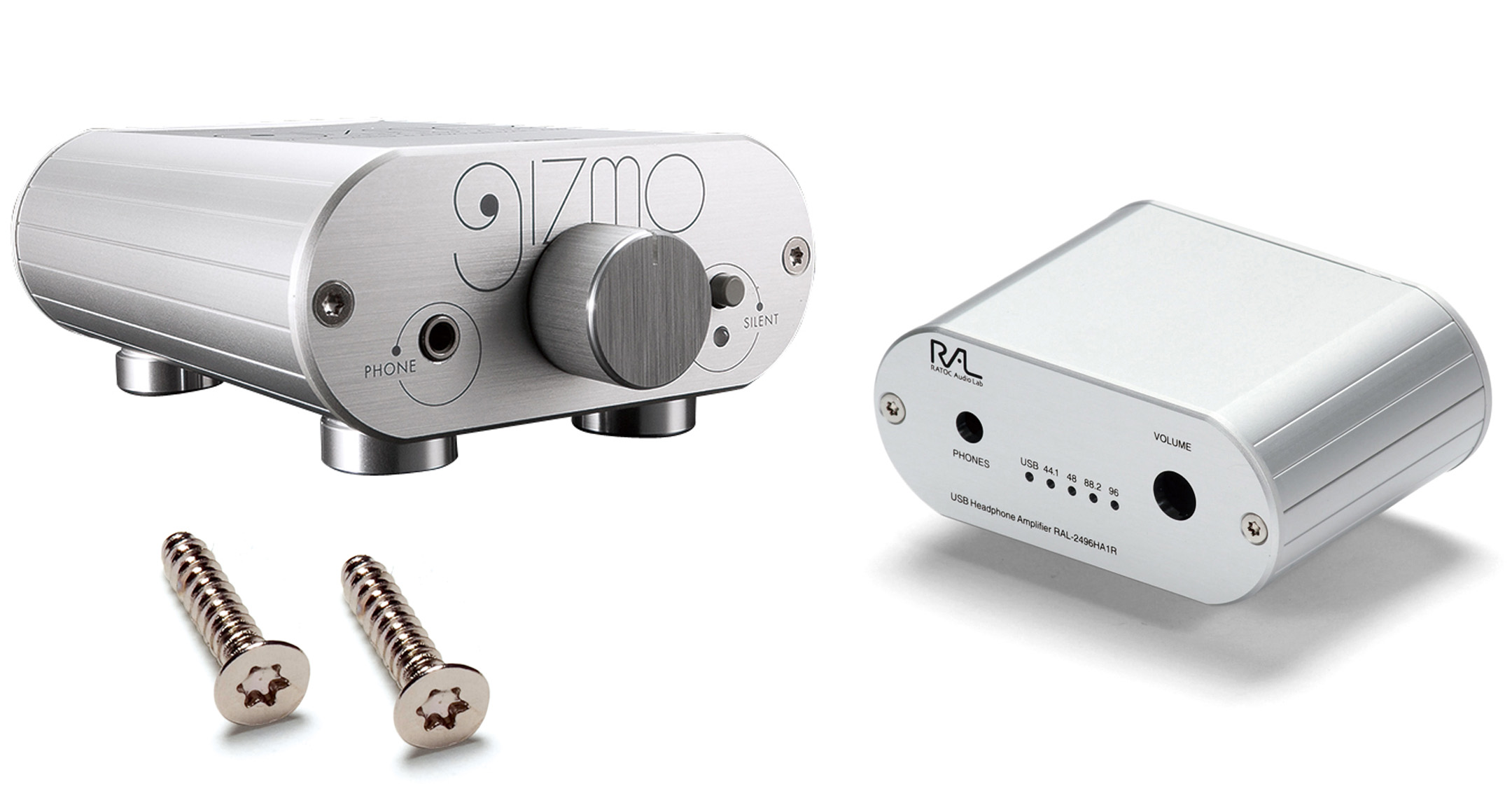

Hexalobular (TORX) screws for enclosures.
Recommended to be used for tamper resistance, or for an robust look and feel.

Requires the use of a torx screwdriver.

PRODUCT NO. / DIMENSIONS

Product No. M L Drive size Head style Material Surface finish Weight (g) / 1pc Pack of PDF DXF DWG
MR-1B M3 5 T10 Countersunk Steel Black trivalent chromate 0.4 20 pcs
MR-1S M3 5 T10 Countersunk Steel Nickel plated 0.4 20 pcs
MR-2S M3 10 T10 Countersunk Steel Nickel plated 0.6 20 pcs
MR-11B M3 5 T10 Truss Steel Black trivalent chromate 0.6 20 pcs
MR-11S M3 5 T10 Truss Steel Nickel plated 0.6 20 pcs
MR-41B M3 12 T10 Pan Steel Black trivalent chromate 0.6 20 pcs
MR1.6-6S M1.6 6 T3 Pan Steel Nickel plated 0.1 20 pcs
MR2.5-8PS M2.5 8 T8 Pan Steel Nickel plated 0.4 20 pcs
MR2.5-8ST M2.5 8 T8 Bind Stainless steel Unfinished 0.5 20 pcs
MR2.5-16ST M2.5 16 T8 Bind Stainless steel Unfinished 0.7 20 pcs
MR2.6-10B M2.6 10 T8 Countersunk Steel Black trivalent chromate 0.4 20 pcs
MR2.6-10S M2.6 10 T8 Countersunk Steel Nickel plated 0.4 20 pcs
MR2.6-12PS M2.6 12 T8 Pan Steel Nickel plated 0.5 20 pcs
MR2.6-14PS M2.6 14 T8 Pan Steel Nickel plated 0.6 20 pcs
MR2.6-14S M2.6 14 T8 Countersunk Steel Nickel plated 0.5 20 pcs
MR2.6-18S M2.6 18 T8 Countersunk Steel Nickel plated 0.6 20 pcs
MR3-5ZB M3 5 T10 Raised countersunk Steel Black trivalent chromate 0.4 20 pcs
MR3-5ZS M3 5 T10 Raised countersunk Steel Nickel plated 0.4 20 pcs
MR3-8PS M3 8 T10 Pan Steel Nickel plated 0.5 20 pcs
MR3-8ST M3 8 T10 Bind Stainless steel Unfinished 0.7 20 pcs
MR3-14B M3 14 T10 Countersunk Steel Black trivalent chromate 0.7 20 pcs
MR3-14S M3 14 T10 Countersunk Steel Nickel plated 0.7 20 pcs
