TORX DRIVE SCREW for PLASTIC CASES - MR series


MR_PLASTIC Series -PDF

CATEGORY：Hexalobular socket head screw, TORX drive screw

TORX DRIVE SCREW for PLASTIC CASES - MR series
TORX DRIVE SCREW for PLASTIC CASES - MR series
TORX DRIVE SCREW for PLASTIC CASES - MR series1
TORX DRIVE SCREW for PLASTIC CASES - MR series2

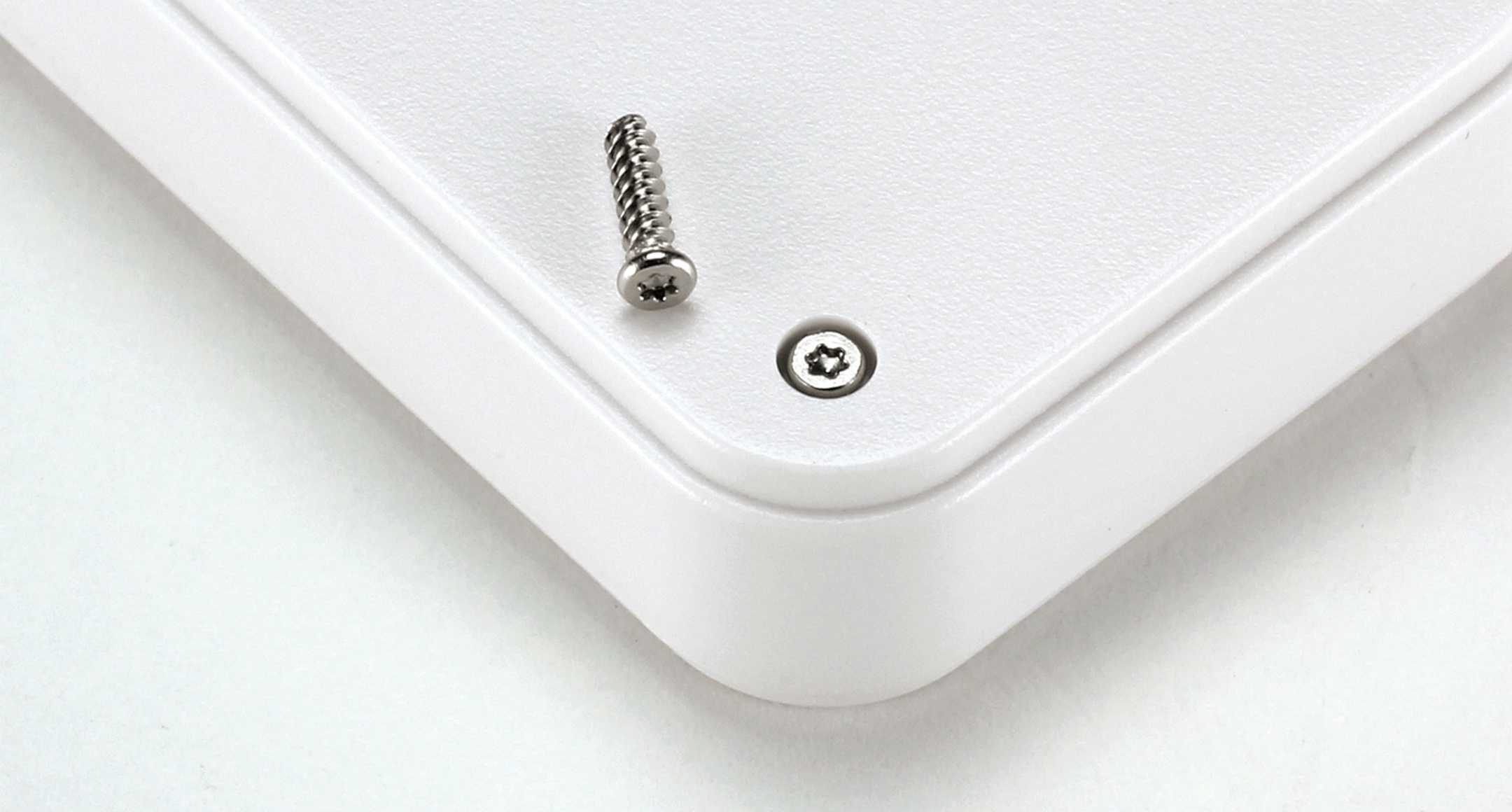

Hexalobular (TORX) screws for plastic enclosures.
Fit to CS・CSS・LC・LCS・LCT・PF・PFF・TW・TWN・TWF series.
Recommended to be used for tamper resistance.

Requires the use of a torx screwdriver.

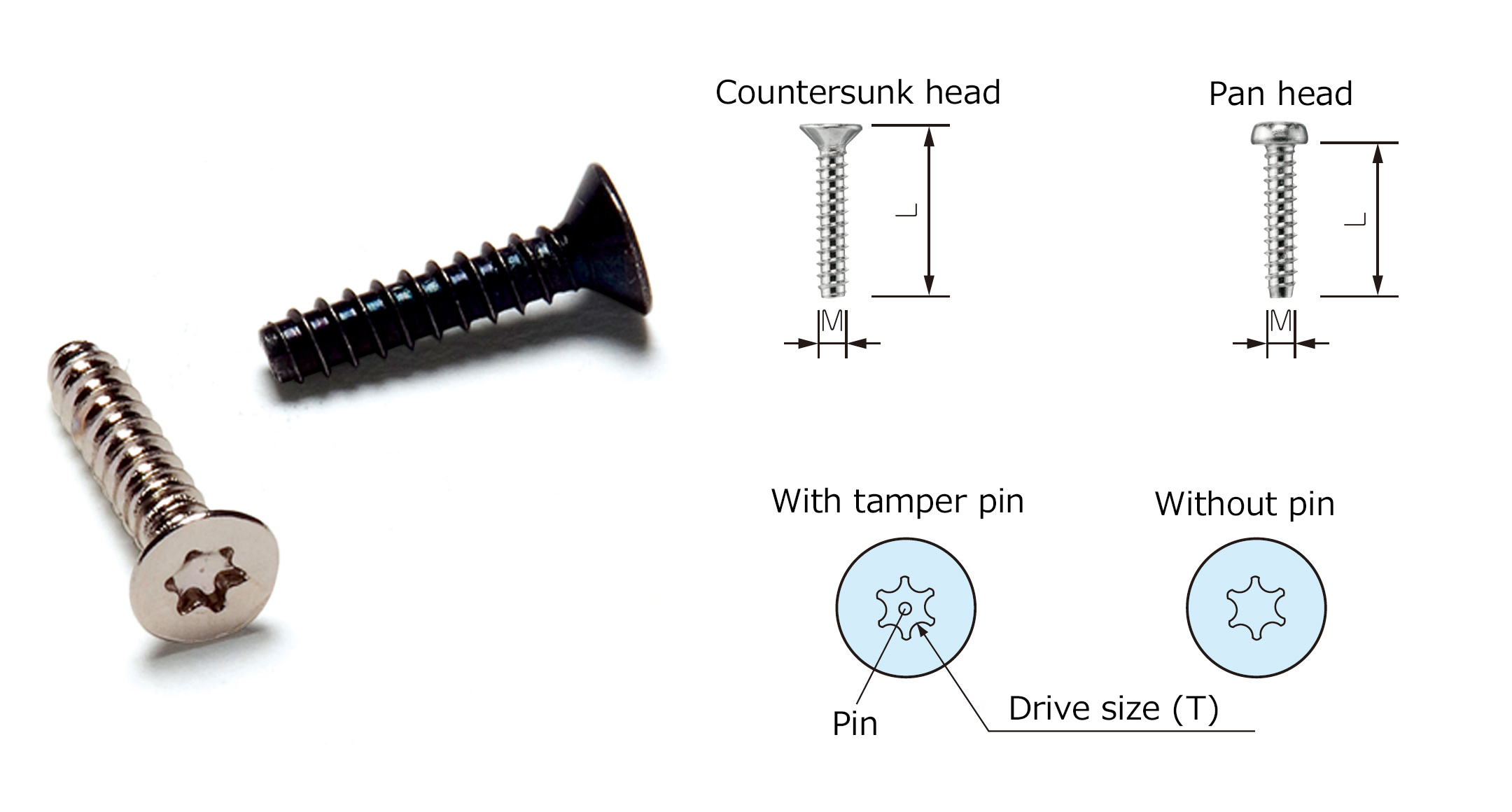

PRODUCT NO. / DIMENSIONS

Product No. M L Drive size Head style Weight (g) / 1pc Pack of PDF DXF DWG
MR 1.6-6S M1.6 6 T3 Pan 0.1 20 pcs
MR 2.5-8PS M2.5 8 T8 Pan 0.4 20 pcs
MR 2.6-10B M2.6 10 T8 Countersunk 0.4 20 pcs
MR 2.6-10S M2.6 10 T8 Countersunk 0.4 20 pcs
MR 2.6-12PS M2.6 12 T8 Pan 0.5 20 pcs
MR 2.6-14PS M2.6 14 T8 Pan 0.6 20 pcs
MR 2.6-14S M2.6 14 T8 Countersunk 0.5 20 pcs
MR 2.6-18S M2.6 18 T8 Countersunk 0.6 20 pcs
MR 3-8PS M3 8 T10 Pan 0.5 20 pcs
MR 3-14B M3 14 T10 Countersunk 0.7 20 pcs
MR 3-14S M3 14 T10 Countersunk 0.7 20 pcs
