ALUMINUM PANEL for NK・NKK - NKAP series


NKAP Series -PDF

CATEGORY:Aluminum panel, Aluminum control panel, Instrument panel

ALUMINUM PANEL for NK・NKK - NKAP series
ALUMINUM PANEL for NK・NKK - NKAP series
ALUMINUM PANEL for NK・NKK - NKAP series
ALUMINUM PANEL for NK・NKK - NKAP series
ALUMINUM PANEL for NK・NKK - NKAP series
ALUMINUM PANEL for NK・NKK - NKAP series
ALUMINUM PANEL for NK・NKK - NKAP series
ALUMINUM PANEL for NK・NKK - NKAP series
ALUMINUM PANEL for NK・NKK - NKAP series
ALUMINUM PANEL for NK・NKK - NKAP series1
ALUMINUM PANEL for NK・NKK - NKAP series2
ALUMINUM PANEL for NK・NKK - NKAP series3
ALUMINUM PANEL for NK・NKK - NKAP series4
ALUMINUM PANEL for NK・NKK - NKAP series5
ALUMINUM PANEL for NK・NKK - NKAP series6
ALUMINUM PANEL for NK・NKK - NKAP series7
ALUMINUM PANEL for NK・NKK - NKAP series8
ALUMINUM PANEL for NK・NKK - NKAP series9

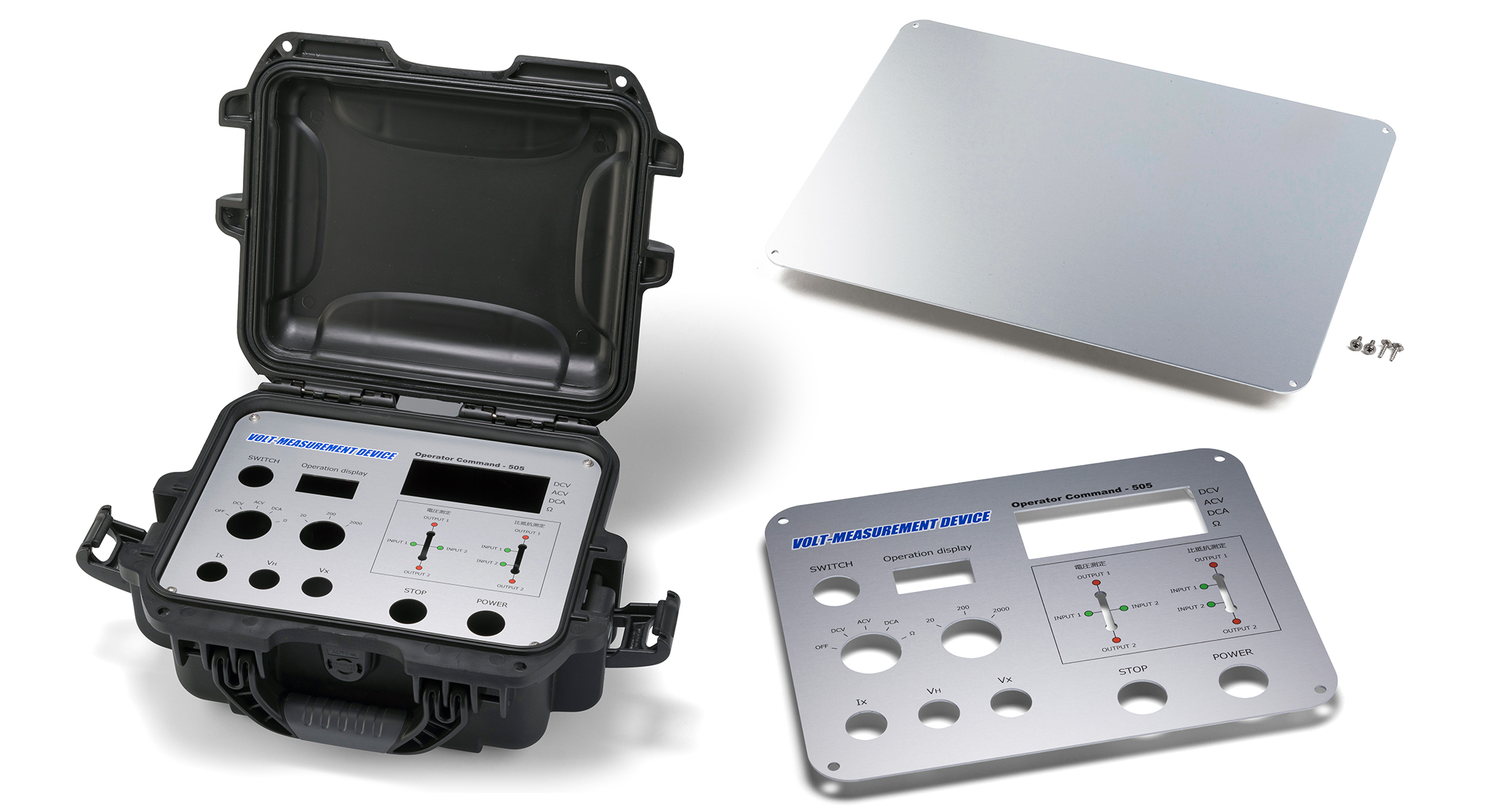

Optional aluminium panel for NK・NKK series

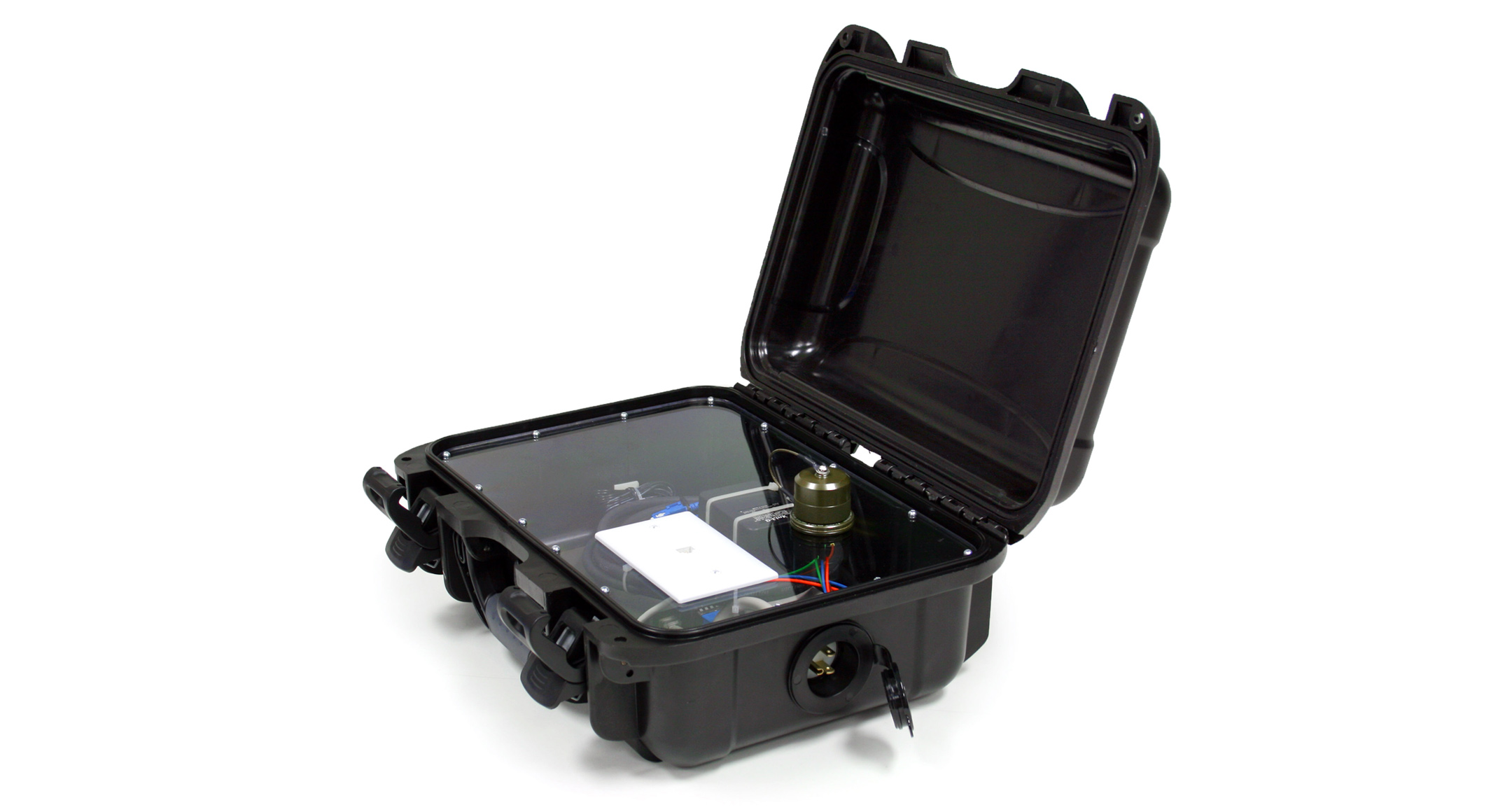

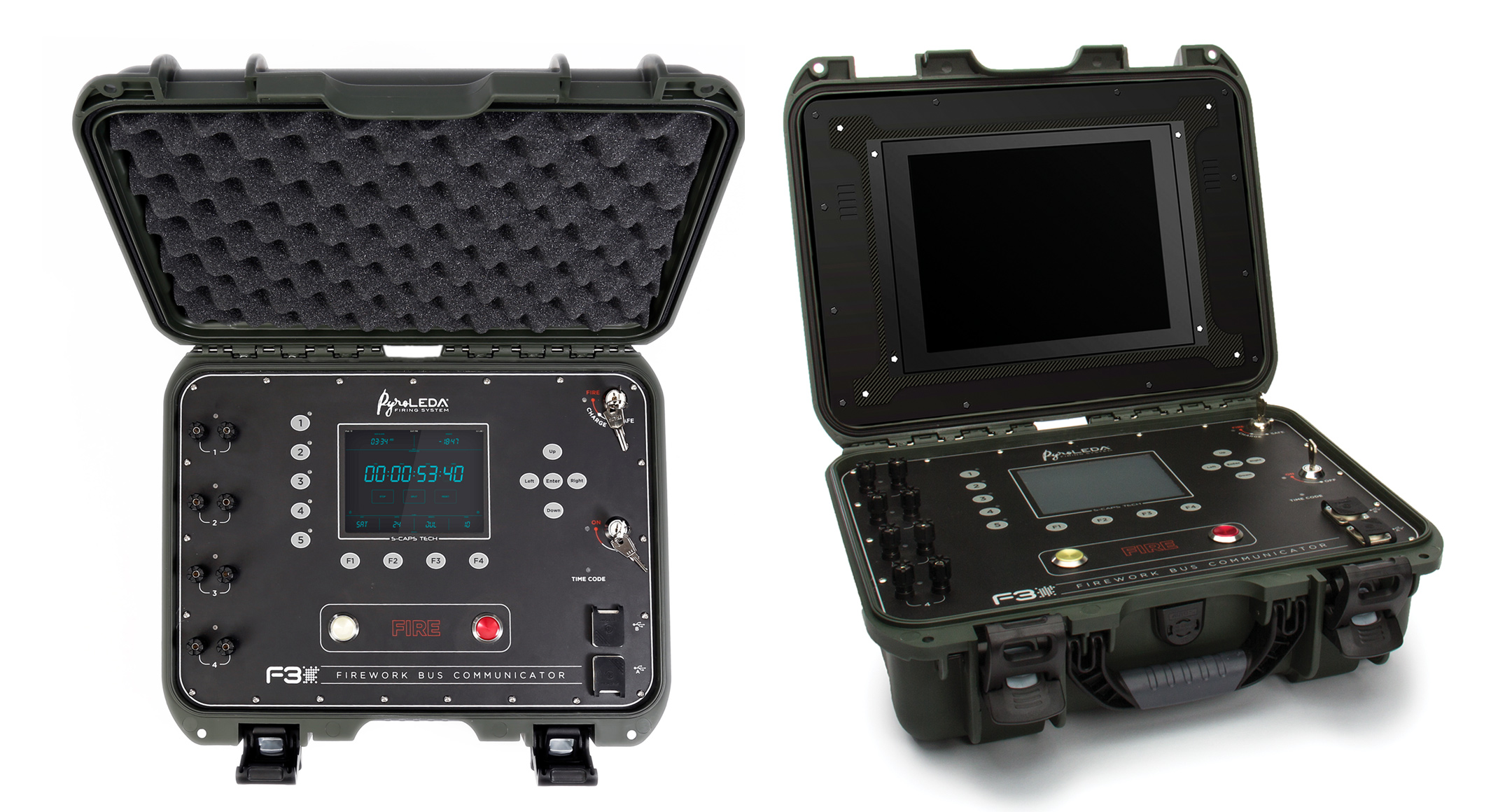

Can be used as a controller, measuring device, portable power supply, and so on.

Notes 1)
NKAP963-975 does not include with mounting screws.
Please use the mounting screws included in the NKAP-KIT.

Notes 2)

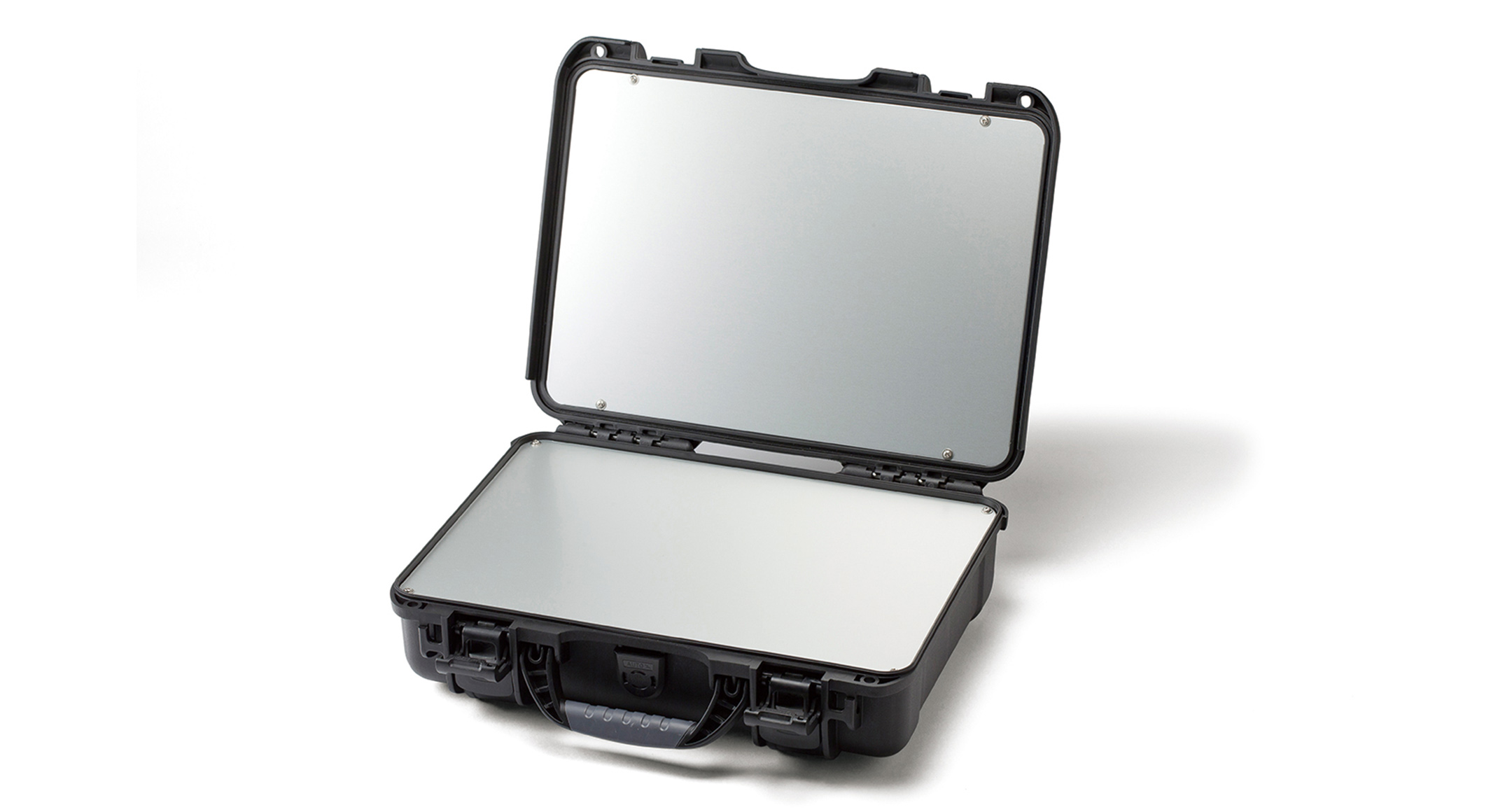

Aluminium panel for lid side attachment is available as built-to-order (BTO) part.
Manufacturing lead time required will be 5 business days after payment confirmation.

Customization services such as hole making and printing are available.
Estimated lead time reference is as follows:
Hole cutouts only = 7 business days after payment confirmation.
Hole cutouts + Inkjet printing = 10 business days after payment confirmation.

PRODUCT NO. / DIMENSIONS

Product No. Suitable models Mounting side Inventory type Weight (g) PDF DXF DWG
NKAP310 NANO310 Discontinued - Sold out. 59 PDF DXF DWG
NKAP320 NANO320 Discontinued - Sold out. 75 PDF DXF DWG
NKAP330 NANO330 Discontinued - Sold out. 94 PDF DXF DWG
NKAP903 NK・NKK903 for Base In stock 109 PDF DXF DWG
NKAP904 NK・NKK904 for Base In stock 149 PDF DXF DWG
NKAP905 NK・NKK905 for Base In stock 214 PDF DXF DWG
NKAP905C NK・NKK905 for Lid BTO (built to order) 195 PDF DXF DWG
NKAP908 NK・NKK908 for Base In stock 203 PDF DXF DWG
NKAP908C NK・NKK908 for Lid BTO (built to order) 189 PDF DXF DWG
NKAP909 NK・NKK909 for Base In stock 234 PDF DXF DWG
NKAP909C NK・NKK909 for Lid BTO (built to order) 219 PDF DXF DWG
NKAP910 NK・NKK910 for Base In stock 452 PDF DXF DWG
NKAP910C NK・NKK910 for Lid BTO (built to order) 329 PDF DXF DWG
NKAP915 NK・NKK915 for Base In stock 496 PDF DXF DWG
NKAP915C NK・NKK915 for Lid BTO (built to order) 465 PDF DXF DWG
NKAP918 NK・NKK918 for Base In stock 574 PDF DXF DWG
NKAP918C NK・NKK918 for Lid BTO (built to order) 541 PDF DXF DWG
NKAP920 NK・NKK920 for Base In stock 606 PDF DXF DWG
NKAP920C NK・NKK920 for Lid BTO (built to order) 572 PDF DXF DWG
NKAP923 NK・NKK923 for Base In stock 737 PDF DXF DWG
NKAP923C NK・NKK923 for Lid BTO (built to order) 704 PDF DXF DWG
NKAP925 NK・NKK925 for Base In stock 760 PDF DXF DWG
NKAP925C NK・NKK925 for Lid BTO (built to order) 720 PDF DXF DWG
NKAP930 NK・NKK930 for Base In stock 880 PDF DXF DWG
NKAP930C NK・NKK930 for Lid BTO (built to order) 841 PDF DXF DWG
NKAP933 NK・NKK933 for Base In stock 908 PDF DXF DWG
NKAP933C NK・NKK933 for Lid BTO (built to order) 851 PDF DXF DWG
NKAP935 NK・NKK935 for Base In stock 855 PDF DXF DWG
NKAP935C NK・NKK935 for Lid BTO (built to order) 810 PDF DXF DWG
NKAP938 NK・NKK938 for Base In stock 1017 PDF DXF DWG
NKAP938C NK・NKK938 for Lid BTO (built to order) 981 PDF DXF DWG
NKAP940 NK・NKK940 for Base In stock 1050 PDF DXF DWG
NKAP940C NK・NKK940 for Lid BTO (built to order) 1000 PDF DXF DWG
NKAP945 NK・NKK945 for Base In stock 1395 PDF DXF DWG
NKAP945C NK・NKK945 for Lid BTO (built to order) 1342 PDF DXF DWG
NKAP950 NK・NKK950 for Base In stock 1179 PDF DXF DWG
NKAP950C NK・NKK950 for Lid BTO (built to order) 1120 PDF DXF DWG
NKAP960 NK・NKK960 for Base In stock 1402 PDF DXF DWG
NKAP960C NK・NKK960 for Lid BTO (built to order) 1336 PDF DXF DWG
NKAP963 NK・NKK963 for Base BTO (built to order) 1786 PDF DXF DWG
NKAP970 NK・NKK970 for Base BTO (built to order) 1991 PDF DXF DWG
NKAP970C NK・NKK970 for Lid BTO (built to order) 1966 PDF DXF DWG
NKAP975 NK・NKK975 for Base BTO (built to order) 2156 PDF DXF DWG
NKAP975C NK・NKK975 for Lid BTO (built to order) 2155 PDF DXF DWG

OPTIONAL PARTS

1

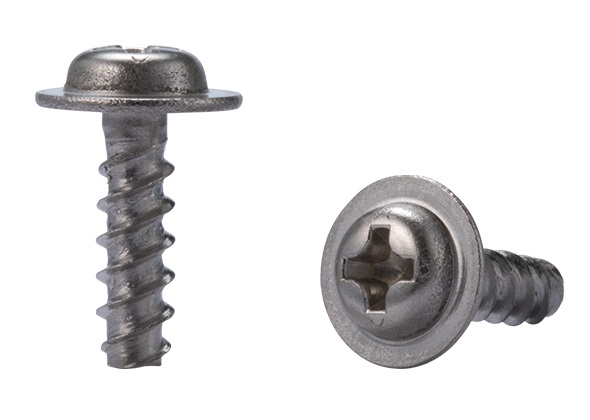

MOUNTING SCREW for NK・NKK
DETAILS

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

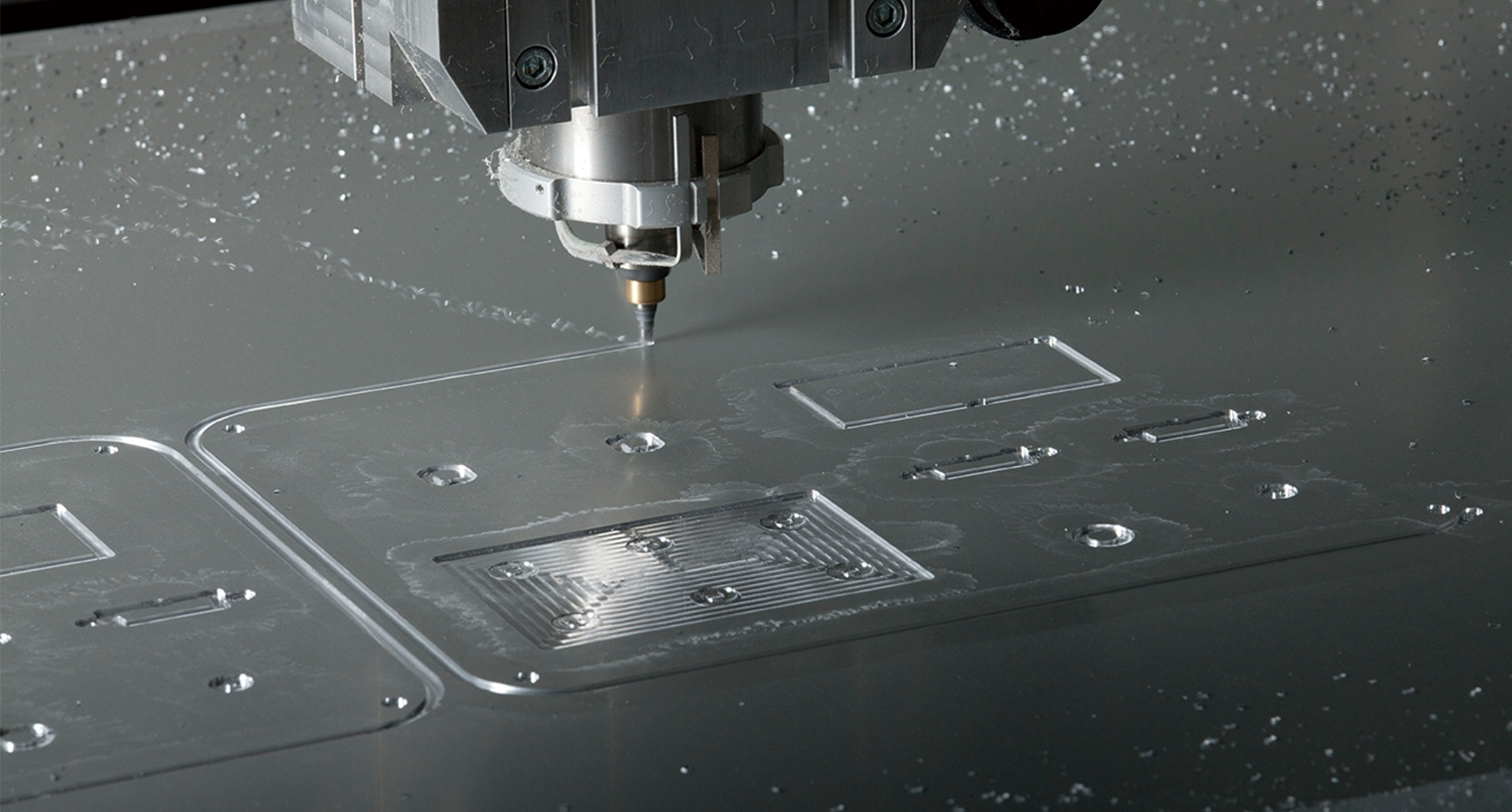

Fiber laser cutting

DETAILS

CNC punch pressing

DETAILS

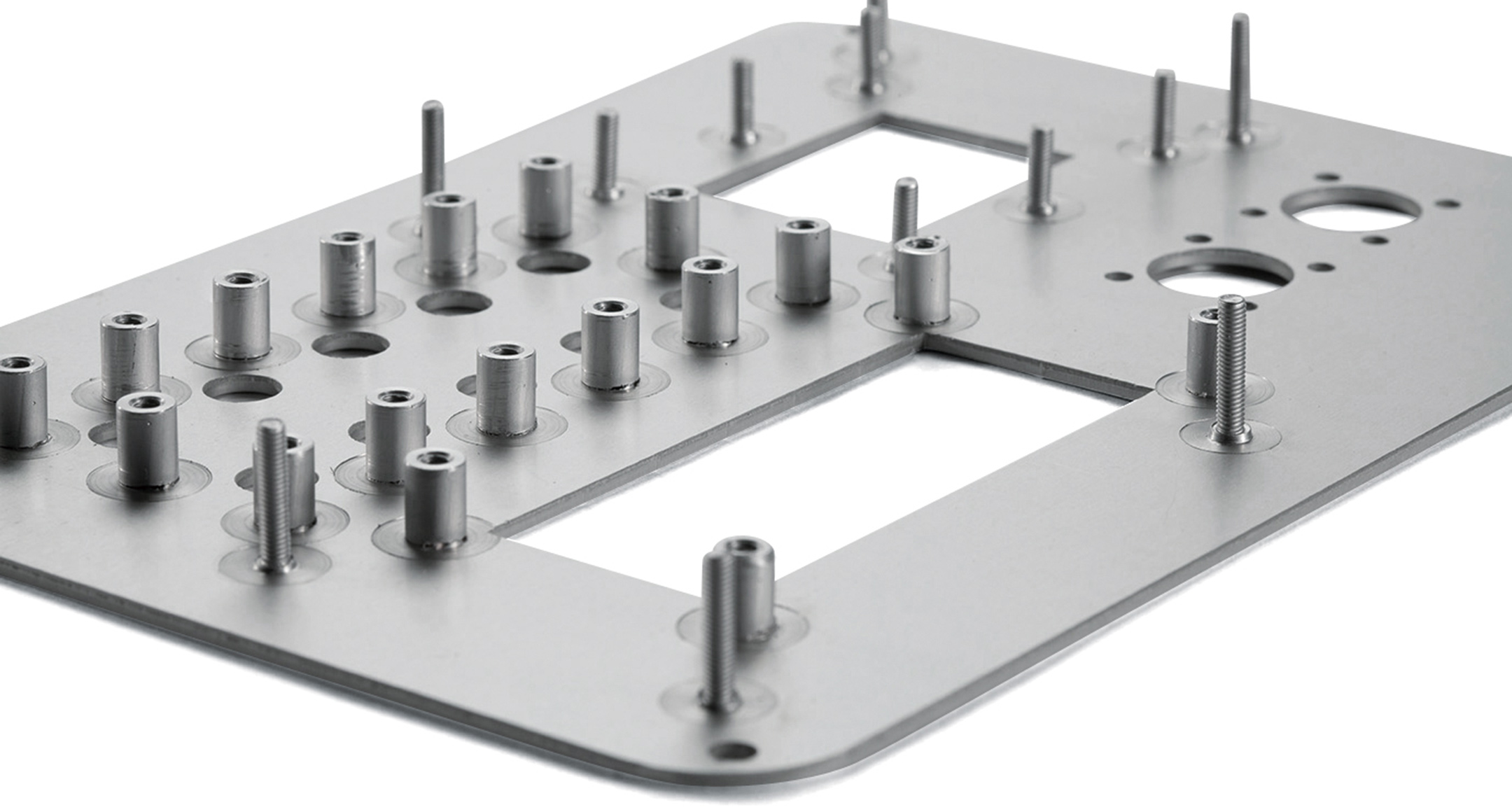

Clinching standoff pressing
