PIN SOCKET CONNECTOR for RPCB-4B Raspberry Pi EXPANSION PCB


RPS Series -PDF

CATEGORY：Pin socket connector for Raspberry Pi expansion PCB, Raspberry Pi connecting pin socket, Stacking connector for Raspberry Pi, 40 pin connector, 2×20P connector

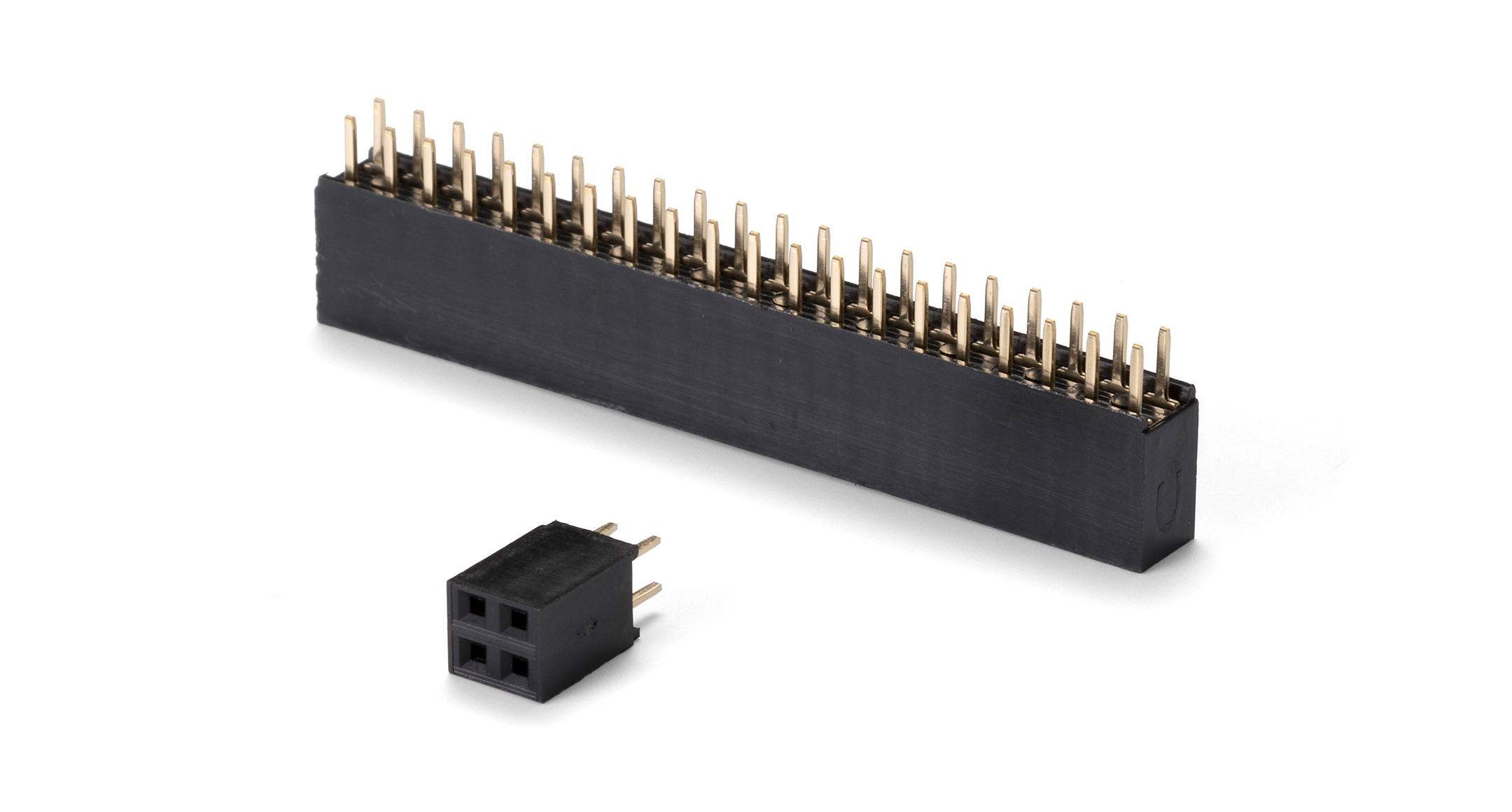

PIN SOCKET CONNECTOR for RPCB-4B Raspberry Pi EXPANSION PCB
PIN SOCKET CONNECTOR for RPCB-4B Raspberry Pi EXPANSION PCB1
2.54mm hole-to-hole pitch pin socket connector.
Utilize with RPCB-4B expansion PCB for Raspberry Pi 4B.

4 (2 pin x 2) pin and 40 (20 pin x 2) pin models are available.

Material / Color : (Socket) FRPBT UL94V-0 /Black・ (Pin) Phosphor bronze / Unfinished

Operating temperature : -55℃～+105℃
Rated voltage : DC500V
Rated current : 1.0A

PRODUCT NO. / DIMENSIONS

Product No. The number of pins Pack of Weight (g) PDF DXF DWG
RPS2-2 4（ 2pins×2Column） 1 pcs 0.4 PDF DXF DWG
RPS2-20 40（ 20pins×2Column） 1 pcs 3.6 PDF DXF DWG
