SHORTING BAR - SBR series


SBR Series -PDF

CATEGORY：Shorting bar, Terminal connection strip

SHORTING BAR - SBR series
SHORTING BAR - SBR series

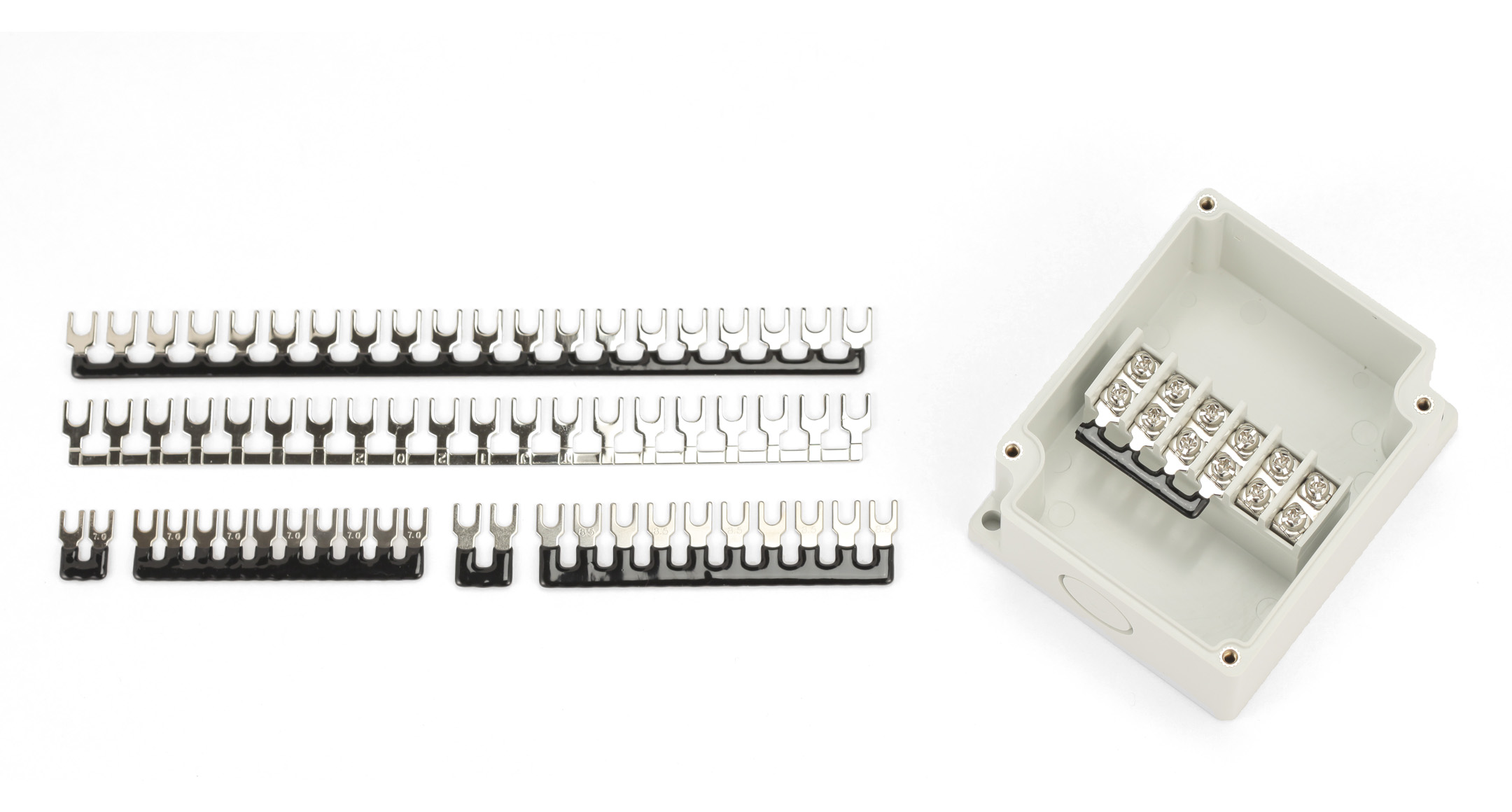

SHORTING BAR - SBR series1

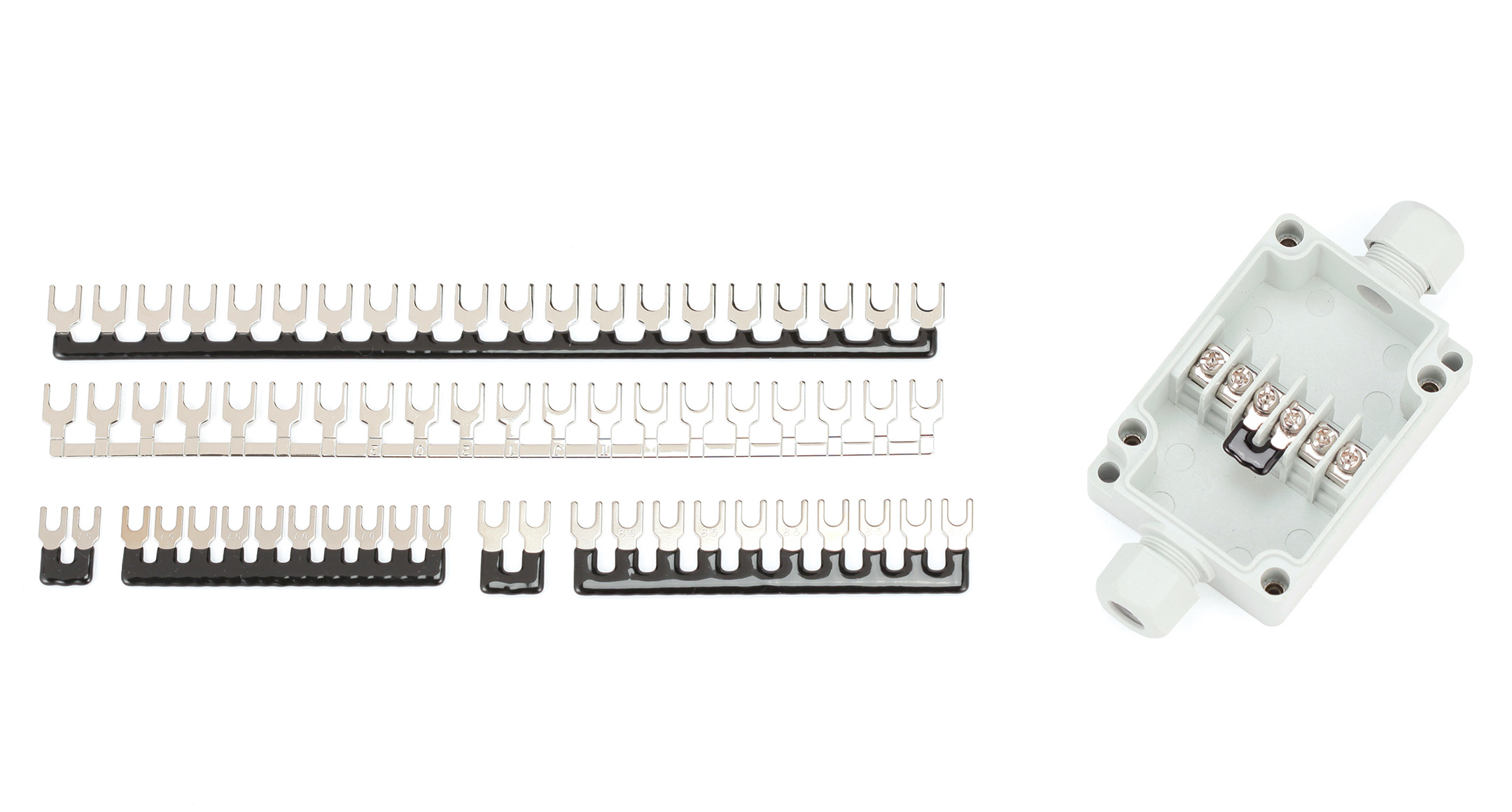

SHORTING BAR - SBR series2
Shorting bar for common-wiring.
Can be installed on TMC・TMB・TMA series.

SBR70-10P, SBR85-10P, SBR95-20P, and SBR95-20N can be cut accordingly into required poles.
SBR95-20 available in both PVC coated (SBR95-20P) and non PVC coated (SBR95-20N) models.

PRODUCT NO. / DIMENSIONS

Product No. Number of poles Coating Weight (g) / 1pc Pack of PDF DXF DWG
SBR70-2P 2P PVC coated 0.8 10 pcs PDF DXF DWG
SBR70-10P 10P PVC coated 3.8 1 pcs PDF DXF DWG
SBR85-2P 2P PVC coated 11 10 pcs PDF DXF DWG
SBR85-10P 10P PVC coated 6 1 pcs PDF DXF DWG
SBR95-20N 20P Non coated 10.3 1 pcs PDF DXF DWG
SBR95-20P 20P PVC coated 12.1 1 pcs PDF DXF DWG
