MOUNTING PLATE for WG・WGV
MOUNTING PLATE for WG・WGV
MOUNTING PLATE for WG・WGV1
MOUNTING PLATE for WG・WGV2

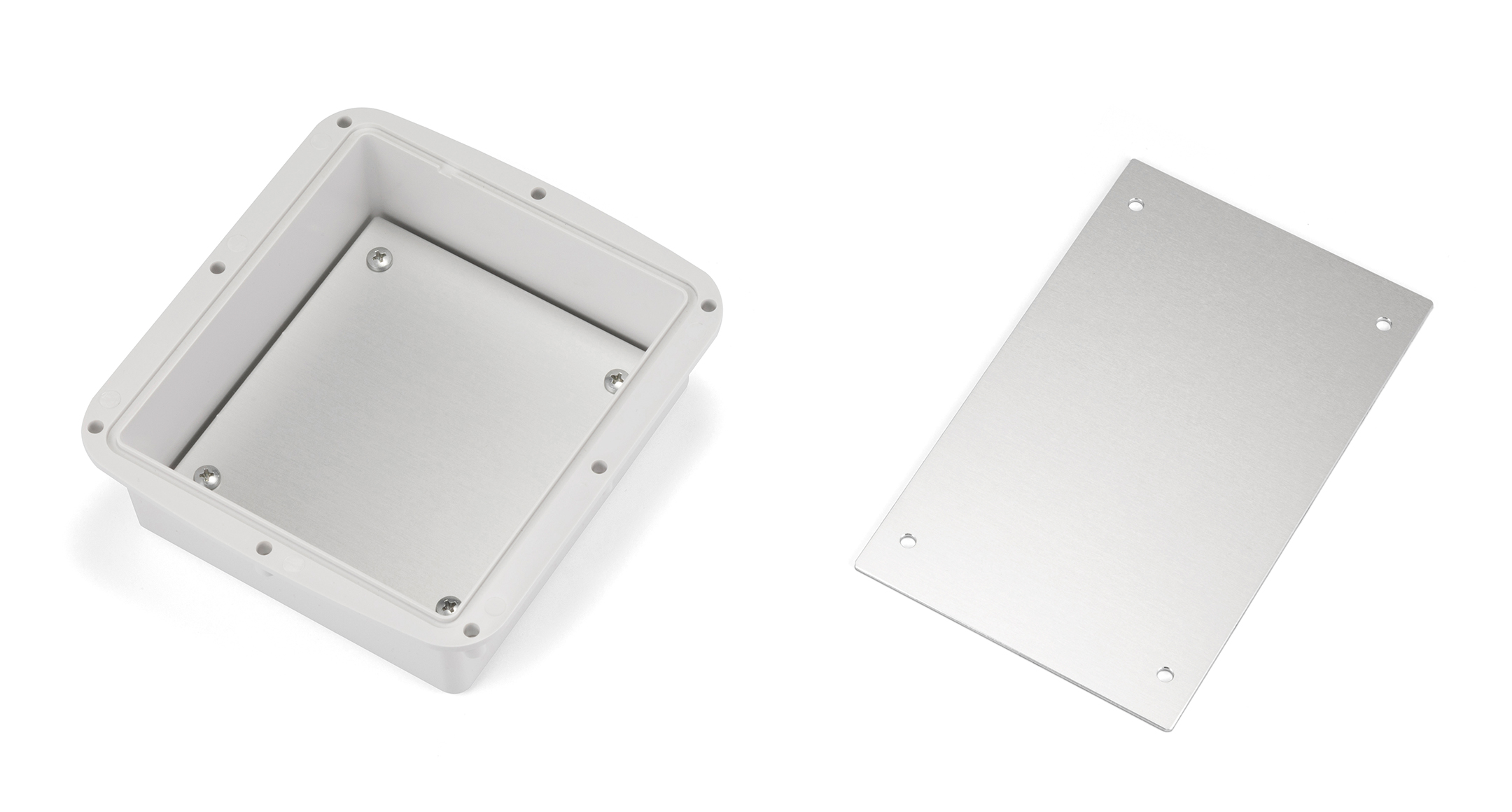

Aluminium mounting plate for WG・WGV IP68 plastic enclosures.
Material / Finish : Aluminium A1100P (t=1.5mm) / Silver anodized

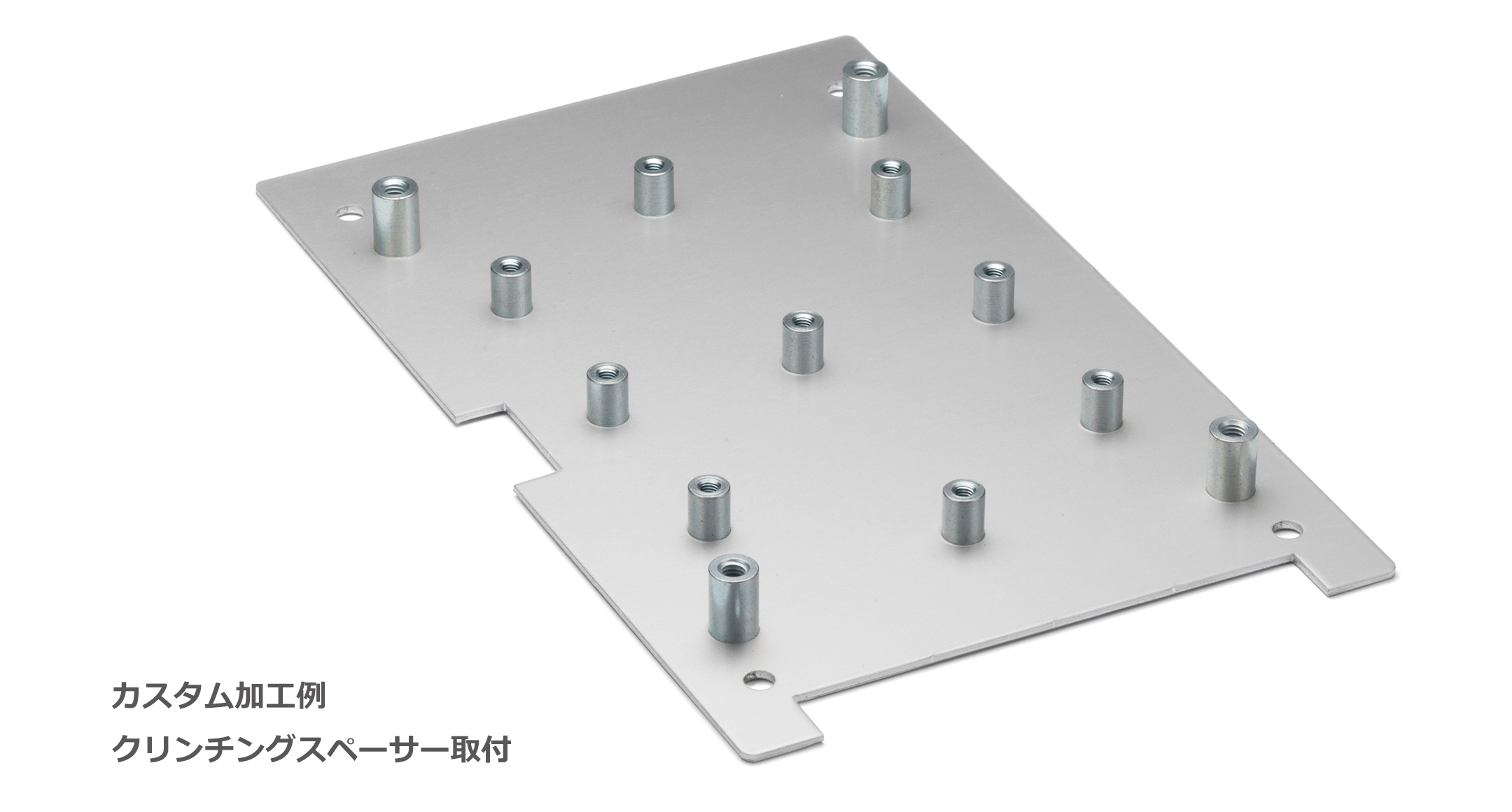

Hole milling, clinching spacer customizations are available.

PRODUCT NO. / DIMENSIONS

Product No. Suitable enclosure Weight (g) PDF DXF DWG STP
WGP10-15 WG・WGV10-15-6, 10-15-8 30 PDF DXF DWG STP
WGP15-16 WG・WGV15-16-6, 15-16-8 54 PDF DXF DWG STP
WGP15-21 WG・WGV15-21-6, 15-21-9 76 PDF DXF DWG STP
WGP17-25 WG・WGV17-25-8,17-25-11 100 PDF DXF DWG STP
WGP23-25 WG・WGV23-25-8,23-25-11 133 PDF DXF DWG STP

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

Fiber laser cutting

DETAILS

CNC punch pressing

DETAILS

Clinching standoff pressing

DETAILS
