COOLING FAN - AGE series


AGE-FAN Series -PDF

CATEGORY：Cooling fan, Fan motor, DC fan

COOLING FAN - AGE series
COOLING FAN - AGE series1

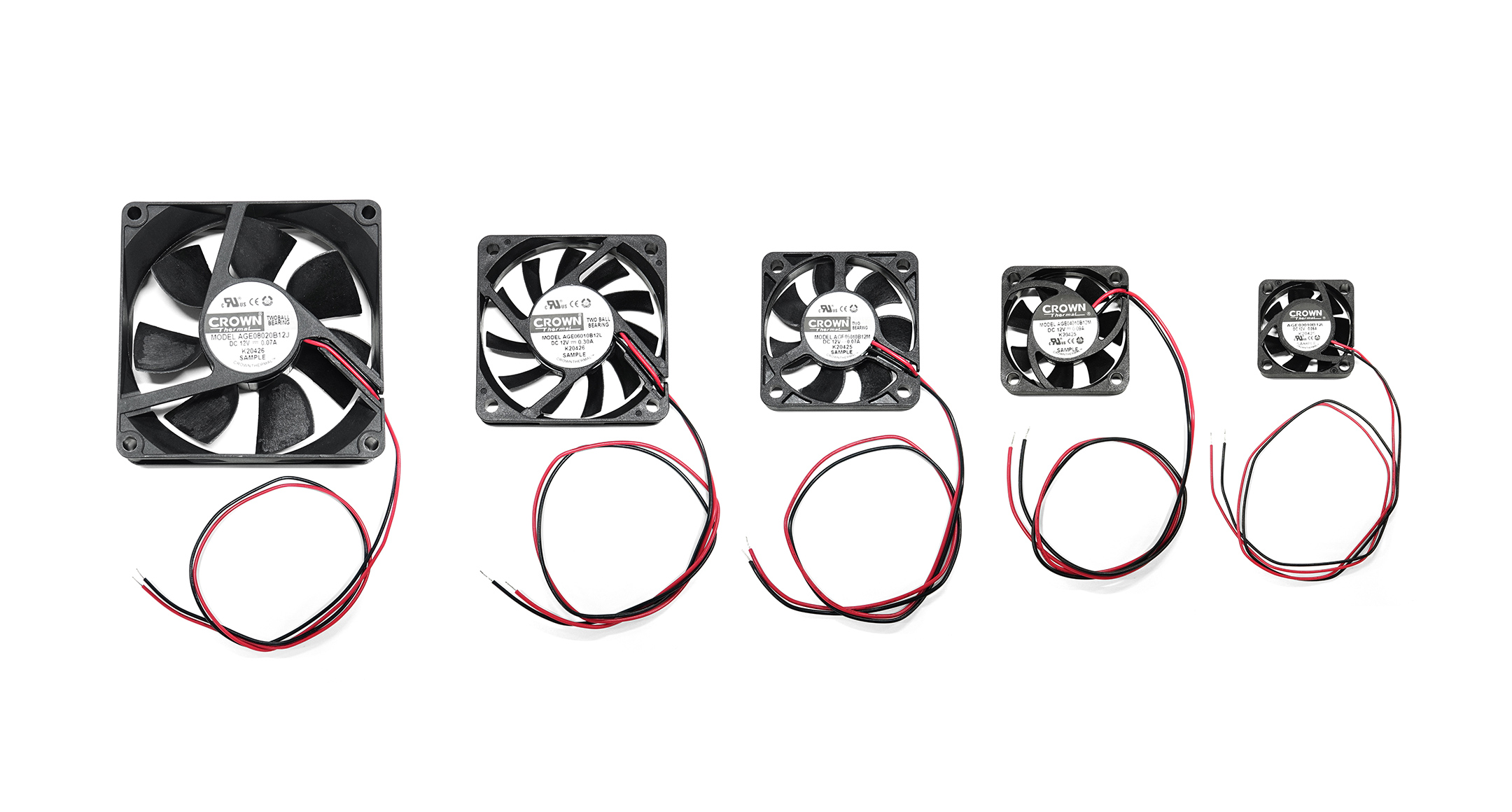

DC cooling fans.
Size : 25×25~80×80mm, 6 different sizes are available.

↓Please use with finger guard HF-G, fan dust filter HF-P or EMC shielded filter EMF series.

PRODUCT NO. / DIMENSIONS

Product No. External dimensions (mm) Rated voltage (V) Weight (g) PDF DXF DWG
AGE02510B 25 x 25 x 10 DC5V 8 PDF DXF DWG
AGE03010B 30 x 30 x 10.5 DC12V 9 PDF DXF DWG
AGE04010B 40 x 40 x 10 DC12V 14.5 PDF DXF DWG
AGE05010B 50 x 50 x 10 DC12V 20 PDF DXF DWG
AGE06010B 60 x 60 x 10.5 DC12V 25.5 PDF DXF DWG
AGE08020B 80 x 80 x 20 DC12V 58.5 PDF DXF DWG

OPTIONAL PARTS

１
FINGER GUARD - HF-G series
DETAILS
１
PLASTIC FAN FILTER - HF-P series
DETAILS
１
EMC SHIELDED FAN FILTER - EMF series
DETAILS
