FINGER GUARD - HF-G series


HF-G Series -PDF

CATEGORY：Finger guard, Metal fan guard, Cooling fan guard, Fan grille

FINGER GUARD - HF-G series
FINGER GUARD - HF-G series
FINGER GUARD - HF-G series
FINGER GUARD - HF-G series1
FINGER GUARD - HF-G series2
FINGER GUARD - HF-G series3
Steel wire finger guard for cooling fans.

8 different sizes are available.

PRODUCT NO. / DIMENSIONS

Product No. Suitable FAN size Mounting screw size Weight (g) PDF DXF DWG
HF-G30 30 x 30 M3 3 PDF DXF DWG
HF-G40 40 x 40 M3 or M4 4 PDF DXF DWG
HF-G50 50 x 50 M3 or M4 7 PDF DXF DWG
HF-G60 60 x 60 M4 9 PDF DXF DWG
HF-G80 80 x 80 M4 16 PDF DXF DWG
HF-G90 92 x 92 M4 23 PDF DXF DWG
HF-G120 120 x 120 M4 28 PDF DXF DWG
HF-G172 172 x 172 M4 68.5 PDF DXF DWG

OPTIONAL PARTS

１

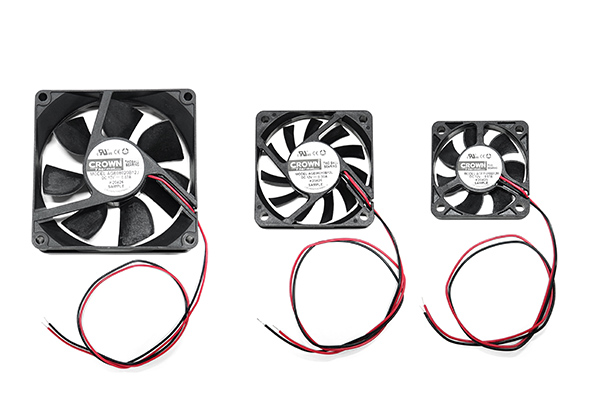

COOLING FAN - AGE series
