CR2032 COIN CELL HOLDER - BCR series

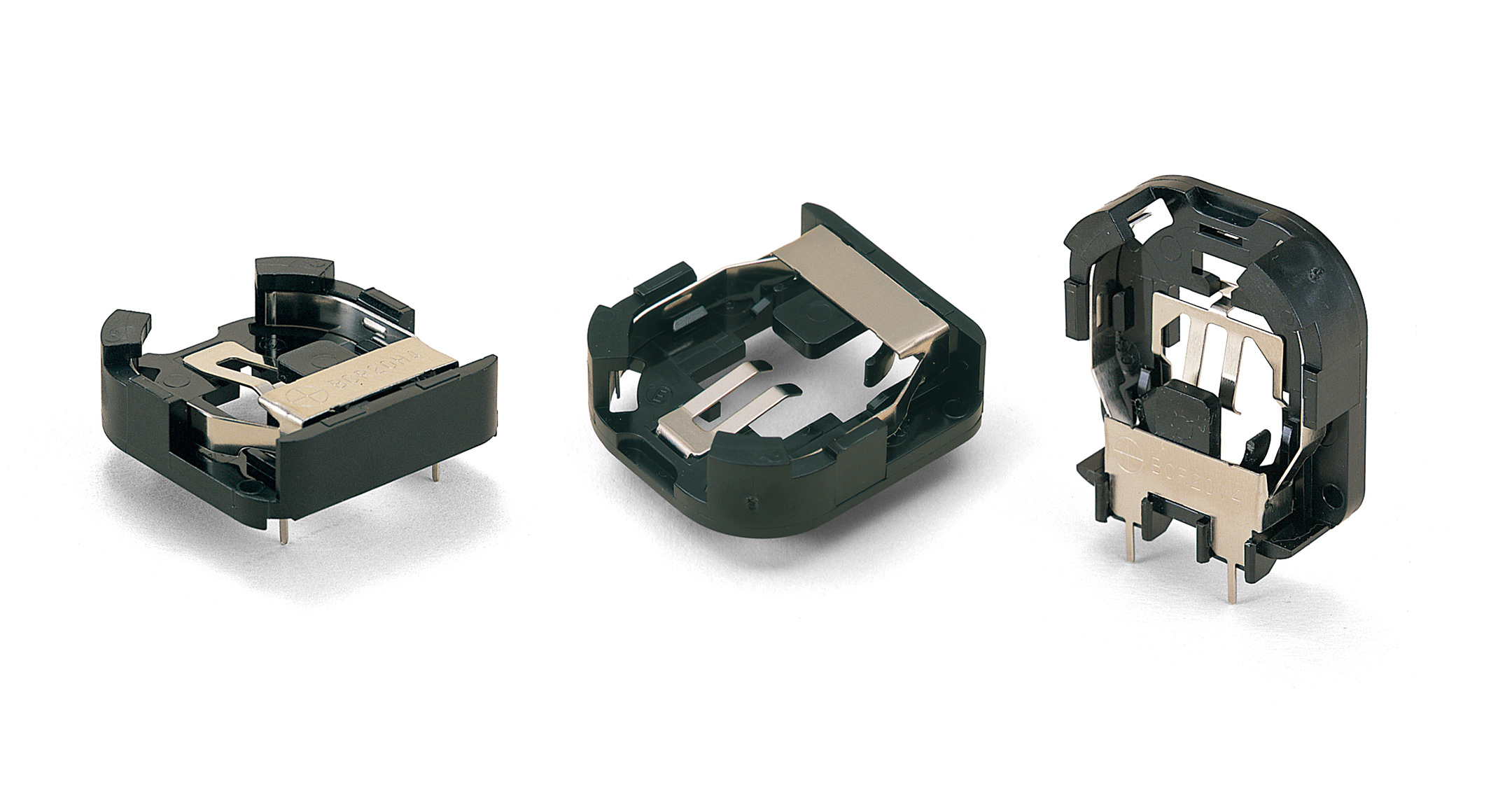

CR2032 COIN CELL HOLDER - BCR series1
CR2032 coin cell holders with through hole pins.
Designed to avoid reverse setting of CR2032 coin cell.
3 types are available in both horizontal and vertical mount types.

Operating temperature : －10℃～+85℃

1 pcs package and 100 pcs tray package are available.

PRODUCT NO. / DIMENSIONS

Product No. Battery Mount type Contact type Weight (g) Sales unit PDF DXF DWG
BCR20H4 CR2032 horizontal mount Through hole pin×3 2 1 pcs PDF DXF DWG
BCR20H5 CR2032 horizontal mount Through hole pin×2 2 1 pcs PDF DXF DWG
BCR20V4 CR2032 Vertical mount Through hole pin×3 2 1 pcs PDF DXF DWG
BCR20H4-T CR2032 horizontal mount Through hole pin×3 - 100 pcs / Tray PDF DXF DWG
BCR20H5-T CR2032 horizontal mount Through hole pin×2 - 100 pcs / Tray PDF DXF DWG
BCR20V4-T CR2032 Vertical mount Through hole pin×3 - 100 pcs / Tray PDF DXF DWG
