COIN CELL BATTERY HOLDER - HU series


HU Series -PDF

CATEGORY：Coin cell holder, Button battery holder, CR2032 battery holer, Through-hole mounting battery holder

COIN CELL BATTERY HOLDER - HU series
COIN CELL BATTERY HOLDER - HU series

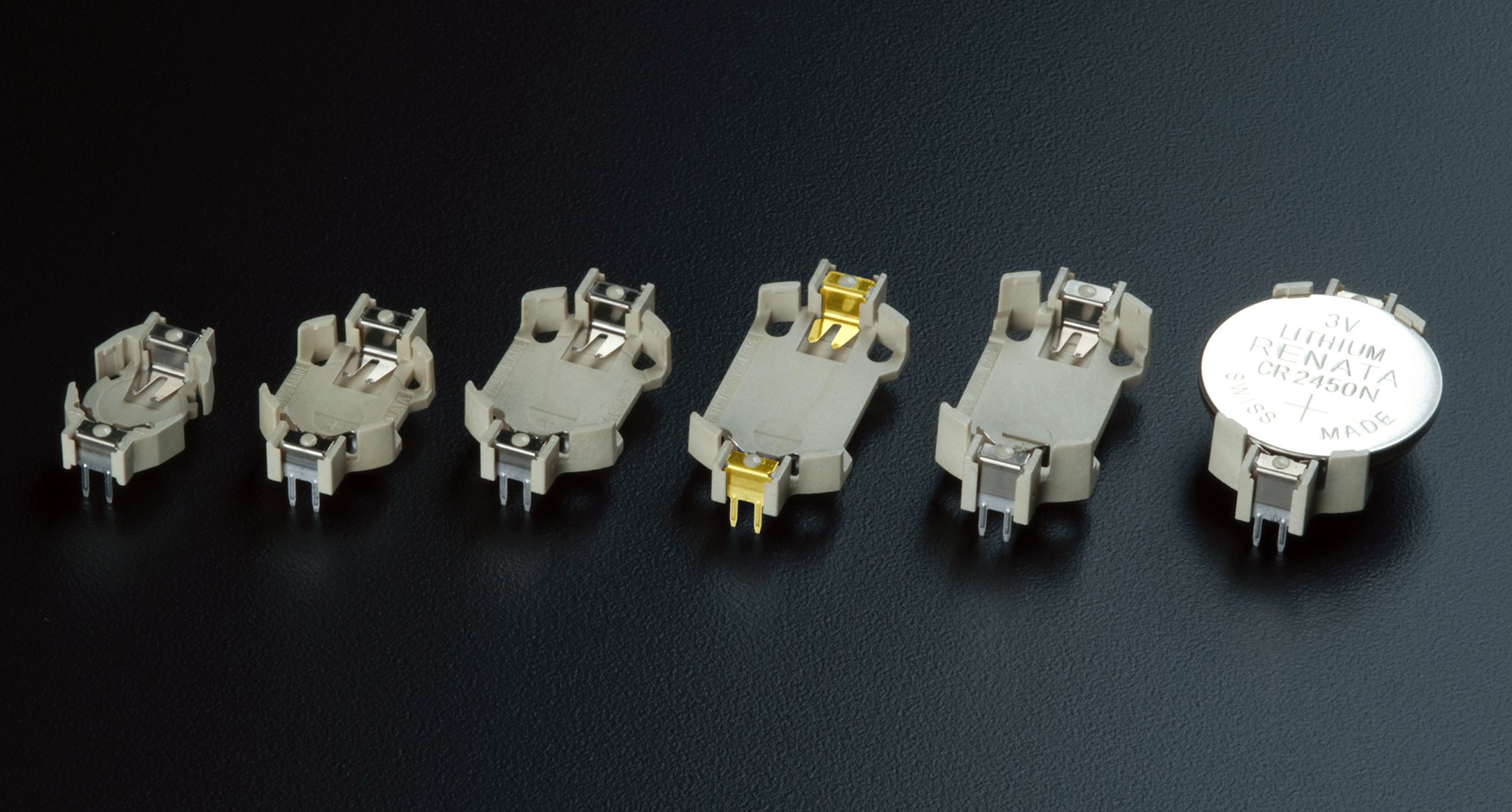

COIN CELL BATTERY HOLDER - HU series1

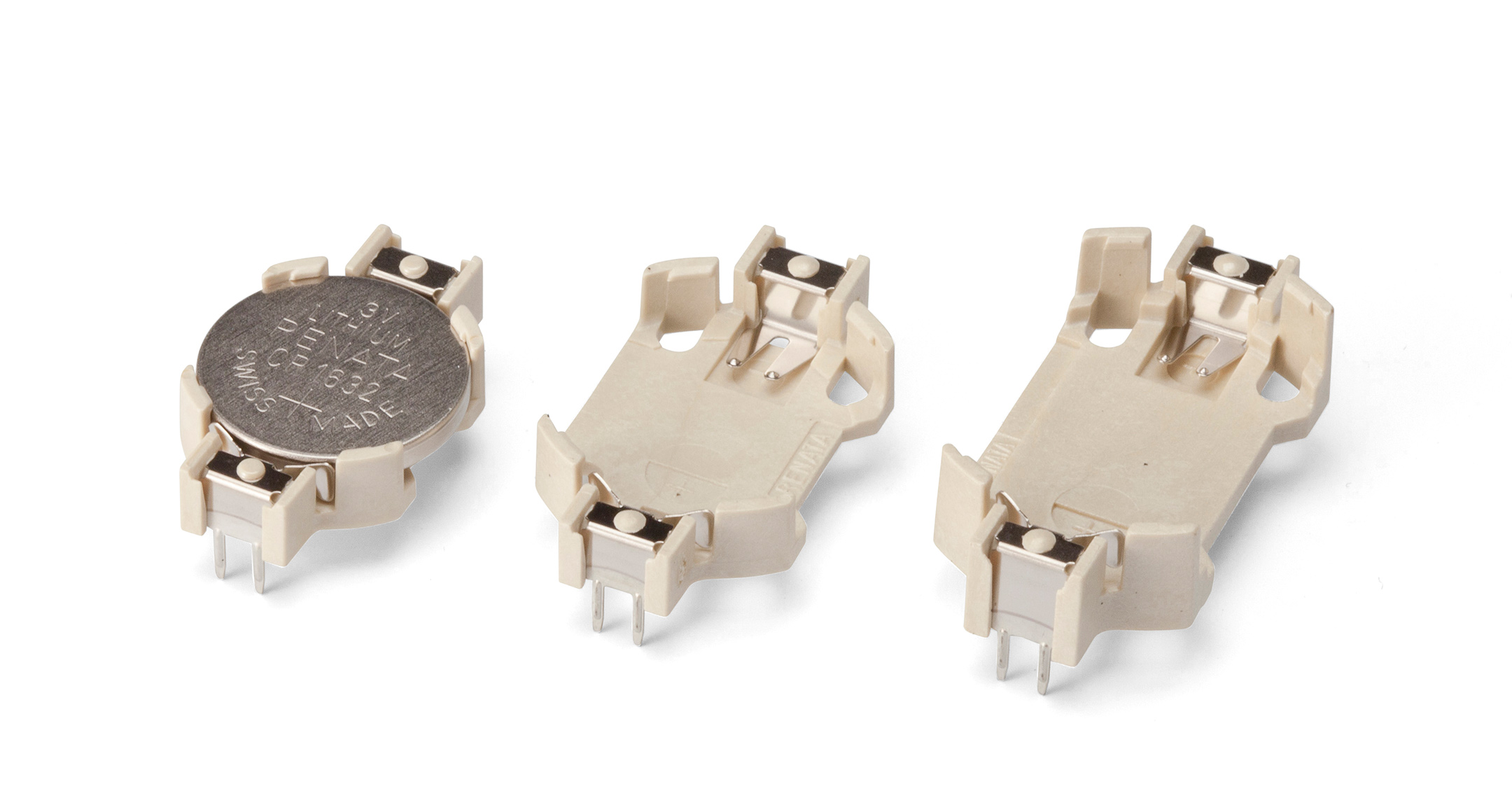

COIN CELL BATTERY HOLDER - HU series2
Coin cell holder with through-hole pins.
Heat resistant glass fiber filled LCP for lead-free reflow soldering.
Operating temperature: -40℃ ~ +100℃

8 different coin cell types are available - Compatible batteries
LR44/SR44, CR1220, CR1632, CR2016×2pcs, CR2032, CR2430, CR2450, CR2477
※ CR2032 size can be selected from gold-plated type and nickel-plated type.

Tray packages (-TR models) are available for bulk purchase.

PRODUCT NO. / DIMENSIONS

Product No. Battery Contact finish Weight (g) Sales unit PDF DXF DWG
HU357 LR-44 / SR-44 Nickel plated 0.8 1 pcs PDF DXF DWG
HU1220 CR1220 Nickel plated 0.8 1 pcs PDF DXF DWG
HU1225 CR1225 Nickel plated 0.7 1 pcs PDF DXF DWG
HU1632 CR1632 Nickel plated 0.8 1 pcs PDF DXF DWG
HU2032 CR2032 Nickel plated 1 1 pcs PDF DXF DWG
HU2032-G CR2032 Gold plated 1 1 pcs PDF DXF DWG
HU2430 CR2430 Nickel plated 1.1 1 pcs PDF DXF DWG
HU2450 CR2450 Nickel plated 1.5 1 pcs PDF DXF DWG
HU2477 CR2477 Nickel plated 1.7 1 pcs PDF DXF DWG
HU1220-T CR1220 Nickel plated - 50 pcs / tray PDF DXF DWG
HU1225-T CR1225 Nickel plated - 50 pcs / tray PDF DXF DWG
HU1632-T CR1632 Nickel plated - 50 pcs / tray PDF DXF DWG
HU2032-T CR2032 Nickel plated - 50 pcs / tray PDF DXF DWG
HU2032-G-T CR2032 Gold plated 50 pcs / tray PDF DXF DWG
HU2430-T CR2430 Nickel plated - 50 pcs / tray PDF DXF DWG
HU2450-T CR2450 Nickel plated - 50 pcs / tray PDF DXF DWG
HU2477-T CR2477 Nickel plated - 50 pcs / tray PDF DXF DWG
