OUTDOOR ROOF for HINGED PLASTIC BOX


BRF Series -PDF

CATEGORY：Outdoor roof, Water protection roof

OUTDOOR ROOF for HINGED PLASTIC BOX
OUTDOOR ROOF for HINGED PLASTIC BOX
OUTDOOR ROOF for HINGED PLASTIC BOX
OUTDOOR ROOF for HINGED PLASTIC BOX1
OUTDOOR ROOF for HINGED PLASTIC BOX2
OUTDOOR ROOF for HINGED PLASTIC BOX3

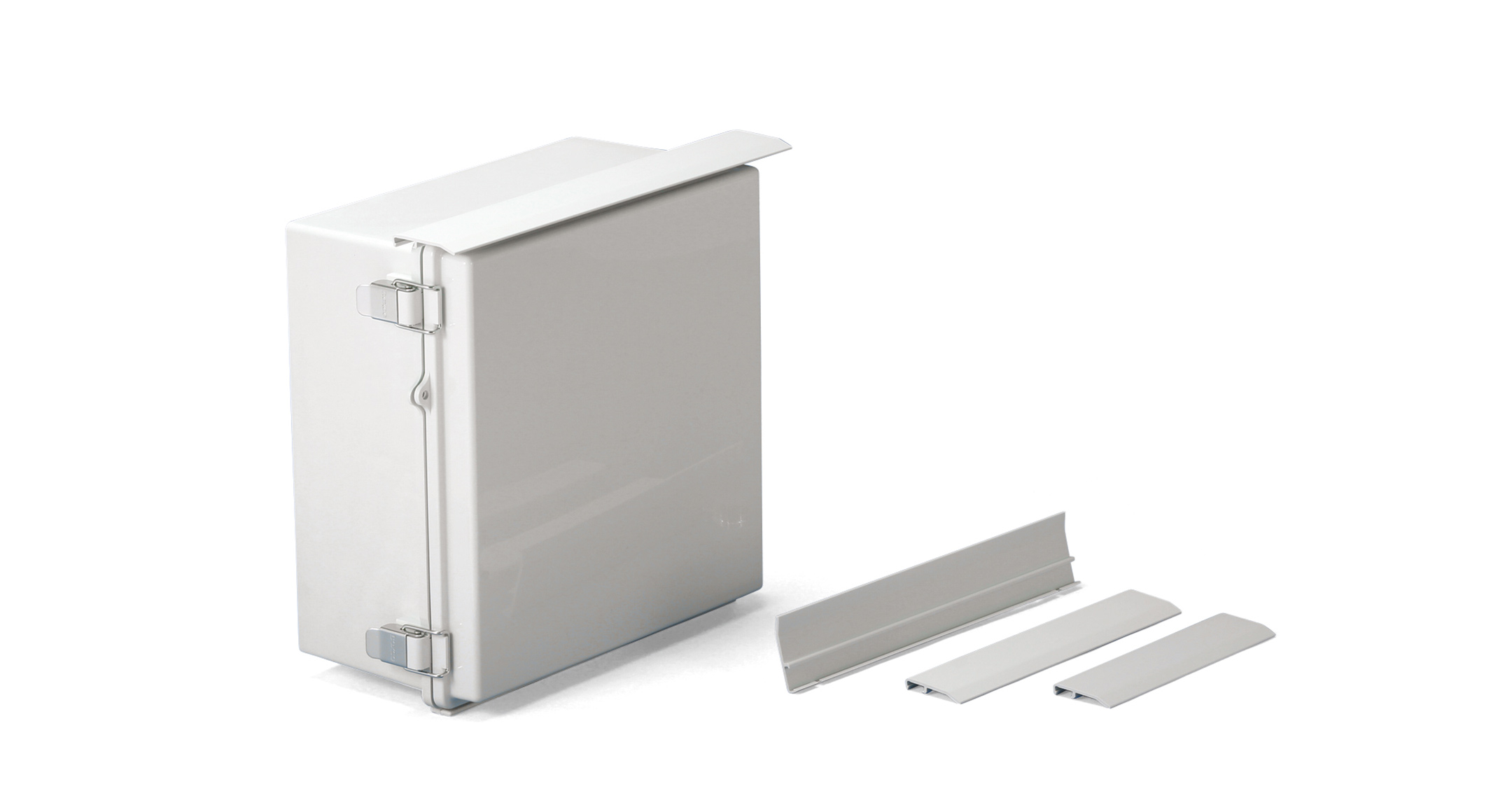

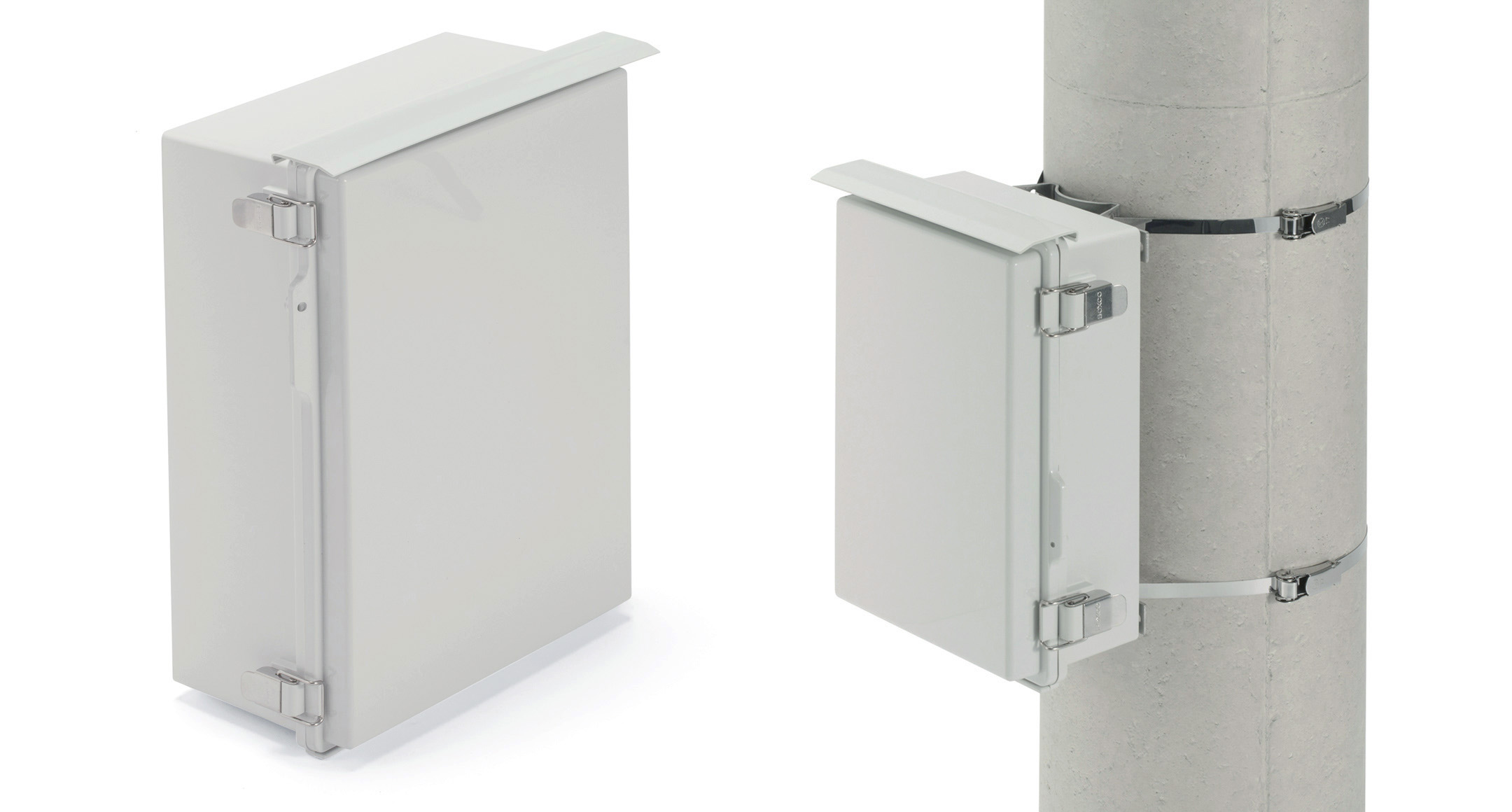

Recommended to be used for outdoor environments for protection against rain etc.

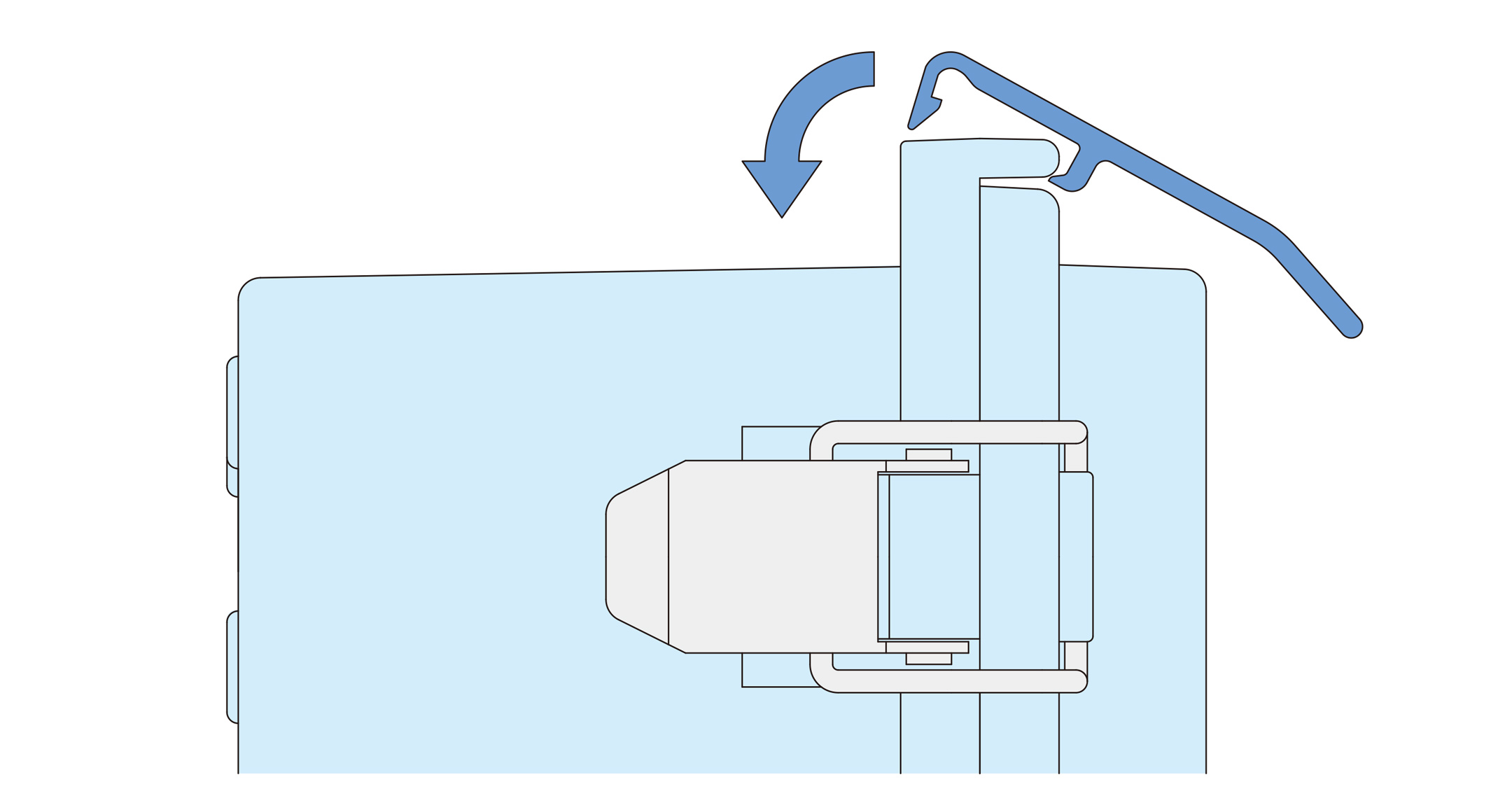

Snap-in easy installation.

Available for BCAP・BCPC・BCPK series except 151509, 151512, 405016, 405020, 406018, and 406023 models.

PRODUCT NO. / DIMENSIONS

Product No. Suitable boxes Color / Similar matching Weight (g) Inventory status PDF DXF DWG
BRF-90G BCAP 091207 091208 White gray / MCS 5R8/0.5 15 PDF DXF DWG
BRF-90S BCPC・BCPK 091207 091208 Light gray / MCS 5GY8.5/0.5 15 PDF DXF DWG
BRF-100G BCAP 101507 101508 White gray / MCS 5R8/0.5 17 PDF DXF DWG
BRF-100S BCPC・BCPK 101507 101508 Light gray / MCS 5GY8.5/0.5 17 PDF DXF DWG
BRF-110G BCAP 112107 112110 112607 112610 White gray / MCS 5R8/0.5 18 PDF DXF DWG
BRF-110S BCPC・BCPK 112107 112110 112607 112610 Light gray / MCS 5GY8.5/0.5 18 PDF DXF DWG
BRF-135G BCAP 131508 131808 131810 White gray / MCS 5R8/0.5 22 PDF DXF DWG
BRF-135S BCPC・BCPK 131508 131808 131810 Light gray / MCS 5GY8.5/0.5 22 PDF DXF DWG
BRF-160G BCAP 162110 162113 162610 162613 White gray / MCS 5R8/0.5 25 PDF DXF DWG
BRF-160S BCPC・BCPK 162110 162113 162610 162613 Light gray / MCS 5GY8.5/0.5 25 PDF DXF DWG
BRF-170G BCAP 172711 White gray / MCS 5R8/0.5 27 PDF DXF DWG
BRF-170S BCPC・BCPK 172711 Light gray / MCS 5GY8.5/0.5 27 PDF DXF DWG
BRF-1722G BCAP 172210 White gray / MCS 5R8/0.5 26 PDF DXF DWG
BRF-1722S BCPC・BCPK 172210 Light gray / MCS 5GY8.5/0.5 26 PDF DXF DWG
BRF-190G BCAP 192810 192814 White gray / MCS 5R8/0.5 30 PDF DXF DWG
BRF-190S BCPC・BCPK 192810 192814 Light gray / MCS 5GY8.5/0.5 30 PDF DXF DWG
BRF-200G BCAP 203013 203015 203018 White gray / MCS 5R8/0.5 35 Discontinued - Sold out. PDF DXF DWG
BRF-200S BCPC・BCPK 203013 203015 203018 Light gray / MCS 5GY8.5/0.5 35 Discontinued - Sold out. PDF DXF DWG
BRF-200GN BCAP・BCAR 203013□N 203015□N 203018□N White gray / MCS 5R8/0.5 - PDF DXF DWG
BRF-200SN BCPC・BCPR・BCPK 203013SN 203015N 203018N Light gray / MCS 5GY8.5/0.5 - PDF DXF DWG
BRF-210G BCAP 212110 212113 White gray / MCS 5R8/0.5 33 PDF DXF DWG
BRF-210S BCPC・BCPK 212110 212113 Light gray / MCS 5GY8.5/0.5 33 PDF DXF DWG
BRF-250G BCAP 253515 253518 White gray / MCS 5R8/0.5 43 Discontinued - Sold out. PDF DXF DWG
BRF-250S BCPC・BCPK 253515 253518 White gray / MCS 5R8/0.5 43 Discontinued - Sold out. PDF DXF DWG
BRF-250GN BCAP 253515N White gray / MCS 5R8/0.5 - PDF DXF DWG
BRF-250SN BCPC・BCPK 253515N Light gray / MCS 5GY8.5/0.5 - PDF DXF DWG
BRF-280G BCAP 282813 283813 White gray / MCS 5R8/0.5 47 PDF DXF DWG
BRF-280S BCPC・BCPK 282813 283813 Light gray / MCS 5GY8.5/0.5 47 PDF DXF DWG
BRF-300G BCAP 303015 303018 304012 304015 304018 White gray / MCS 5R8/0.5 50 PDF DXF DWG
BRF-300S BCPC・BCPK 303015 303018 304012 304015 304018 Light gray / MCS 5GY8.5/0.5 50 PDF DXF DWG
BRF-350G BCAP 353515 353518 White gray / MCS 5R8/0.5 59 PDF DXF DWG
BRF-350S BCPC・BCPK 353515 353518 Light gray / MCS 5GY8.5/0.5 59 PDF DXF DWG
BRF-350LG BCAP 354512 354516 354520 White gray / MCS 5R8/0.5 70 PDF DXF DWG
BRF-350LS BCPC・BCPK 354512 354516 354520 Light gray / MCS 5GY8.5/0.5 70 PDF DXF DWG
BRF-530G BCAP 506018 506025 507018 507025 White gray / MCS 5R8/0.5 119 PDF DXF DWG
BRF-530S BCPC・BCPK 506018 506025 507018 507025 Light gray / MCS 5GY8.5/0.5 119 PDF DXF DWG
BRF-630G BCAP 608018 608028 White gray / MCS 5R8/0.5 138 PDF DXF DWG
BRF-630S BCPC・BCPK 608018 608028 Light gray / MCS 5GY8.5/0.5 138 PDF DXF DWG
