CUBE STANDOFF - CUBE series


CUBE Series -PDF

CATEGORY：Cube standoff, Square standoff, Cube connector, Cube spacer

CUBE STANDOFF - CUBE series
CUBE STANDOFF - CUBE series
CUBE STANDOFF - CUBE series
CUBE STANDOFF - CUBE series1
CUBE STANDOFF - CUBE series2
CUBE STANDOFF - CUBE series3

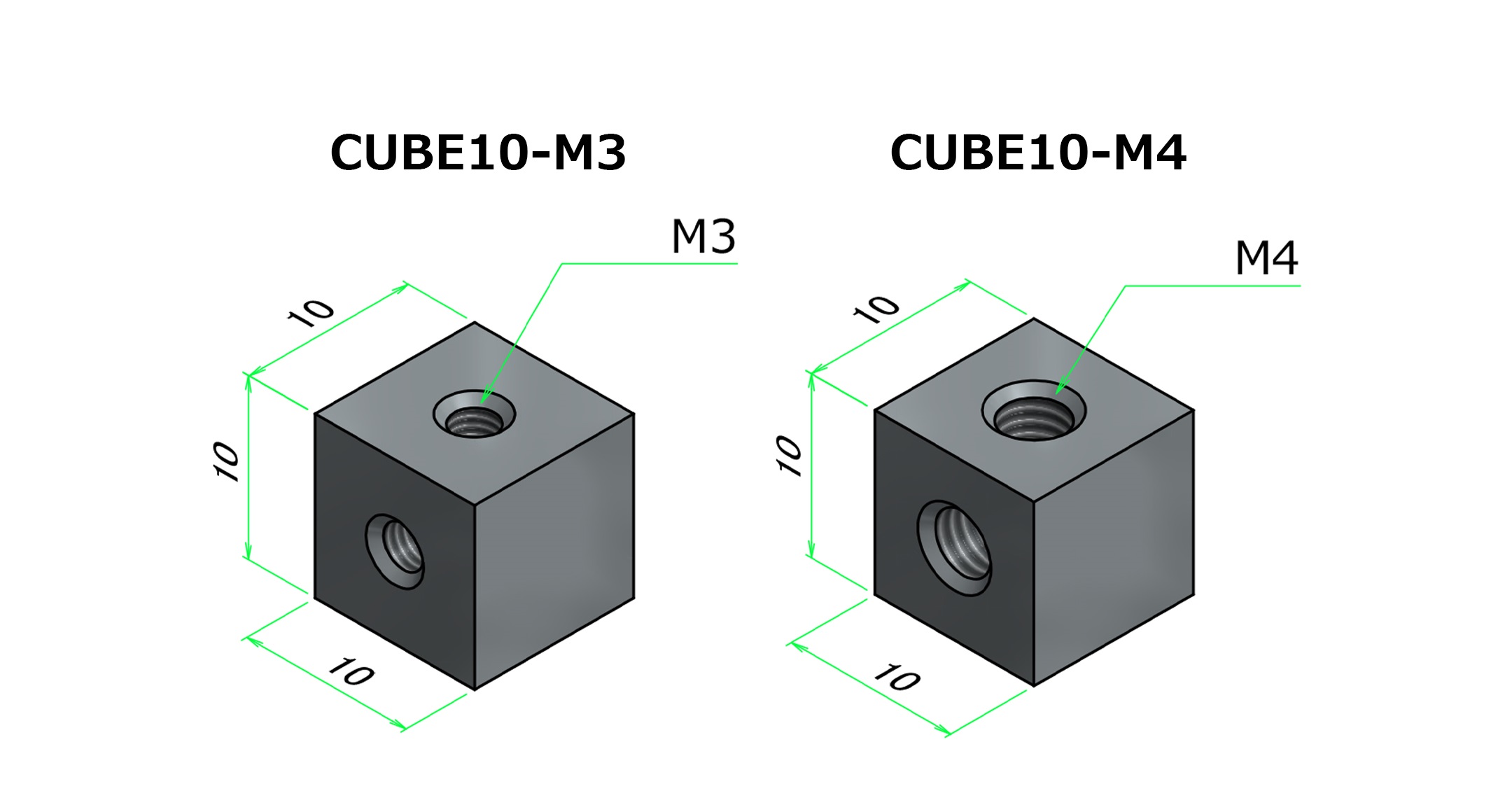

10x10mm threaded cube shape standoff with a thread on 4 faces.
M3 and M4 thread models available.

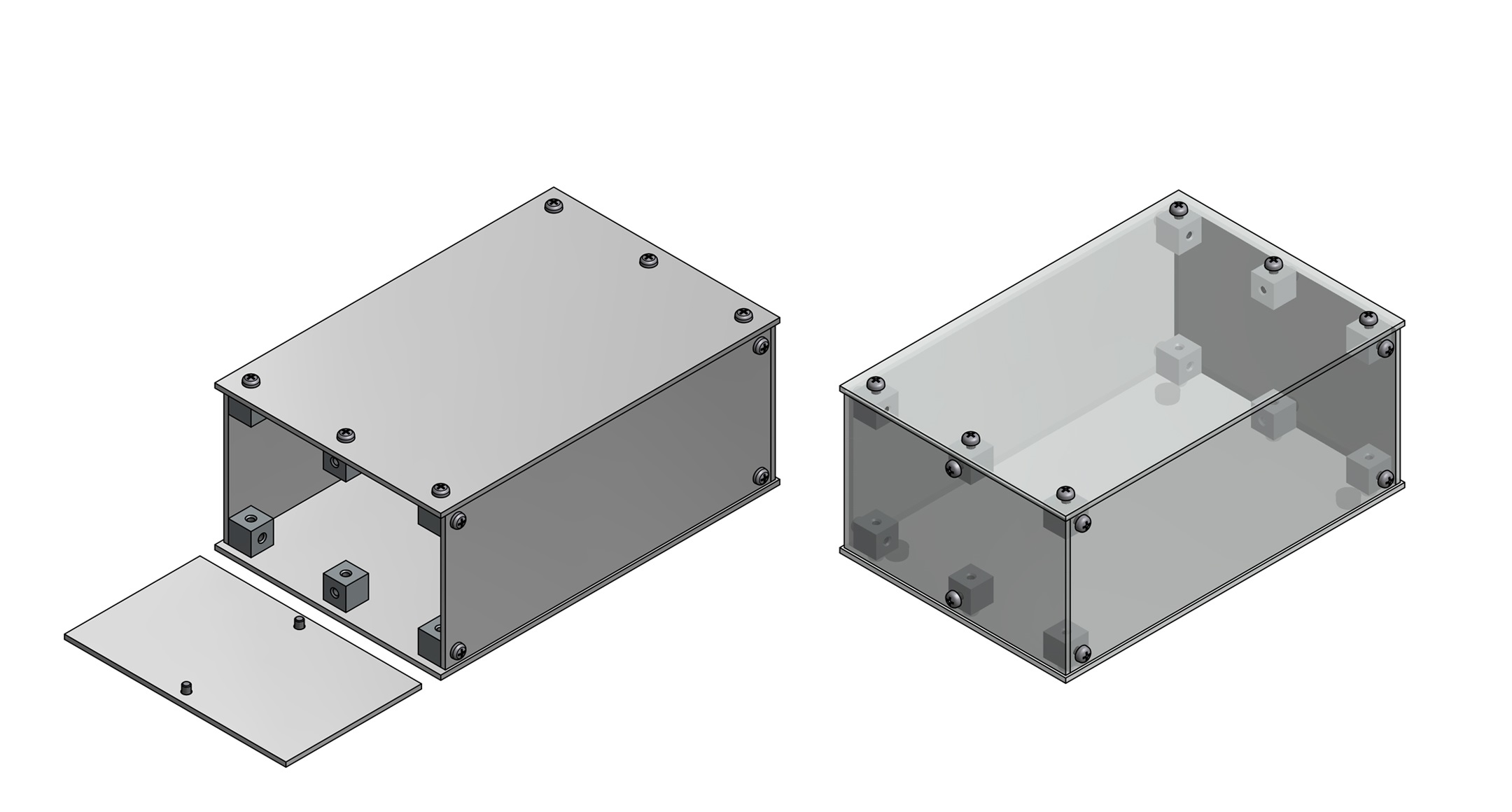

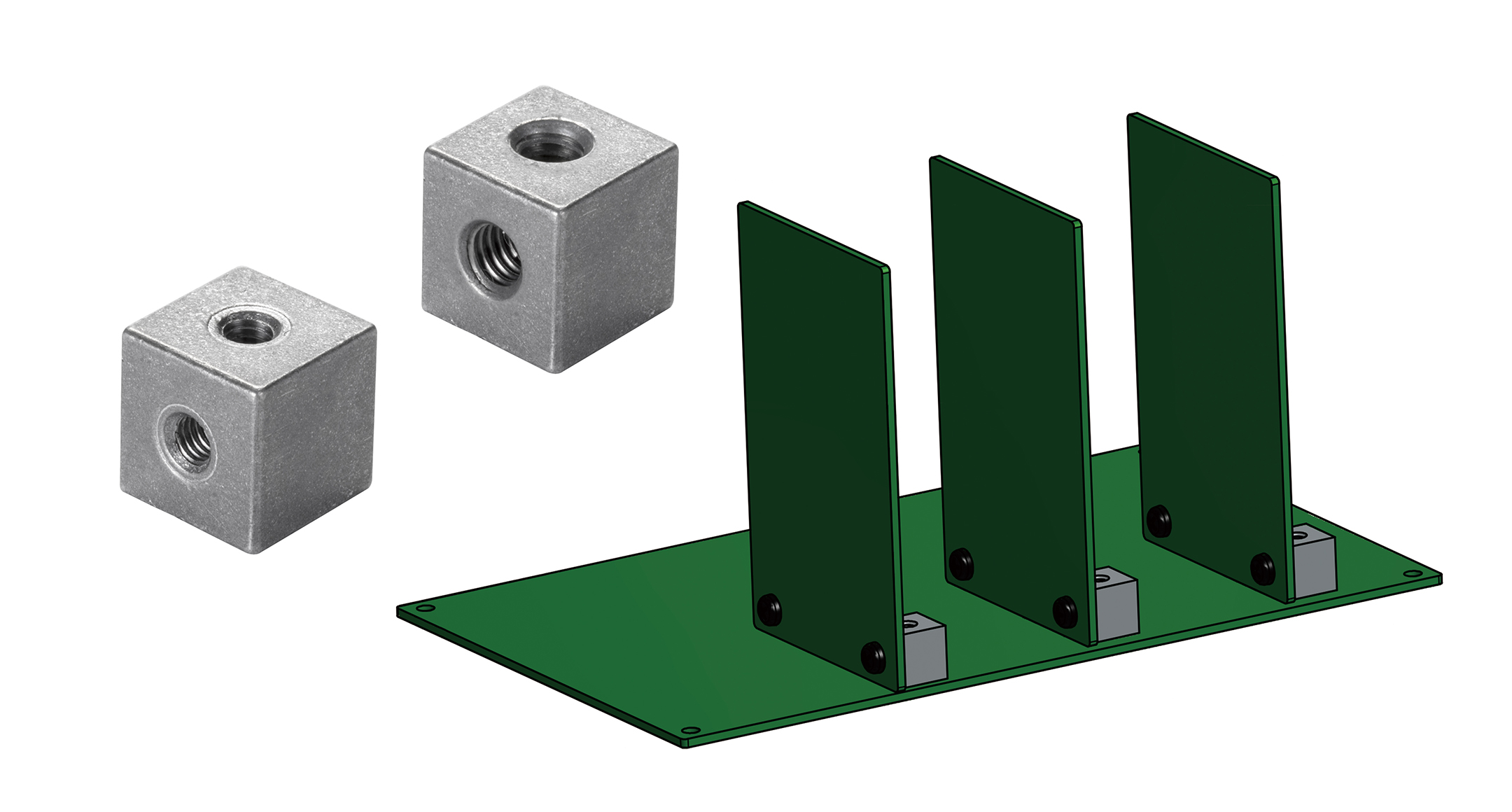

Conveniently usable when installing PCB or metal plate upright.

Material : Zinc diecast
Sales unit：1Pack=2pcs, 1Pack=20pcs (Value pack)
3D view - CUBE10-M3  3D view - CUBE10-M4 

PRODUCT NO. / DIMENSIONS

Product No. Thread size Pack of Weight (g) / Pcs PDF DXF DWG STP
CUBE10-M3 M3 2pcs 5.7 PDF DXF DWG
CUBE10-M4 M4 2pcs 5.2 PDF DXF DWG
CUBE10-M3-P M3 20pcs 5.7 PDF DXF DWG
CUBE10-M4-P M4 20pcs 5.2 PDF DXF DWG
SAMPLE REQUEST FORM

This product series is available as a free sample.
