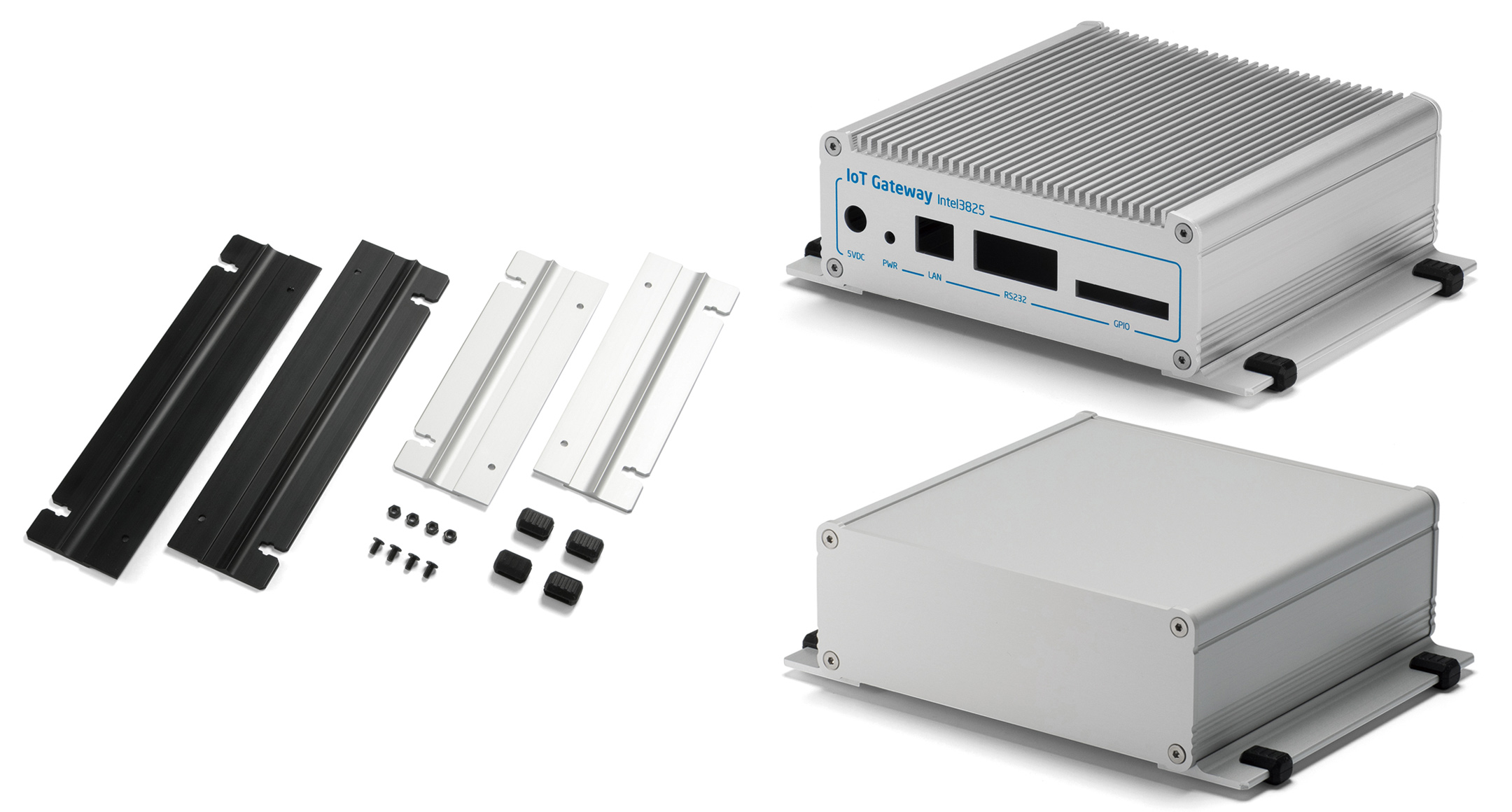

Wall mounting bracket for EX・EXH・EXHE series.
Applicable only for width 186.5, 232 and 287.5mm enclosures.

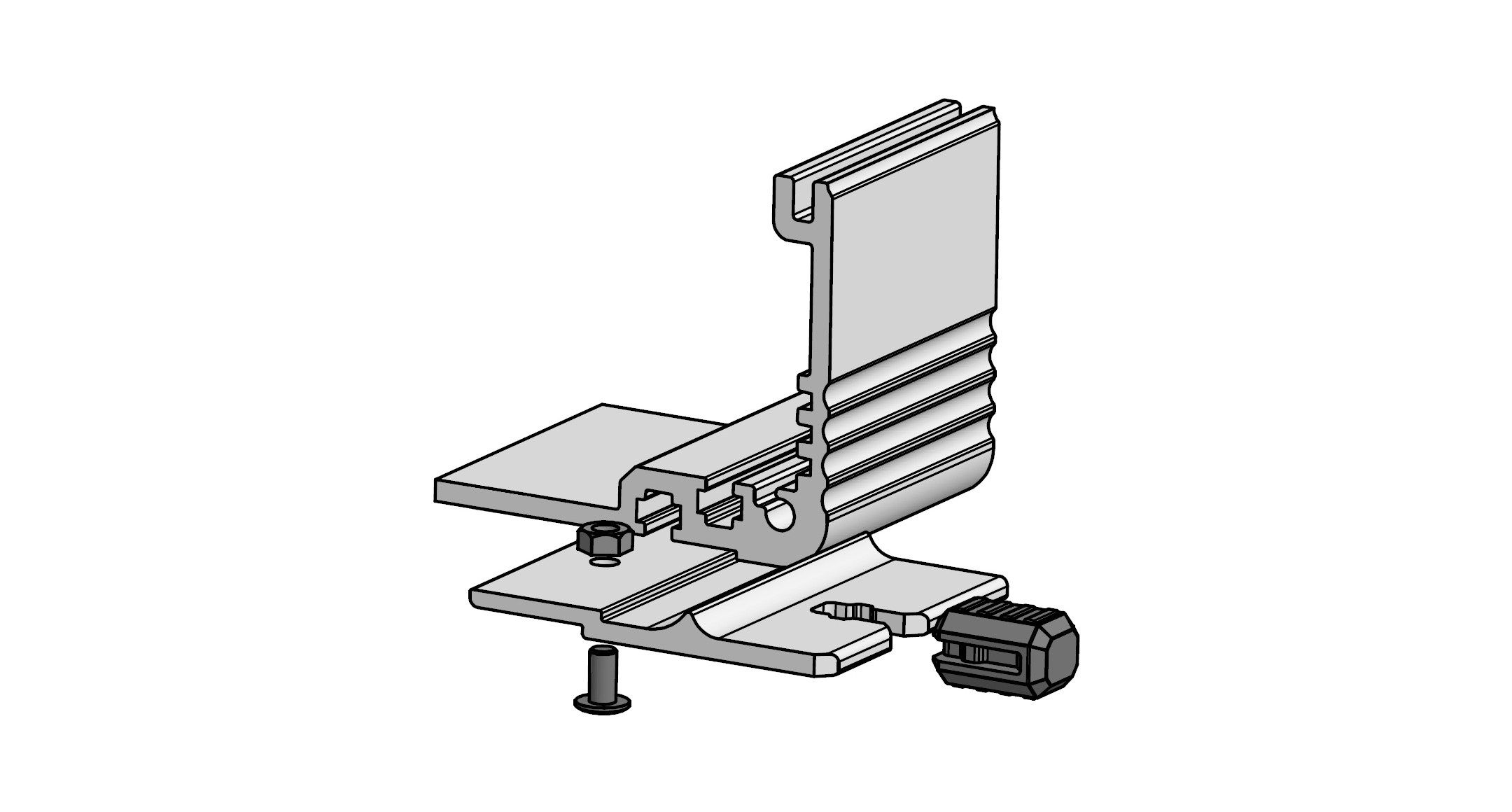

Easy installation by inserting the nuts into built-in grooves on EX・EXH・EXHE bottom cover.
Rubber feet are included to mask the mounting cutouts when not used for wall mounting.
Applicable only for width 186.5, 232 and 287.5mm enclosures.
Easy installation by inserting the nuts into built-in grooves on EX・EXH・EXHE bottom cover.
Rubber feet are included to mask the mounting cutouts when not used for wall mounting.
PRODUCT NO. / DIMENSIONS
| Product No. | Suitable enclosure | Color / Finish | Weight(g) / 2pcs | Pack of | DXF | DWG | STP | |
|---|---|---|---|---|---|---|---|---|
| EF19-13B | EX・EXH・EXHE19-〇-13 | Black / Anodized | 77.7 | 2 pcs | DXF | DWG | ||
| EF19-13S | EX・EXH・EXHE19-〇-13 | Metallic silver / Painted | 77.7 | 2 pcs | DXF | DWG | ||
| EF19-18B | EX・EXH・EXHE19-〇-18 | Black / Anodized | 110.9 | 2 pcs | DXF | DWG | ||
| EF19-18S | EX・EXH・EXHE19-〇-18 | Metallic silver / Painted | 110.9 | 2 pcs | DXF | DWG | ||
| EF19-23B | EX・EXH・EXHE19-〇-23 | Black / Anodized | 143.2 | 2 pcs | DXF | DWG | ||
| EF19-23S | EX・EXH・EXHE19-〇-23 | Metallic silver / Painted | 143.2 | 2 pcs | DXF | DWG | ||
| EF19-29B | EX・EXH・EXHE19-〇-29 | Black / Anodized | 177.2 | 2 pcs | DXF | DWG | ||
| EF19-29S | EX・EXH・EXHE19-〇-29 | Metallic silver / Painted | 177.2 | 2 pcs | DXF | DWG | ||
| EF23-15B | EX・EXH・EXHE23-〇-15 | Black / Anodized | 96.4 | 2 pcs | DXF | DWG | ||
| EF23-15S | EX・EXH・EXHE23-〇-15 | Metallic silver / Painted | 96.4 | 2 pcs | DXF | DWG | ||
| EF23-21B | EX・EXH・EXHE23-〇-21 | Black / Anodized | 131.6 | 2 pcs | DXF | DWG | ||
| EF23-21S | EX・EXH・EXHE23-〇-21 | Metallic silver / Painted | 131.6 | 2 pcs | DXF | DWG | ||
| EF23-27B | EX・EXH・EXHE23-〇-27 | Black / Anodized | 168.8 | 2 pcs | DXF | DWG | ||
| EF23-27S | EX・EXH・EXHE23-〇-27 | Metallic silver / Painted | 168.8 | 2 pcs | DXF | DWG | ||
| EF23-33B | EX・EXH・EXHE23-〇-33 | Black / Anodized | 205.4 | 2 pcs | DXF | DWG | ||
| EF23-33S | EX・EXH・EXHE23-〇-33 | Metallic silver / Painted | 205.4 | 2 pcs | DXF | DWG | ||
| EF29-23B | EX・EXH・EXHE29-〇-23 | Black / Anodized | 148 | 2 pcs | ||||
| EF29-23S | EX・EXH・EXHE29-〇-23 | Metallic silver / Painted | 148 | 2 pcs | ||||
| EF29-30B | EX・EXH・EXHE29-〇-30 | Black / Anodized | 192 | 2 pcs | ||||
| EF29-30S | EX・EXH・EXHE29-〇-30 | Metallic silver / Painted | 192 | 2 pcs | ||||
| EF29-38B | EX・EXH・EXHE29-〇-38 | Black / Anodized | 242 | 2 pcs | ||||
| EF29-38S | EX・EXH・EXHE29-〇-38 | Metallic silver / Painted | 242 | 2 pcs |
