WALL MOUNTING BRACKET for EXS・EXHS - EF-36


EF-36 Series -PDF

CATEGORY：Wall mounting bracket, Mount bracket, Aluminium bracket

WALL MOUNTING BRACKET for EXS・EXHS - EF-36
WALL MOUNTING BRACKET for EXS・EXHS - EF-36
WALL MOUNTING BRACKET for EXS・EXHS - EF-361
WALL MOUNTING BRACKET for EXS・EXHS - EF-362

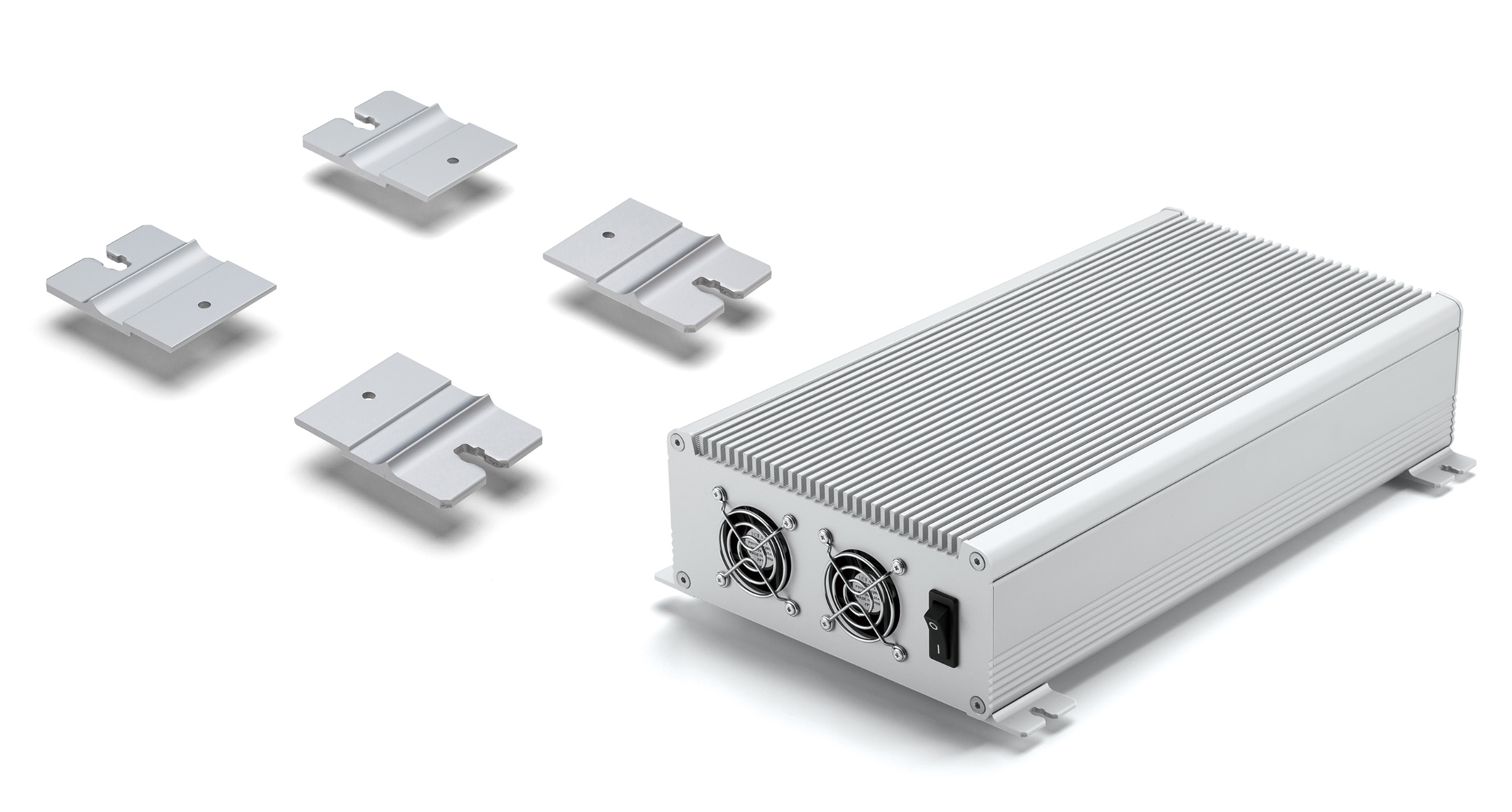

Wall mounting bracket for EXS・EXHS custom sized enclosures.
Applicable only for width 186.5, 232 and 287.5mm enclosures.
Easy installation by inserting the nuts into built-in grooves on EXS・EXHS bottom cover.
Rubber feet are included to mask the mounting cutouts when not used for wall mounting.

PRODUCT NO. / DIMENSIONS

Product No. Color / Finish Weight(g) / 4pcs Pack of PDF DXF DWG STP
EF-36B Black / Anodized 47.9 4 pcs PDF DXF DWG
EF-36S Metallic silver / Painted 47.9 4 pcs PDF DXF DWG
