CATEGORY：One-touch split sleeve core ferrite clamp, Ferrite core, Noise filter

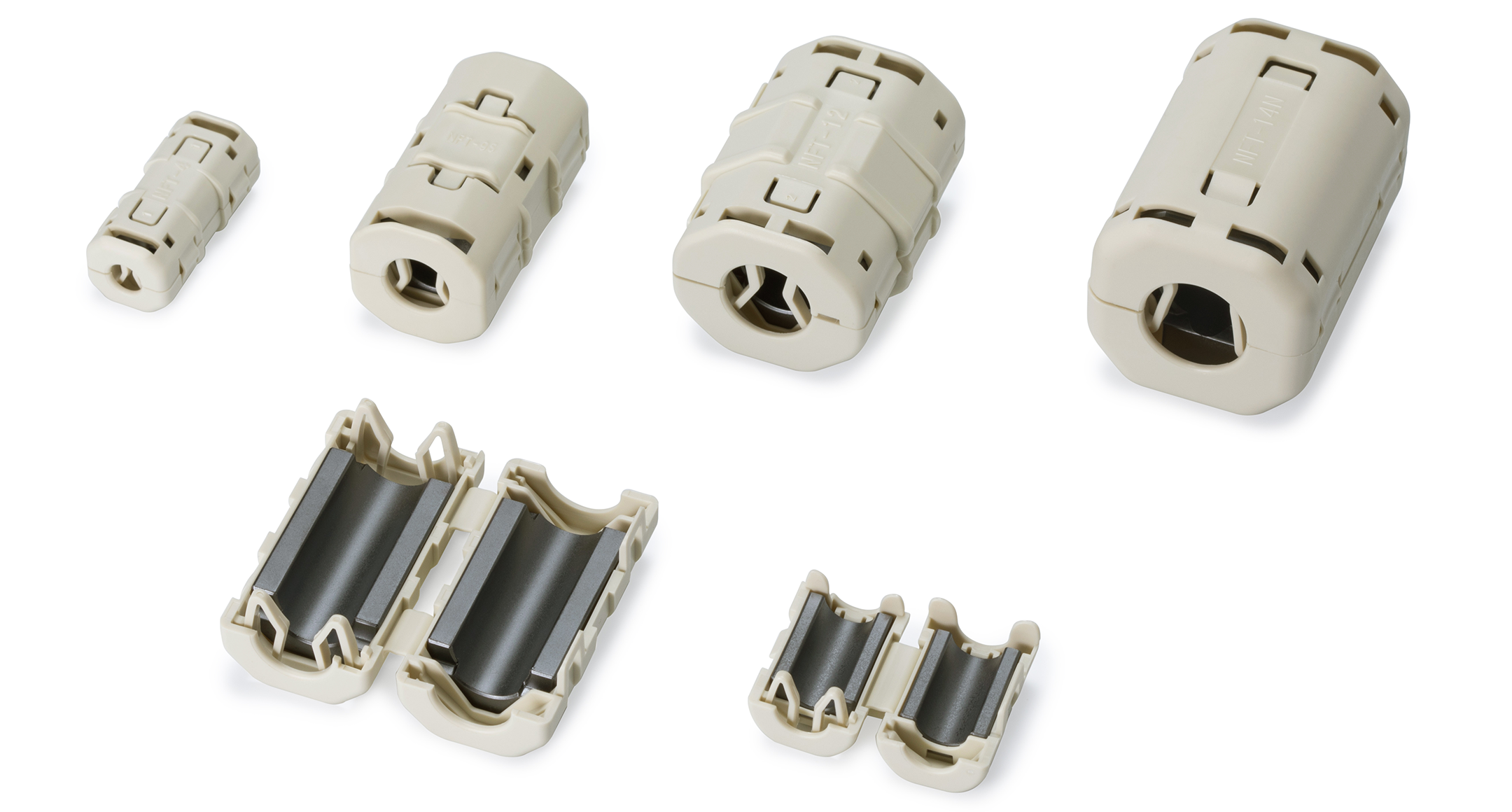

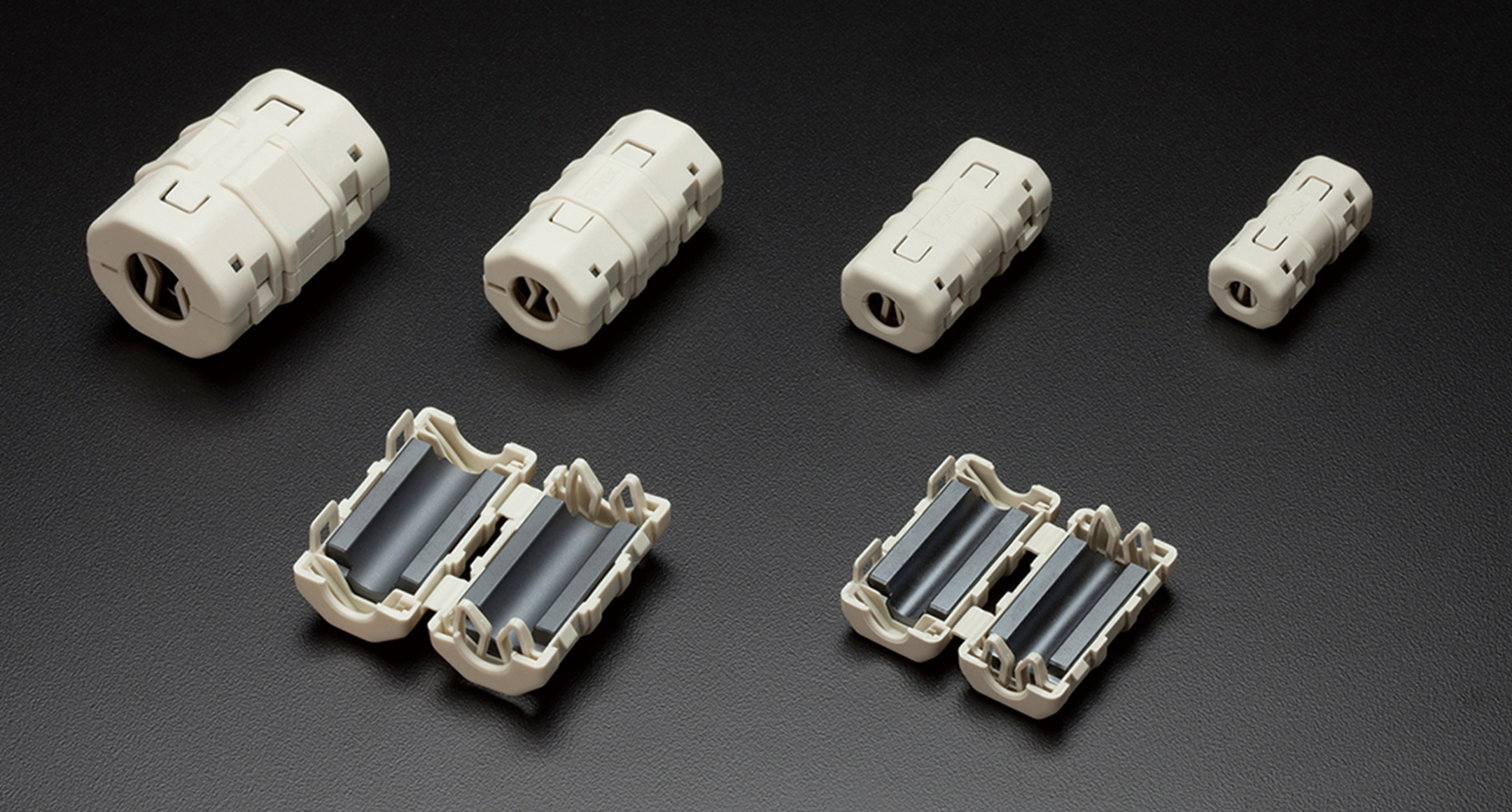

Affordably priced yet being environmentally friendly one-touch split sleeve core ferrite clamp to reduce noise from cables for electric instruments.
For environmental measures, a clean ferrite core material free of harmful substances are used.
Casing is made using halogen-free PA66 (UL94V-0) material.
The cable holder is designed in such a way that there will be no damage to the cables when the case is closed.
The cable holder has a cable punch prevention function to prevent loose wires from being clamped when the case is closed.
10 different sizes available.
For environmental measures, a clean ferrite core material free of harmful substances are used.
Casing is made using halogen-free PA66 (UL94V-0) material.
The cable holder is designed in such a way that there will be no damage to the cables when the case is closed.
The cable holder has a cable punch prevention function to prevent loose wires from being clamped when the case is closed.
10 different sizes available.
PRODUCT NO. / DIMENSIONS
| Product No. | External Dimensions | Max. Cable Diameter | Weight (g) | Pack of | DXF | DWG | |
|---|---|---|---|---|---|---|---|
| NFT-4 | 13.7×12.9×29.9 | Φ4.5 | 8.5 | 1 pc | DXF | DWG | |
| NFT-6 | 17.8×15×35.9 | Φ6.5 | 17.5 | 1 pc | DXF | DWG | |
| NFT-7S | 15.8×15.9×23.4 | Φ7.0 | 7.8 | 1 pc | DXF | DWG | |
| NFT-8 | 21.2×20.8×39.1 | Φ8.5 | 25.1 | 1 pc | DXF | DWG | |
| NFT-9S | 22.3×22.1×38.4 | Φ9.5 | 29 | 1 pc | DXF | DWG | |
| NFT-10 | 22.7×21.3×42 | Φ10.5 | 33.5 | 1 pc | DXF | DWG | |
| NFT-11 | 34.3×31.8×40.5 | Φ11.0 | 106.5 | 1 pc | DXF | DWG | |
| NFT-12 | 31.7×27.9×42 | Φ12.5 | 55.3 | 1 pc | DXF | DWG | |
| NFT-13S | 31.6×31.2×38.4 | Φ13.5 | 71.5 | 1 pc | DXF | DWG | |
| NFT-14N | 32.7×33.5×47.4 | Φ14.5 | 102.5 | 1 pc | DXF | DWG |
