TOROIDAL CORE FERRITE CLAMP - TFN・TFT series


TFN_TFT Series -PDF

CATEGORY:ONE-TOUCH SPLIT TOROIDAL CORE FERRITE CLAMP, TOROIDAL FERRITE CORE, FERRITE CORE, NOISE FILTER

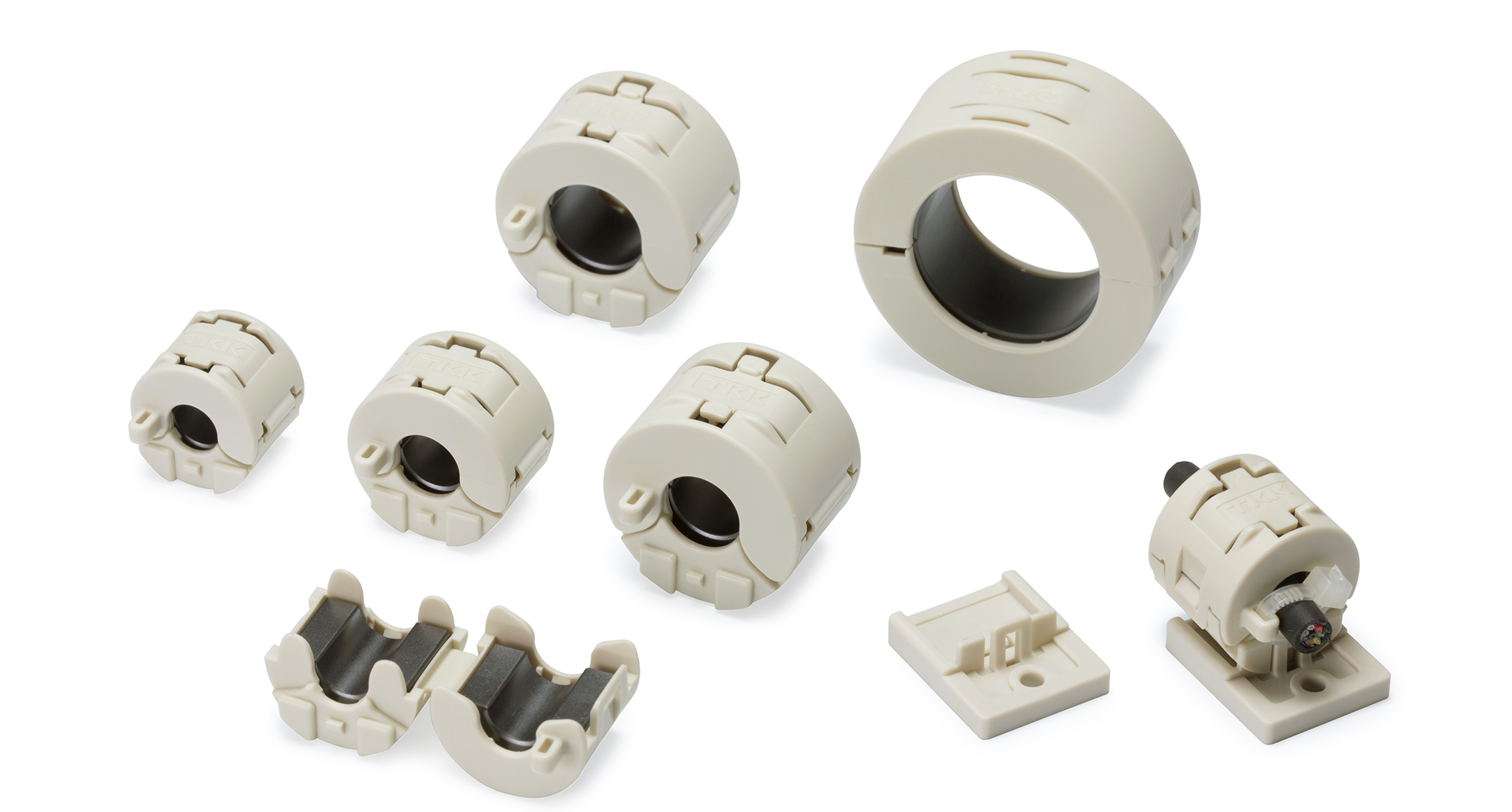

TOROIDAL CORE FERRITE CLAMP - TFN・TFT series
TOROIDAL CORE FERRITE CLAMP - TFN・TFT series1

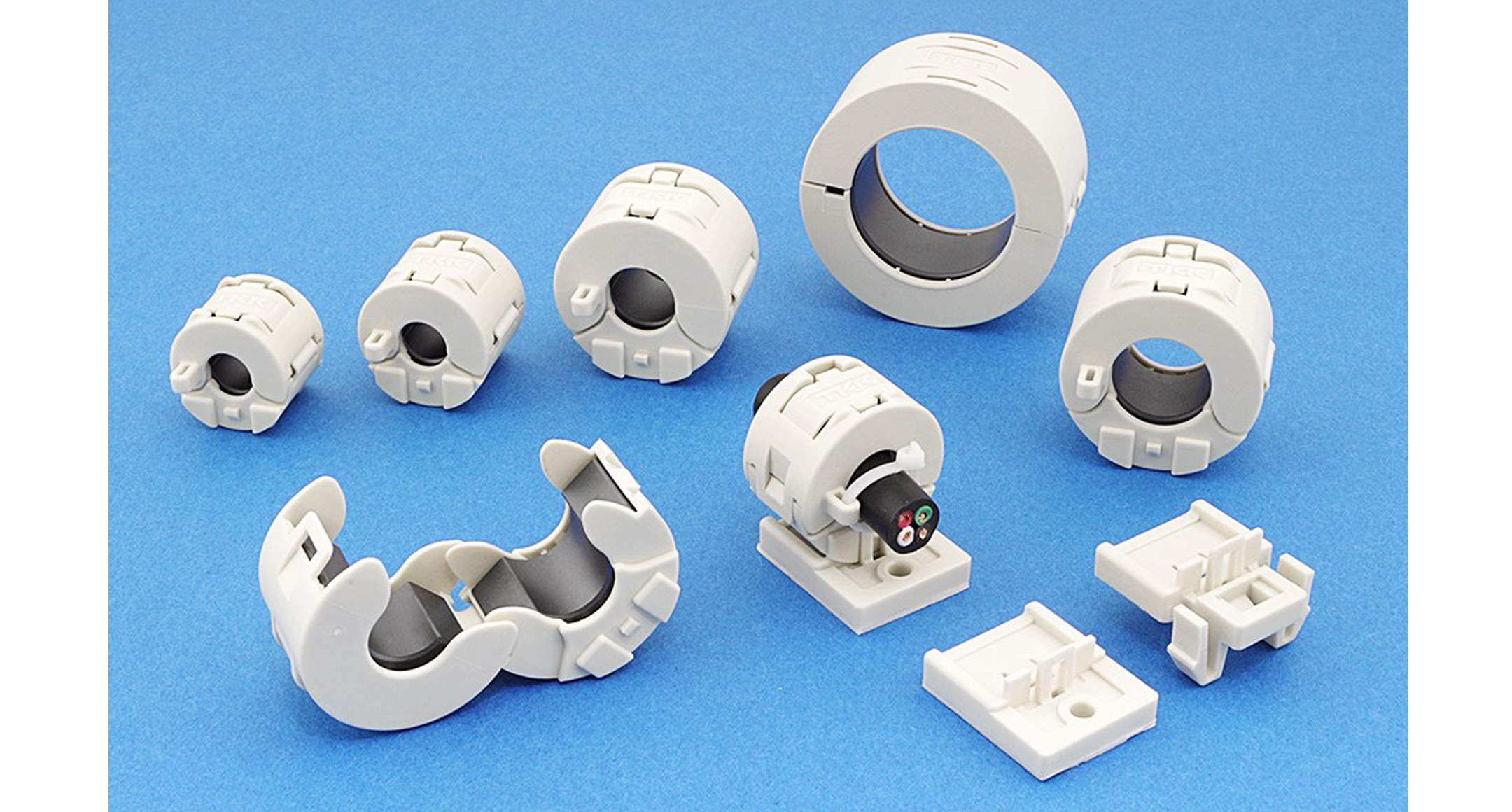

Affordably priced yet being environmentally friendly one-touch toroidal core ferrite clamp to reduce noise from cables for electric instruments.

For environmental measures, a clean ferrite core material free of harmful substances are used.
Casing is made using halogen-free PA66 (UL94V-0) material.

Simple, space-saving construction with optional fittings for installation onto equipment.
Optional fittings are available in both screw type and adhesive tape type.
Integrated cable tie band holder allows for easy securing of cable (not available for TFT-274015S model).

6 different sizes available.

PRODUCT NO. / DIMENSIONS

Product No. External Diameter Max. Cable Weight (g) Pack of PDF DXF DWG
TFN-081610 φ19.2 φ7.5 9 1 PDF DXF DWG
TFN-081813 φ21.7 φ7.5 15 1 PDF DXF DWG
TFN-102010 φ24.1 φ8.8 15 1 PDF DXF DWG
TFN-112514 φ28.7 φ10.8 31 1 PDF DXF DWG
TFN-152613 φ30 φ13.5 26 1 PDF DXF DWG
TFT-274015S φ43.8 φ26.5 57 1 PDF

OPTIONAL PARTS

1
FITTING for TFN TOROIDAL FERRITE CORE CLAMP
DETAILS
1
CABLE TIE HOLDER for TFT-274015S
DETAILS
