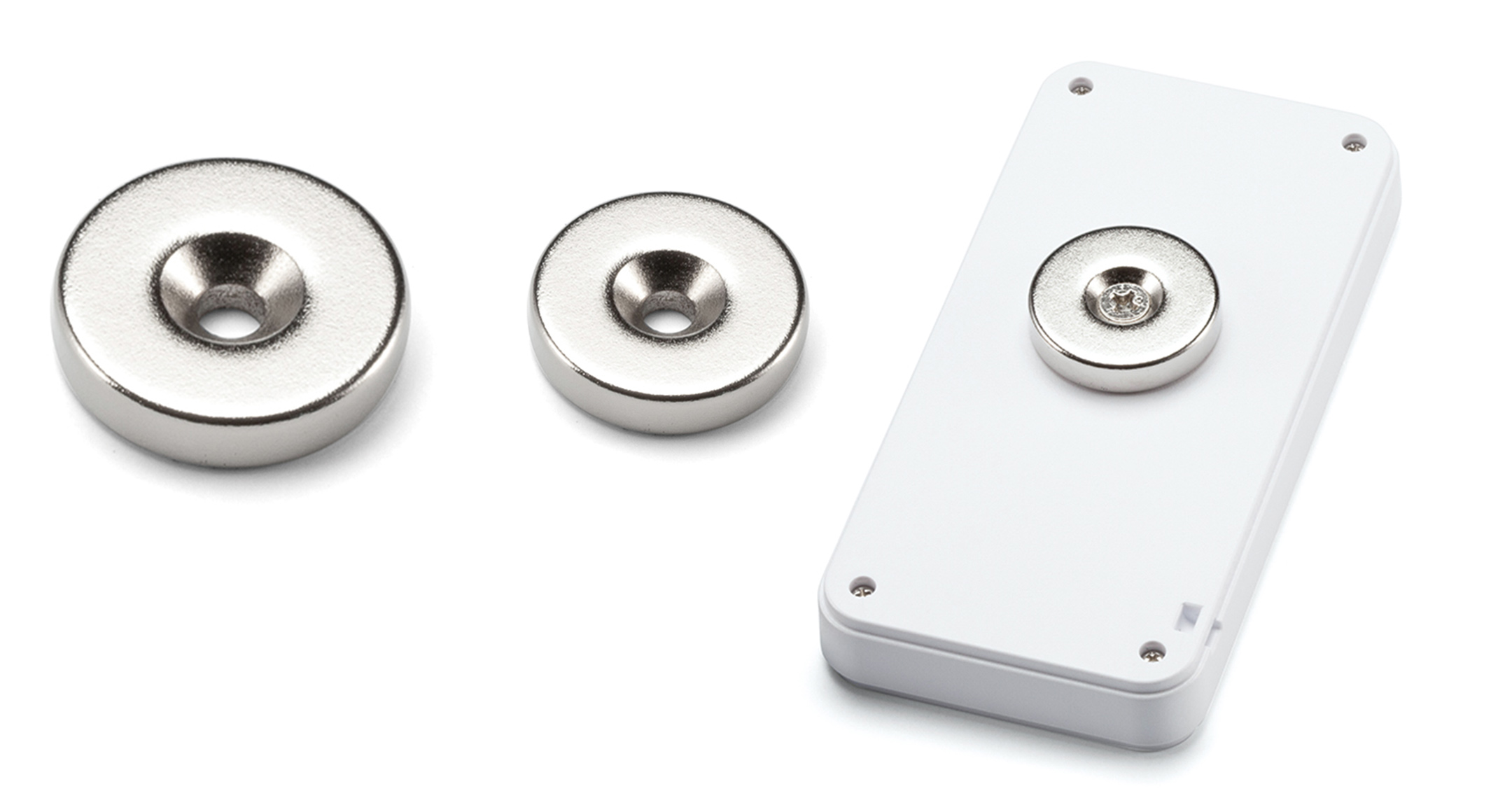

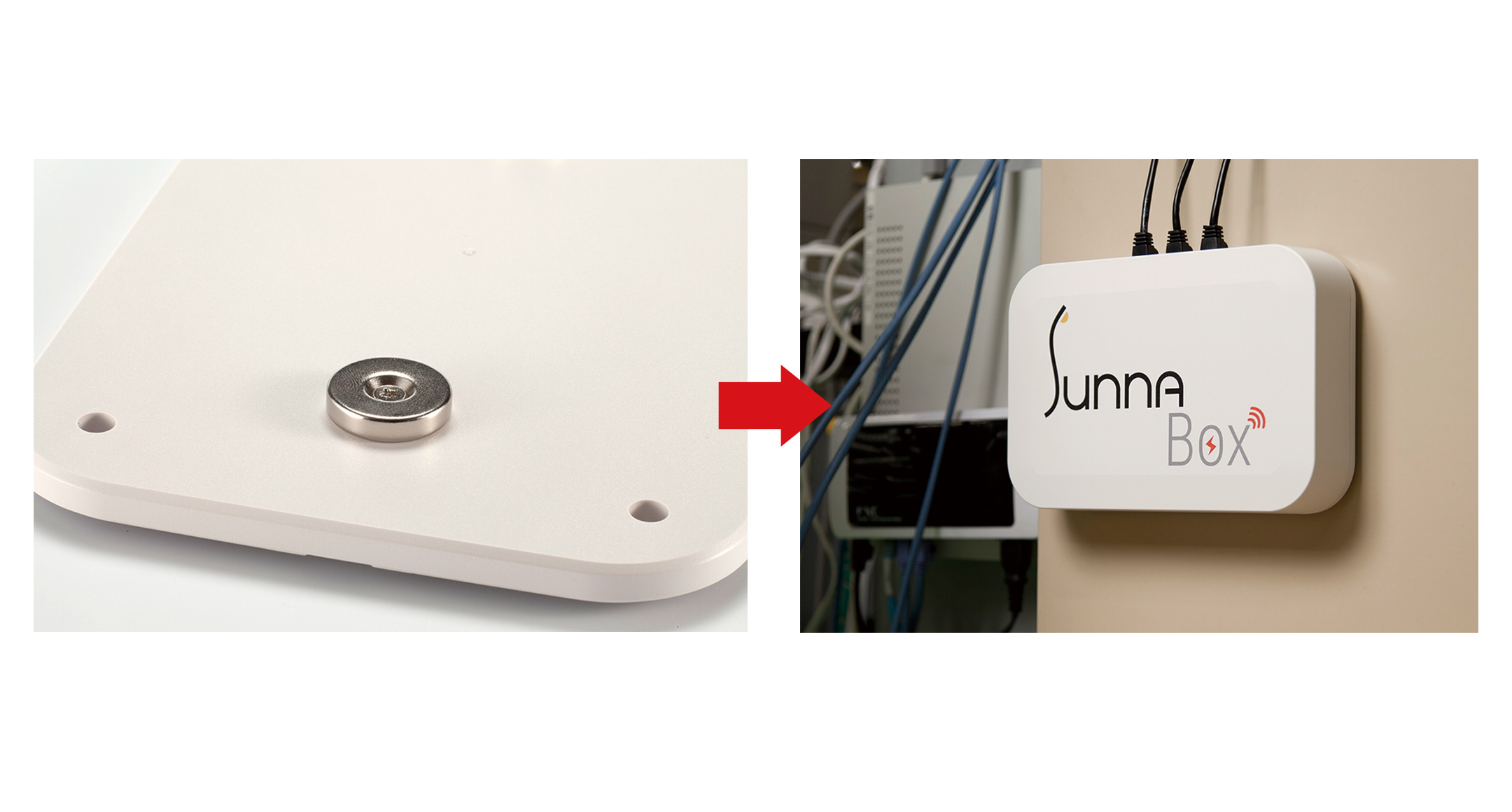

Neodymium magnet for small enclosure purpose to attach on the steel wall, machinery or pole.

Material / Finish: Neodymium / Nickel plated
CAUTION: Handle with care to avoid personal injury or damage to the magnet.

PRODUCT NO. / DIMENSIONS

Product No. Size (mm) Countersunk hole Weight (g) PDF DXF DWG

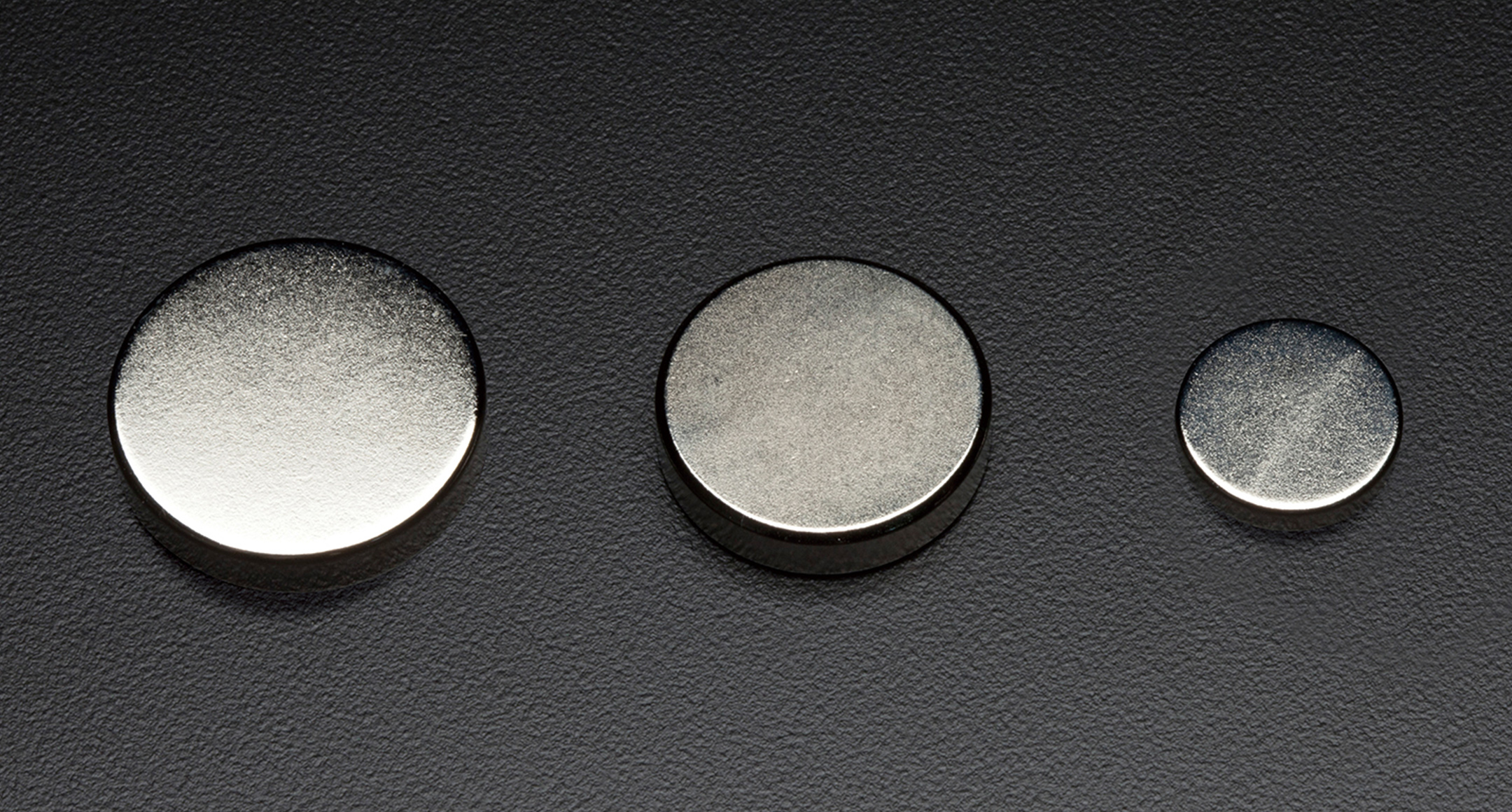

NMG3-15N φ15×3(t) None 4 PDF DXF DWG
NMG3-20N φ20×3(t) None 7.1 PDF DXF DWG
NMG5-22N φ22×5(t) None 11.4 PDF DXF DWG
NMG5-25N φ25×5(t) None 18.4 PDF DXF DWG

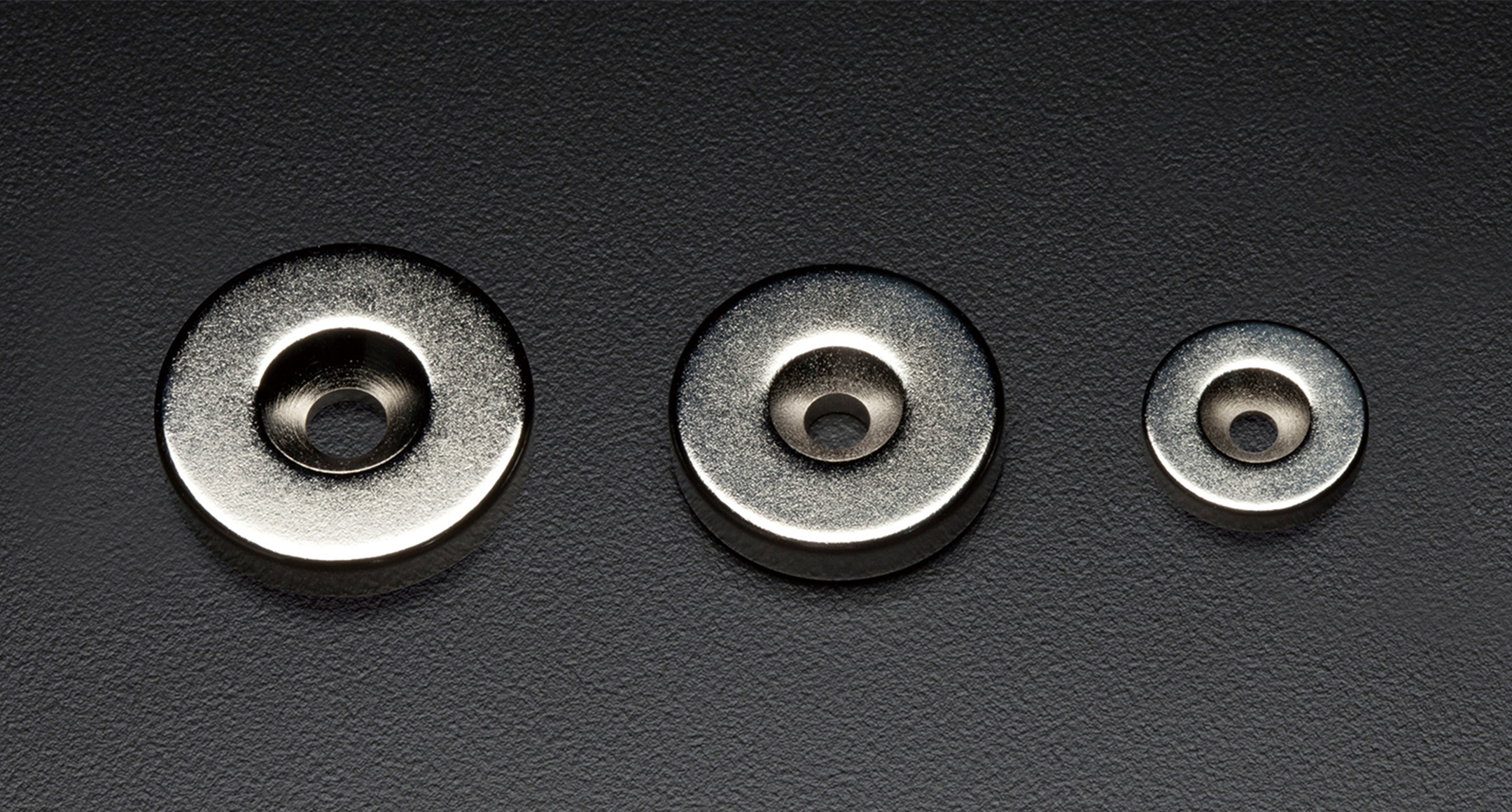

NMG3-15M3 φ15×3(t) M3 3.8 PDF DXF DWG
NMG3-20M3 φ20×3(t) M3 6.9 PDF DXF DWG
NMG5-22M4 φ22×5(t) M4 13.7 PDF DXF DWG
NMG5-25M5 φ25×5(t) M5 17.6 PDF DXF DWG

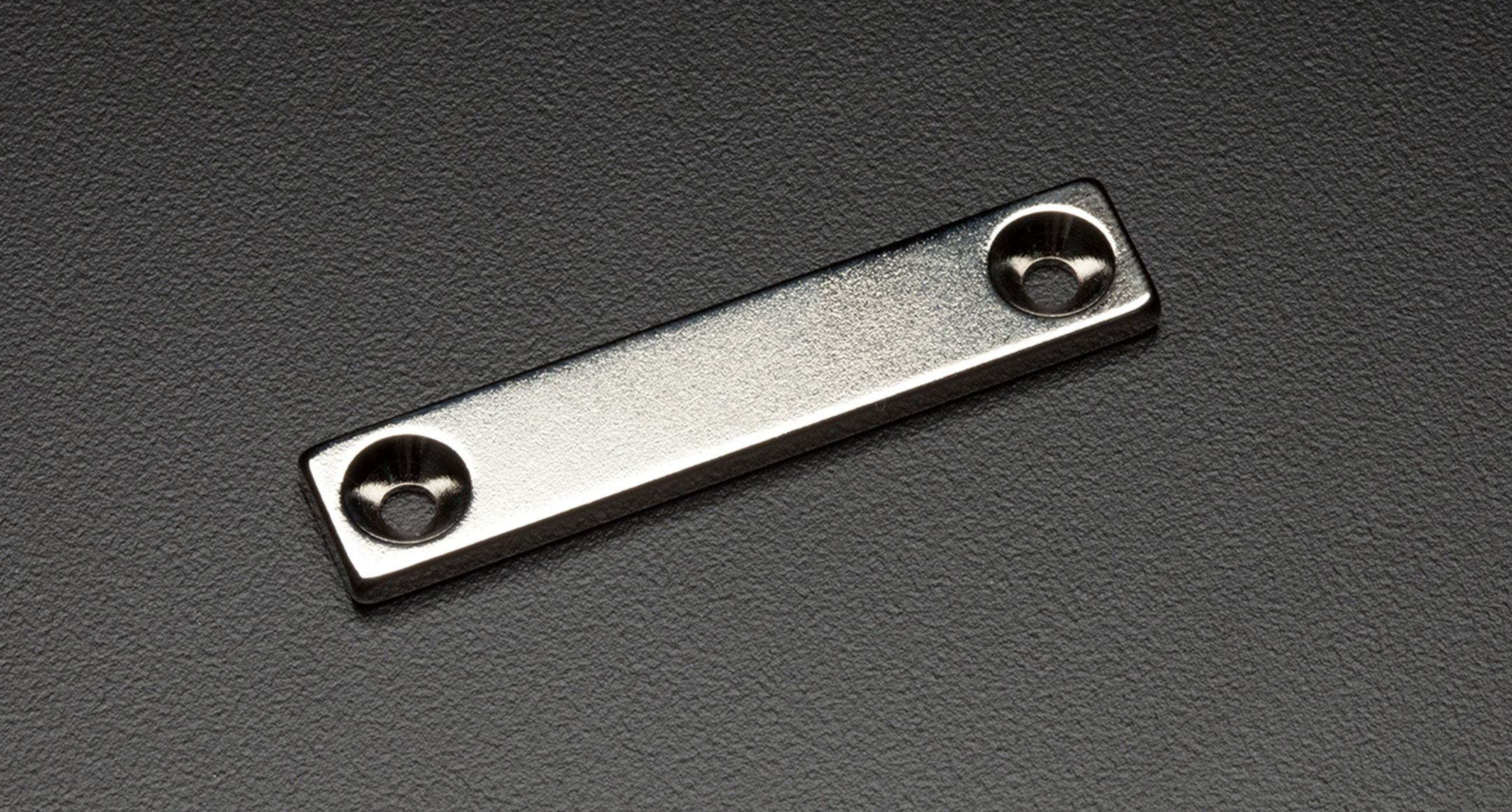

NMG3-50M3 50×10×3(t) M3 x 2 11.3 PDF DXF DWG
