CATEGORY：Suspension bracket, Wall mounting bracket, Hanging bracket

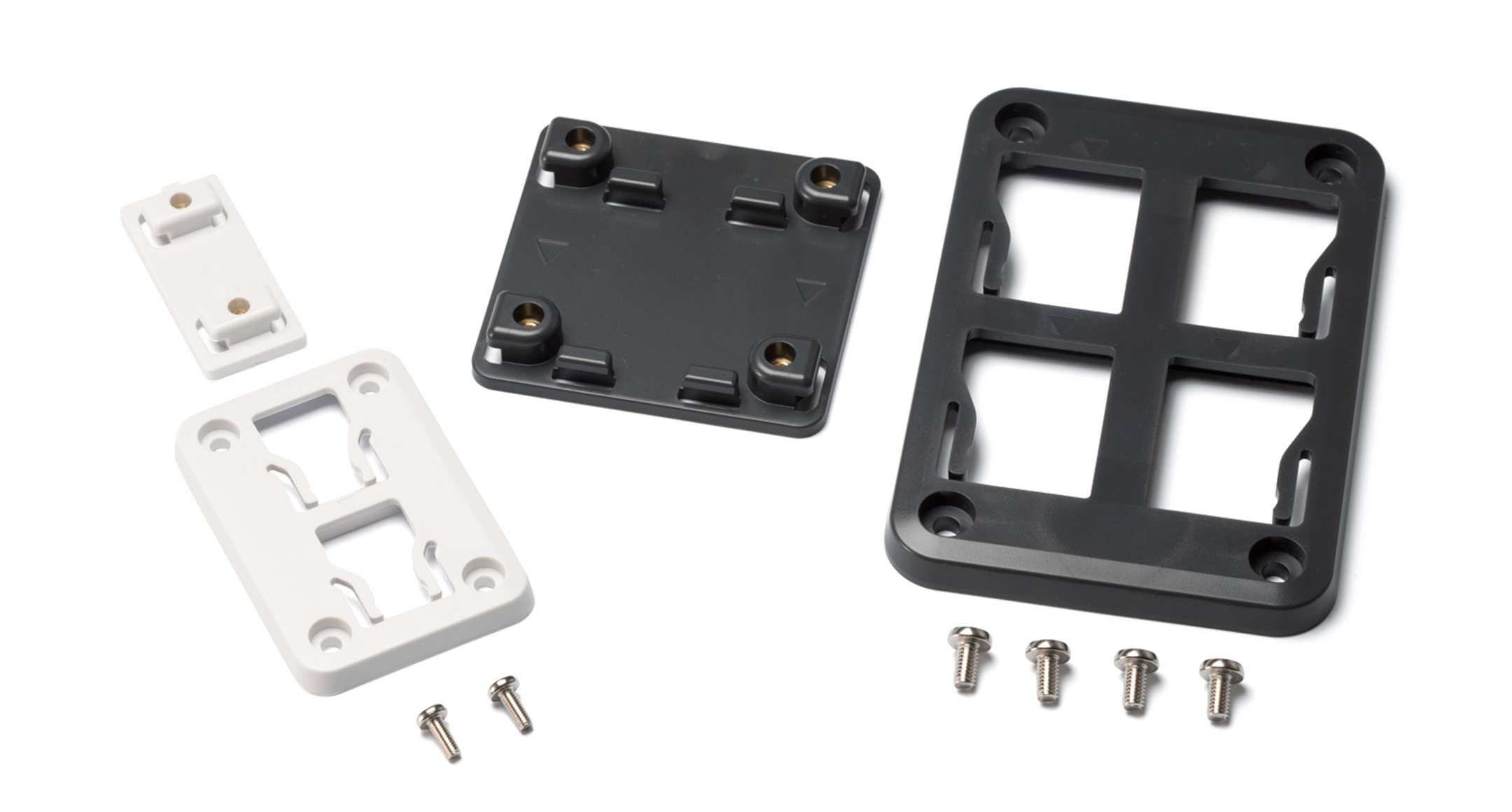

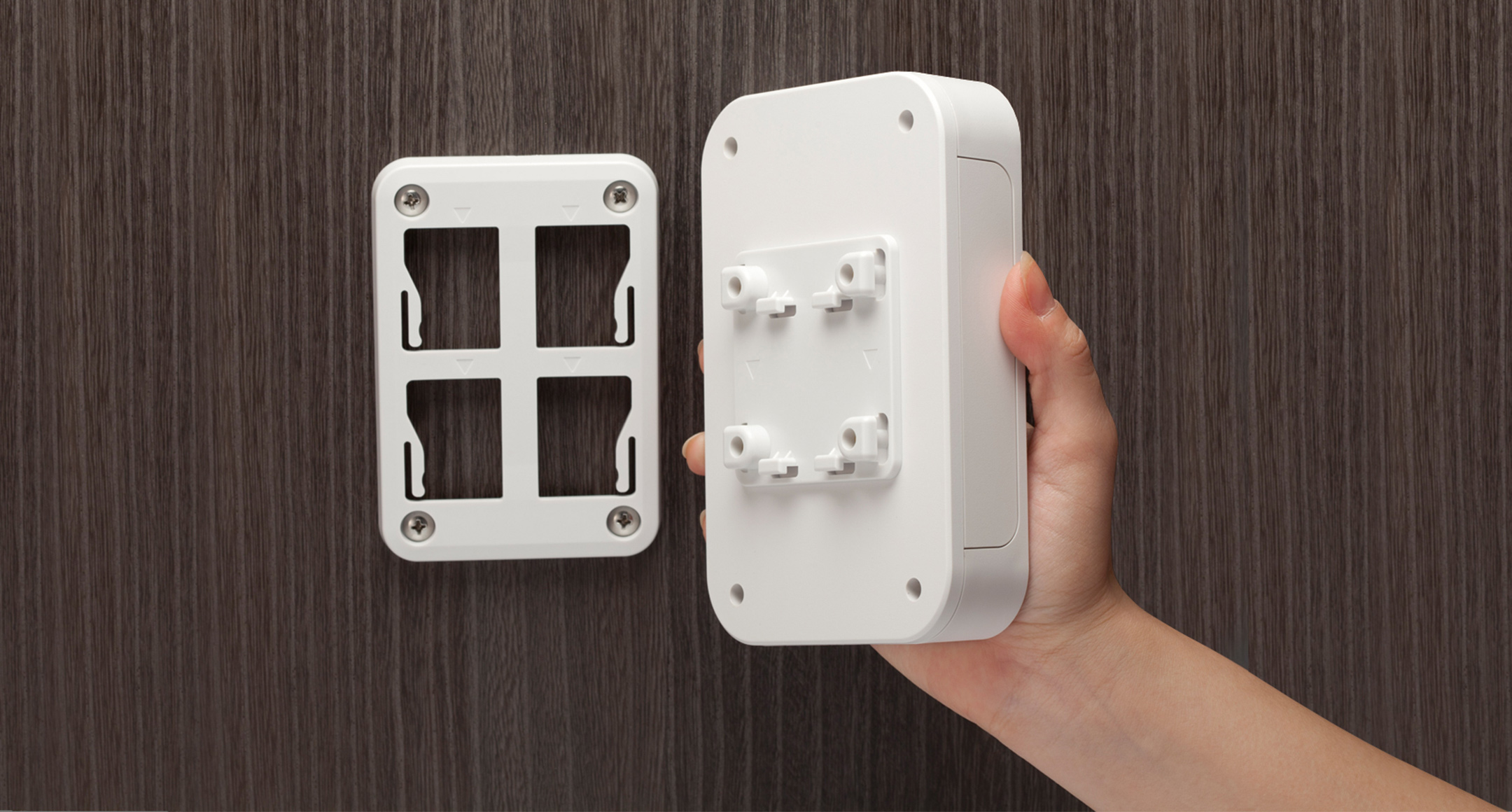

Plastic wall mounting bracket. Easy attachment and removal.
Large and small brackets in off-white and dark gray colors are available.
Applicable not only for the PF series, but also other plastic/metal enclosures with a panel thickness of 0.8 ~ 3.5mm.

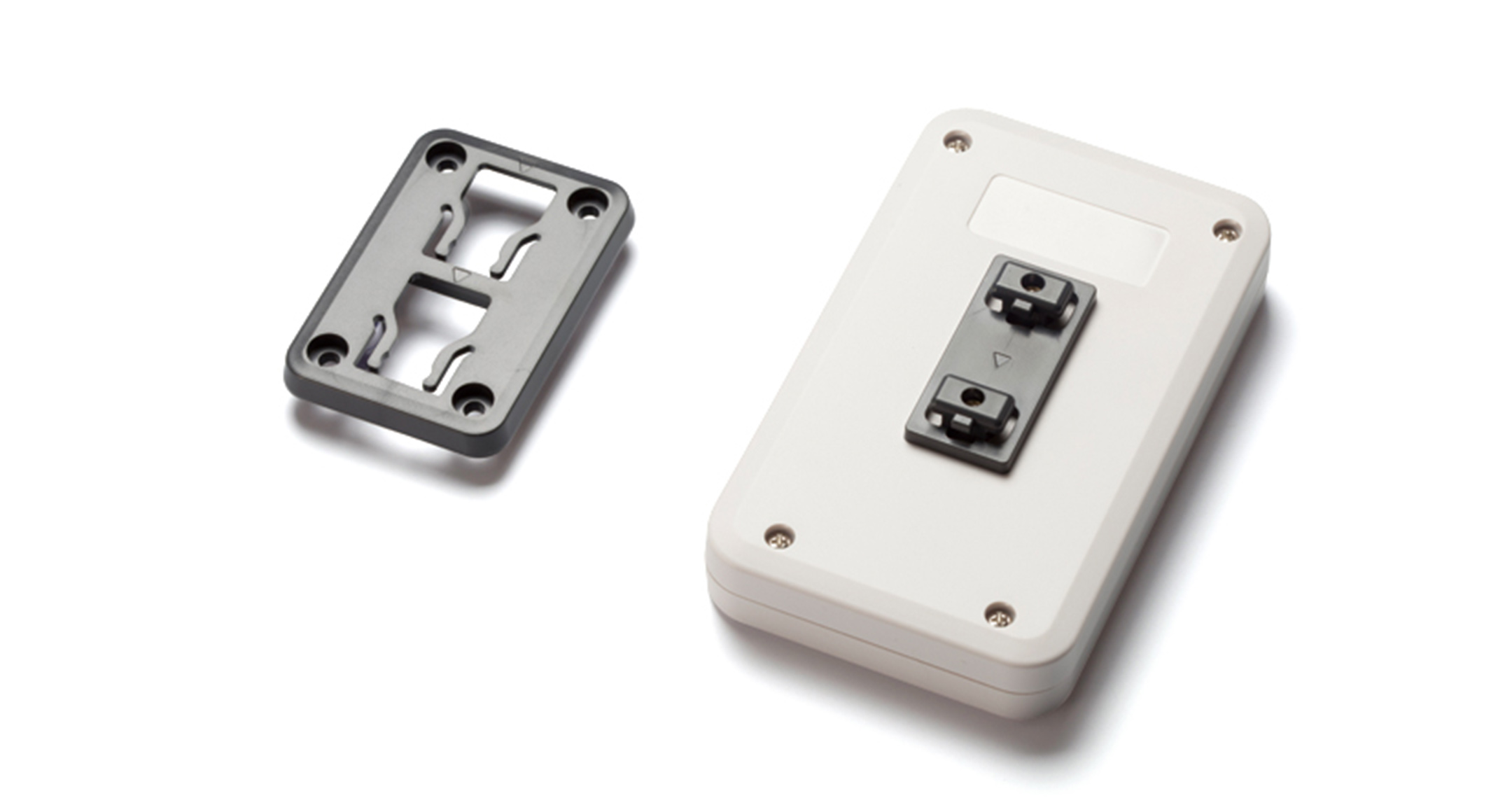

To attach the suspension hook onto the enclosure, hole milling is required.
【Max load 】
WM-1：2 kg
WM-2：5 kg
*The max load values listed are static load values only. Use caution when handling.
*Please be aware of the insertion direction of the suspension hook against the mounting base when attaching.
Large and small brackets in off-white and dark gray colors are available.
Applicable not only for the PF series, but also other plastic/metal enclosures with a panel thickness of 0.8 ~ 3.5mm.
To attach the suspension hook onto the enclosure, hole milling is required.
【Max load 】
WM-1：2 kg
WM-2：5 kg
*The max load values listed are static load values only. Use caution when handling.
*Please be aware of the insertion direction of the suspension hook against the mounting base when attaching.
PRODUCT NO. / DIMENSIONS
| Product No. | Max load | Mountable thickness | Color / Similar matching | Weight (g) / 1set | DXF | DWG | STP | |
|---|---|---|---|---|---|---|---|---|
| WM-1W | 2kg | 0.8 - 3.5 mm | Off white / Munsell N8.75 | 11.5 | DXF | DWG | ||
| WM-1D | 2kg | 0.8 - 3.5 mm | Dark gray / Munsell N3 | 11.5 | DXF | DWG | ||
| WM-2W | 5kg | 0.8 - 3.5 mm | Off white / Munsell N8.75 | 48 | DXF | DWG | ||
| WM-2D | 5kg | 0.8 - 3.5 mm | Dark gray / Munsell N3 | 48 | DXF | DWG |
SAMPLE REQUEST FORM
This product series is available as a free sample.
