MOUNTING PLATE for OB


OBP Series -PDF

CATEGORY：Aluminium mounting plate, Mount plate, Mounting base

MOUNTING PLATE for OB
MOUNTING PLATE for OB
MOUNTING PLATE for OB1
MOUNTING PLATE for OB2

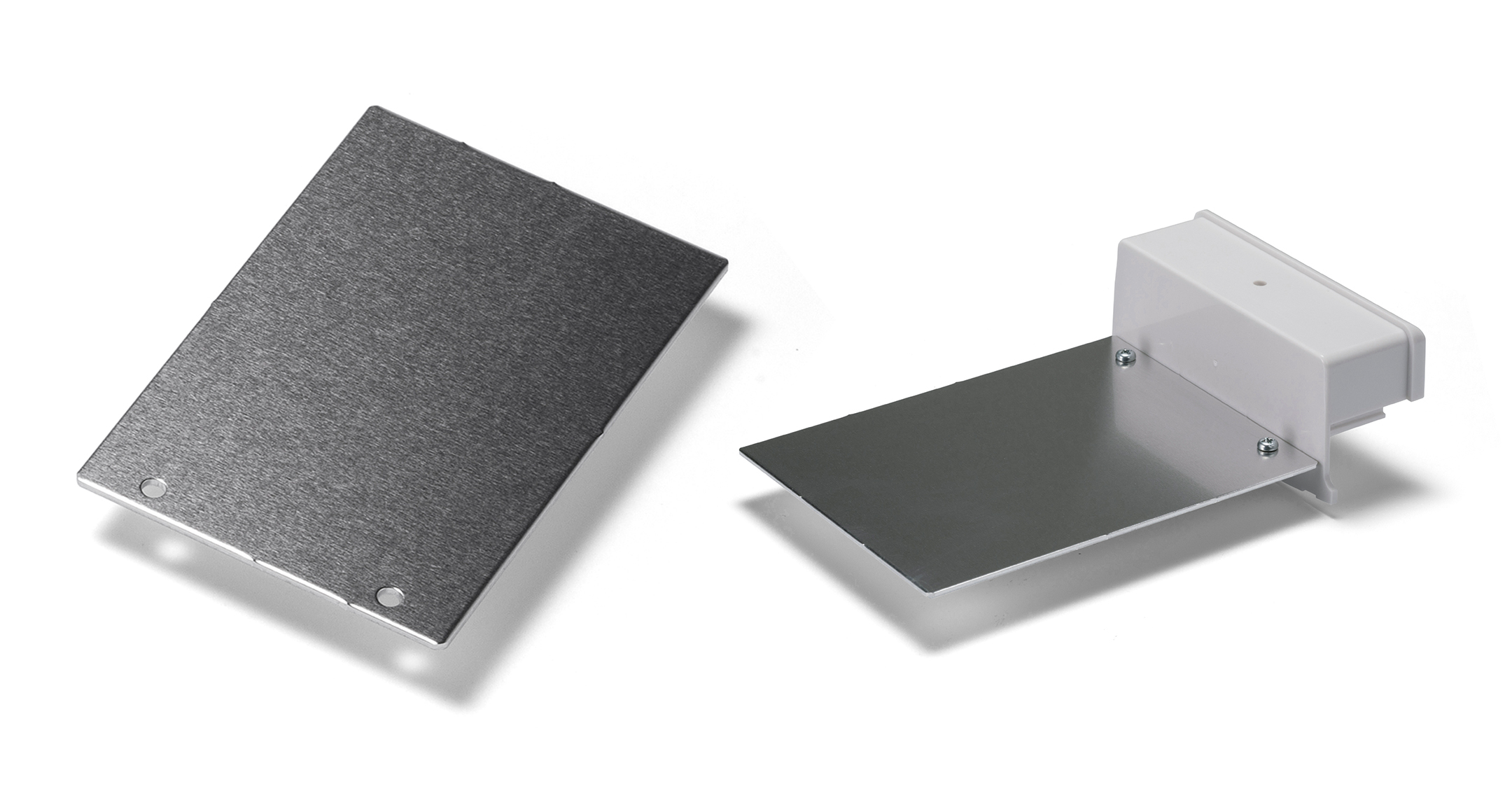

Aluminium mounting plate for OB series.
Material : Aluminium A1050P thickness=1.5mm

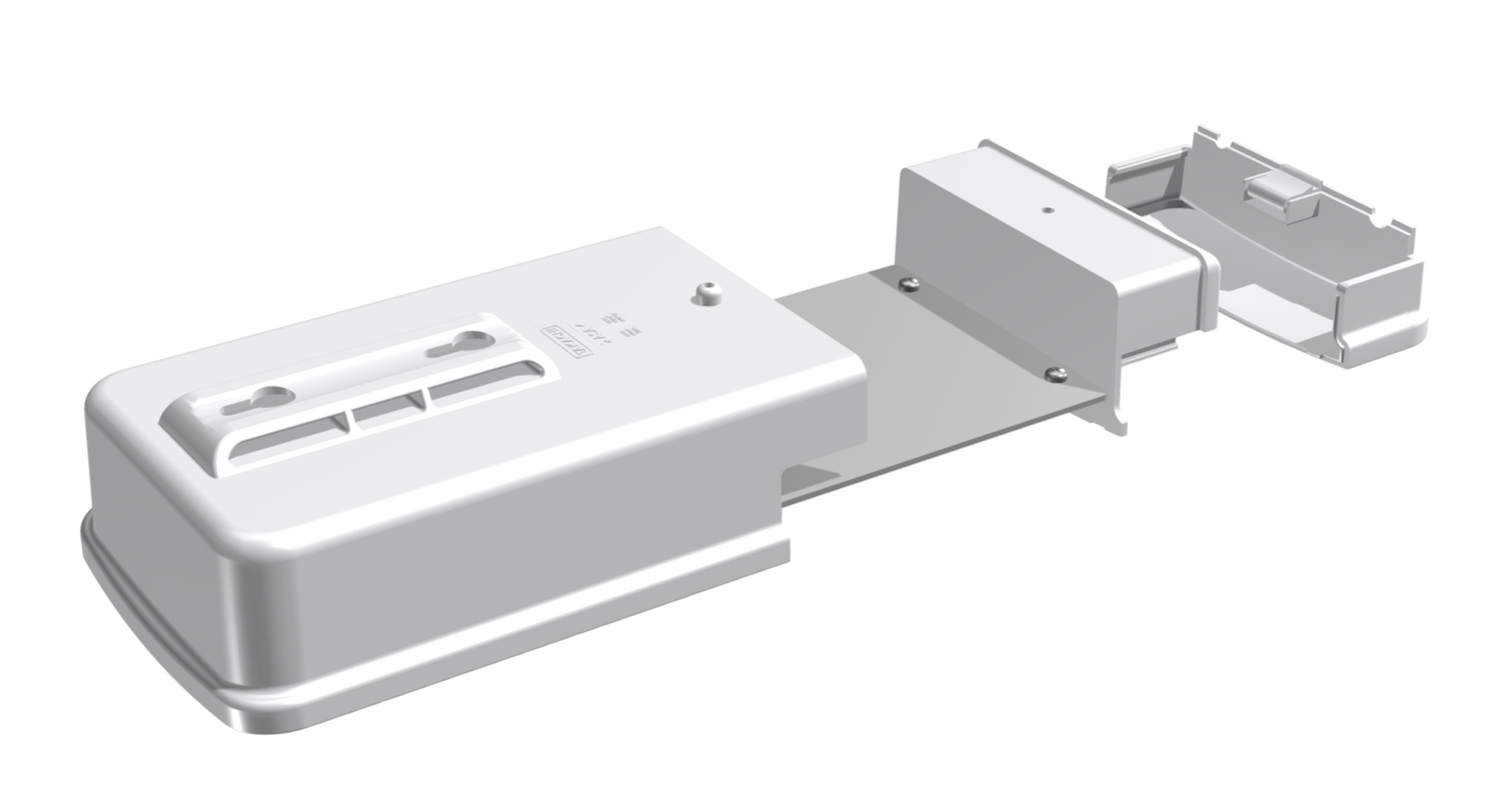

3D View - Mounting image 

PRODUCT NO. / DIMENSIONS

Product No. Suitable enclosure Weight (g) PDF DXF DWG
OBP8-14 OB8-14-4W 22.5 PDF DXF DWG
OBP10-17 OB10-17-5W 40 PDF DXF DWG
OBP13-21 OB13-21-6W 61 PDF DXF DWG
