MOUNTNG PLATE for OP series


OPP Series -PDF

CATEGORY：Aluminium mounting plate, Mount plate, Mounting base

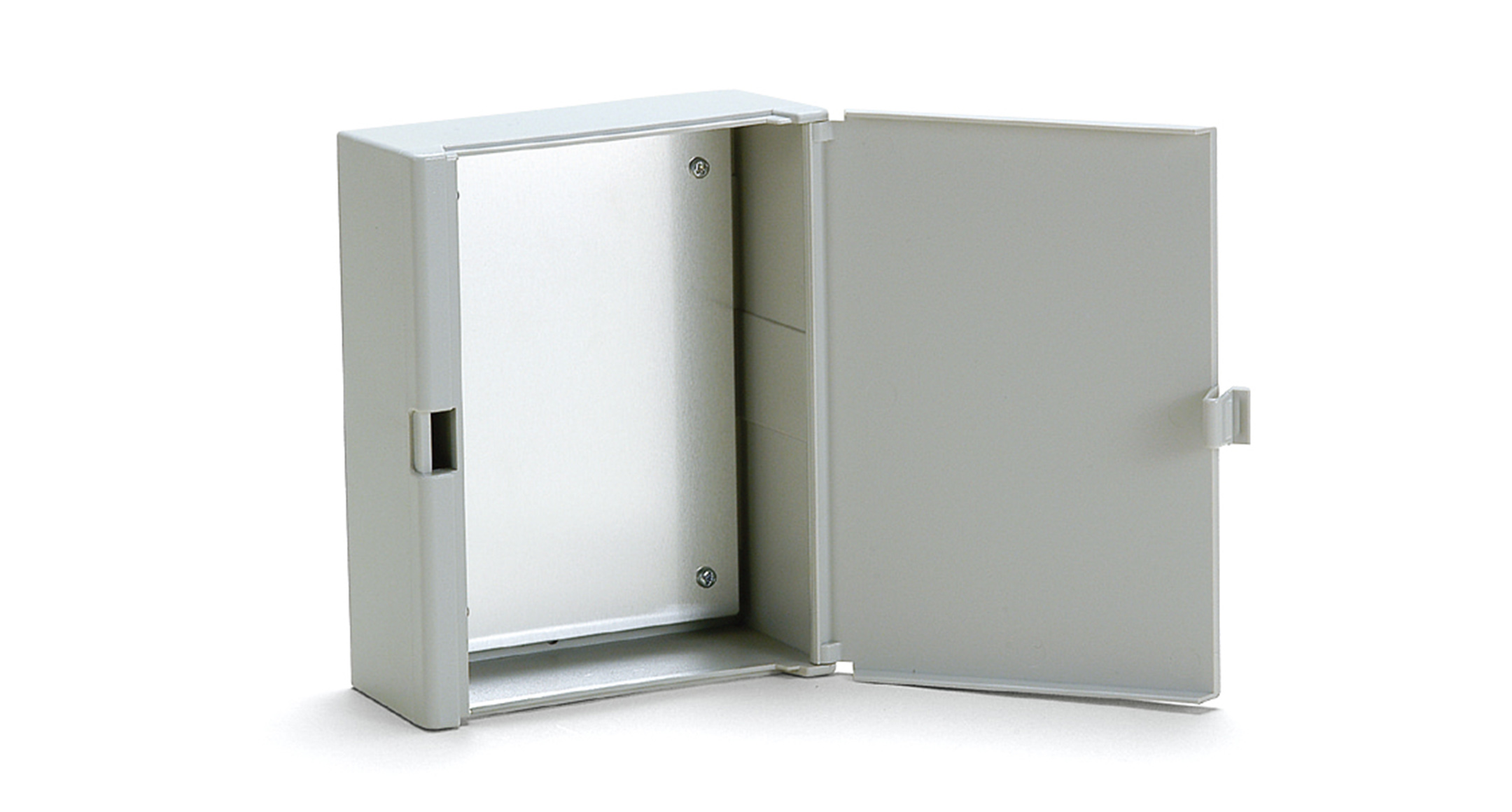

MOUNTNG PLATE for OP series
MOUNTNG PLATE for OP series1
Aluminium mounting plate for OP series.
Can be used for mounting PCB, terminal block, and module.

Material：Aluminium thickness 1.5mm

PRODUCT NO. / DIMENSIONS

Product No. Suitable box Weight (g) PDF DXF DWG
OPP-125 OP-125 34.5 PDF DXF DWG
OPP-150 OP-150 53.0 PDF DXF DWG
OPP-180 OP-180 81.0 PDF DXF DWG
