CATEGORY：Pole mounting bracket, Stainless steel bracket

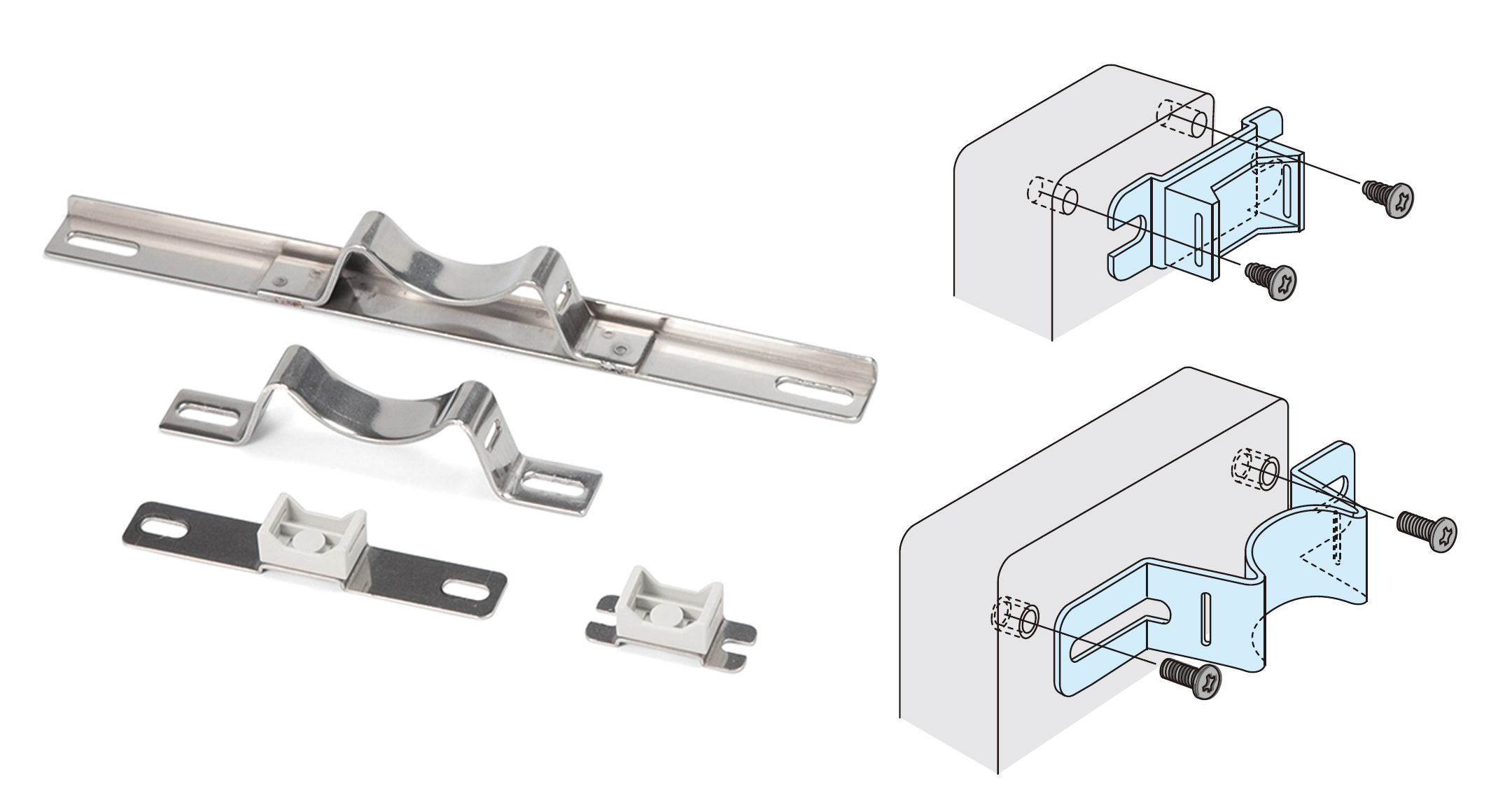

Stainless steel pole mount bracket for BCAS series.
No hole milling is required for maintaining the IP rating of the box.
Use optional mounting belt to install onto a pole. (PKB series)
No hole milling is required for maintaining the IP rating of the box.
Use optional mounting belt to install onto a pole. (PKB series)
PRODUCT NO. / DIMENSIONS
| Product No. | Parts description | Suitable box | Belt to use with (Option) | Weight (g) / 2pcs | Pack of | DXF | DWG | |
|---|---|---|---|---|---|---|---|---|
| SSK- P50. | Mounting bracket | BCAS0506 | PKB-10P・PKB-10S | 30 | 2 pcs | DXF | DWG | |
| SSK- P60. | Mounting bracket | BCAS0609・0506 | PKB-10P・PKB-10S | 33.7 | 2 pcs | DXF | DWG | |
| SSK- P75. | Mounting bracket | BCAS0710・0808・0811・0813・0818・0825 | PKB-10P・PKB-10S | 38.5 | 2 pcs | DXF | DWG | |
| SSK- P100. | Mounting bracket | BCAS0609・0710・1010・1018・1020・1023 | PKB-10P・PKB-10S | 43.4 | 2 pcs | DXF | DWG | |
| SSK- P120. | Mounting bracket | BCAS1212・0811 | PKB-10P・PKB-10S | 55.1 | 2 pcs | DXF | DWG | |
| SSK- 160. | Mounting bracket | BCAS1417・1423・0813 | PKB-10P・PKB-10S | 134 | 2 pcs | DXF | DWG | |
| SSK- 170. | Mounting bracket | BCAS1515・1520・1525・1616 | PKB-10P・PKB-10S | 141.5 | 2 pcs | DXF | DWG | |
| SSK- 200. | Mounting bracket | BCAS1212・1417 | PKB-10P・PKB-10S | 160.6 | 2 pcs | DXF | DWG | |
| SSK- 210. | Mounting bracket | BCAS0818・1018 | PKB-10P・PKB-10S | 171.7 | 2 pcs | DXF | DWG | |
| SSK- 250. | Mounting bracket | BCAS2020・2123・1020・1023・1423・1520 | PKB-10P・PKB-10S | 198.9 | 2 pcs | DXF | DWG | |
| SSK- 280. | Mounting bracket | BCAS0825・1525 | PKB-10P・PKB-10S | 339.2 | 2 pcs | DXF | DWG | |
| SSK-B4-15N. | Mounting screw | BCAS060905 - 212310 | - | 11.6 | 4 pcs |
