POLE MOUNTING BELT- PKB series


PKB Series -PDF

CATEGORY：Pole mounting belt, Pole mounting band, Tie wrap, Stainless steel tie, Stainless steel band

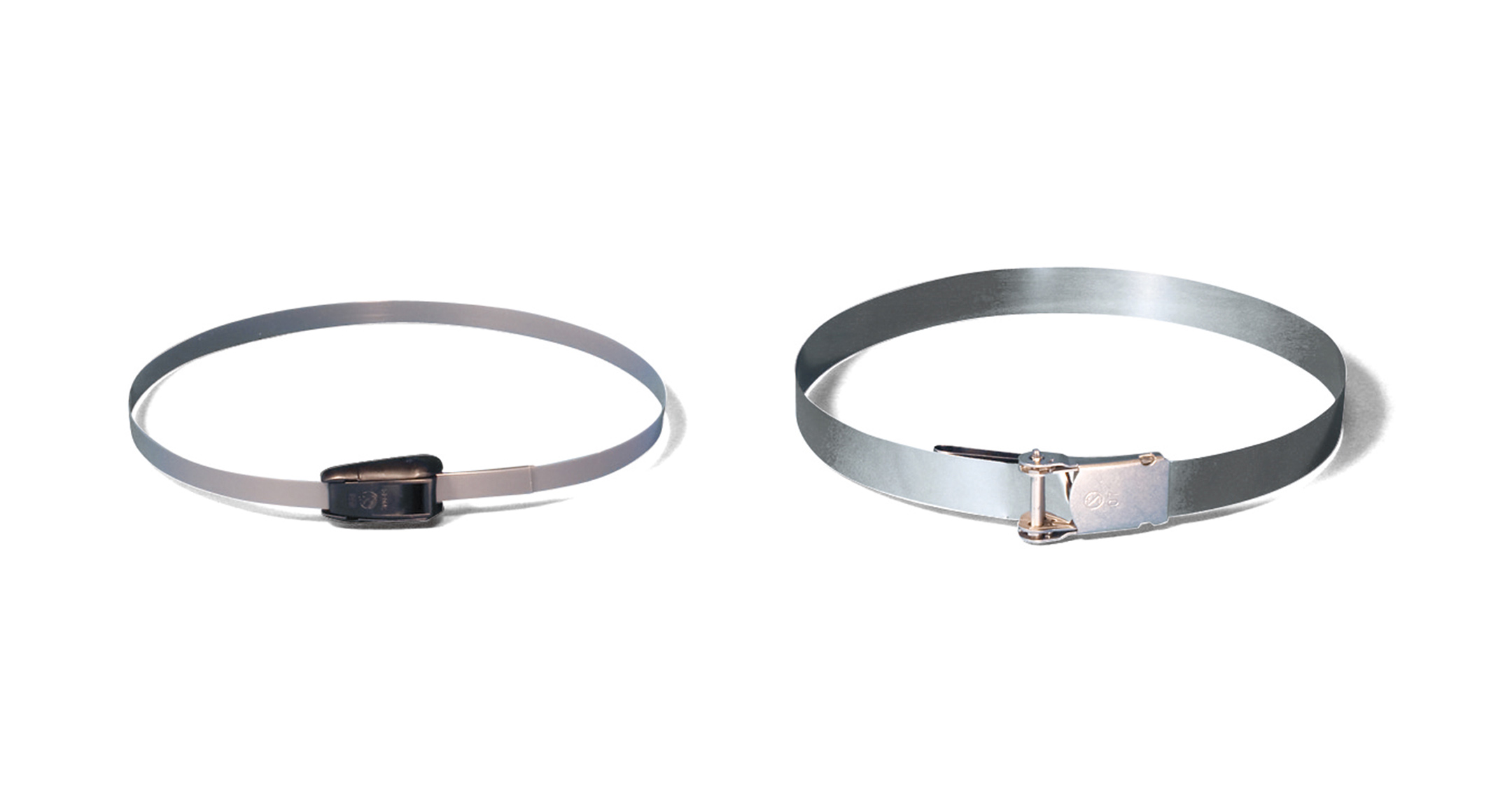

POLE MOUNTING BELT- PKB series
POLE MOUNTING BELT- PKB series1
Universal pole mounting belt for outdoor enclosures.
Shorter belt type PKB-10PM is available for φ25 to φ60mm poles.
Other belt types are for φ60 to φ400mm poles.

Designed for one time use only (not reusable).
Strong stainless steel clamping type and easy installation plastic type are available.
Use SSK mounting bracket for installation onto a pole.
Plastic belt - Installation guide  Stainless steel belt - Installation guide 

PRODUCT NO. / DIMENSIONS

Product No. Belt material Mountable pole diameter (mm) Belt width (mm) Belt length (mm) Weight (g) /2 pcs Pack of PDF DXF DWG
PKB-10PM PET 25～60φ 10 500 14 2 pcs PDF DXF DWG
PKB-10P PET 60φ～400φ 10 1500 31.8 2 pcs PDF DXF DWG
PKB-10S Stainless steel 60φ～400φ 10 1500 101.6 2 pcs PDF DXF DWG
PKB-20S Stainless steel 60φ～400φ 20 1500 182.2 2 pcs PDF DXF DWG

OPTIONAL PARTS

１
POLE MOUNT BRACKET for HINGED PLASTIC BOX
DETAILS
１
POLE MOUNT BRACKET for STAINLESS STEEL BOX
DETAILS
１
POLE MOUNT BRACKET for DIECAST ALUMINIUM BOX
DETAILS
１
POLE MOUNTING BRACKET for UPC
DETAILS
１
POLE MOUNTING BRACKET for SPCP・SPCM series
DETAILS
１

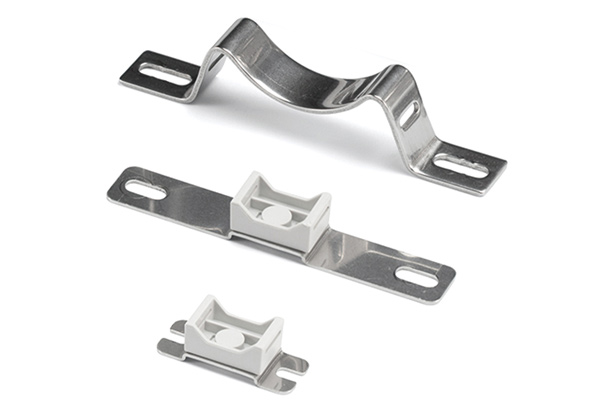

POLE MOUNTING BRACKET for BCAS series
DETAILS
１

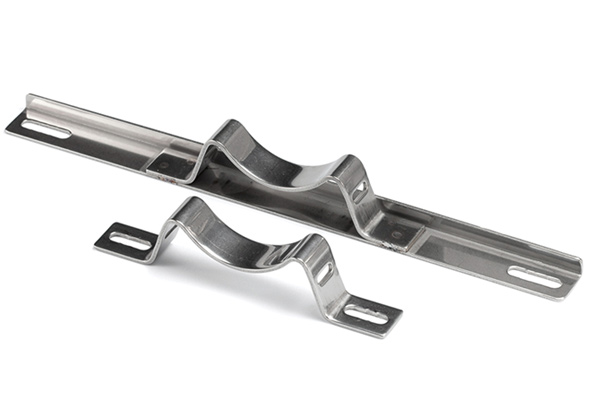

POLE MOUNTING BRACKET for BCAL series
DETAILS
