POLE MOUNTING BRACKET for SPCP・SPCM series


SSK_SPCP Series -PDF

CATEGORY：Pole mounting bracket, Stainless steel bracket

POLE MOUNTING BRACKET for SPCP・SPCM series
POLE MOUNTING BRACKET for SPCP・SPCM series
POLE MOUNTING BRACKET for SPCP・SPCM series1
POLE MOUNTING BRACKET for SPCP・SPCM series2

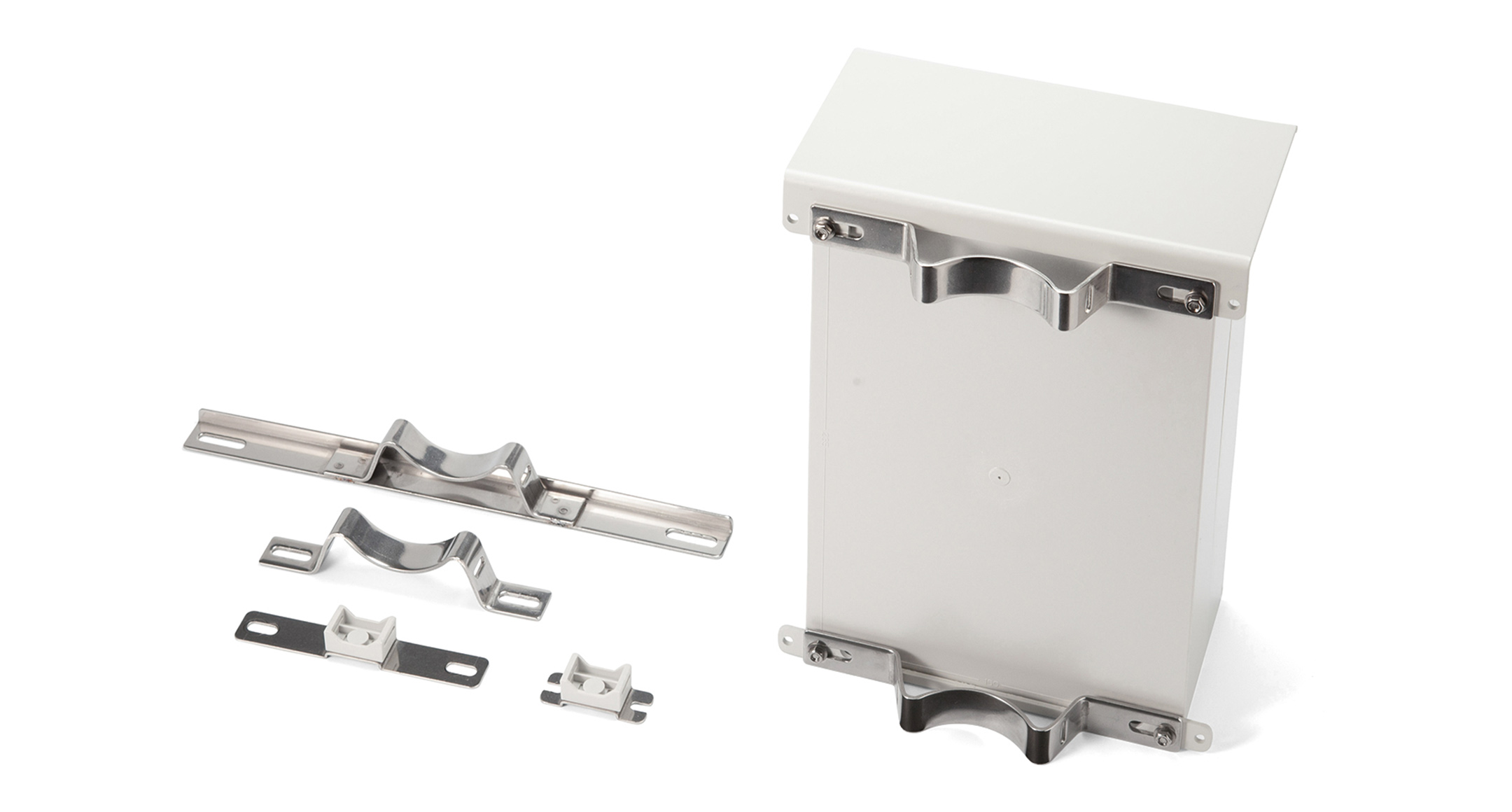

Stainless steel pole mount bracket for SPCP・SPCM series.
No hole milling is required for maintaining the IP rating of the box.

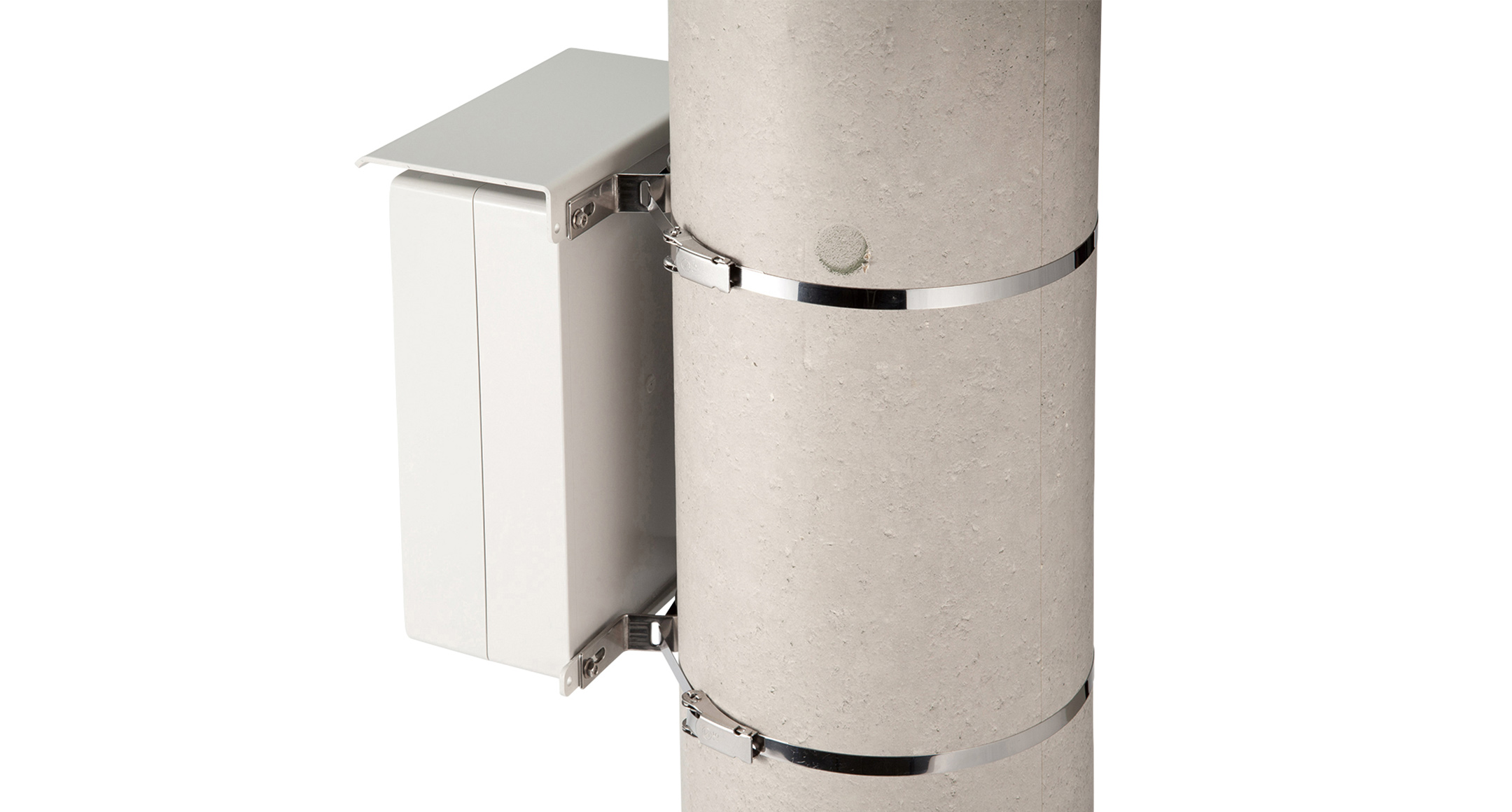

Use optional mounting belt to install onto a pole. (PKB series)

PRODUCT NO. / DIMENSIONS

Product No. Parts description Suitable box Belt to use with (Option) Weight (g) (1set ) Pack of PDF DXF DWG
SSK- P75 Mounting bracket SPCP/SPCM0813 PKB-10P・PKB-10S 38.5 2 pcs PDF DXF DWG
SSK- P100 Mounting bracket SPCP/SPCM1010 PKB-10P・PKB-10S 40.7 2 pcs PDF DXF DWG
SSK- 160 Mounting bracket SPCP/SPCM0813・1313・1318 PKB-10P・PKB-10S 134 2 pcs PDF DXF DWG
SSK- 200 Mounting bracket SPCP/SPCM1818・1825・1318 PKB-10P・PKB-10S 160.6 2 pcs PDF DXF DWG
SSK- 280 Mounting bracket SPCP/SPCM1825 PKB-10P・PKB-10S 339.2 2 pcs PDF DXF DWG
SSK- B4-25N Mounting screw - - 14.3 4 pcs
